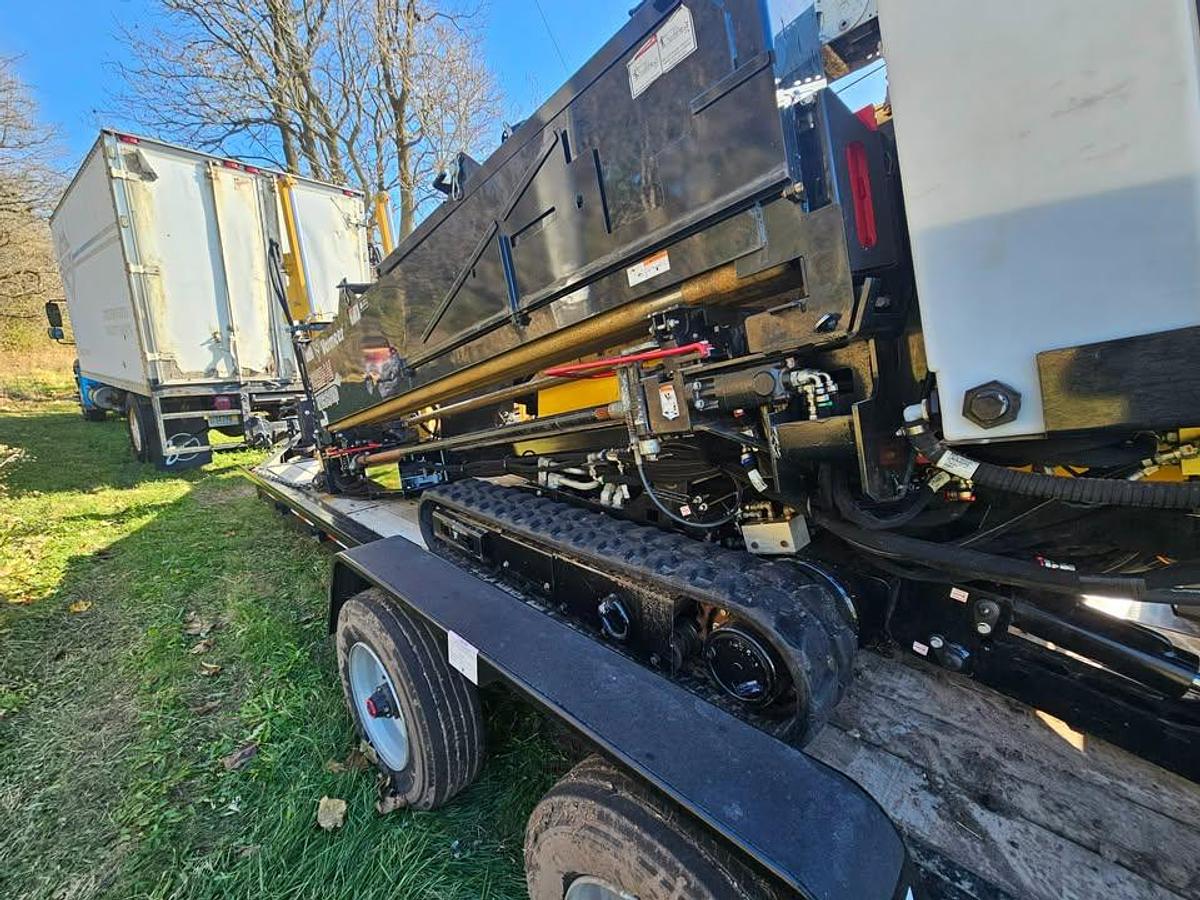

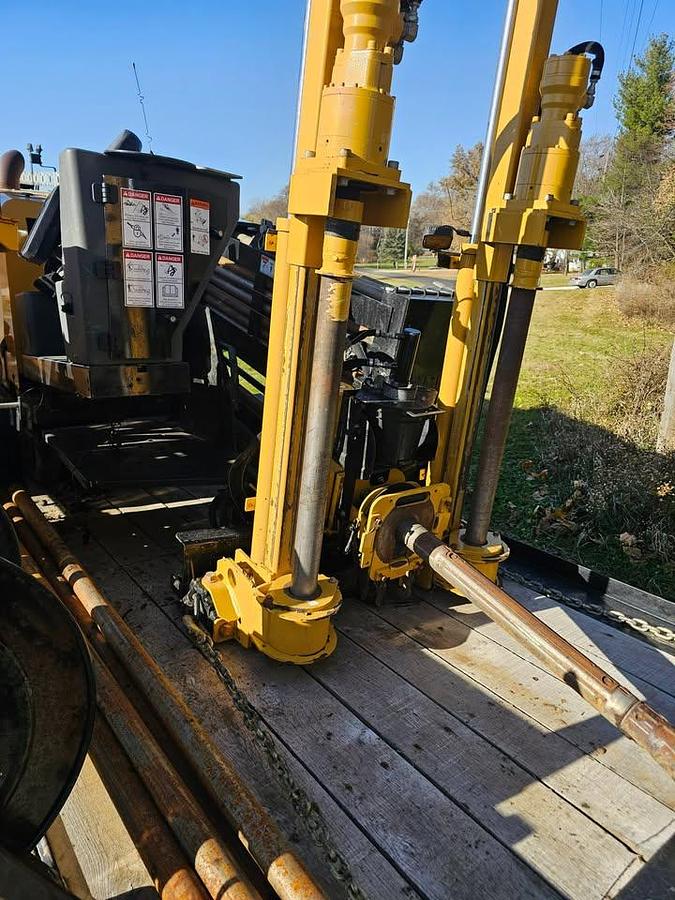

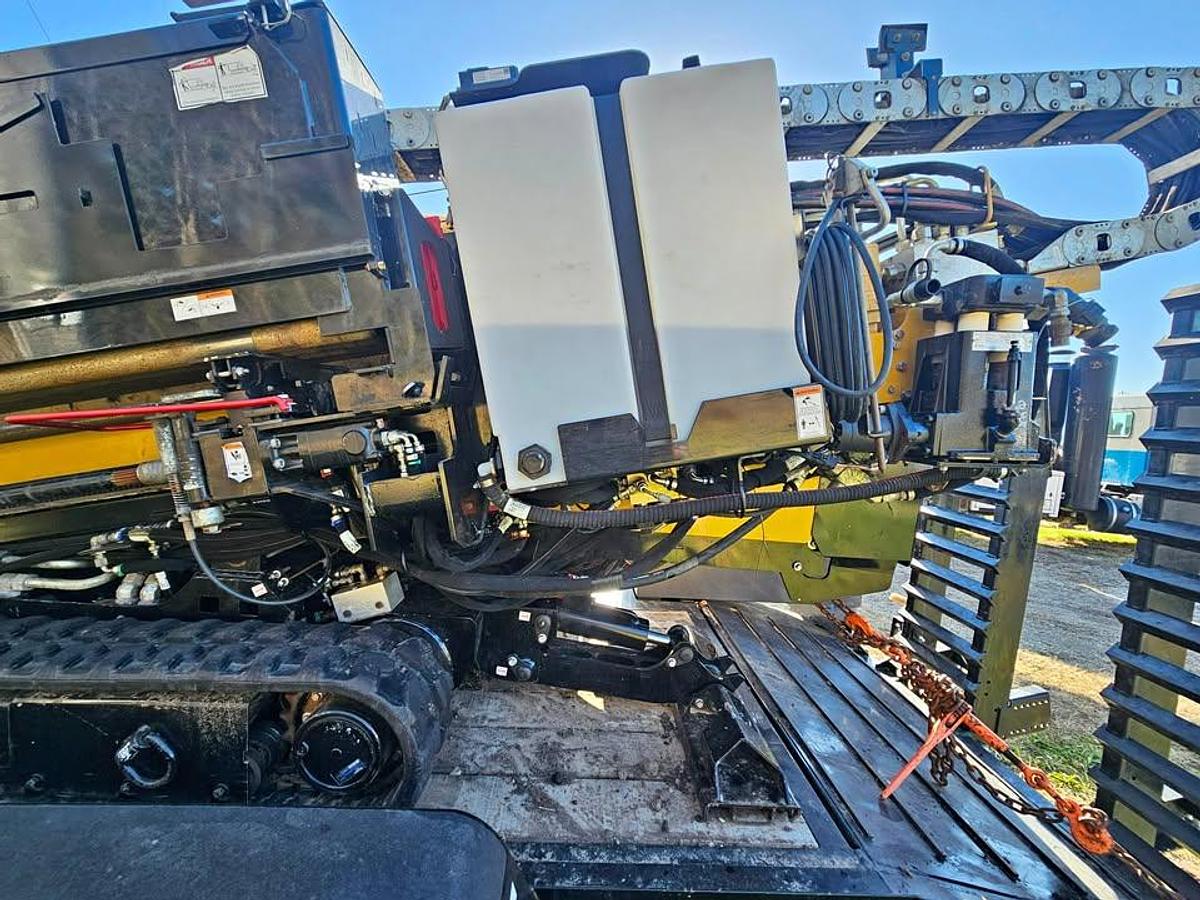

2024 Vermeer 20X22 Complete Package

Seize the opportunity to acquire a virtually new, complete drilling spread! This 2024 Vermeer D20X22 has incredibly low 1,140 hours and comes fully integrated with a high-end Behnke trailer, a 500-gallon mixing system, and the latest DCI F5+ locating equipment. This package is 100% ready for immediate, high-efficiency fiber and utility installation. The D20X22 is engineered for precision and power, featuring the robust 74 HP Deutz Tier 4 Final engine and Vermeer’s advanced R.A.T.T. (Rotational Assistance Traction Technology) system for superior performance in tough ground. Its narrow 47 inch transport width allows easy access to restricted urban sites. This setup offers unparalleled value with the included Behnke drop-deck trailer, Vermeer MX125 mixer, and the advanced DCI F5+ locating system.

Complete package includes Rock Bit Sonda Housing Tailer Mix System Locator!

Key Specs:

2024 Vermeer D20X22III Directional Drill

Model Year/Hours: 2024 Vermeer D20X22III with 1,140 Hours

Engine: Deutz TD2.9L4 74 HP/55 kW - Tier 4F/Stage IIIB Engine

Thrust/Pullback: 19,550 lbs

Rotational Torque: 2,250 ft-lbs

Drill Rod: 2.06 inch Drill Rod (Firestick FS1 - one piece forged)

Carriage Speed: 167 FPM Max Carriage Speed

Rotation Speed: 2 Speed Rotation - 257 RPM max in high range

Pumping System: 25 GPM Water Pump at 1,000 PSI max pressure

Frame/Mobility: 47 inch Min Transport Width, Rubber Track System

Advanced Features: R.A.T.T. System {Auto Pullback System}, and Dual Joystick controls.

Safety/Maintenance: Remote Lock Out Safety System, Strike Alert Safety System, Auto Greaser Kit, and Lifetime Warranty on Rack & Pinion System.

Package Components (Trailer, Mixer, Locator)

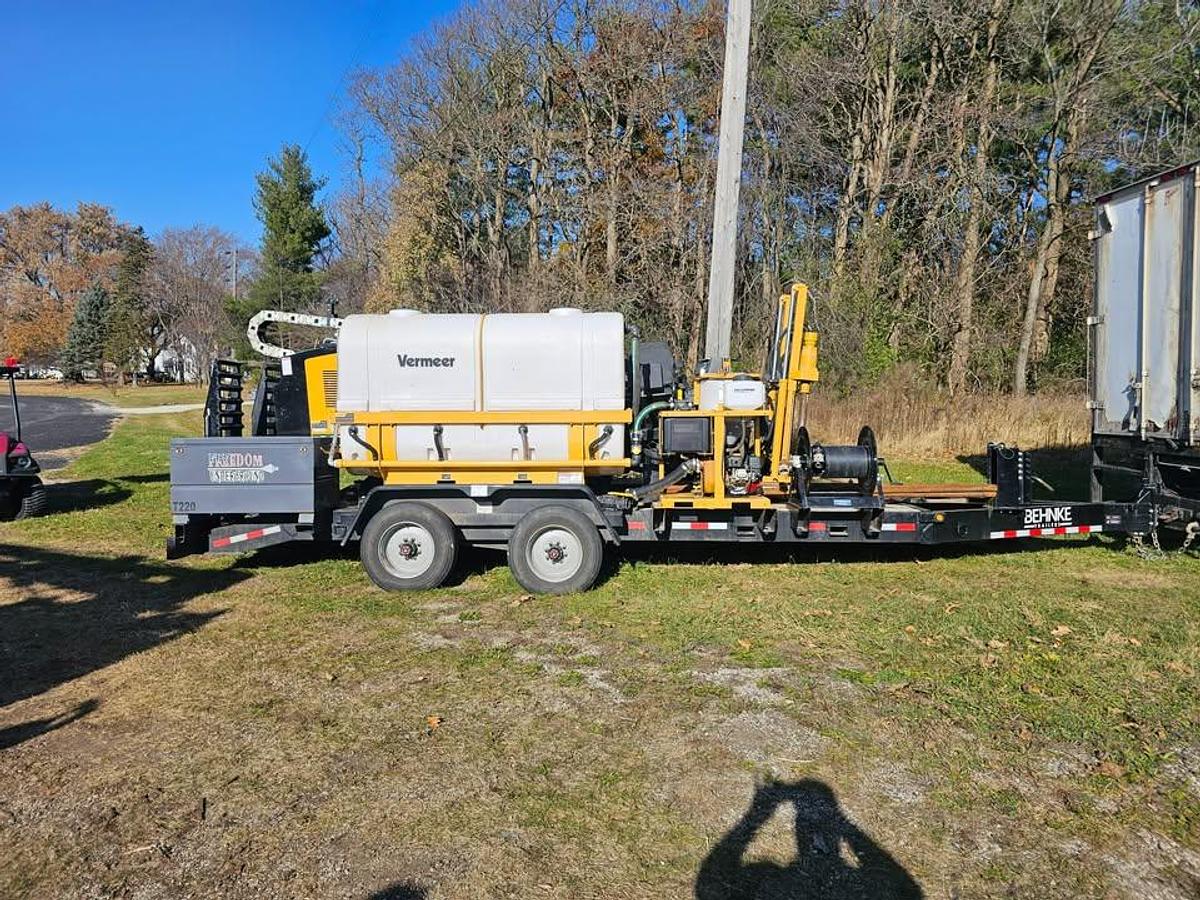

Trailer: 24K Drop-Deck Behnke Directional Drill Trailer

Includes Mounted Mixing System, Lockable Tool Box, Hose Reel, and Additional Rod Storage.

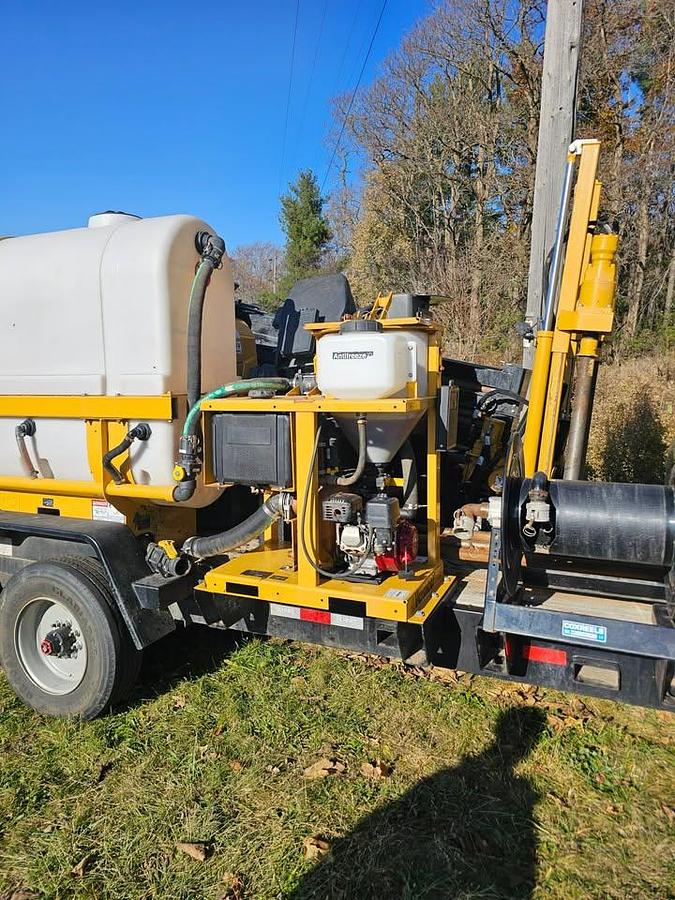

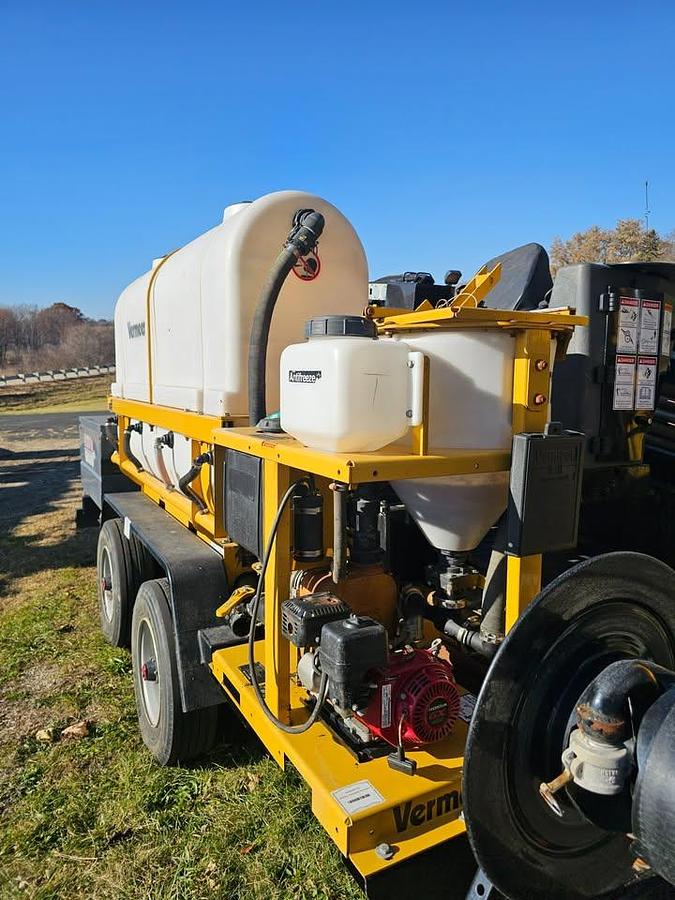

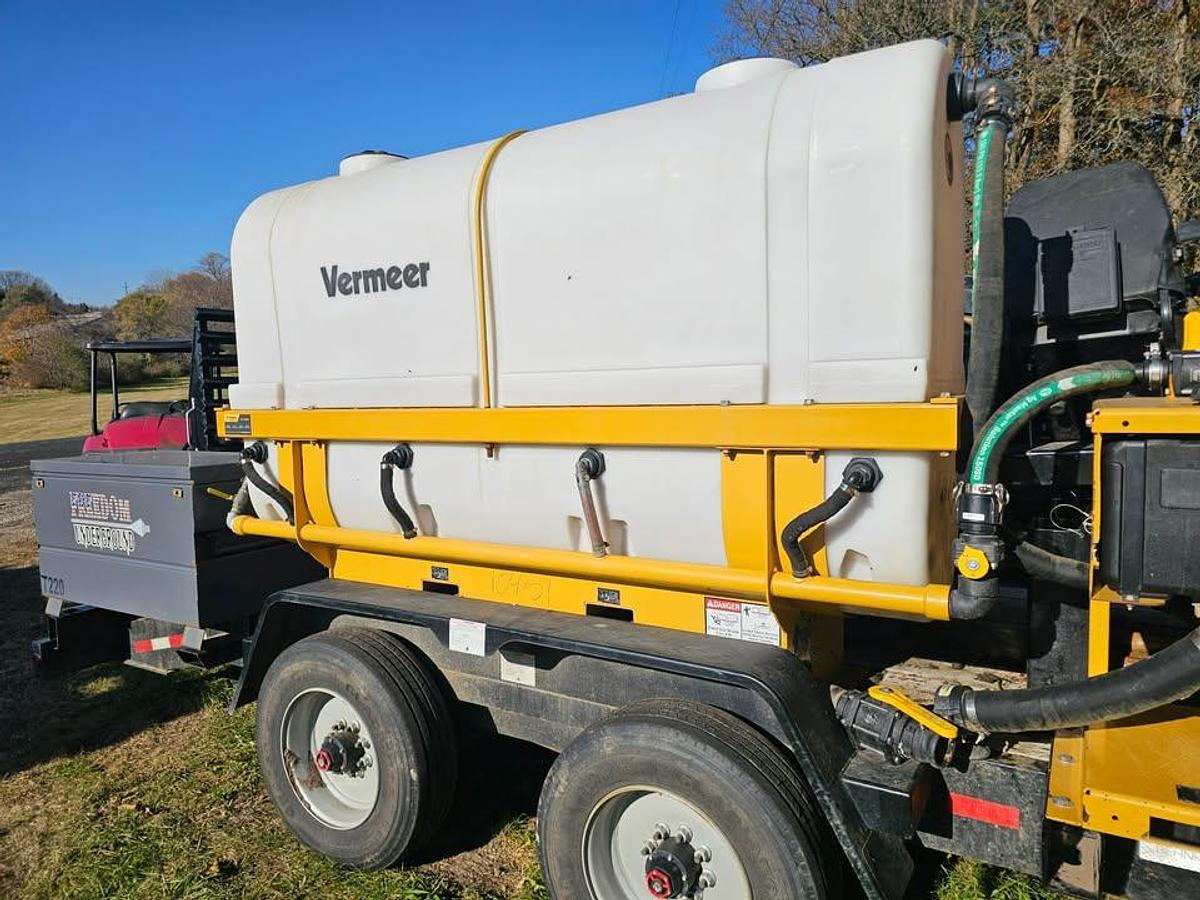

Mixing System: Vermeer MX125 Mixer with 500 Gallon Tank

Engine: 5.5 HP Honda Gas Engine (Warranty into July 2026)

Pump: Monarch 3 inch Grease Seal Pump

Features: Integrated Mixing Hopper (Venturi System) and 4 Inline Educator Nozzles.

Locating System: 2024 DCI F5+ Falcon Package with AF8 Remote (Premium locating gear)
