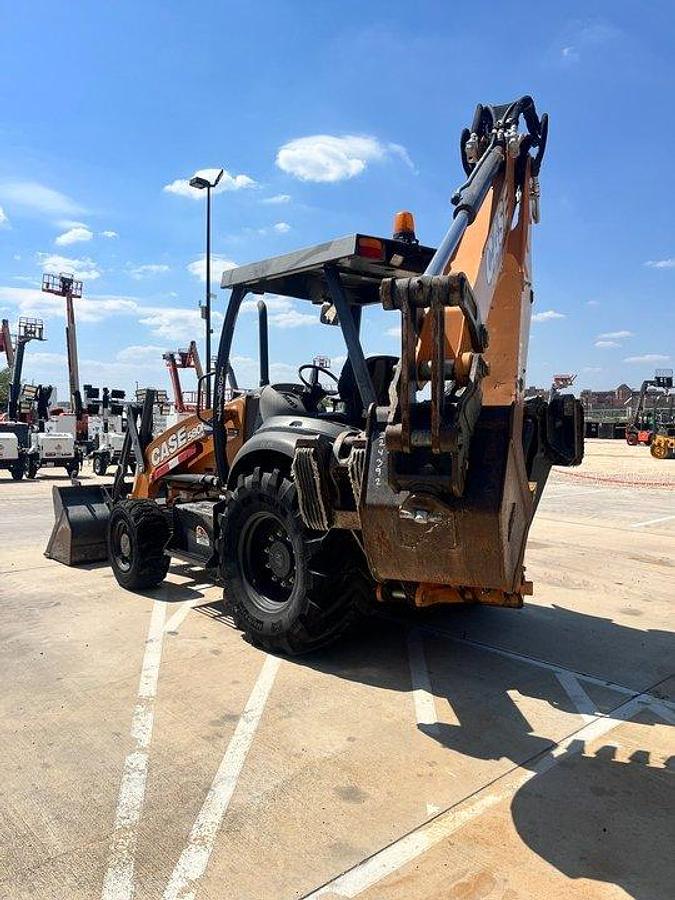

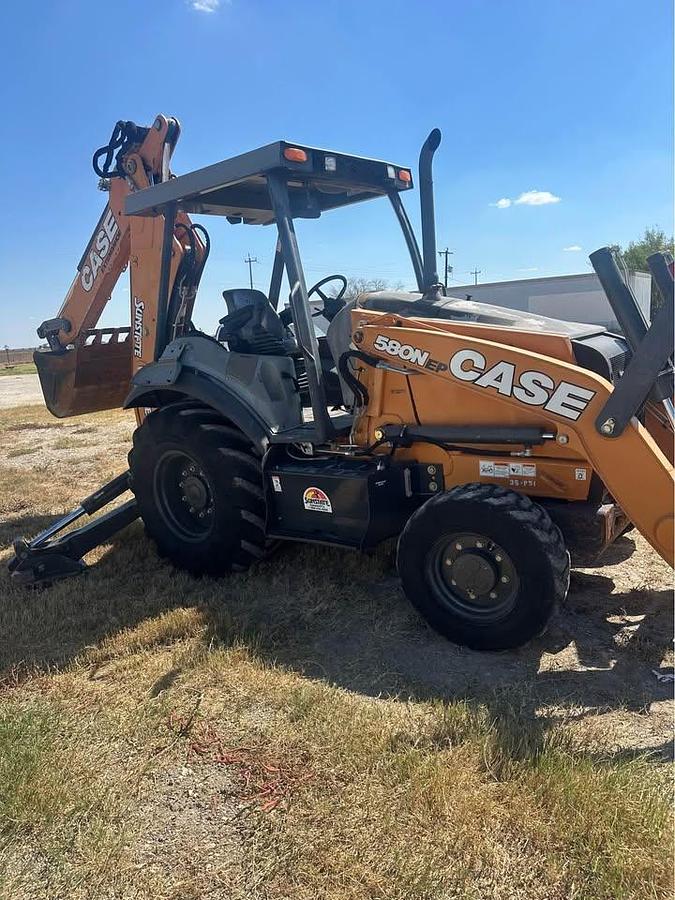

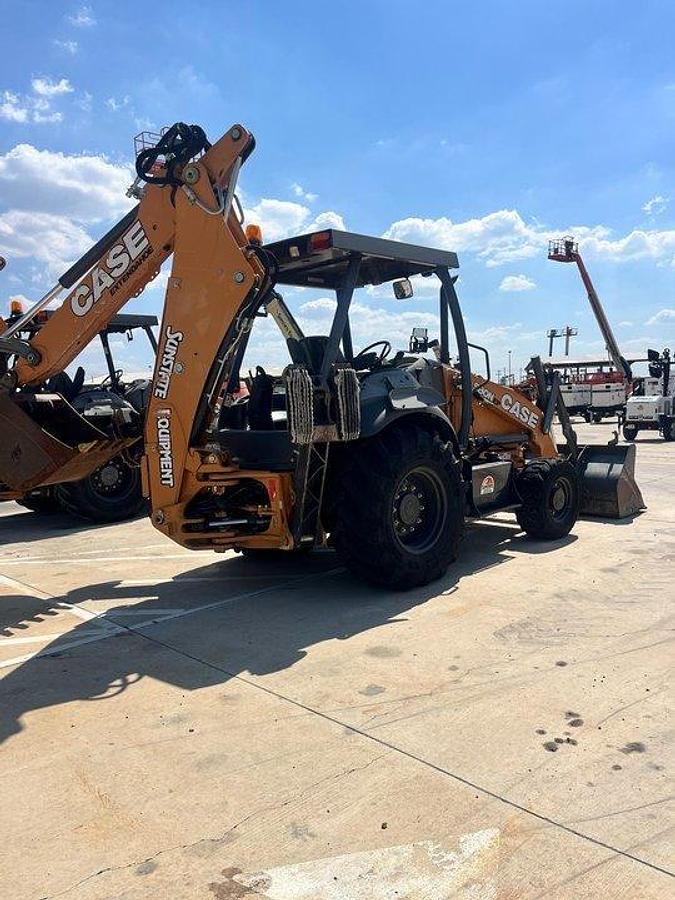

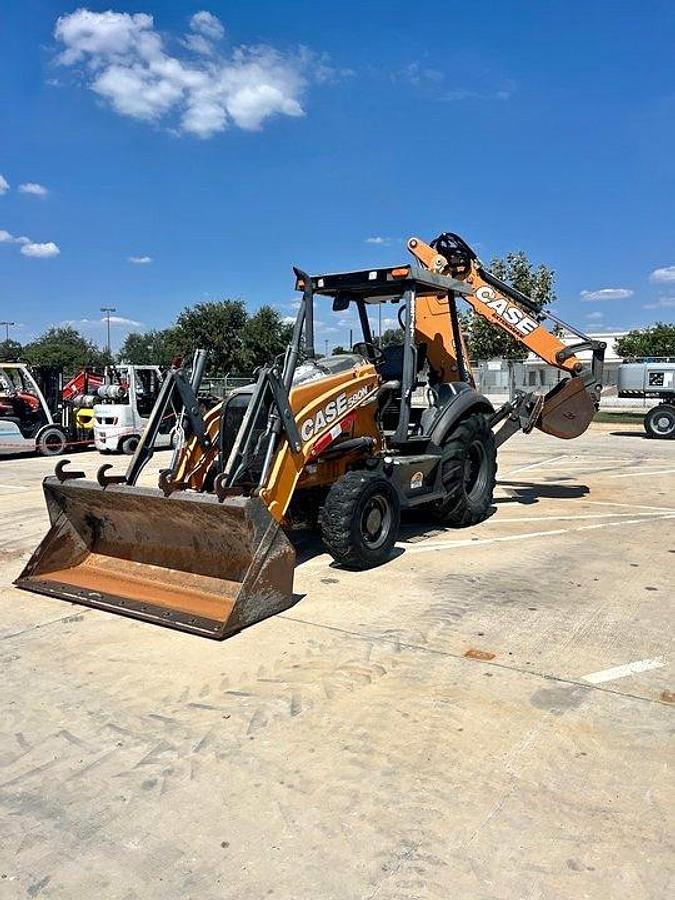

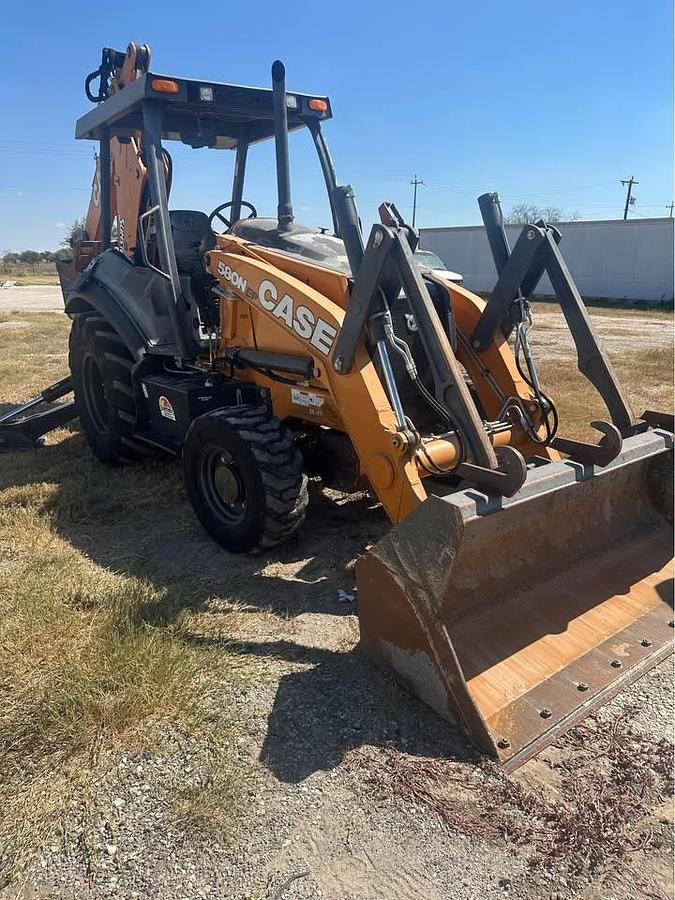

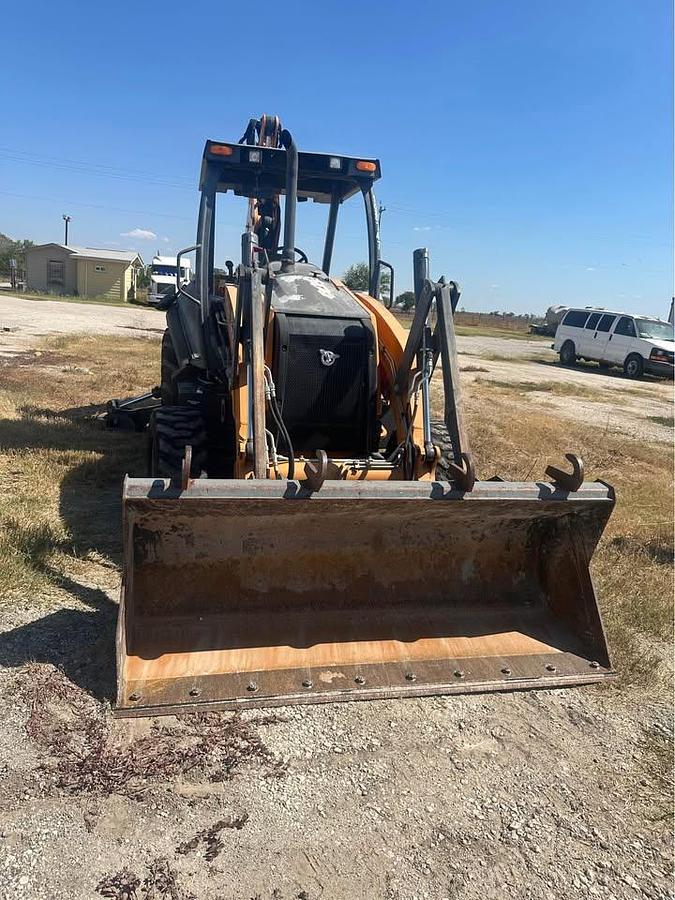

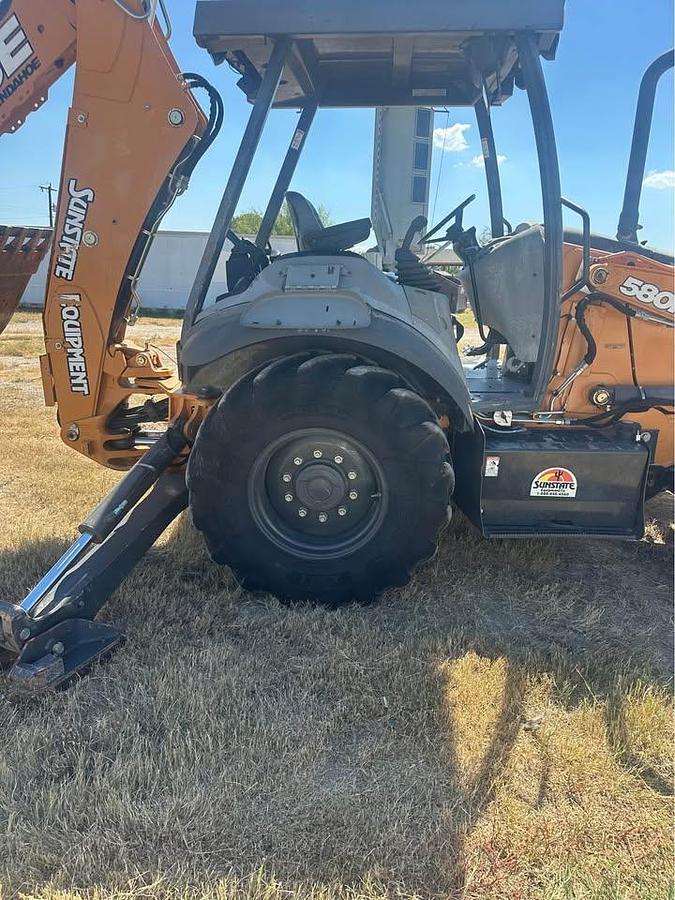

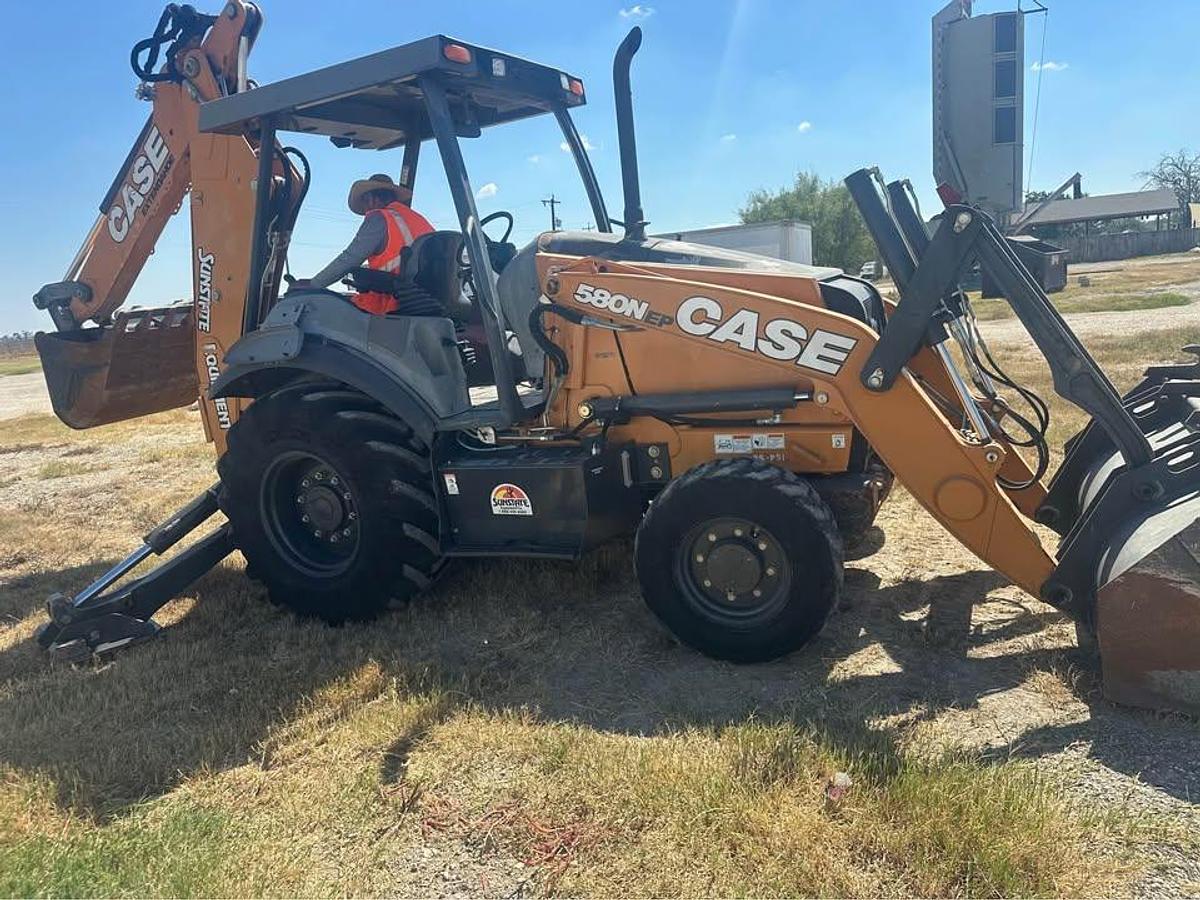

2020 Case 580N EP Backhoe Loader

2020 Case 580N EP Backhoe Loader

This ex-rental, one-owner 2020 Case 580N EP has been immaculately maintained and includes complete maintenance records. With only 1,600 original hours, this unit runs strong, looks sharp, and is ready for immediate work.

Equipped with 4-wheel drive for dependable traction and an Extendahoe for added digging depth. The Tier 4 Final FPT diesel engine is fully California compliant with no DEF or DPF required — low maintenance, reliable, and fuel-efficient.

Key Highlights

• 2020 Model Year
• Ex-rental, one owner
• Full service history – immaculately maintained
• 4x4 Power Shuttle transmission
• Extendahoe with 18’6” dig depth
• Only 1,600 hours
• Tier 4 Final (California compliant)
• Tight, clean, and fully work-ready

Engine

• Make: FPT F5HFL463D – 4-cylinder turbo diesel
• Emissions: Tier 4 Final (DOC only, no DPF/DEF)
• Displacement: 3.4 L (207 cu in)
• Gross Power: 74 hp (55 kW) @ 2200 rpm
• Net Power: 68 hp (51 kW)
• Max Torque: 233 lb-ft @ 1400 rpm

Transmission

• Type: Power Shuttle, Synchromesh
• Gears: 4 forward / 4 reverse
• Drive: 4x4
• Max Travel Speed: 25.5 mph (41 km/h)

Hydraulics

• Pump Type: Gear pump
• Flow: 28.6 gal/min (108 L/min)
• System Pressure: 3350 psi (231 bar)

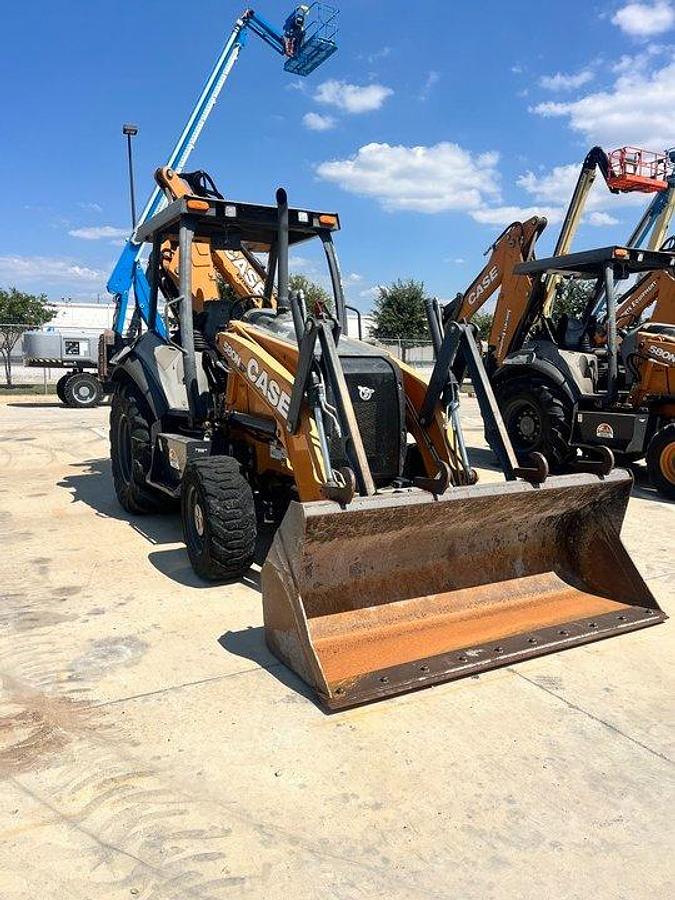

Loader

• Lift Capacity: 6,500 lb (2,950 kg)
• Breakout Force: 9,600 lb (4,358 kg)
• Dump Height: 8 ft 8 in (2.64 m)
• Bucket Width: 82 in (2.08 m)
• Bucket Capacity: 1.0 yd³ (0.76 m³)

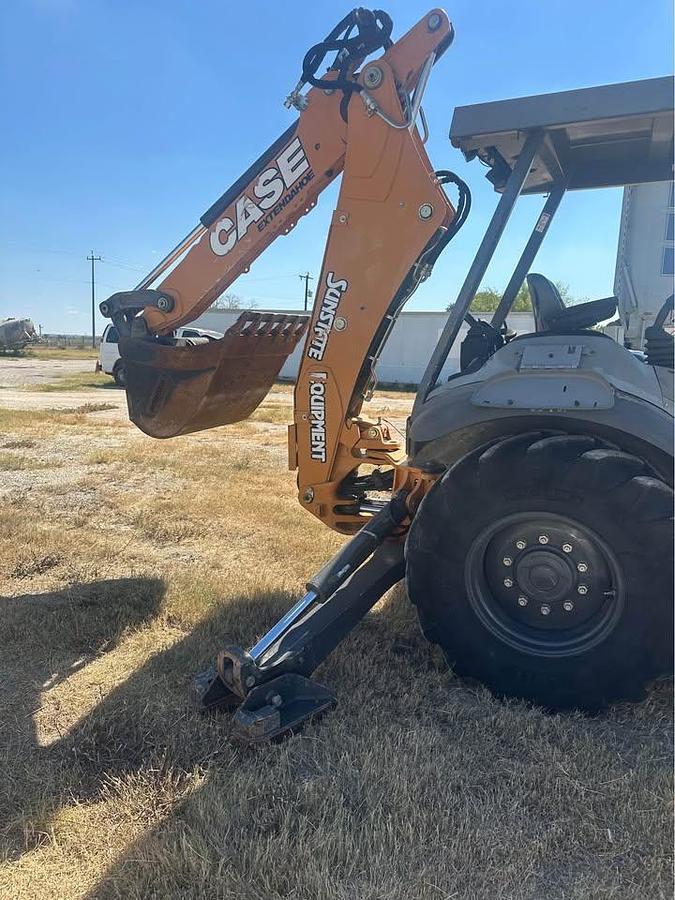

Backhoe

• Type: Extendahoe
• Max Dig Depth: 18 ft 6 in (5.63 m)
• Max Reach: 22 ft 9 in (6.93 m)
• Bucket Breakout: 11,517 lb (5,224 kg)
• Swing Arc: 180 degrees

Dimensions and Weight

• Length: 23 ft 0 in (7.01 m)
• Width: 7 ft 1 in (2.17 m)
• Height: 10 ft 10 in (3.30 m)
• Operating Weight: 15,795 lb (7,164 kg)

Capacities

• Fuel: 30.2 gal (114 L)
• Hydraulic Oil: 15.9 gal (60 L)
• Cooling System: 4.2 gal (16 L)
• Engine Oil: 2.6 gal (10 L)

Tires

• Front: 12.5/80-18 (4WD)
• Rear: 19.5L-24

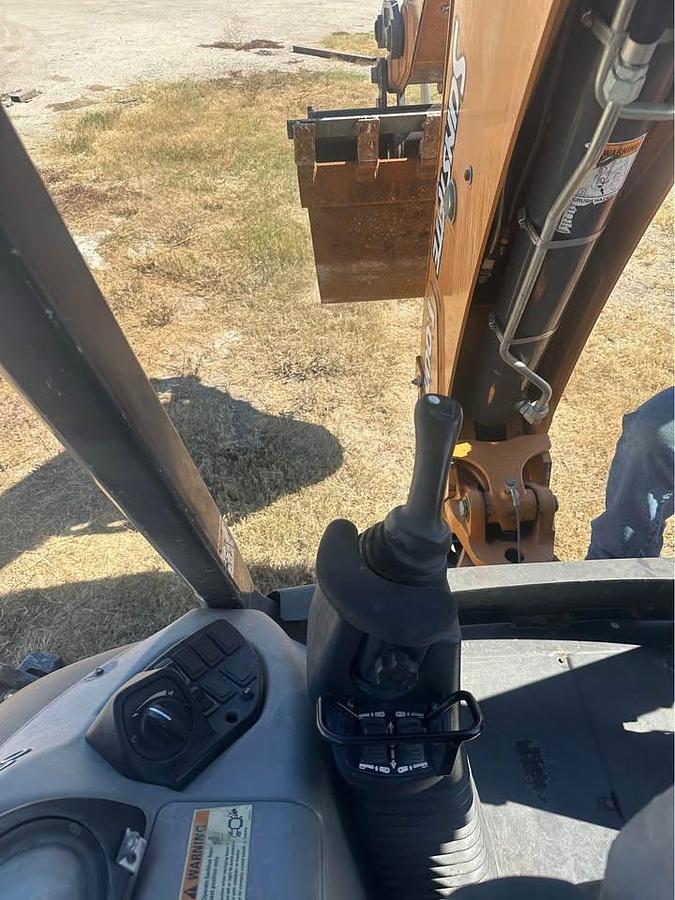

Operator Station

• ROPS/FOPS certified cab or canopy

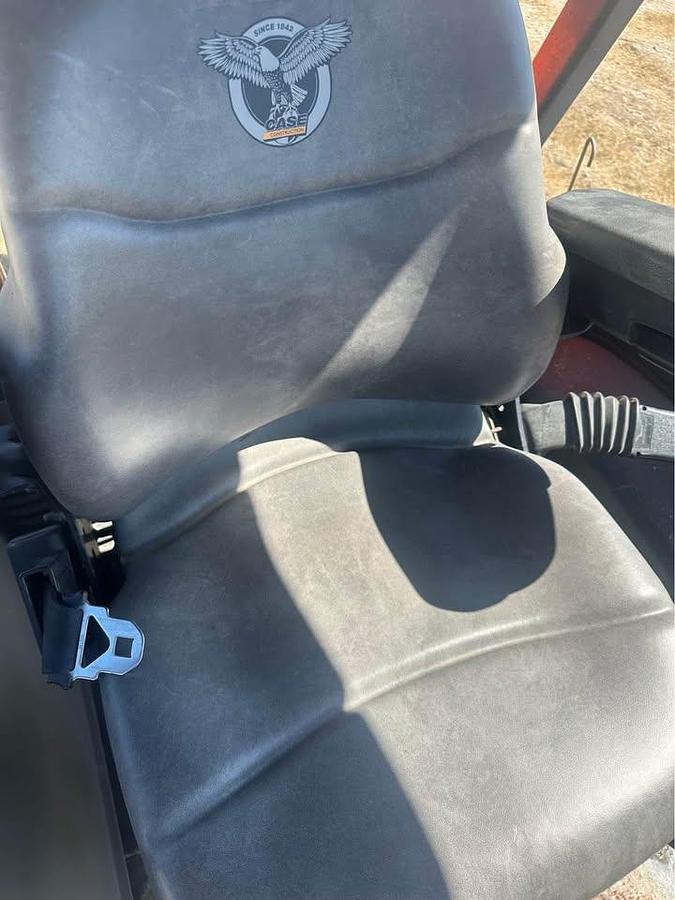

• Suspension seat, adjustable steering
• Optional A/C and heater

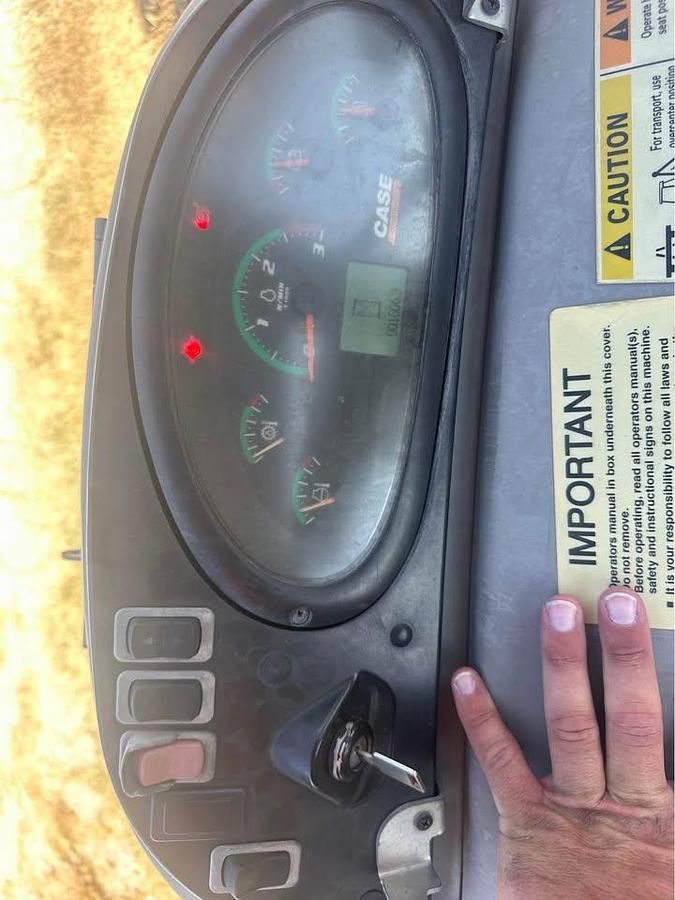

• Full analog/digital instrumentation
