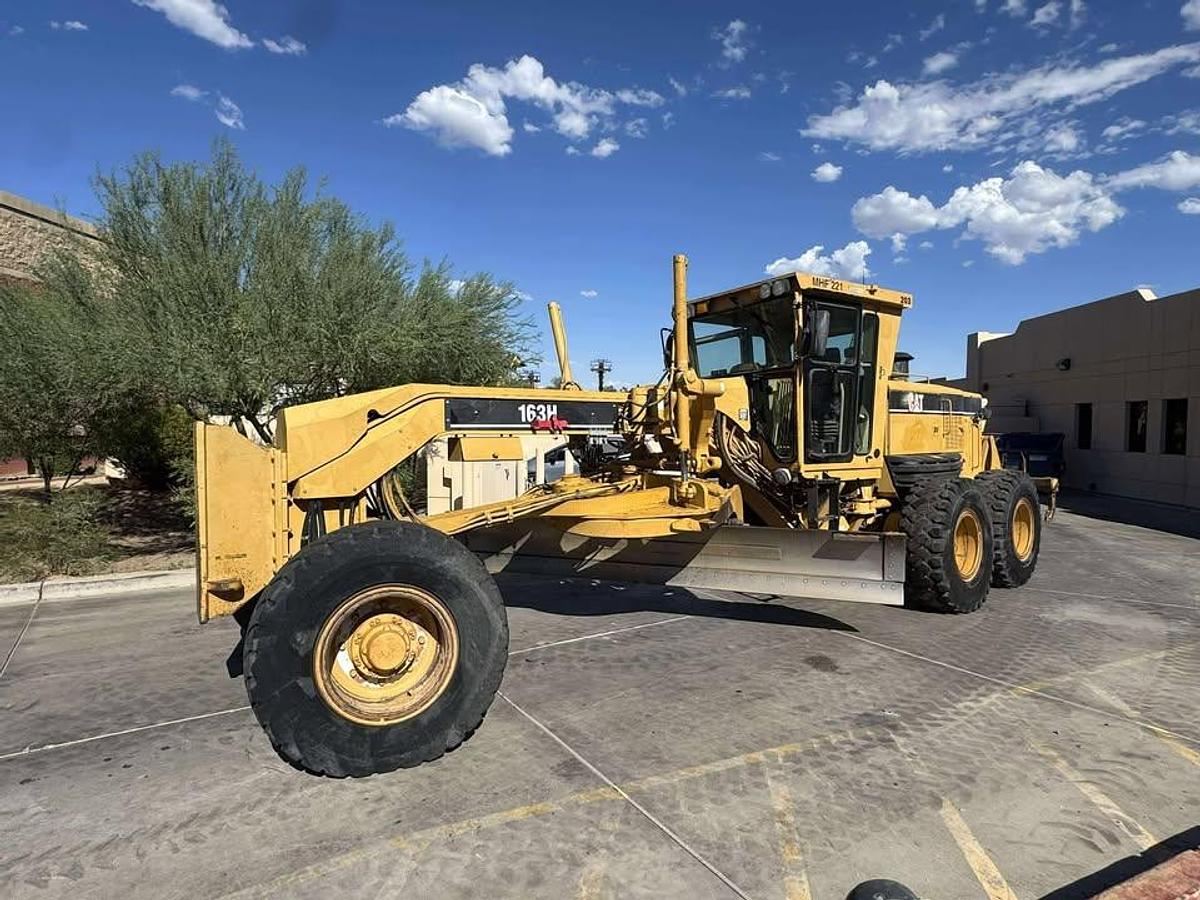

2003 Caterpillar 163H Motor Grader

2003 Caterpillar 163H Motor Grader

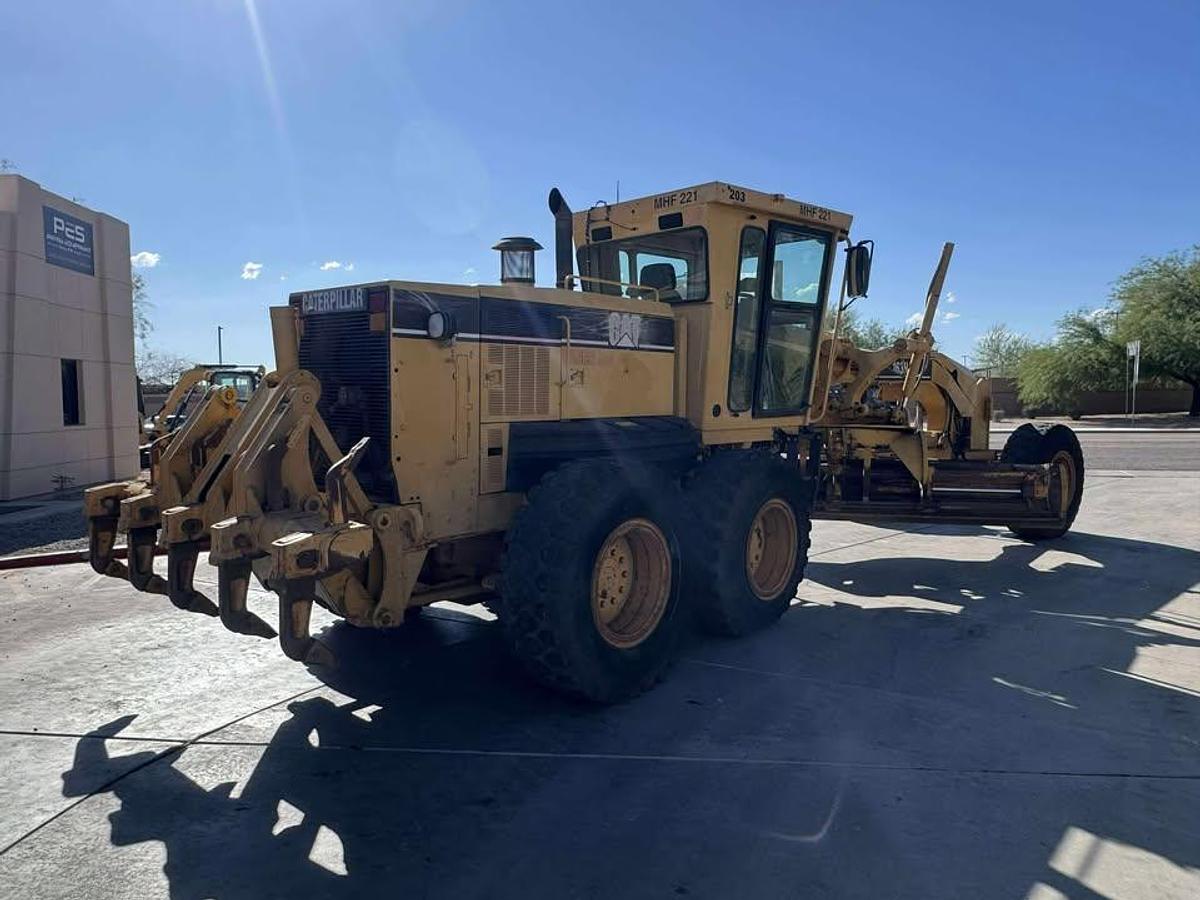

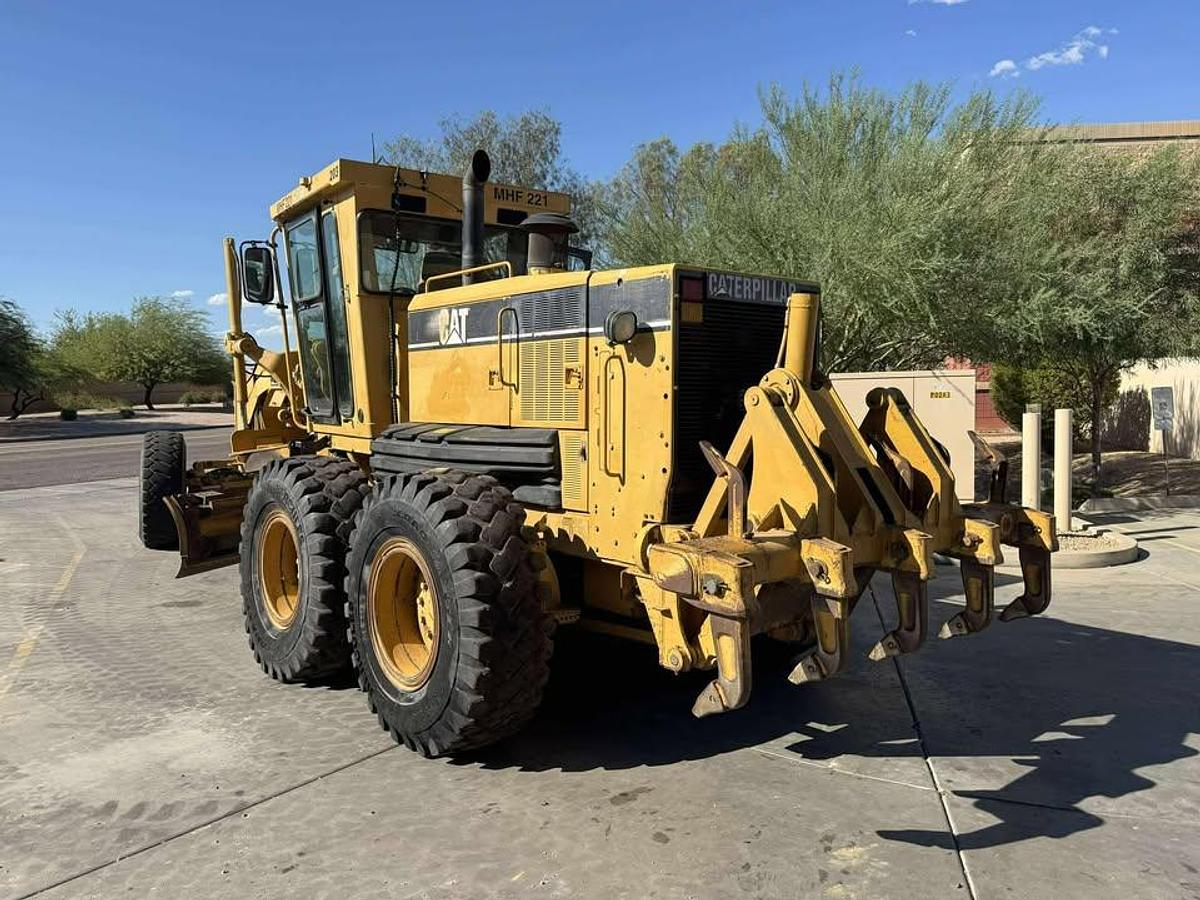

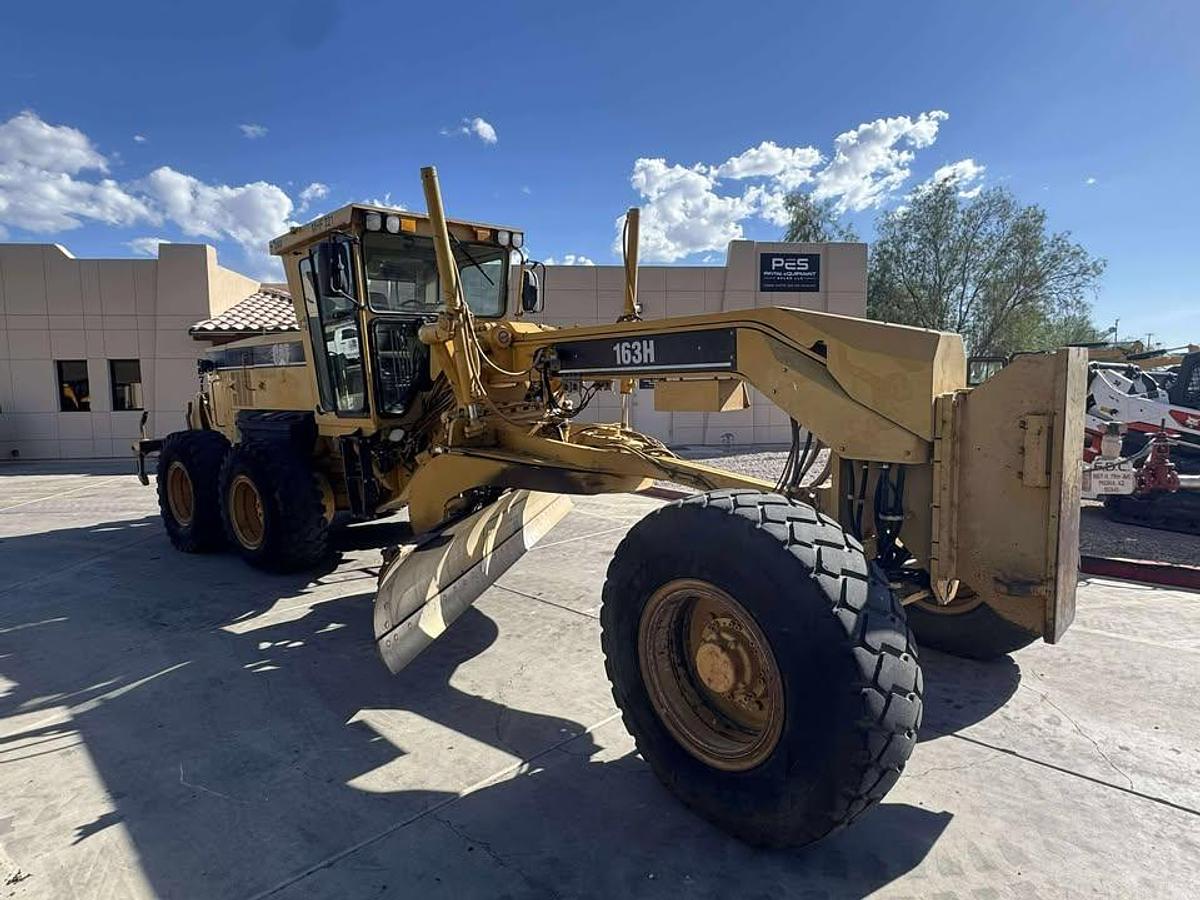

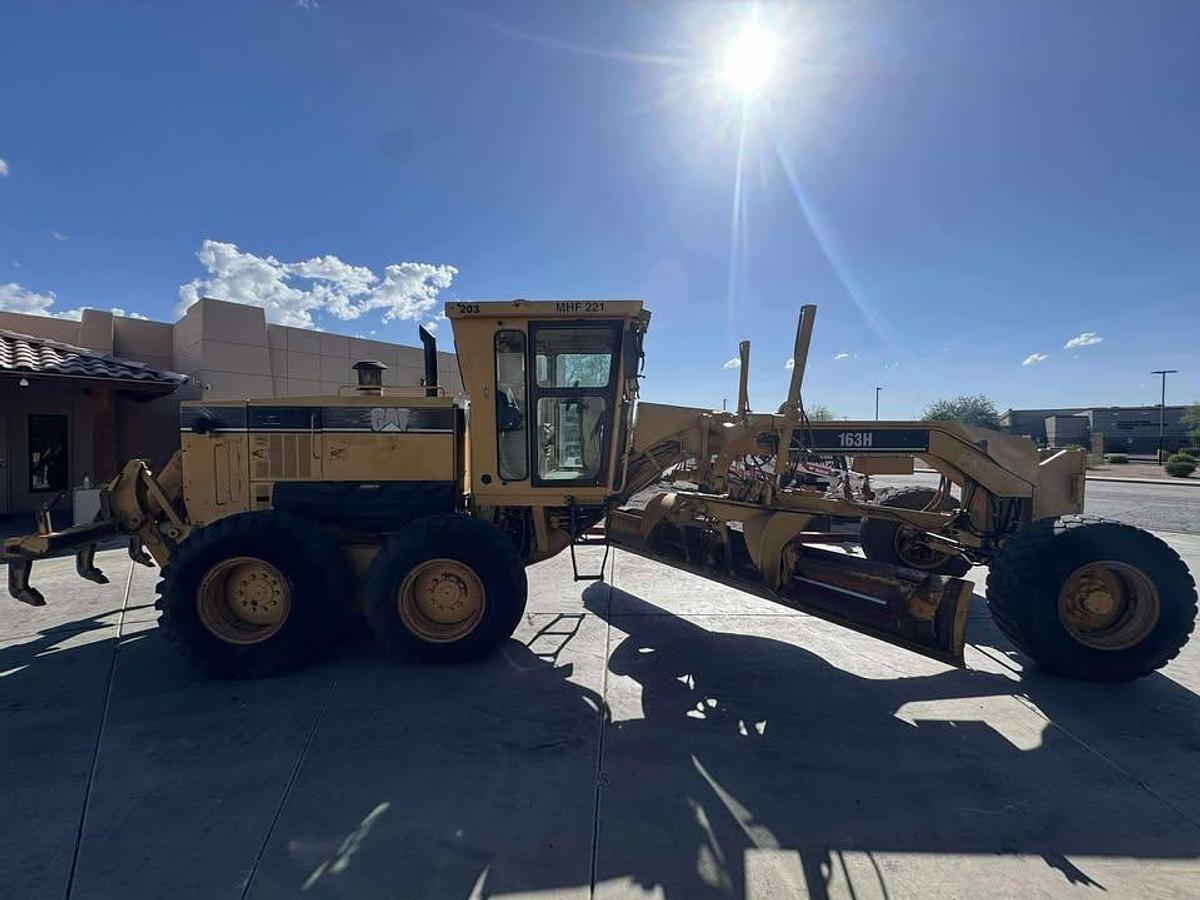

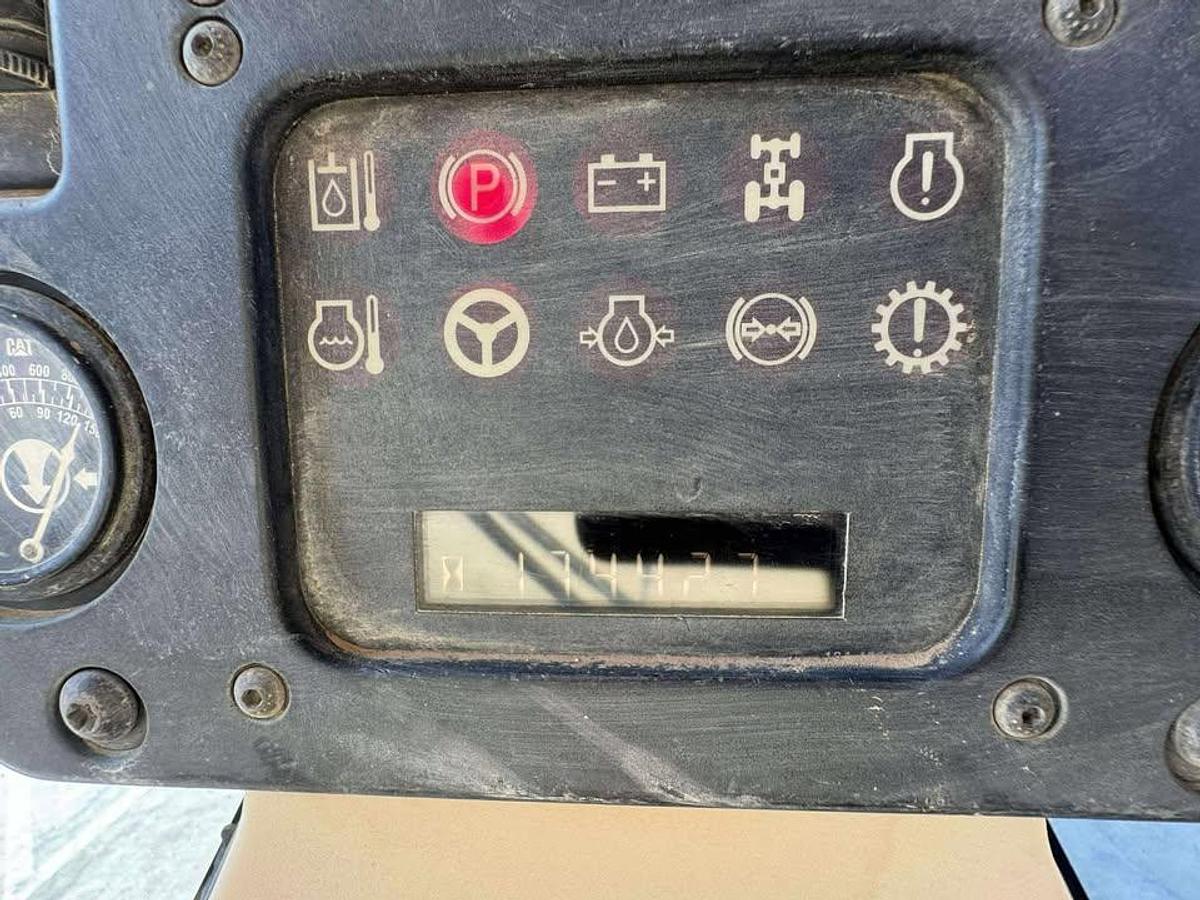

This well-maintained 2003 CAT 163H Motor Grader is ready to get to work. Powered by a strong 3176 CAT diesel engine producing 220 HP, this machine has 17,000 hours and recently received a full engine overhaul.

Features include:

• 14' moldboard

• 6x6 all-wheel drive

• Wired for TopCon (GPS not included)

• Cold A/C and heat for year-round comfort

• Fresh center pins (only 20 hours on them)

Runs and operates excellent. A solid, dependable grader ready for road work, snow removal, or construction applications.

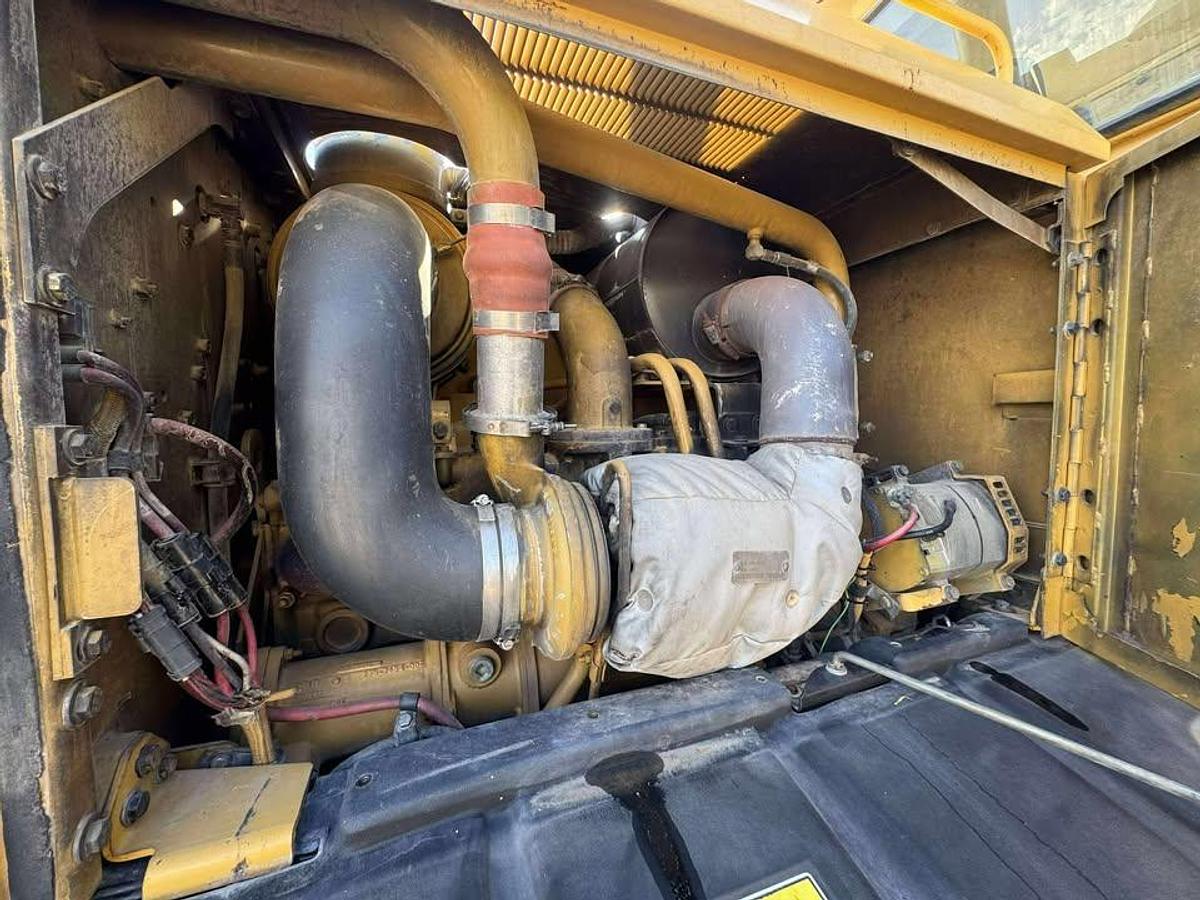

Engine

• Make: Caterpillar
• Model: 3176 Diesel
• Net Power: 220 HP (164 kW)
• Cylinders: 6
• Displacement: 10.3 L (629 cu in)
• Aspiration: Turbocharged and aftercooled

Operating Specifications

• Operating Weight (standard): 38,000 lb (17,236 kg)
• Fuel Capacity: 110 gal (416 L)
• Cooling System Capacity: 12.7 gal (48 L)
• Hydraulic System Capacity: 23 gal (87 L)

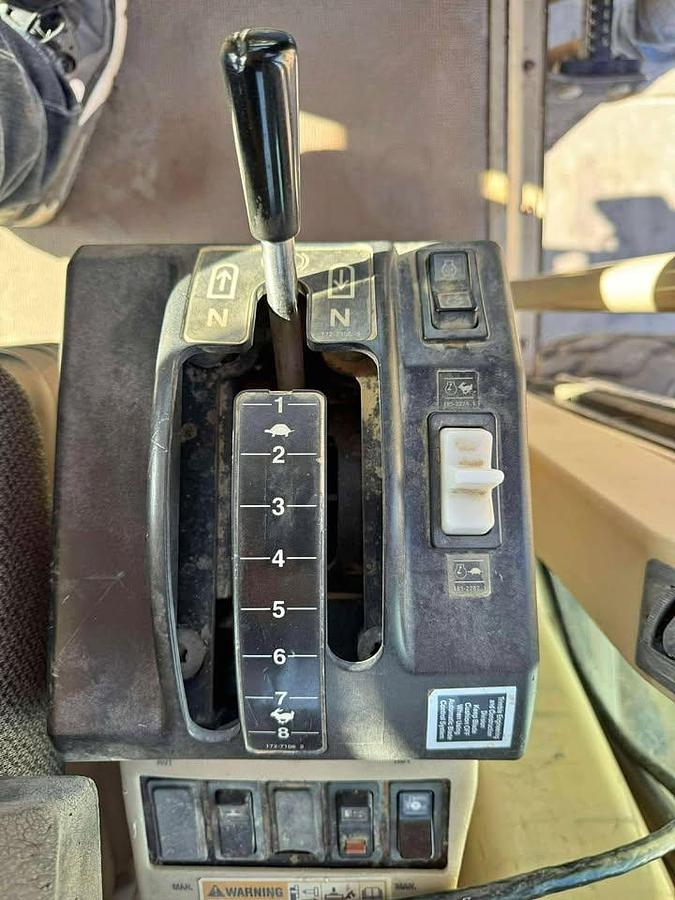

• Transmission Type: Direct Drive, Powershift
• Number of Gears: 8 Forward / 6 Reverse
• Top Speed (Forward): 28 mph (45 km/h)
• Top Speed (Reverse): 23 mph (37 km/h)
• Drive System: 6x6 All-Wheel Drive

Blade (Moldboard)

• Blade Width: 14 ft (4.27 m)
• Blade Height: 27 in (686 mm)
• Blade Thickness: 1 in (25 mm)
• Maximum Blade Lift Above Ground: 16.3 in (414 mm)
• Blade Side Shift (Right): 26 in (660 mm)
• Blade Side Shift (Left): 20 in (508 mm)
• Circle Diameter: 60.2 in (1539 mm)
• Blade Tip Range (Forward): 40°
• Blade Tip Range (Backward): 5°

Hydraulics

• Type: Closed-center, load-sensing system
• Pump Flow at 2,150 rpm: 55 gal/min (208 L/min)
• System Pressure: 3,000 psi (20,700 kPa)

Steering & Turning

• Articulation: 20° left/right
• Turning Radius (outside front tires): 27 ft (8.2 m)
• Steering Angle (left/right): 50°

Dimensions

• Overall Length: 31 ft 4 in (9.55 m)
• Width (front tire to front tire): 8 ft 2 in (2.49 m)
• Height (top of cab): 10 ft 9 in (3.28 m)
• Wheelbase: 21 ft (6.4 m)
• Ground Clearance: 14.3 in (363 mm)

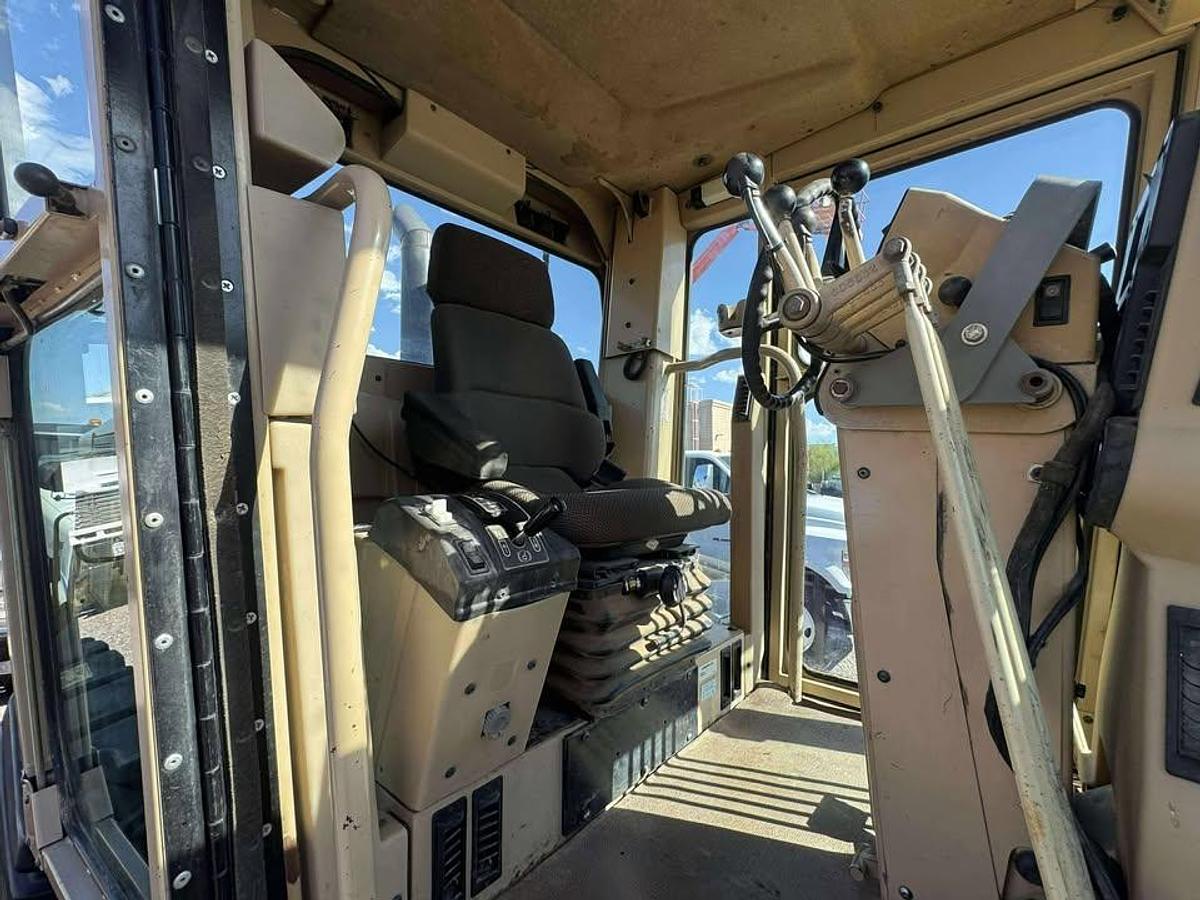

Cab & Features

• ROPS cab with heat and A/C
• Air-suspension operator seat
• Full hydraulic controls
• Wired for TopCon GPS (GPS system not included)
