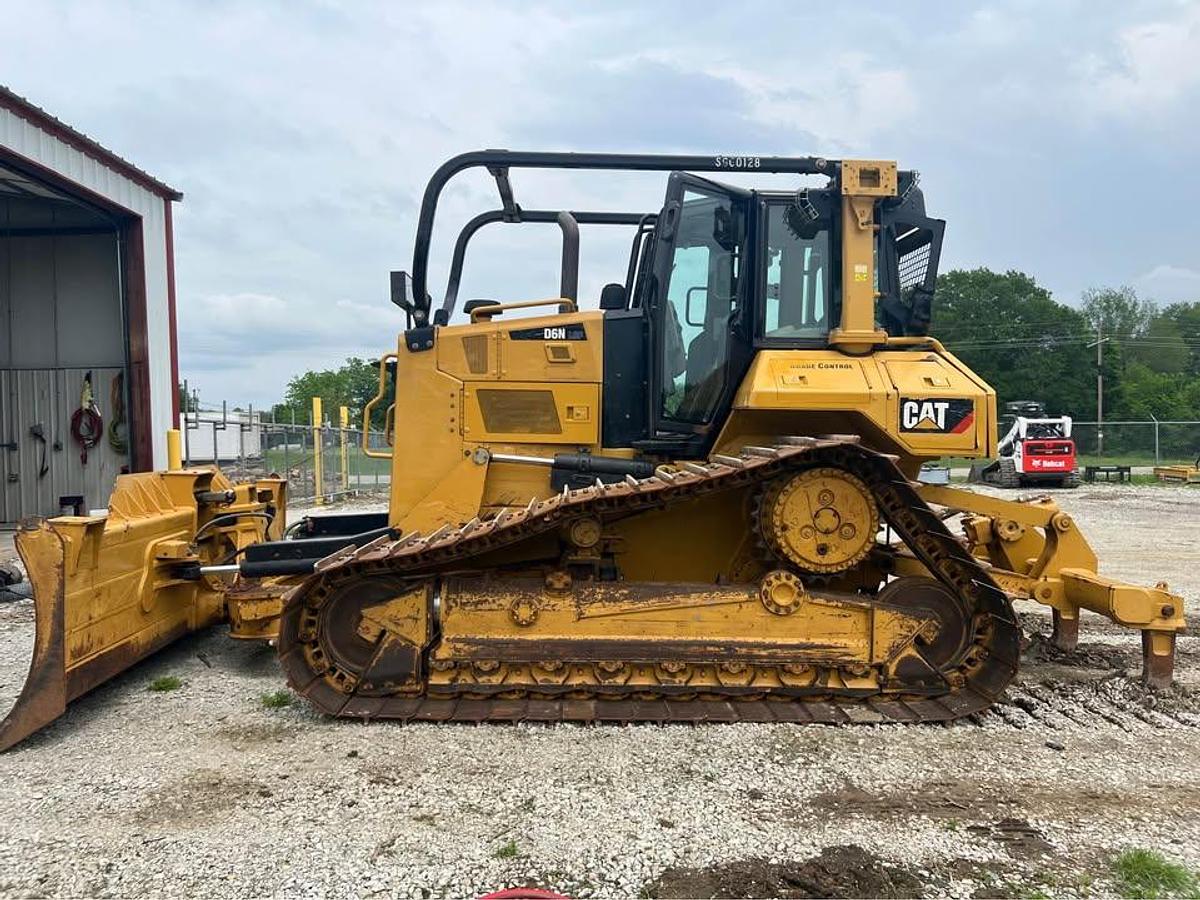

2017 Cat D6N LGP Dozer

2017 Cat D6N LGP Dozer

This 2017 Cat D6N LGP is work-ready and in excellent condition with 7,800 hours. It’s equipped with grade control and fully set up for Trimble GPS, making it ideal for precision earthmoving. The undercarriage is at 80%, and everything operates exactly as it should.

A complete Cat-certified transmission rebuild was just completed at a cost of $89,000—paperwork is available for peace of mind. Comes with a 12.5-foot, 6 way blade, perfect for pushing productivity on any job site.

This machine has been well cared for and is ready to go straight to work.

Engine

• Model: Cat C7.1 ACERT
• Net Power (SAE J1349): 166 hp (124 kW)
• Displacement: 7.0 L (427 in³)
• Aspiration: Turbocharged aftercooled
• Emission Standards: Tier 4 Final

Operating Weight

• Operating Weight (LGP): 37,195 lb (16,875 kg)

Transmission

• Type: Power shift
• Speeds: 3 forward / 3 reverse
• Steering: Differential steering with electronic control

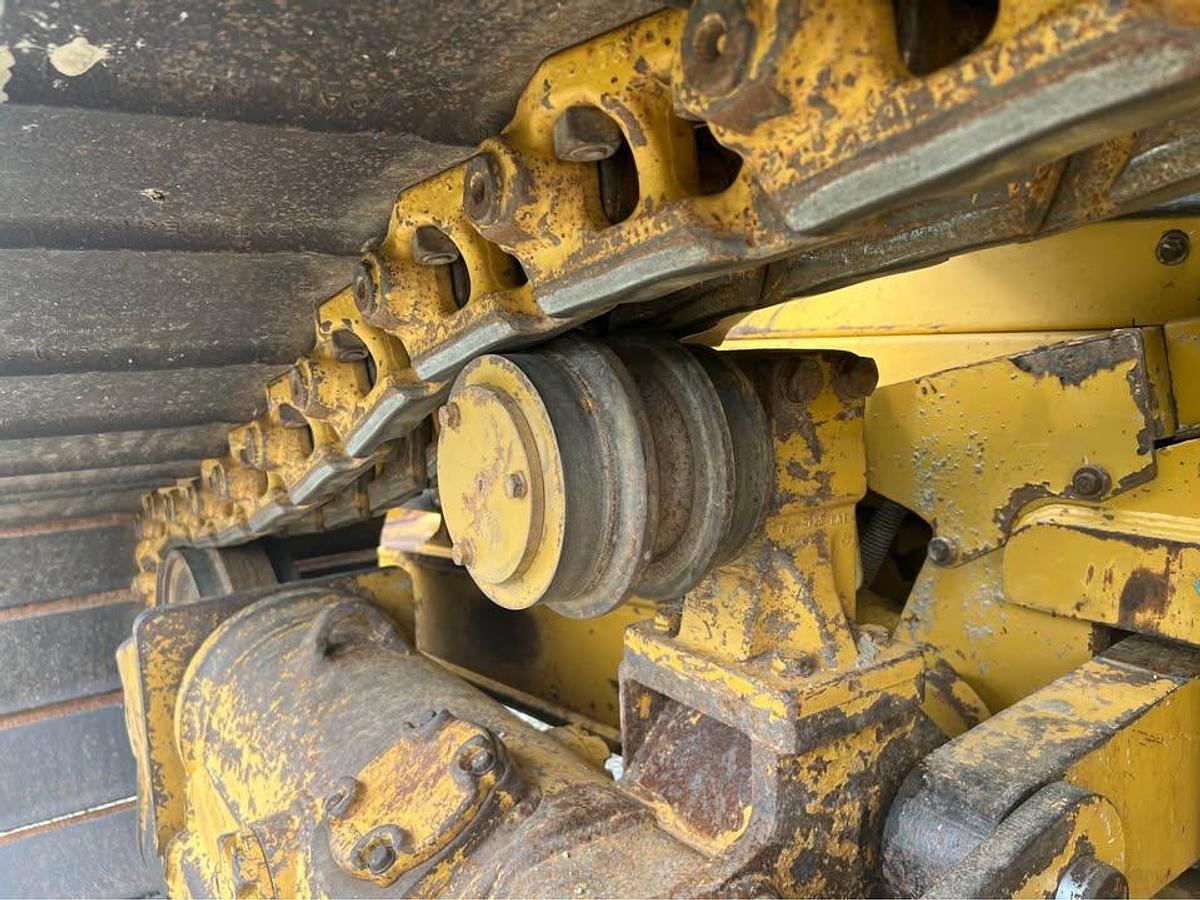

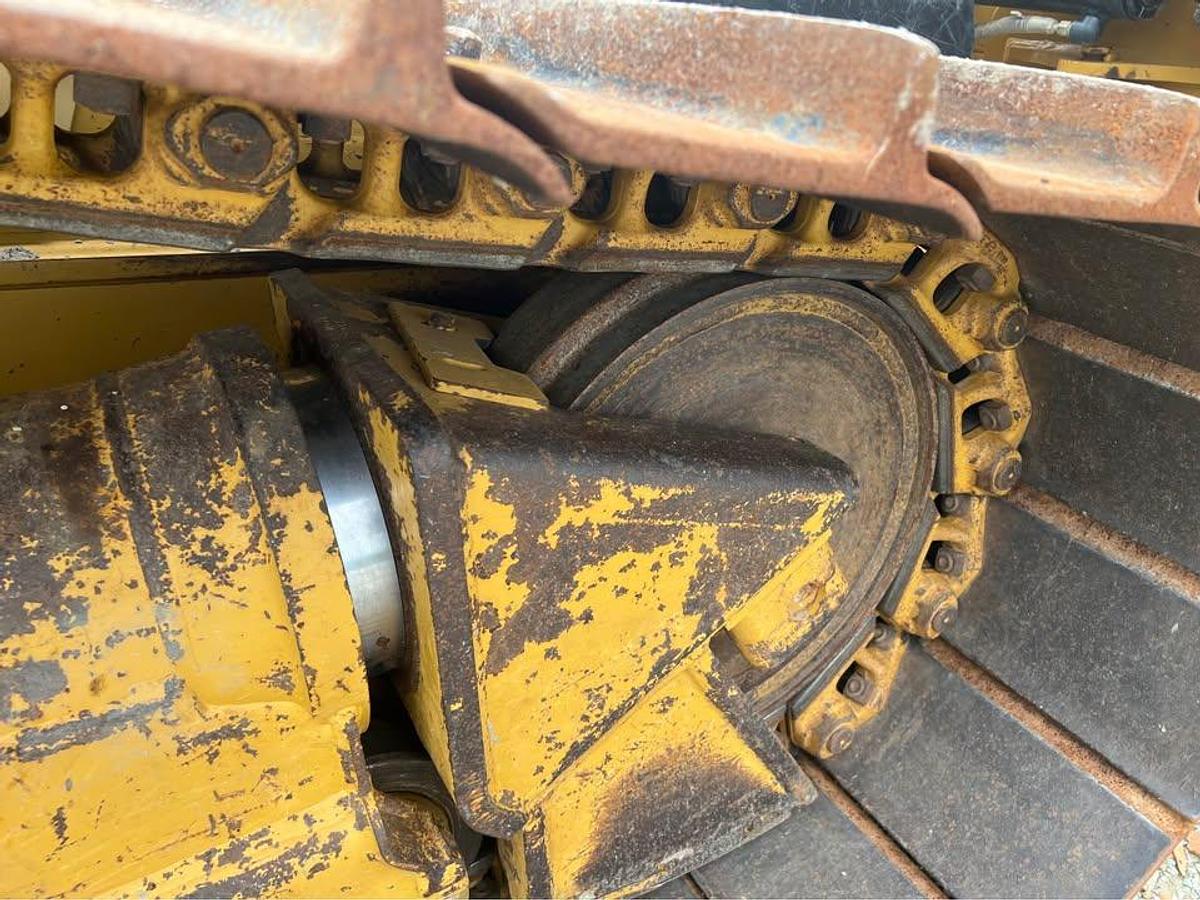

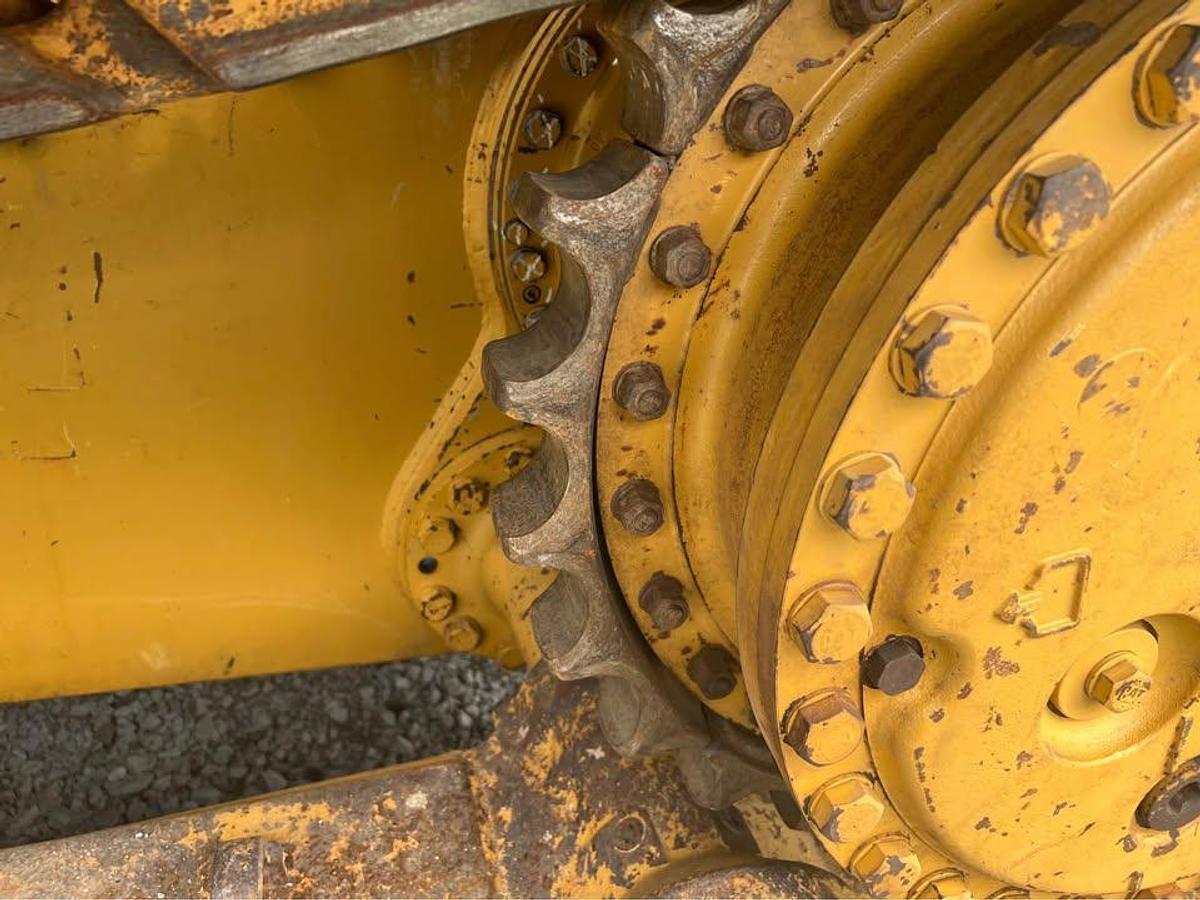

Undercarriage

• Track Gauge: 92.9 in (2360 mm)
• Shoe Width (LGP): 30 in (760 mm)
• Ground Pressure: 4.8 psi (33 kPa)
• Track on Ground: 10.5 ft (3.2 m)

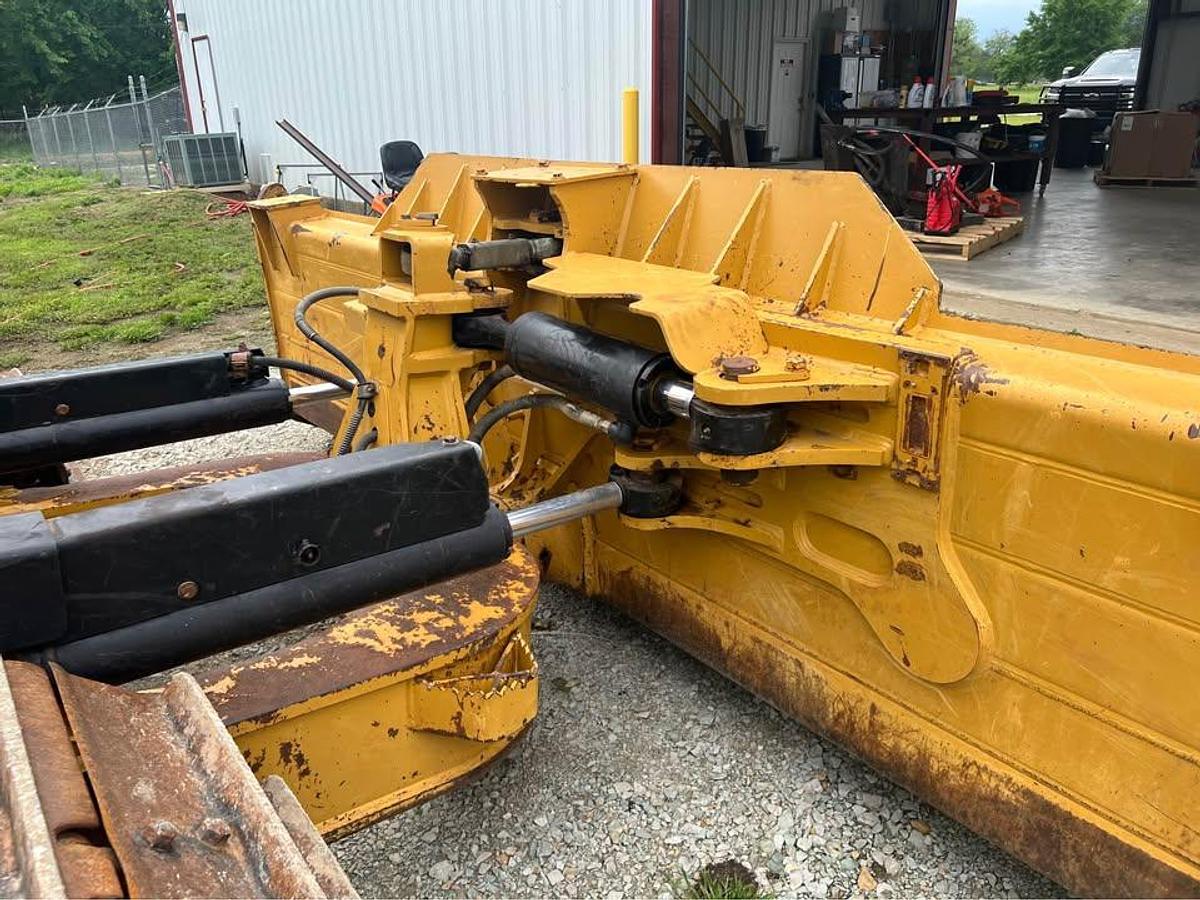

Blade

• Type: SU or PAT (Power Angle Tilt)
• Blade Width: 12.5 ft (3.8 m)
• Blade Capacity: 4.3–5.6 yd³ (3.3–4.3 m³)

Hydraulic System

• Pump Type: Variable piston
• Pump Output: 44.7 gal/min (169 L/min)
• System Pressure: 3,626 psi (25,000 kPa)

Dimensions

• Length (with blade): 18.4 ft (5.6 m)
• Height (ROPS): 10.4 ft (3.17 m)
• Width (over tracks): 10.3 ft (3.13 m)
• Ground Clearance: 1.25 ft (380 mm)

Performance

• Drawbar Pull: 61,000 lb (271 kN)
• Forward Speed (max): 6.5 mph (10.5 km/h)
• Reverse Speed (max): 7.8 mph (12.6 km/h)

Fuel & Fluids

• Fuel Tank Capacity: 90 gal (340 L)
• Cooling System: 11 gal (42 L)
• Engine Oil: 5 gal (19 L)
• Transmission: 11 gal (41 L)

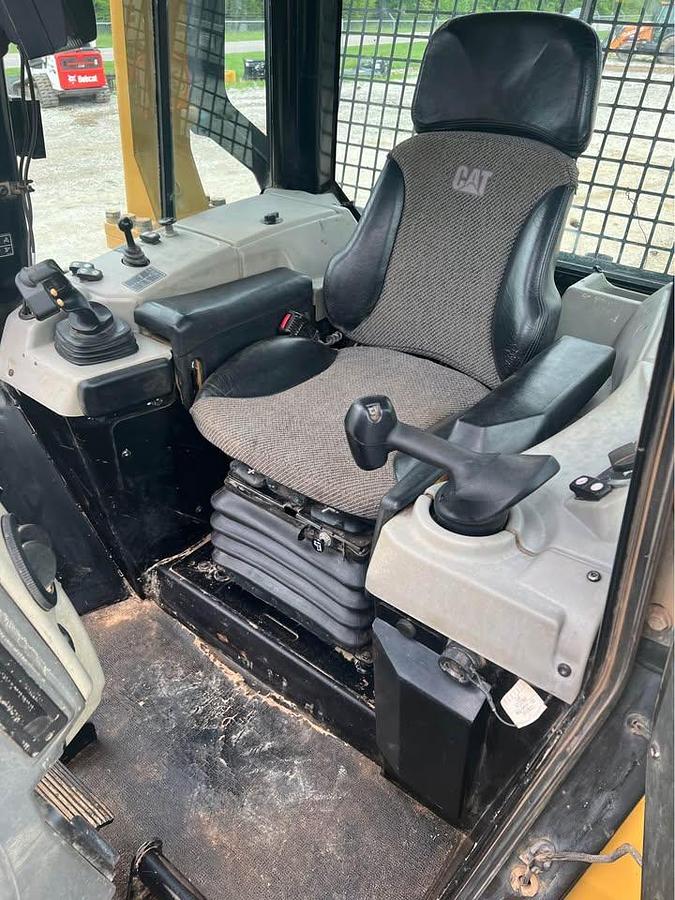

Operator Environment

• Enclosed cab with ROPS/FOPS
• Air suspension seat
• Intuitive electro-hydraulic controls
• Integrated Grade Control (Trimble-ready)
