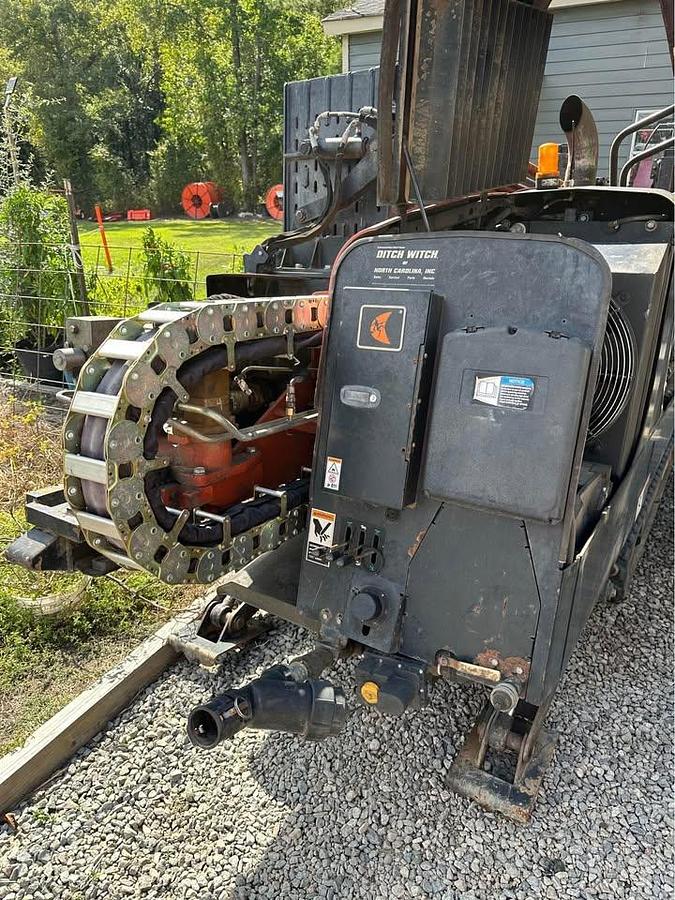

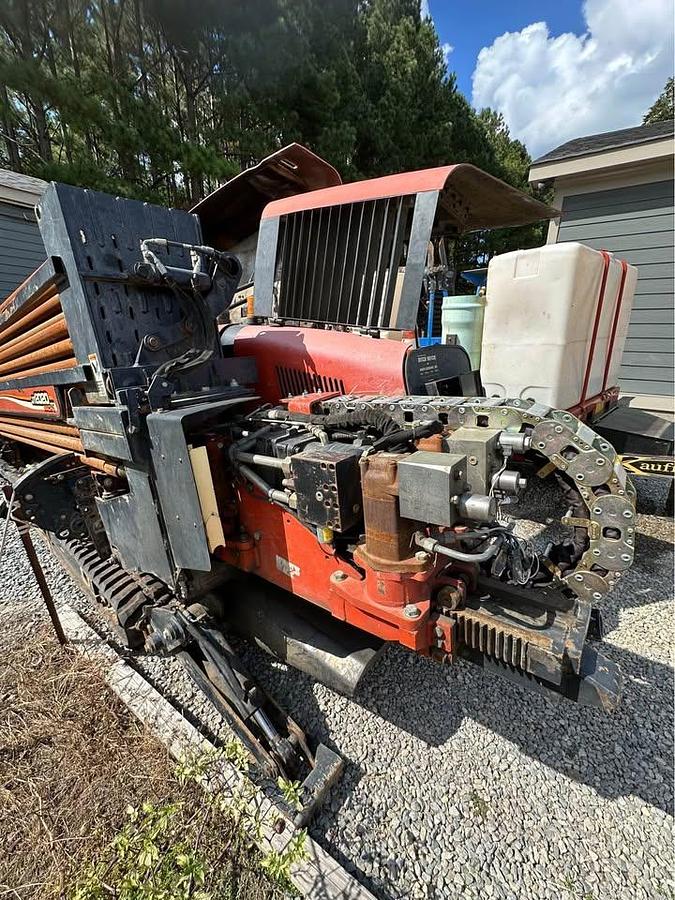

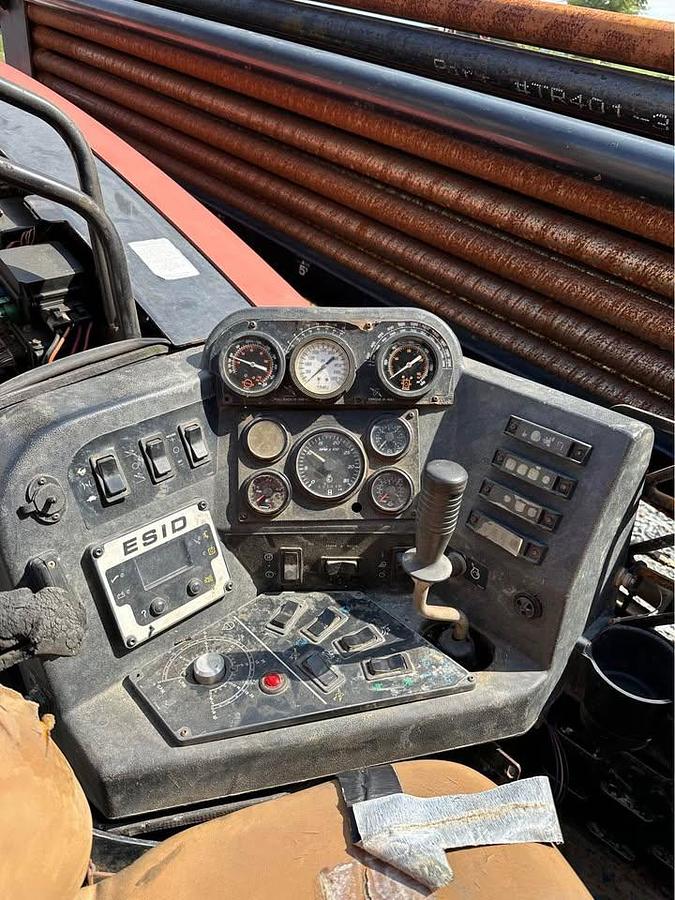

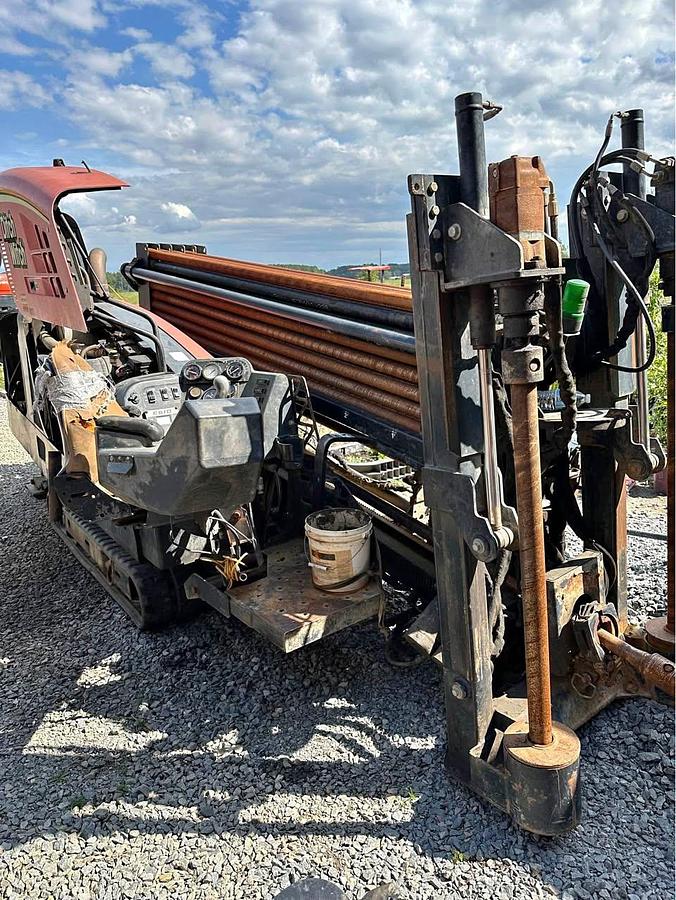

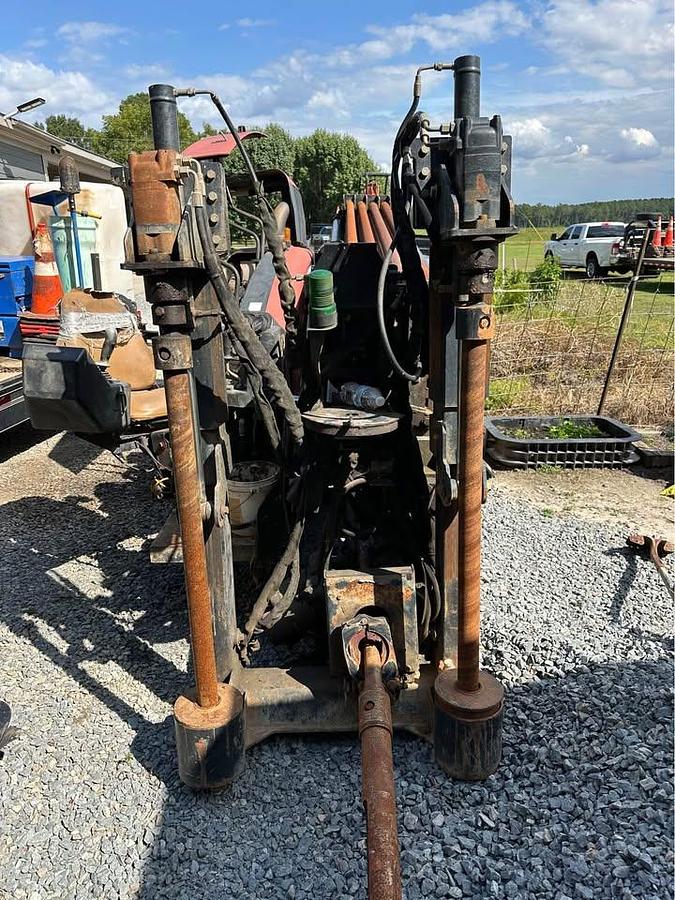

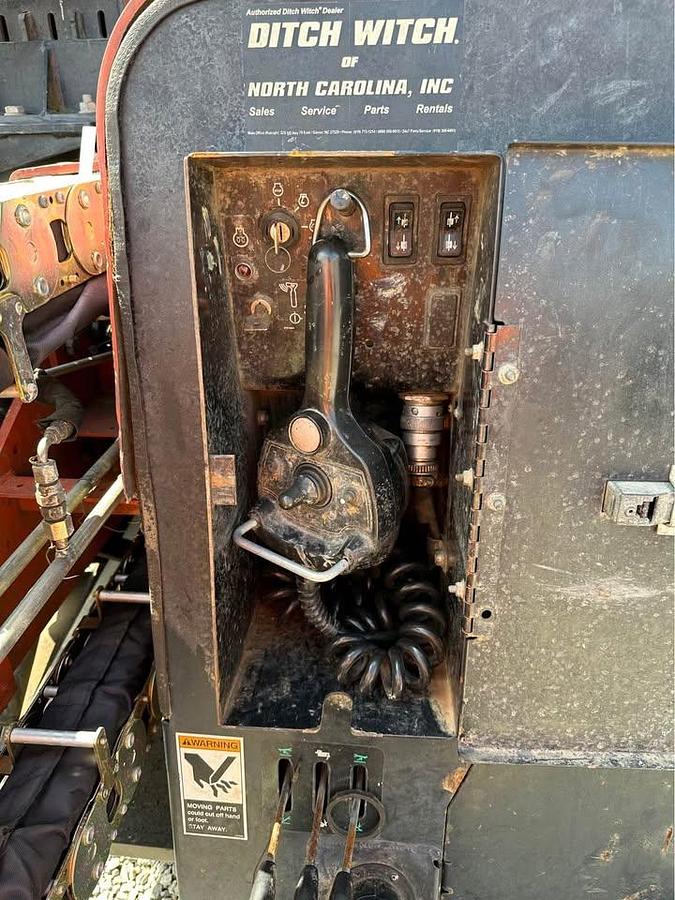

2012 Ditch Witch JT20

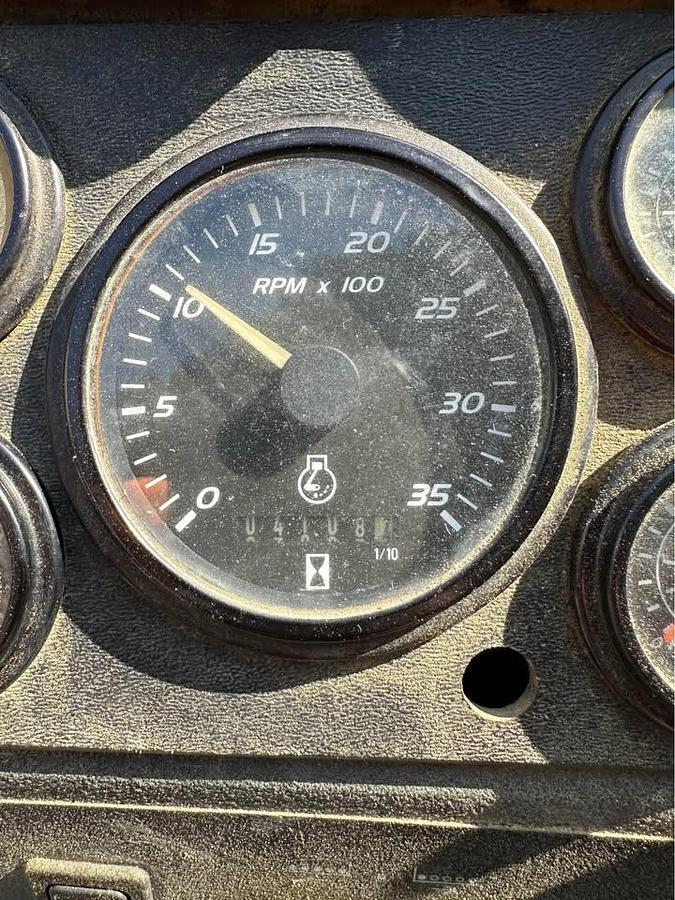

This 2012 Ditch Witch JT20 is a powerful and dependable asset ready to boost your utility installation productivity. With only 4,108 original hours, this machine has been well-maintained and is in good working condition, making it ideal for navigating both urban and residential job sites with its compact footprint and strong performance capabilities.

Don't let the tight spaces limit your business—this drill delivers the perfect combination of thrust and pullback to tackle everything from fiber optic to water lines. Put this proven workhorse to use immediately and start maximizing your crew's efficiency today!

Manufacturer Specs:

Engine & Power

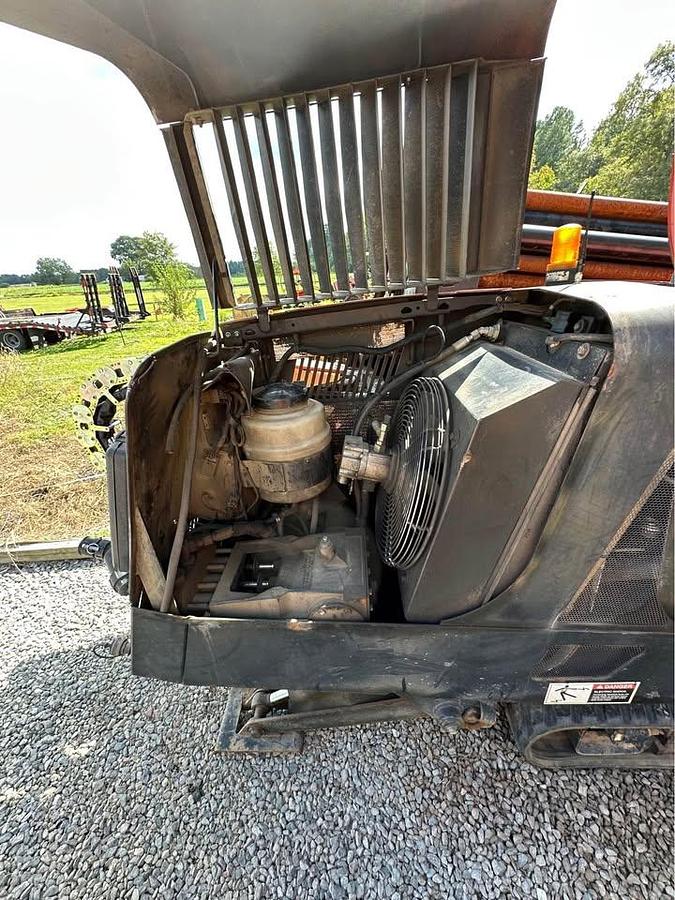

Engine: Deutz TD2.9L4 Diesel Engine (Tier 4 Compliant)

Gross Power Rating: 74 hp (55 kW)

Aspiration: Turbocharged

Fuel Capacity: 30 gallons (114 L)

Drilling Performance

Pullback Force: 20,000 lb (89 kN)

Thrust Force: 17,000 lb (75.6 kN)

Spindle Torque (Max): 2,200 ft-lb

Spindle Speed (Max): 210 rpm

Drilling Fluid Flow (Max): 35 gpm (132 L/min)

Dimensions & Weight

Operating Weight (with pipe): 11,890 lb (5390 kg)

Length: 207 in (5.26 m)

Width: 51.5 in (1.31 m)

Height: 90 in (2.29 m)
