2015 CAT 305 E2 Mini Excavator

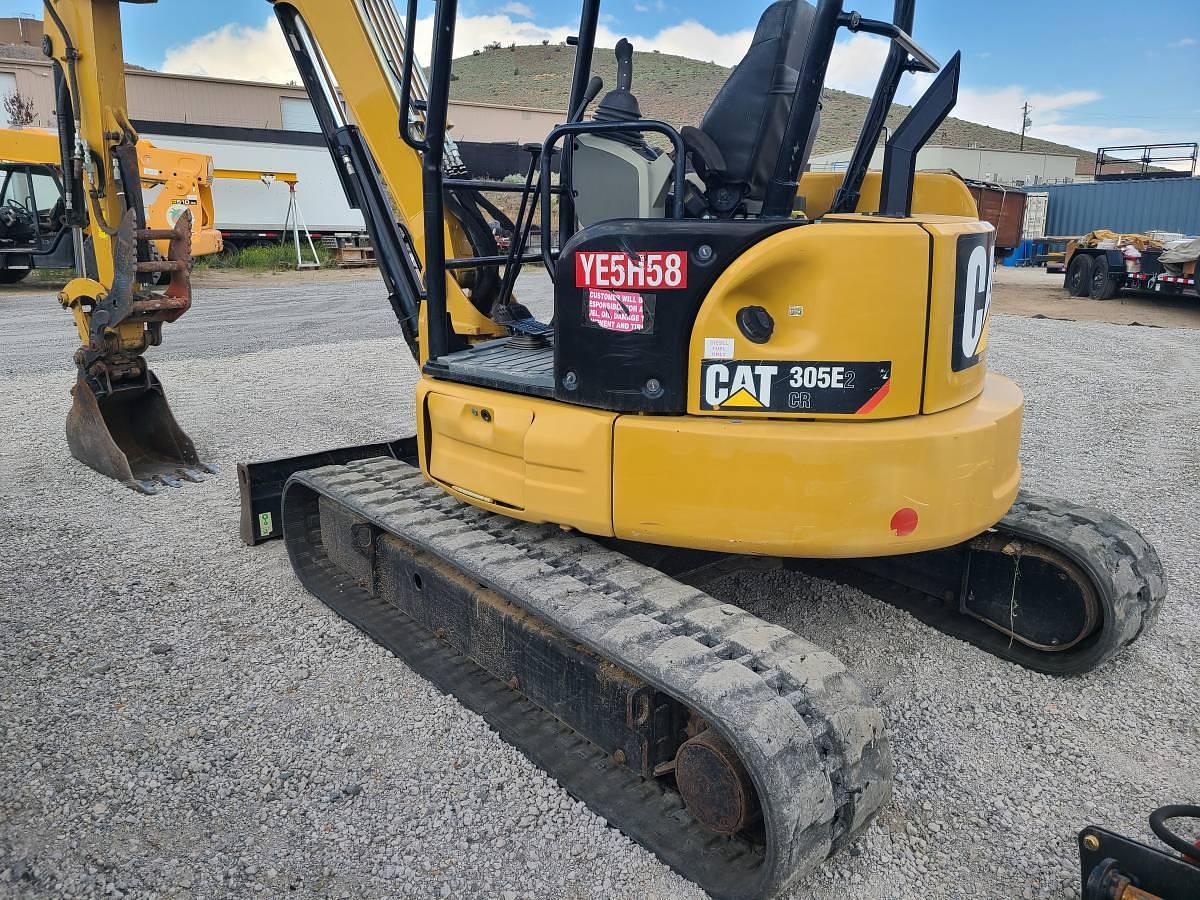

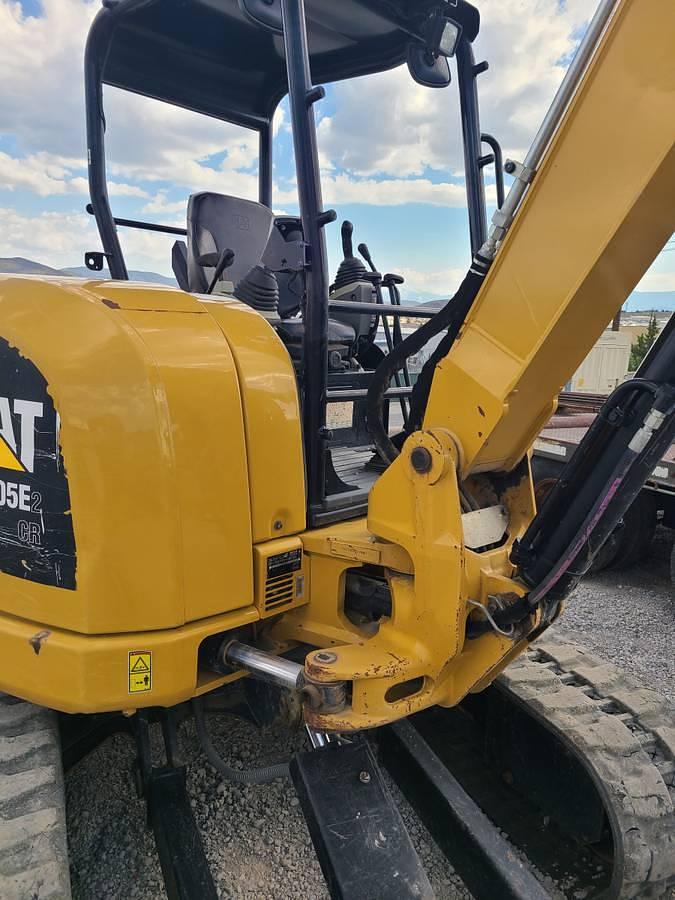

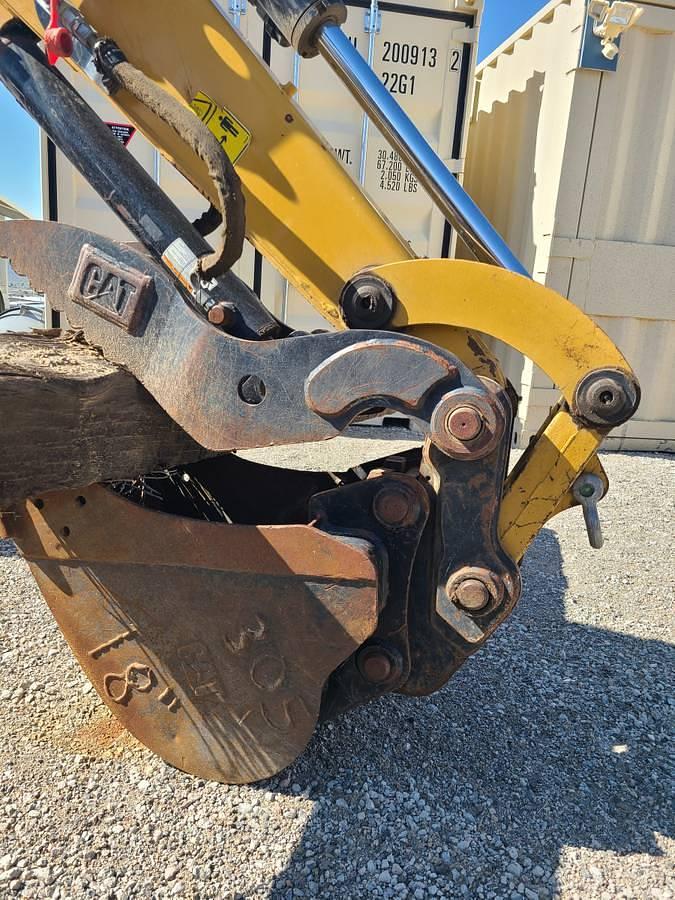

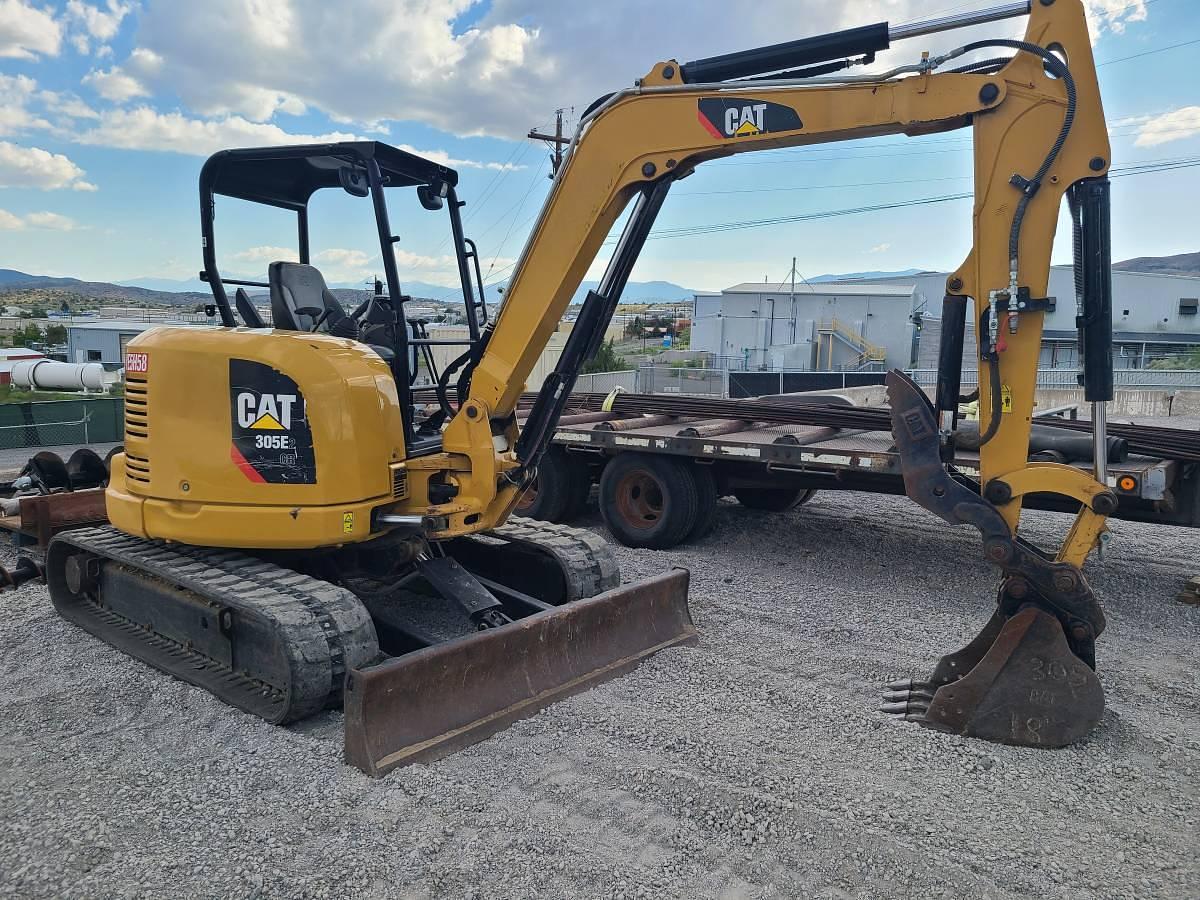

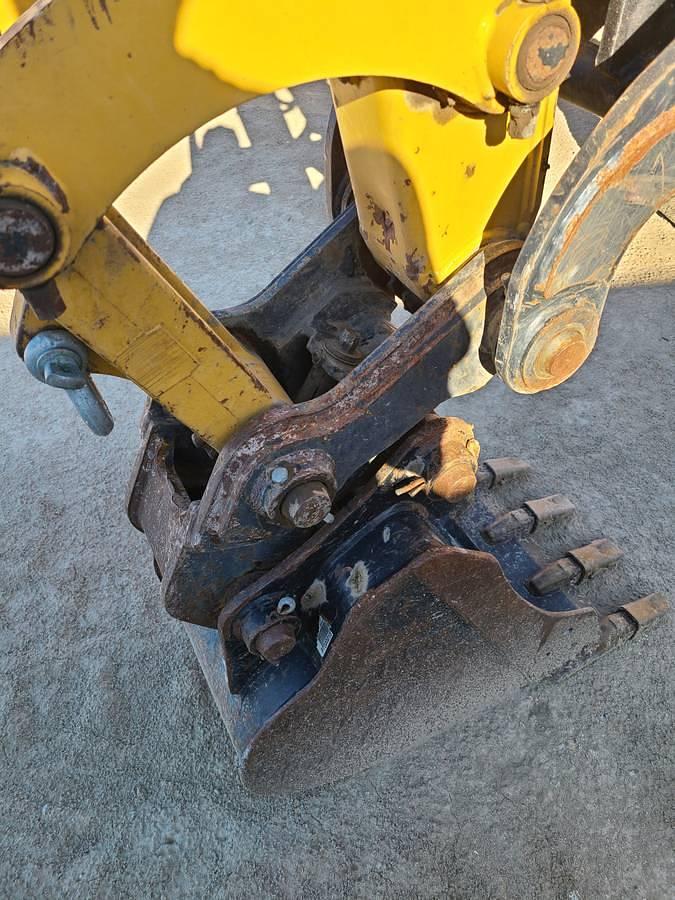

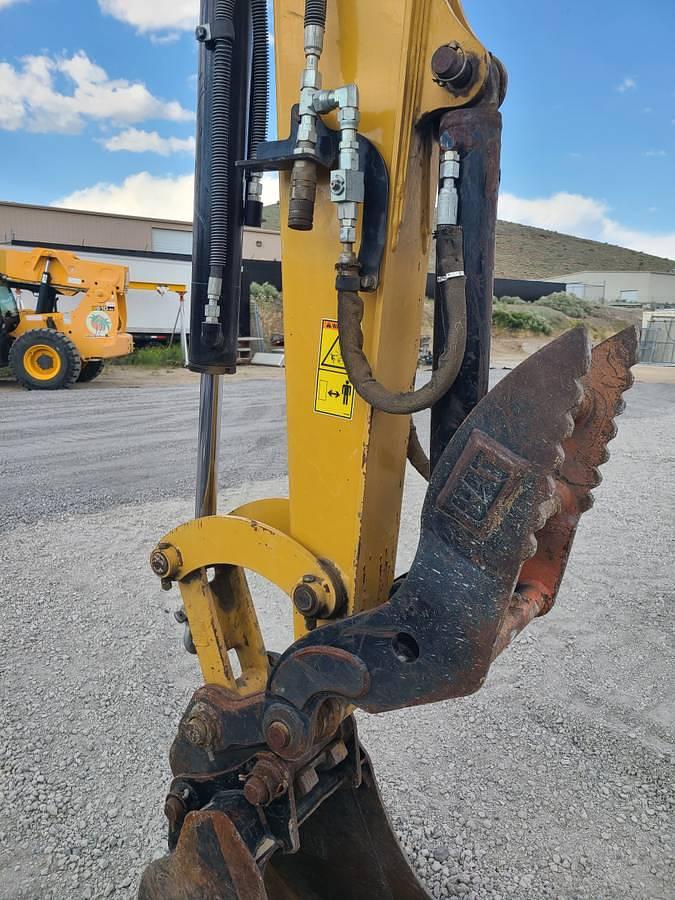

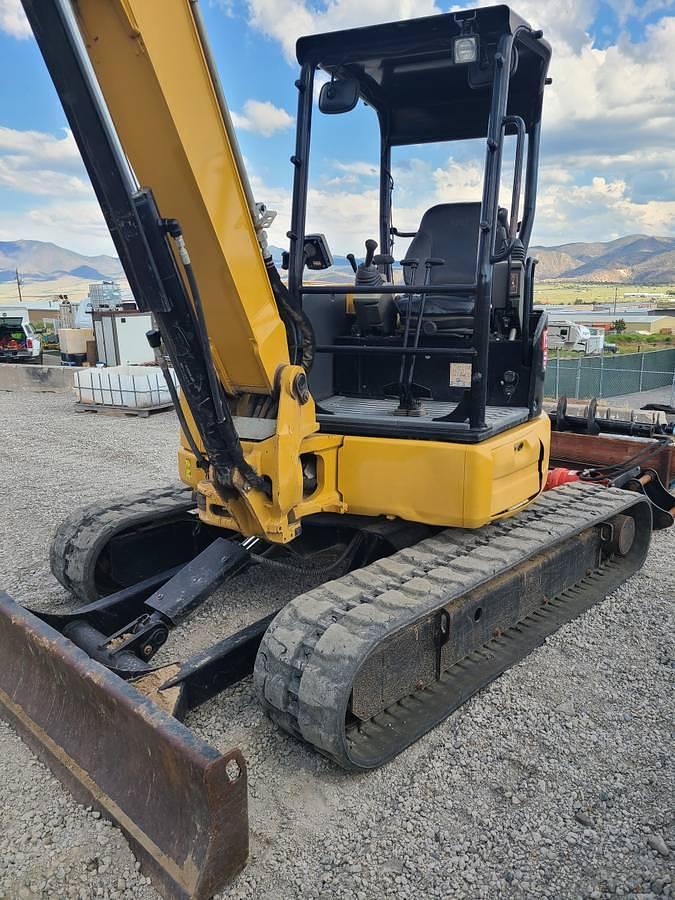

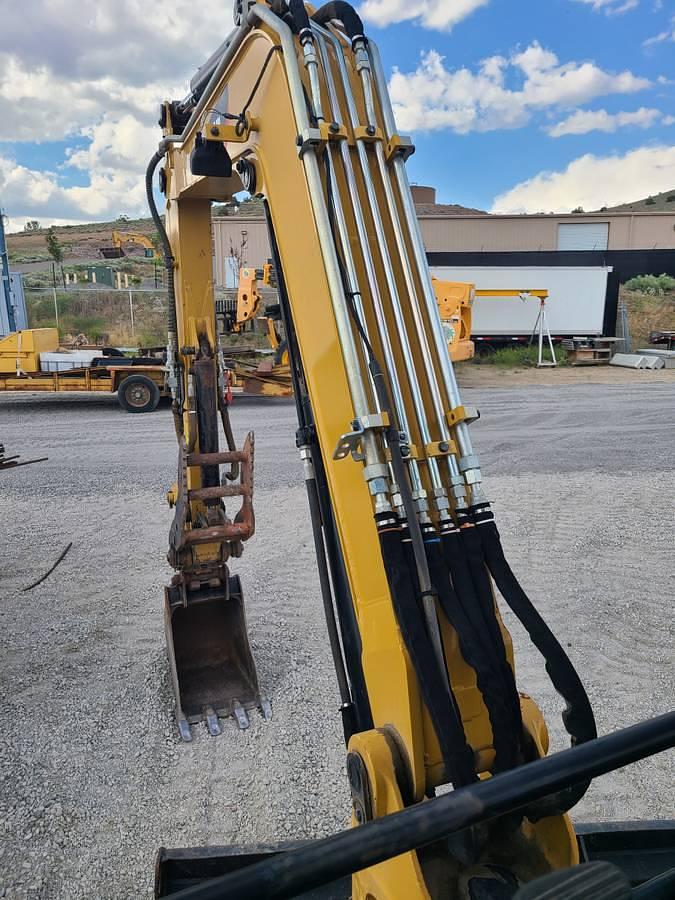

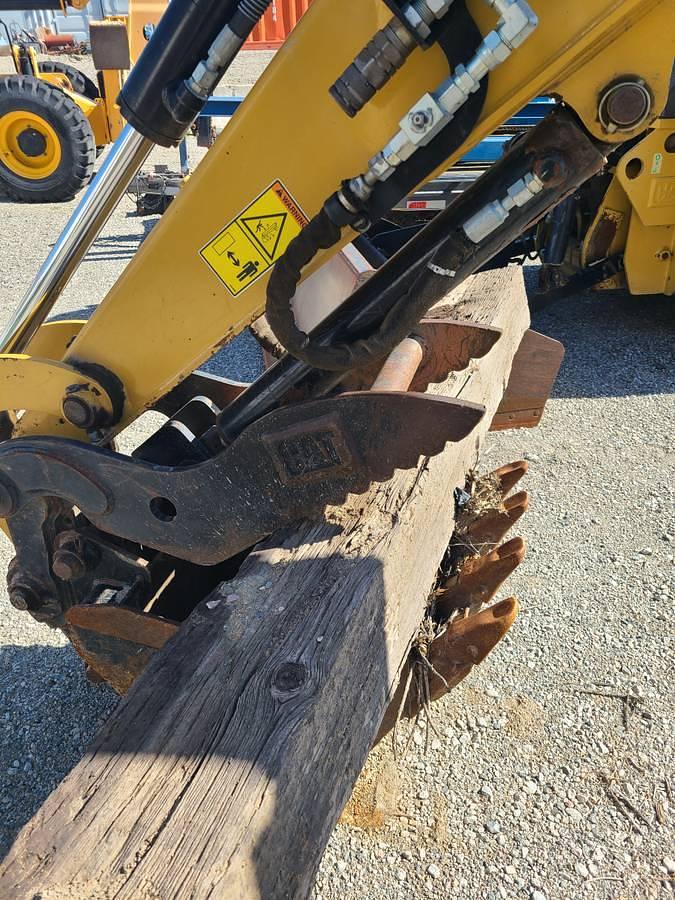

2015 CAT 305 E2 Excavator – open cab, excellent condition with only 1,712 hours. Last 200-hour service completed just 110 hours ago. Comes equipped with an 18" bucket, hydraulic thumb, and blade. Weighs about 11,000 lbs and features zero tail swing for easy maneuvering in tight spaces. Reliable, clean, and worksite ready

General Information

• Model: 305E2 CR
• Manufacturer: Caterpillar
• Year: 2015
• Configuration: Zero tail swing, open or enclosed cab
• Operating Weight: 11,000 lb (approx. 5,020 kg)

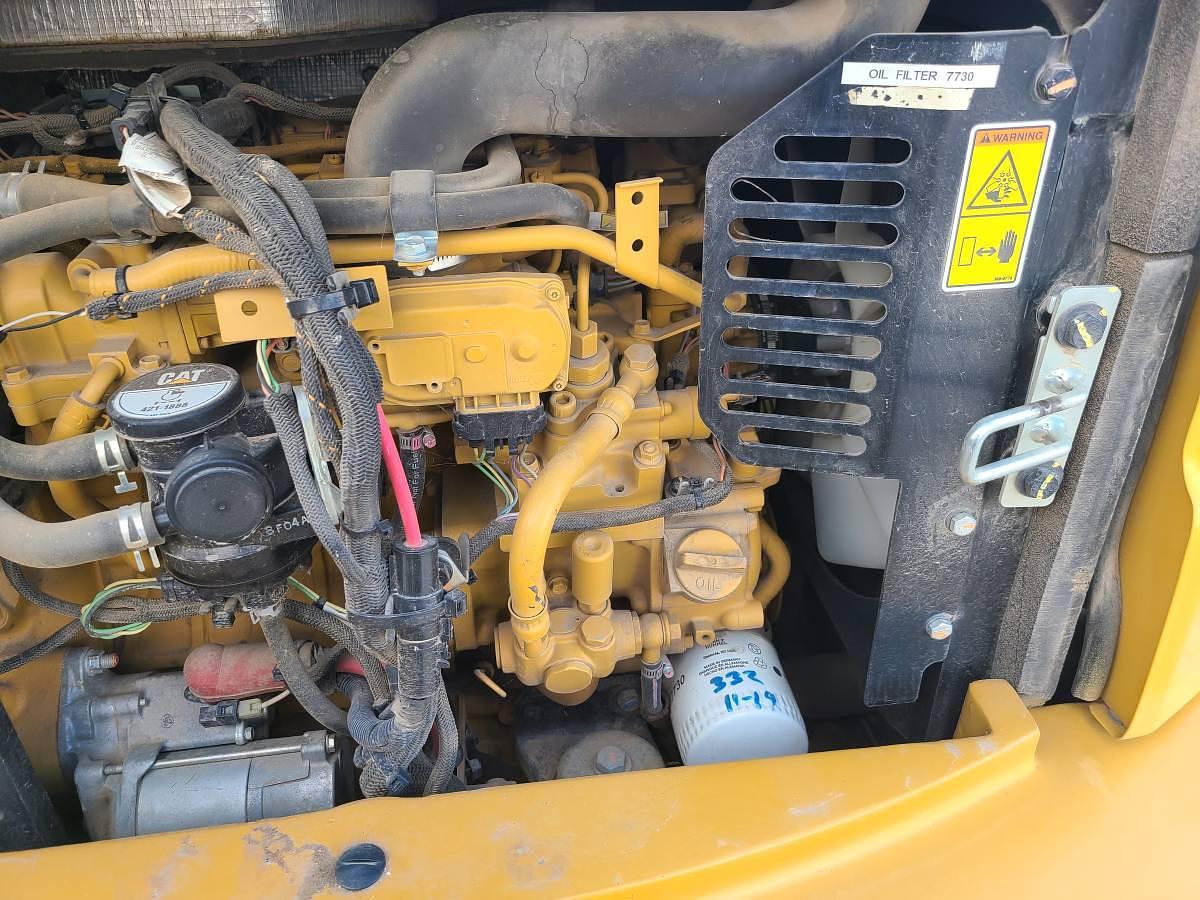

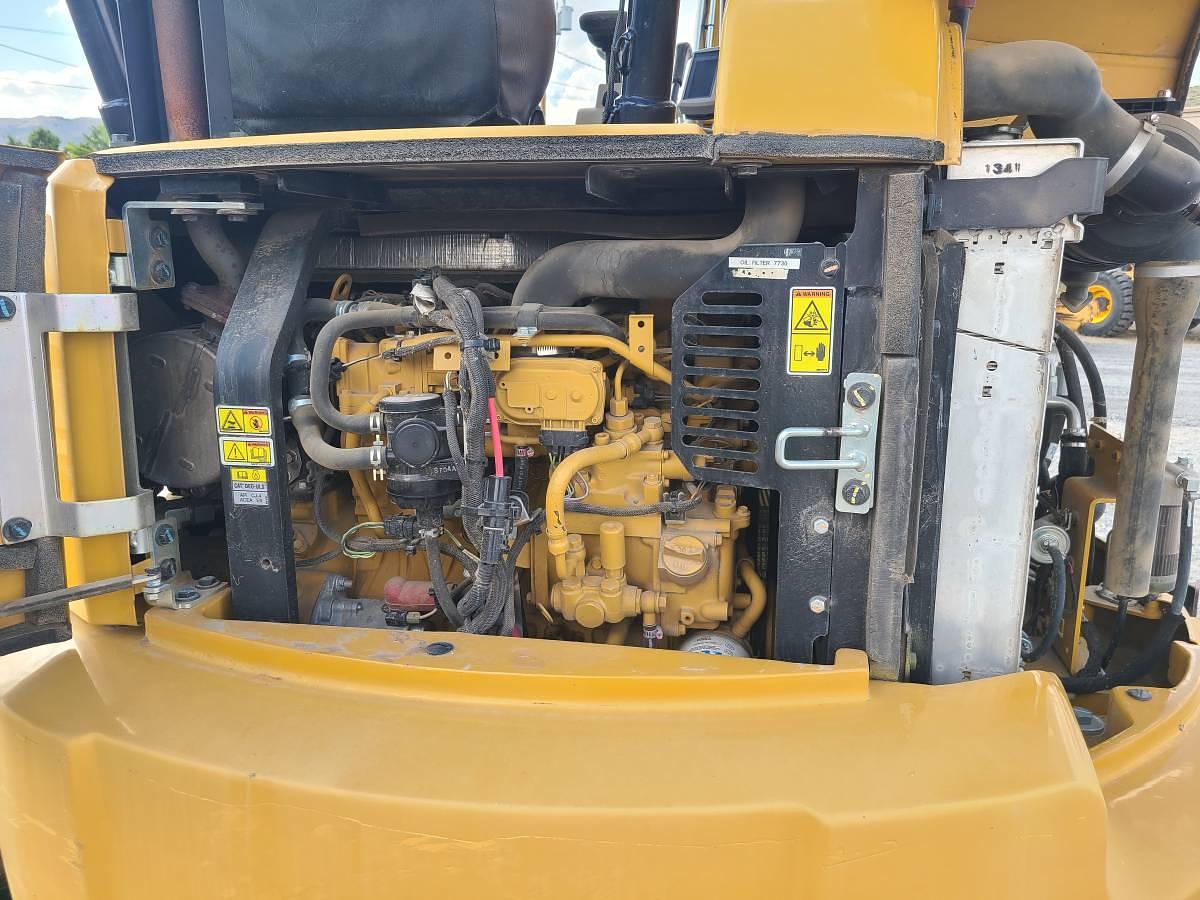

• Engine Model: Cat C2.4 Diesel
• Net Power: 40.2 HP (30.0 kW)
• Gross Power: 41.8 HP (31.2 kW)
• Emissions: U.S. EPA Tier 4 Final / EU Stage IIIA

Engine

• Displacement: 2.4 L (146 in³)
• Bore × Stroke: 87 × 102.4 mm (3.4 × 4.0 in)
• Rated Speed: 2,400 rpm
• Cooling System Capacity: 10.5 L (2.8 gal)
• Engine Oil Capacity: 9.5 L (2.5 gal)
• Fuel Tank Capacity: 63.0 L (16.6 gal)

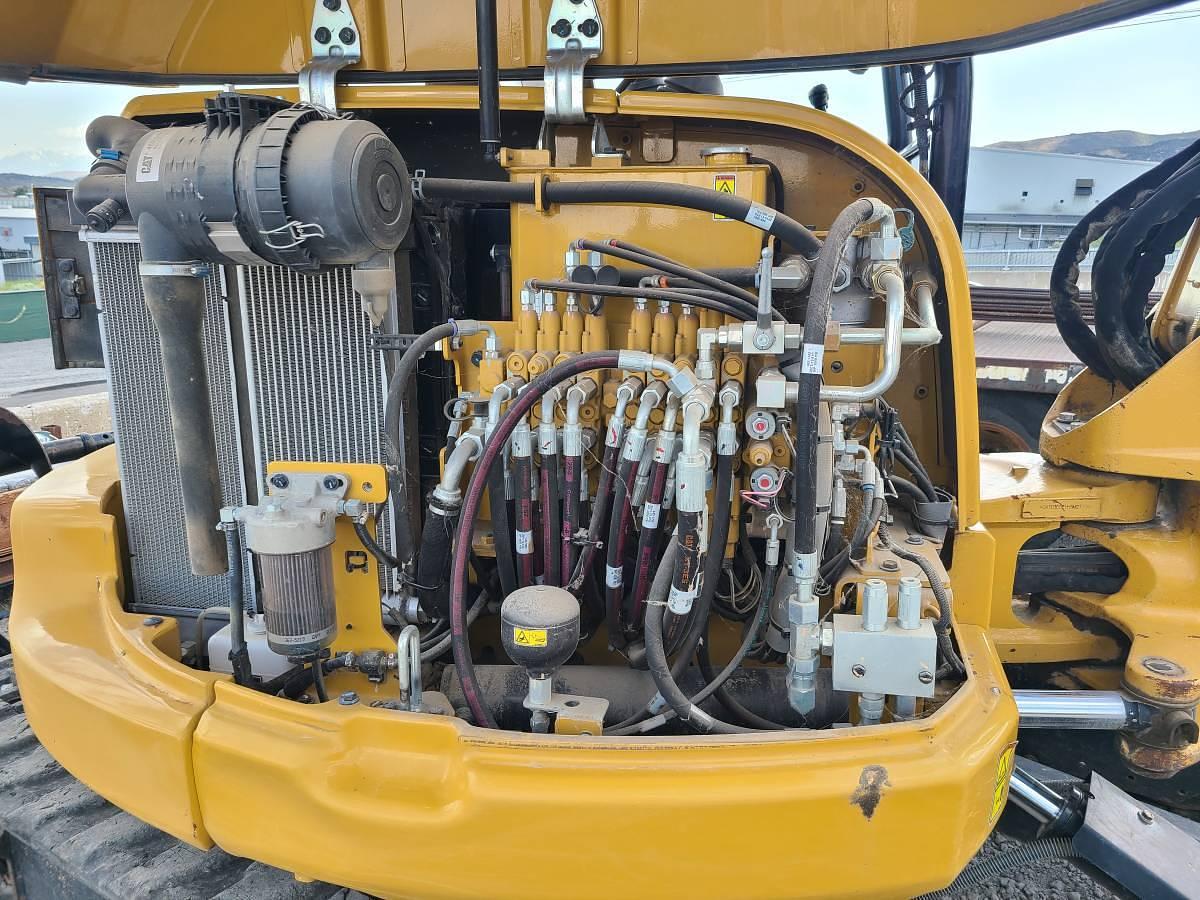

Hydraulic System

• Hydraulic Pump Flow: 39.6 gal/min (150 L/min)
• Operating Pressure (Equipment & Travel): 3,553 psi (245 bar)
• Operating Pressure (Swing): 3,132 psi (216 bar)
• Hydraulic Tank Capacity: 68.3 L (18 gal)
• Total Hydraulic System Capacity: 78.0 L (20.6 gal)
• Auxiliary Circuit (Primary): 21.1 gal/min (80 L/min)
• Auxiliary Circuit (Secondary): 6.6 gal/min (25 L/min)

Performance

• Digging Force (Bucket): 10,050 lb (44.7 kN)
• Digging Force (Stick – Standard): 5,550 lb (24.7 kN)
• Digging Force (Stick – Long): 4,788 lb (21.3 kN)
• Swing Speed: 10 rpm
• Travel Speed – High: 2.7 mph (4.4 km/h)
• Travel Speed – Low: 1.7 mph (2.8 km/h)
• Gradeability: 30°

Working Ranges (Long Stick Configuration)

• Maximum Dig Depth: 12 ft 0 in (3.67 m)
• Maximum Reach at Ground Level: 19 ft 6 in (5.94 m)
• Maximum Reach: 19 ft 7 in (5.96 m)
• Maximum Dig Height: 17 ft 10 in (5.44 m)
• Maximum Dump Clearance: 12 ft 10 in (3.92 m)
• Vertical Wall Depth: 8 ft 8 in (2.63 m)
• Tail Swing Radius: 43 in (1.10 m)

Undercarriage

• Track Type: Rubber
• Track Width: 16 in (400 mm)
• Ground Pressure: 4.6 psi (31.7 kPa)

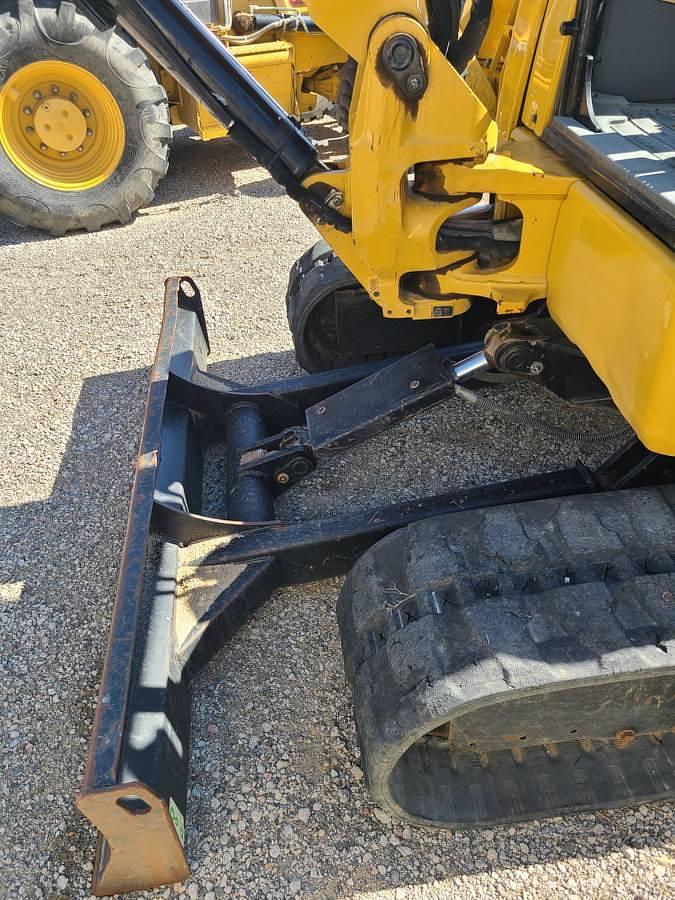

• Blade Width: 78 in (1,980 mm)
• Blade Height: 14.8 in (375 mm)
• Max Blade Lift Height: 16 in (405 mm)
• Max Blade Depth: 22 in (555 mm)

Capacities

• Cooling System: 2.8 gal
• Engine Oil: 2.5 gal
• Hydraulic Tank: 18 gal
• Fuel Tank: 16.6 gal

Sound & Safety

• Operator Sound Level: 81 dB(A) (ISO 6396)
• Exterior Sound Level: 96 dB(A) (ISO 6395)
• Safety: ROPS ISO 12117-2, TOPS ISO 12117, Top Guard Level I

Dimensions

• Overall Length: 204 in (5,180 mm)
• Overall Height: 100 in (2,550 mm)
• Overall Width: 78 in (1,980 mm)

Highlights

• Zero tail swing for tight job sites
• Strong hydraulic power and smooth control
• Simple maintenance access points

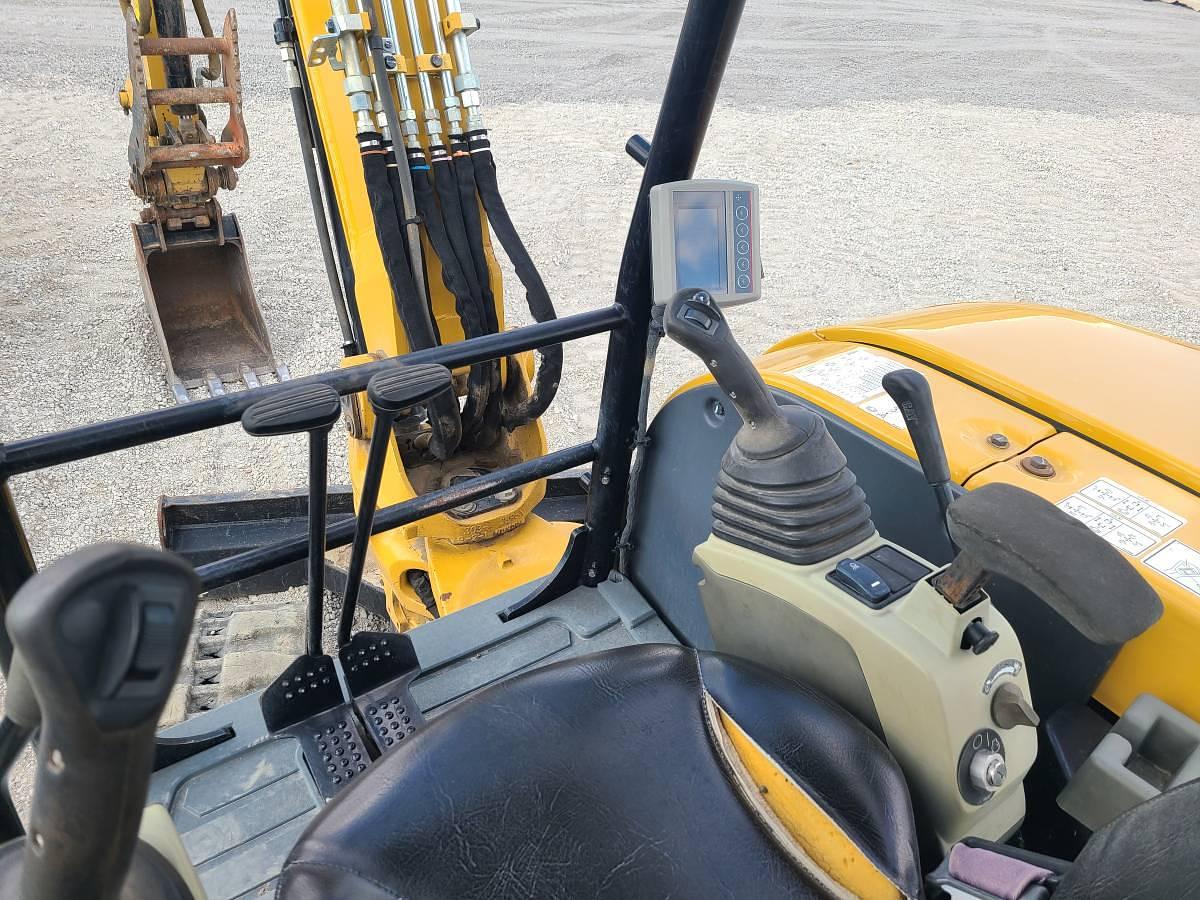

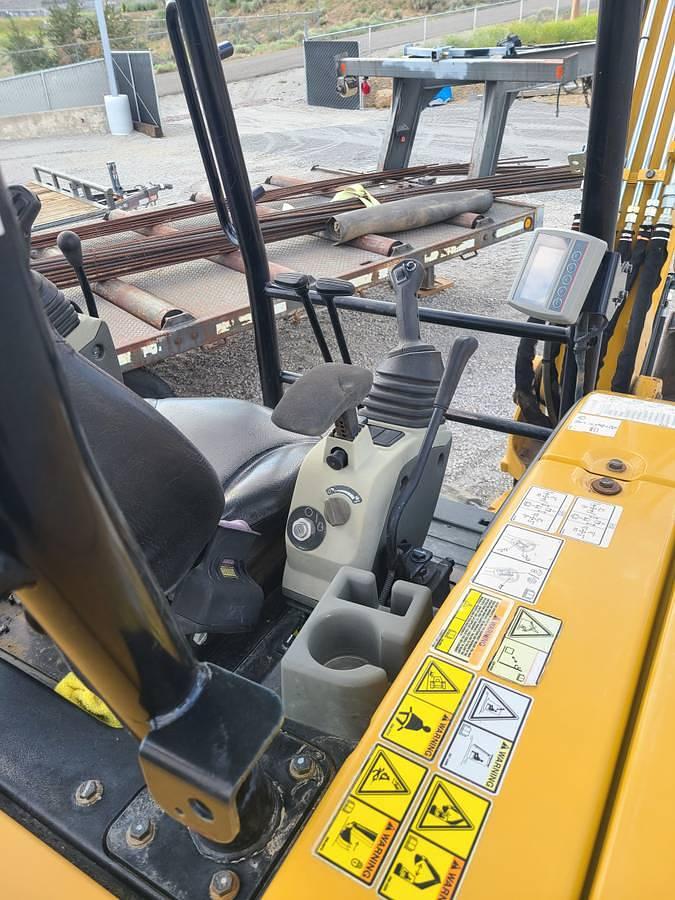

• Comfortable operator station
• Durable and efficient for construction, landscaping, or utility work
