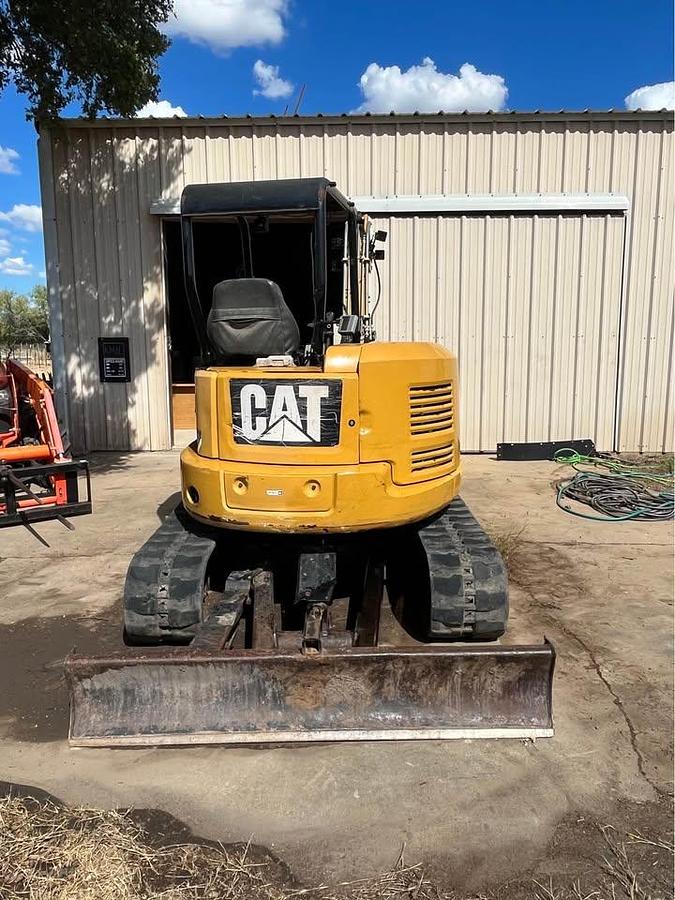

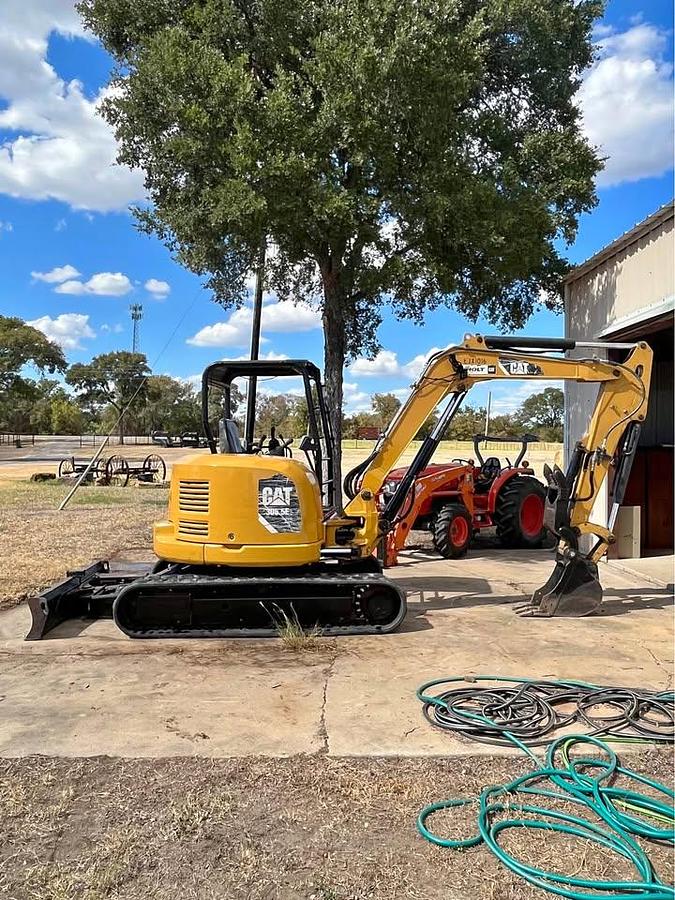

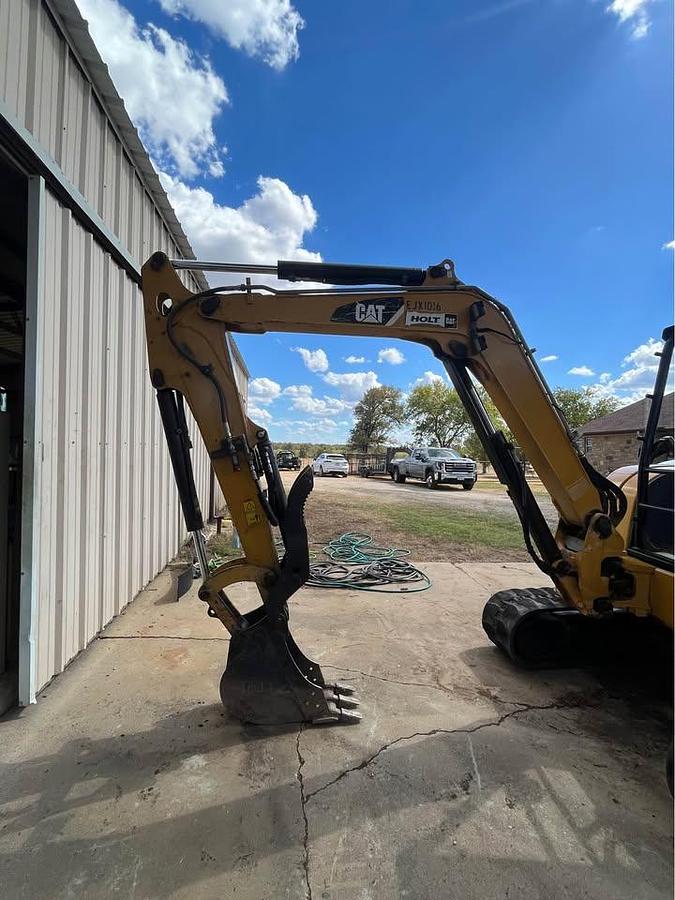

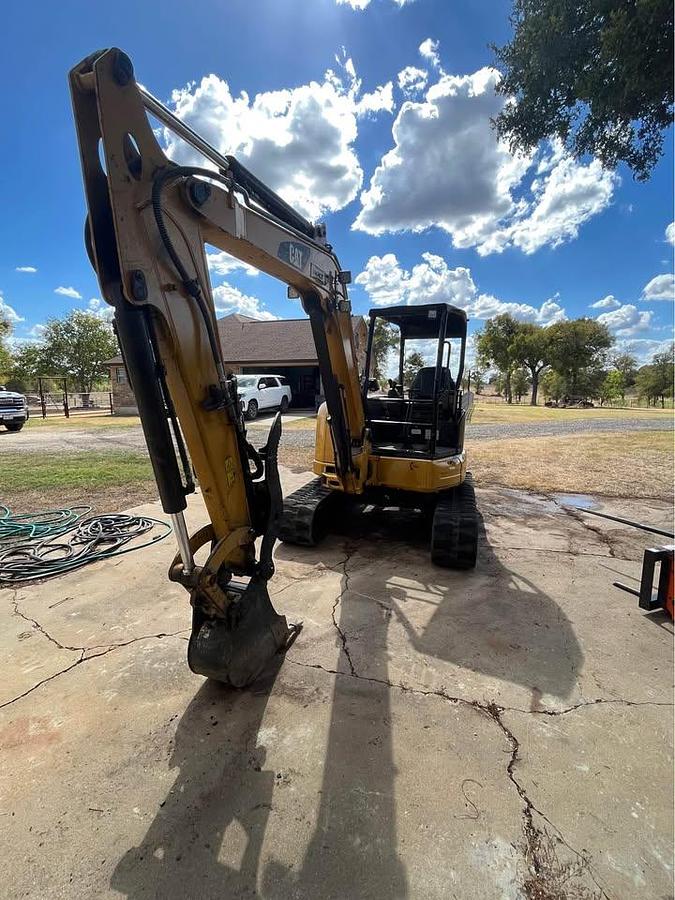

2016 Caterpillar 305.5E2 CR Mini Excavator

2016 Caterpillar 305.5E2 CR Mini Excavator in excellent working condition. This machine has been well cared for and was just fully serviced. It comes equipped with a hydraulic thumb and an angle blade, along with both 1-foot and 2-foot buckets for added versatility on the job. Recent work includes new final drives and front idlers, so it’s ready to go straight to work. The tracks are still usable but will need replacement down the road.

Engine

• Engine Model: Cat C2.4
• Net Power: 44.1 hp (32.9 kW)
• Gross Power: 45.8 hp (34.1 kW)
• Displacement: 2.4 L (146 in³)
• Rated Speed: 2,400 rpm

Operating Specifications

• Operating Weight (with cab): 12,688 lb (5,756 kg)
• Maximum Dig Depth: 12 ft 6 in (3.81 m)
• Maximum Reach at Ground Level: 19 ft 6 in (5.94 m)
• Maximum Dump Height: 13 ft 8 in (4.17 m)
• Tail Swing Type: Compact Radius
• Ground Clearance: 13.8 in (350 mm)

Hydraulic System

• Pump Type: Variable Displacement Piston
• Hydraulic Pump Flow: 39.6 gal/min (150 L/min)
• Auxiliary Hydraulic Flow: 21 gal/min (79 L/min)
• Operating Pressure (Equipment): 3,553 psi (245 bar)
• Operating Pressure (Travel): 3,553 psi (245 bar)

Dimensions

• Track Width: 78 in (1,980 mm)
• Overall Height (cab): 100.8 in (2,560 mm)
• Overall Length: 203 in (5,156 mm)
• Blade Width: 78 in (1,980 mm)

Undercarriage

• Track Type: Rubber
• Track Shoe Width: 15.7 in (400 mm)
• Travel Speed: 1.7 mph (low) / 3.1 mph (high)

Performance

• Swing Speed: 10 rpm
• Boom Swing – Left: 60°
• Boom Swing – Right: 50°
• Stick Force: 6,476 lbf (28.8 kN)
• Bucket Force: 10,061 lbf (44.8 kN)

Additional Features

• Hydraulic thumb
• Angle blade
• Includes 1-foot and 2-foot buckets
• Compact radius for tight job sites
• Easy-to-use joystick controls
