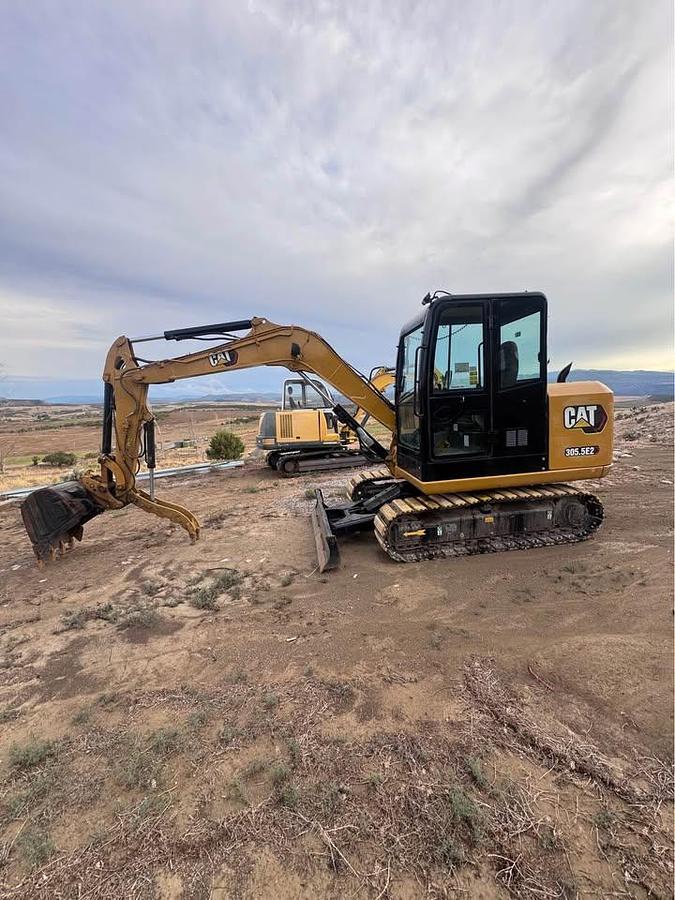

2021 Caterpillar 305.5 Mini Excavator

2021 Caterpillar 305.5 Mini Excavator – Extra Bucket Included

Well-maintained 2021 CAT 305.5 mini excavator for sale, complete with an additional bucket. This machine delivers power, reliability, and versatility for any job site. Strong performance, low operating costs, and ready to get to work today.

Engine

• Engine Model: Cat C2.4
• Net Power: 44.1 hp (32.9 kW) @ 2,400 rpm
• Displacement: 146 in³ (2.4 L)
• Emissions: U.S. EPA Tier 4 Final / EU Stage IIIA

Operating Specifications

• Operating Weight: 11,958 lbs (5,425 kg) with cab
• Maximum Digging Depth: 12 ft 6 in (3,810 mm)
• Maximum Reach at Ground Level: 20 ft 1 in (6,130 mm)
• Maximum Dump Height: 13 ft 3 in (4,030 mm)
• Tail Swing: Reduced radius for tighter job sites

Hydraulic System

• Pump Flow @ 2,400 rpm: 40 gpm (152 L/min)
• Operating Pressure – Equipment: 3,553 psi (24,500 kPa)
• Digging Force – Bucket: 11,061 lbf (49.2 kN)
• Digging Force – Stick: 6,636 lbf (29.5 kN)

Dimensions

• Transport Length: 18 ft 0 in (5,490 mm)
• Transport Width: 6 ft 6 in (1,990 mm)
• Transport Height: 8 ft 3 in (2,520 mm)
• Ground Clearance: 1 ft 2 in (370 mm)

Undercarriage

• Track Width: 16 in (400 mm)
• Ground Pressure: 5.2 psi (35.8 kPa)
