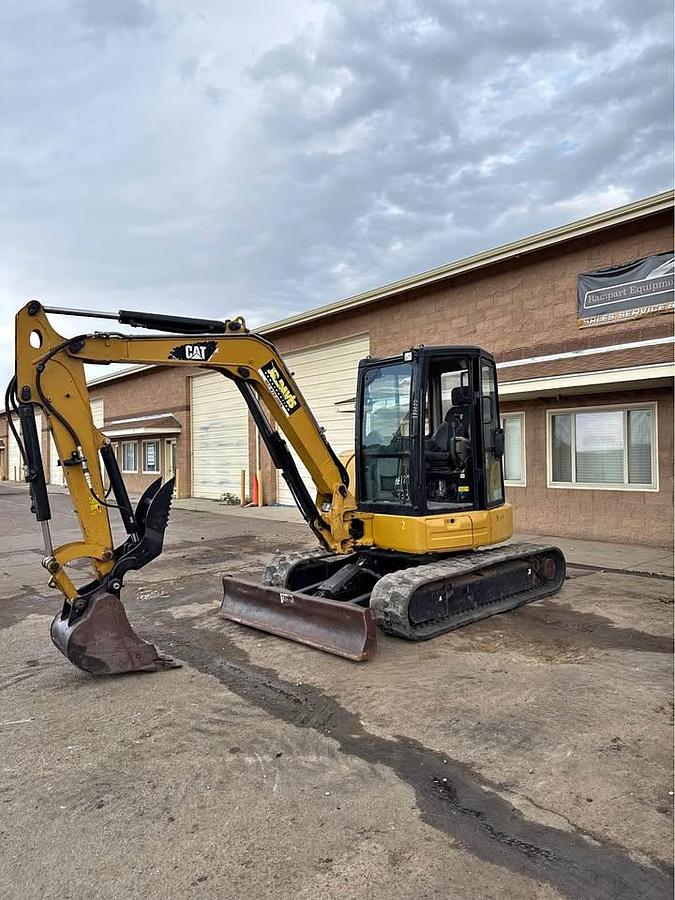

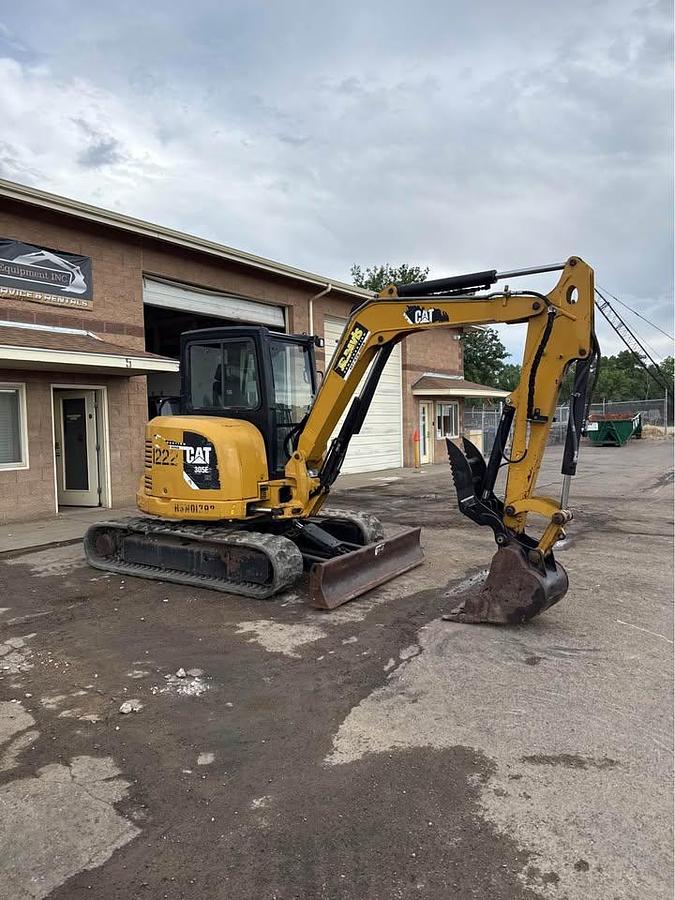

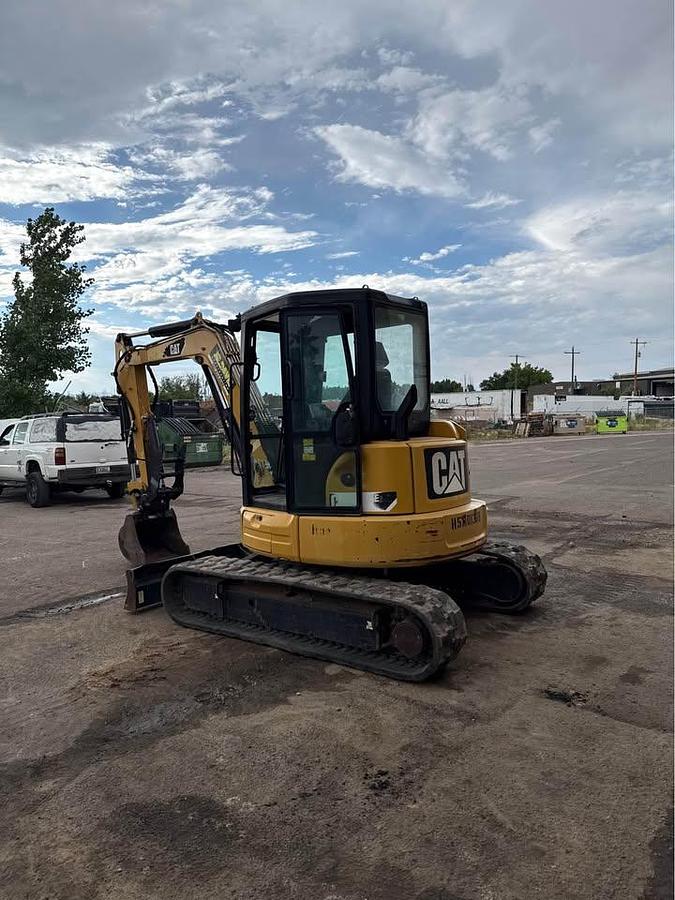

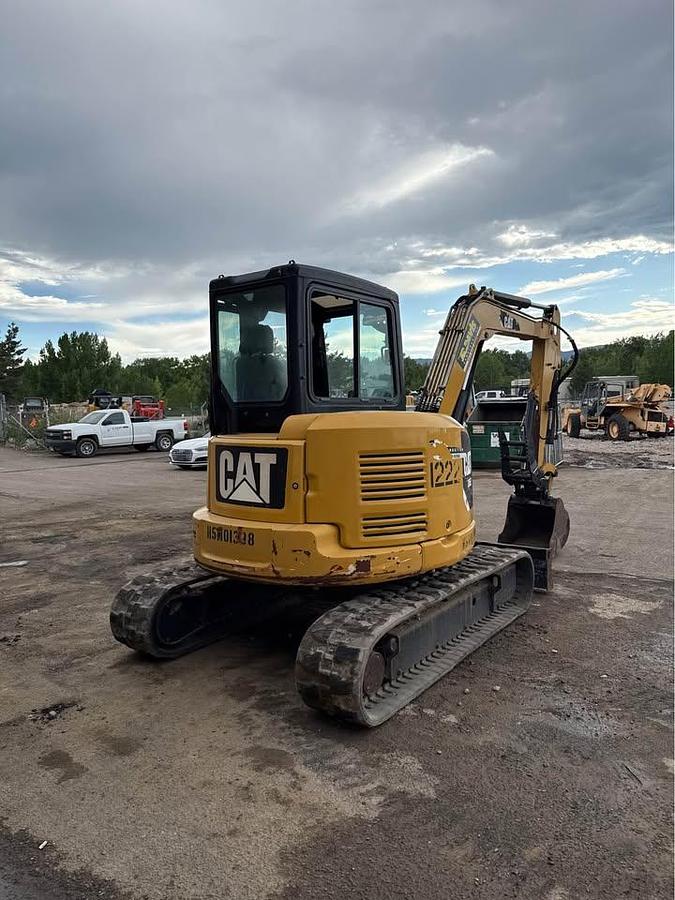

2016 CAT 305E2 Excavator

2016 CAT 305E2 Excavator

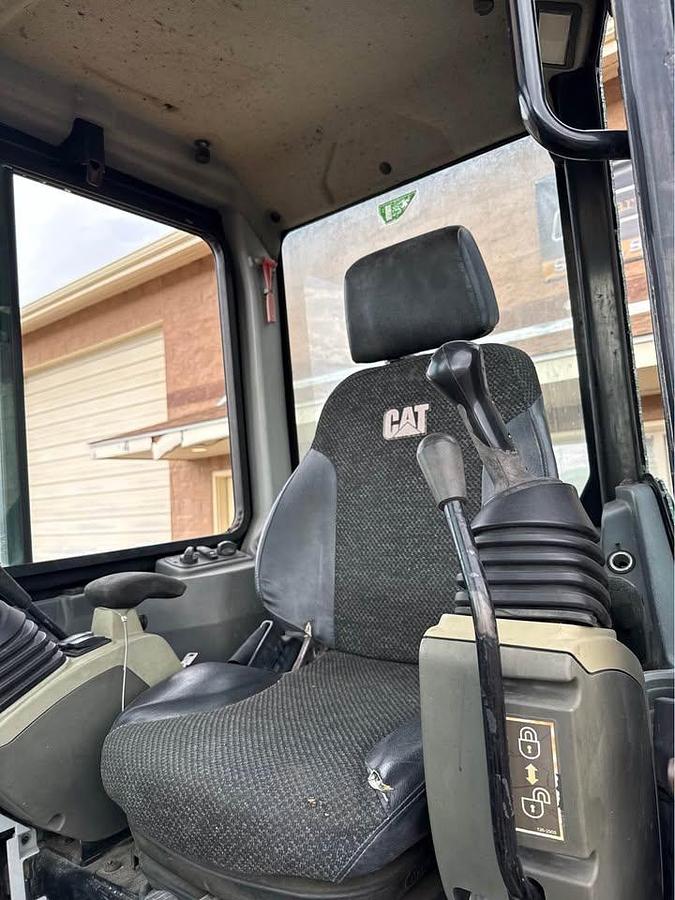

2016 model, two-speed, with a hydraulic thumb for versatile digging. Enclosed cab with heat and A/C keeps you comfortable in any season. This machine has no leaks, no issues, and is fully ready for the job site. Reliable, efficient, and built to get the work done.

Engine & Performance

• Engine Model: Cat C2.4
• Net Power: 40.2 hp (30.0 kW) at 2,200 rpm
• Gross Power: 41.8 hp (31.2 kW)
• Displacement: 146 in³ (2.4 L)
• Bore: 3.4 in (87 mm)
• Stroke: 4.0 in (102.4 mm)
• Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IIIA standards

Dimensions & Weight

• Operating Weight: 11,433 lb (5,185 kg)
• Transport Length: 20.8 ft (6,340 mm)
• Transport Width: 6.5 ft (1,980 mm)
• Transport Height: 8.4 ft (2,550 mm)
• Tail Swing Radius: 3.6 ft (1,100 mm)
• Ground Clearance: 1.3 ft (400 mm)

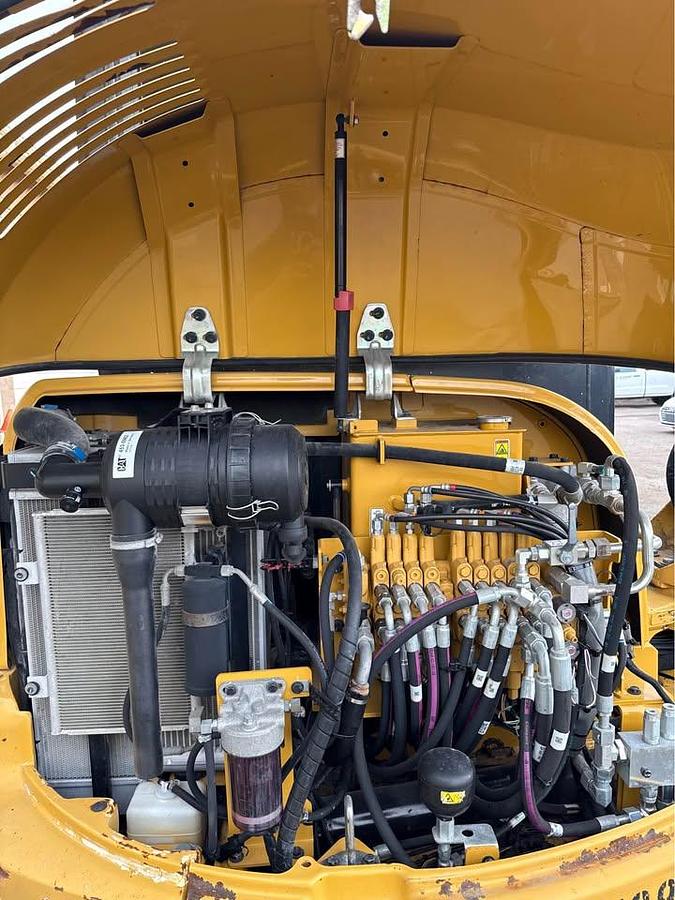

Hydraulic System

• Pump Flow @ 2,400 rpm: 37 gpm (140 L/min)
• Operating Pressure – Equipment: 3,626 psi (25,000 kPa)
• Operating Pressure – Travel: 3,626 psi (25,000 kPa)
• Operating Pressure – Swing: 3,133 psi (21,600 kPa)
• Digging Force – Bucket: 7,868 lbf (35.0 kN)
• Digging Force – Stick: 6,115 lbf (27.2 kN)

Undercarriage & Tracks

• Track Width: 16 in (400 mm)
• Undercarriage Length: 10.2 ft (3,100 mm)
• Ground Pressure: 5.2 psi (36.0 kPa)

Digging & Reach

• Maximum Digging Depth: 12 ft (3,670 mm)
• Maximum Reach at Ground Level: 17.6 ft (5,380 mm)
• Maximum Dump Height: 10.9 ft (3,330 mm)
• Vertical Wall Dig Depth: 8.7 ft (2,650 mm)
• Maximum Blade Height: 1.3 ft (400 mm)
• Maximum Blade Depth: 1.8 ft (550 mm)
