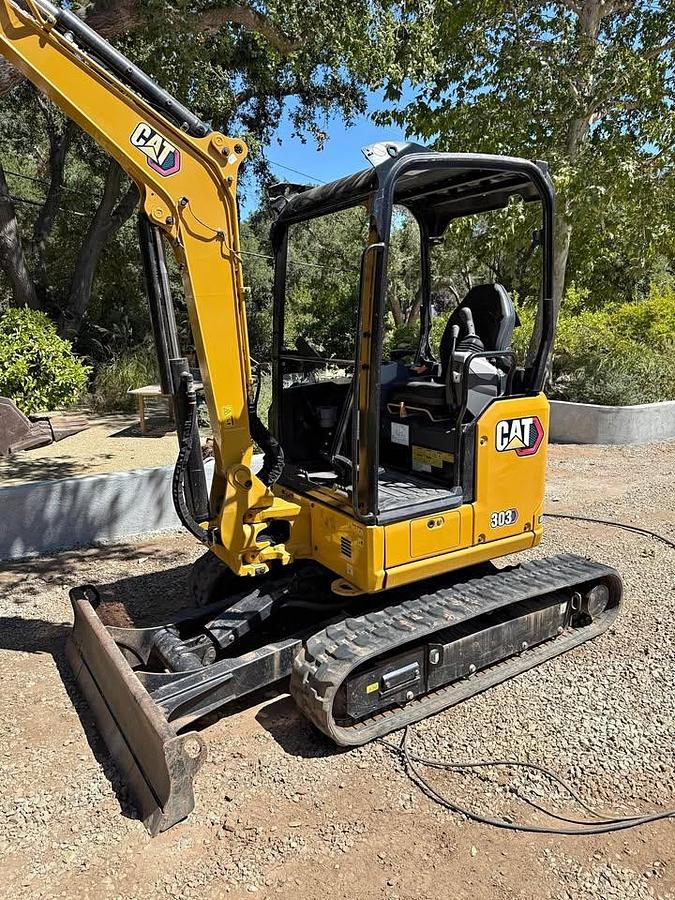

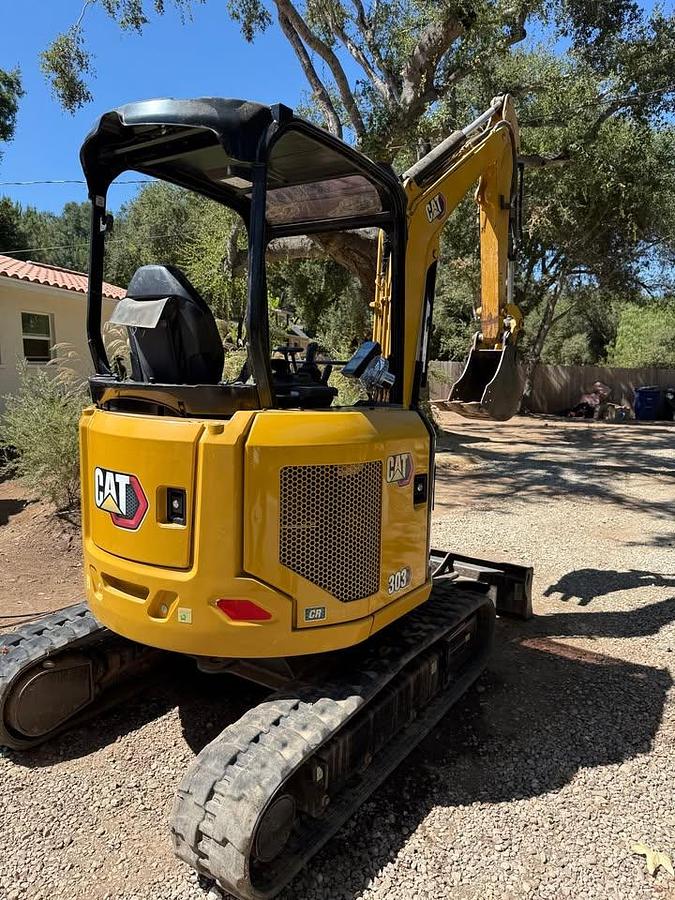

2021 Cat 303 CR Mini Excavator

This 2021 Cat 303 CR has only 1,000 hours and has just been fully serviced, making it ready to go straight to work. Known for reliability, power, and versatility in compact spaces, this machine is clean, well-maintained, and jobsite-ready.

Model: Cat 303 CR

Year: 2021

Type: Mini Hydraulic Excavator

Engine

• Engine Model: Cat C1.1 Turbo
• Net Power: 23.6 hp (17.6 kW)
• Gross Power: 24.7 hp (18.4 kW)
• Emissions: U.S. EPA Tier 4 Final / EU Stage V

Operating Weight

• With Cab: 7,817 lb (3,545 kg)
• With Canopy: 7,439 lb (3,375 kg)

Dimensions – Long Stick

• Dig Depth: 122.4 in (3,110 mm)
• Maximum Reach at Ground Level: 211.8 in (5,380 mm)
• Maximum Dig Height: 197.6 in (5,020 mm)
• Maximum Dump Clearance: 142.5 in (3,620 mm)

Dimensions – Standard Stick

• Dig Depth: 110.6 in (2,810 mm)
• Maximum Reach at Ground Level: 202.0 in (5,130 mm)
• Maximum Dump Clearance: 137.4 in (3,490 mm)

Undercarriage / Blade

• Track Width: 61 in (1,550 mm)
• Blade Width: 61 in (1,550 mm)
• Blade Height: 13.8 in (350 mm)
• Ground Clearance: 12.2 in (310 mm)

Hydraulic System

• Auxiliary Hydraulic Flow: 18 gpm (70 L/min)
• Hydraulic System Pressure: 3,553 psi (245 bar)
• Pump Flow at 2,400 rpm: 26 gal/min (100 L/min)

Performance

• Bucket Digging Force: 6,636 lbf (29.5 kN)
• Stick Digging Force (Standard): 3,418 lbf (15.2 kN)
• Stick Digging Force (Long): 3,087 lbf (13.7 kN)
• Travel Speed (High): 2.8 mph (4.5 km/h)
• Travel Speed (Low): 1.6 mph (2.6 km/h)
