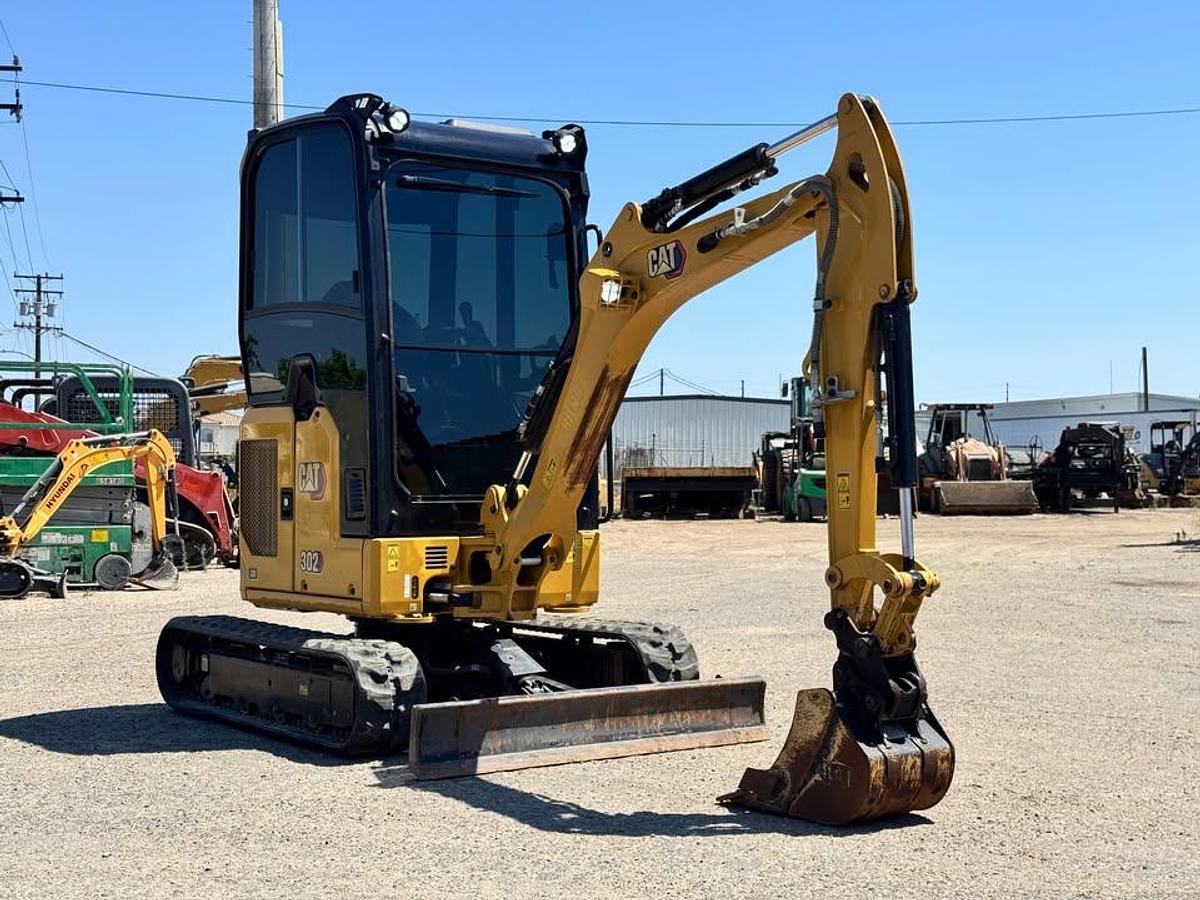

2022 Cat 302 Mini Excavator

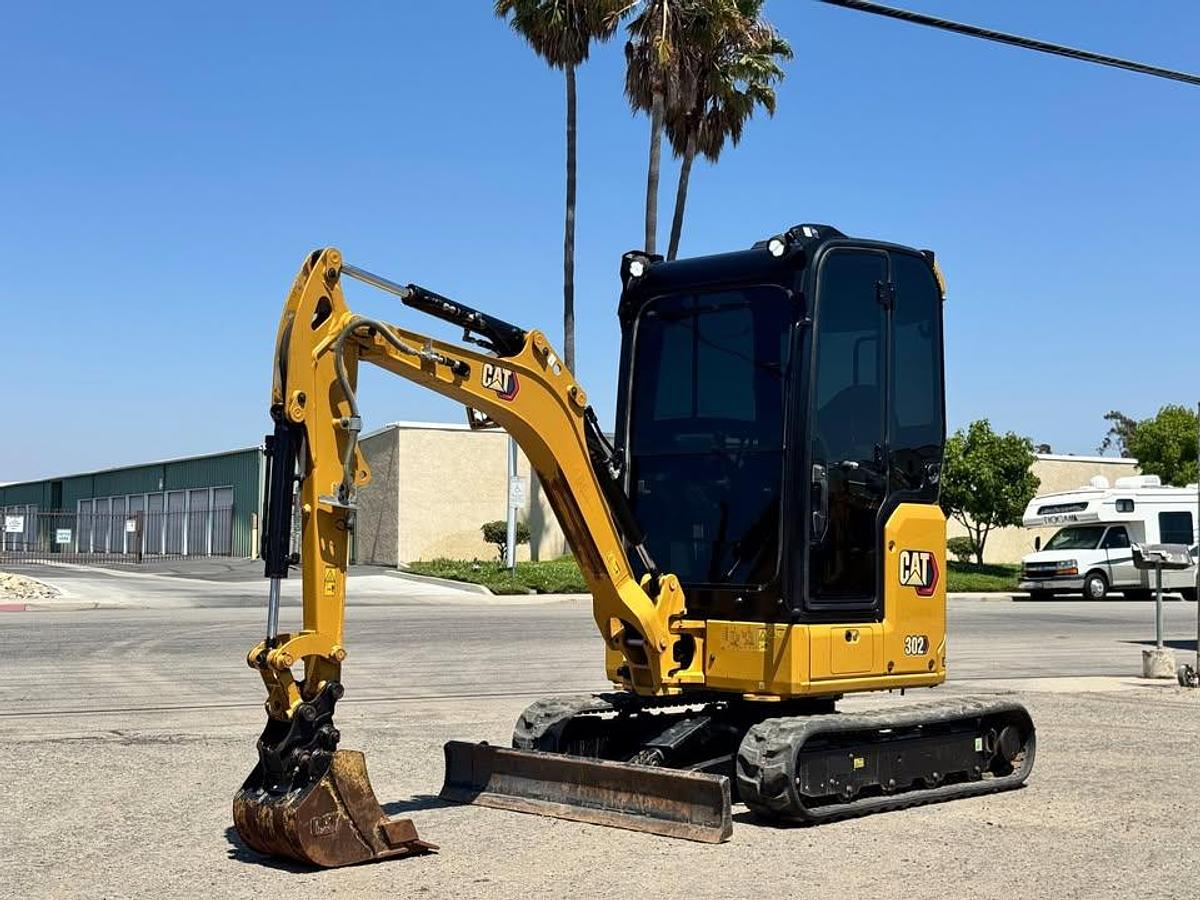

The 2022 Cat 302 Mini Excavator is built for precision, comfort, and versatility, making it perfect for tight spaces and all-day performance. Powered by a Tier 4 Final Cat C1.1 engine, this machine comes equipped with an enclosed cab featuring heat, A/C, Bluetooth radio, tinted windows, and pilot controls for smooth operation. It includes a quick coupler, two-speed travel, rubber tracks in excellent condition, a durable undercarriage, and an LED lighting package for improved visibility. With an operating weight of 4,473 lbs, a dig depth of 7 ft 8 in, a maximum reach of 13 ft 5 in, and a machine width adjustable from 55 to 70 inches, this well-maintained excavator is fully jobsite-ready and built to deliver results from day one.

Model: Cat 302 CR

Year: 2022

Type: Mini Hydraulic Excavator

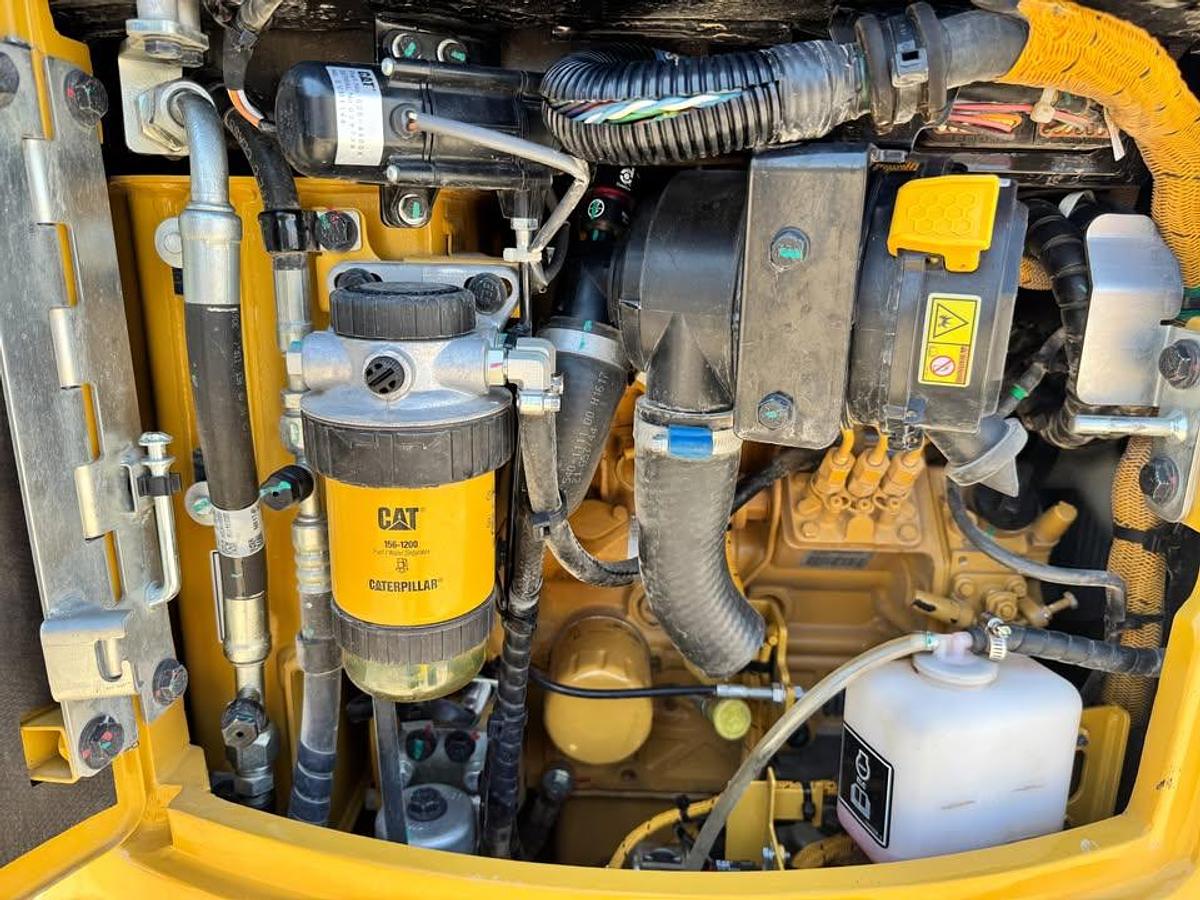

Engine

• Engine Model: Cat C1.1
• Net Power: 21.6 hp (16.1 kW)
• Emissions: U.S. EPA Tier 4 Final

Operating Weight

• Maximum Operating Weight: 4,473 lb (2,030 kg)

Dimensions

• Dig Depth: 7 ft 8 in (2,340 mm)
• Maximum Reach: 13 ft 5 in (4,090 mm)
• Width (Retracted): 55 in (1,400 mm)
• Width (Extended): 70 in (1,780 mm)
• Height (Cab): 90 in (2,285 mm)
• Tail Swing Radius: 33 in (830 mm)

Hydraulic System

• Auxiliary Hydraulic Flow: 8.7 gpm (33 L/min)
• Hydraulic System Pressure: 3,553 psi (245 bar)

Travel Speed

• High: 2.7 mph (4.4 km/h)
• Low: 1.6 mph (2.6 km/h)

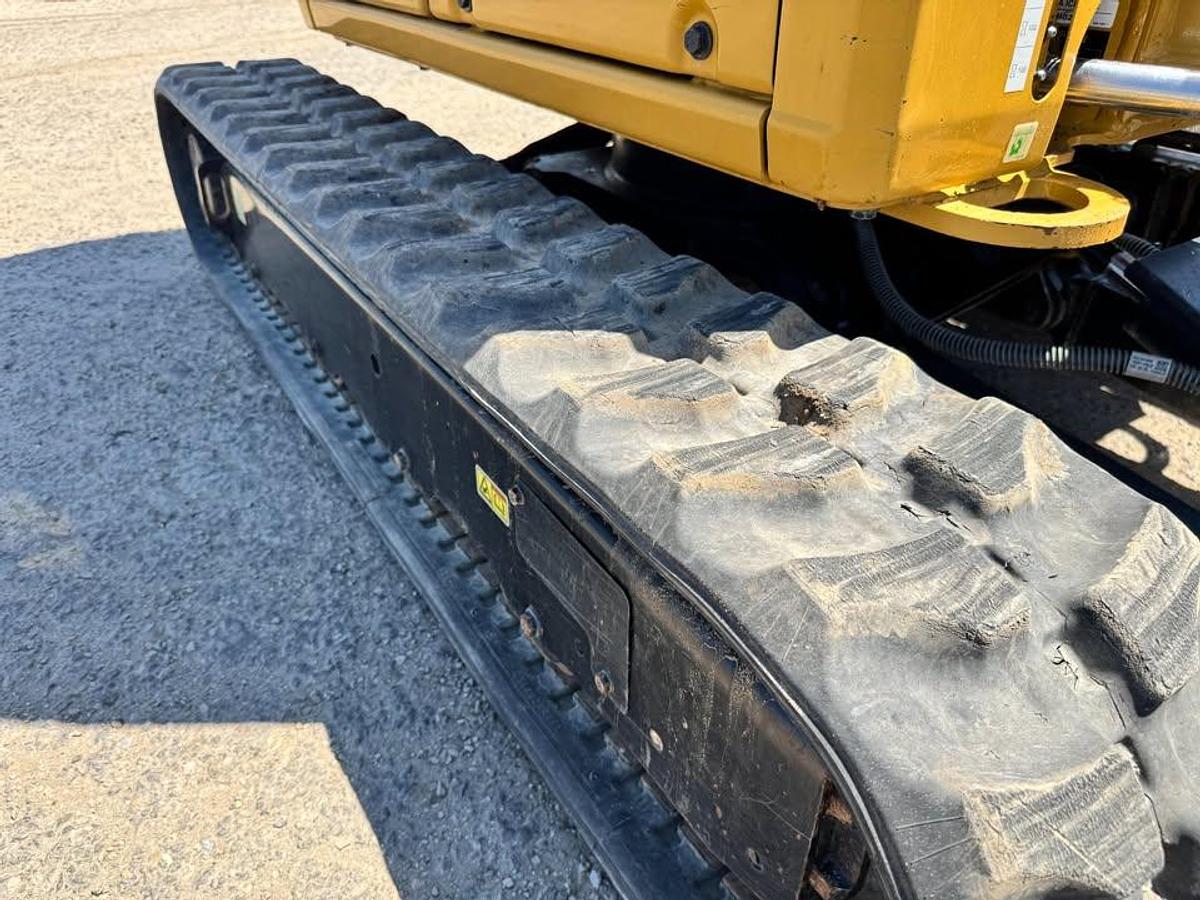

Undercarriage

• Track Type: Rubber (standard)
• Track Width: 9 in (230 mm)
• Blade Width: 55–70 in (1,400–1,780 mm, retractable)

Additional Features

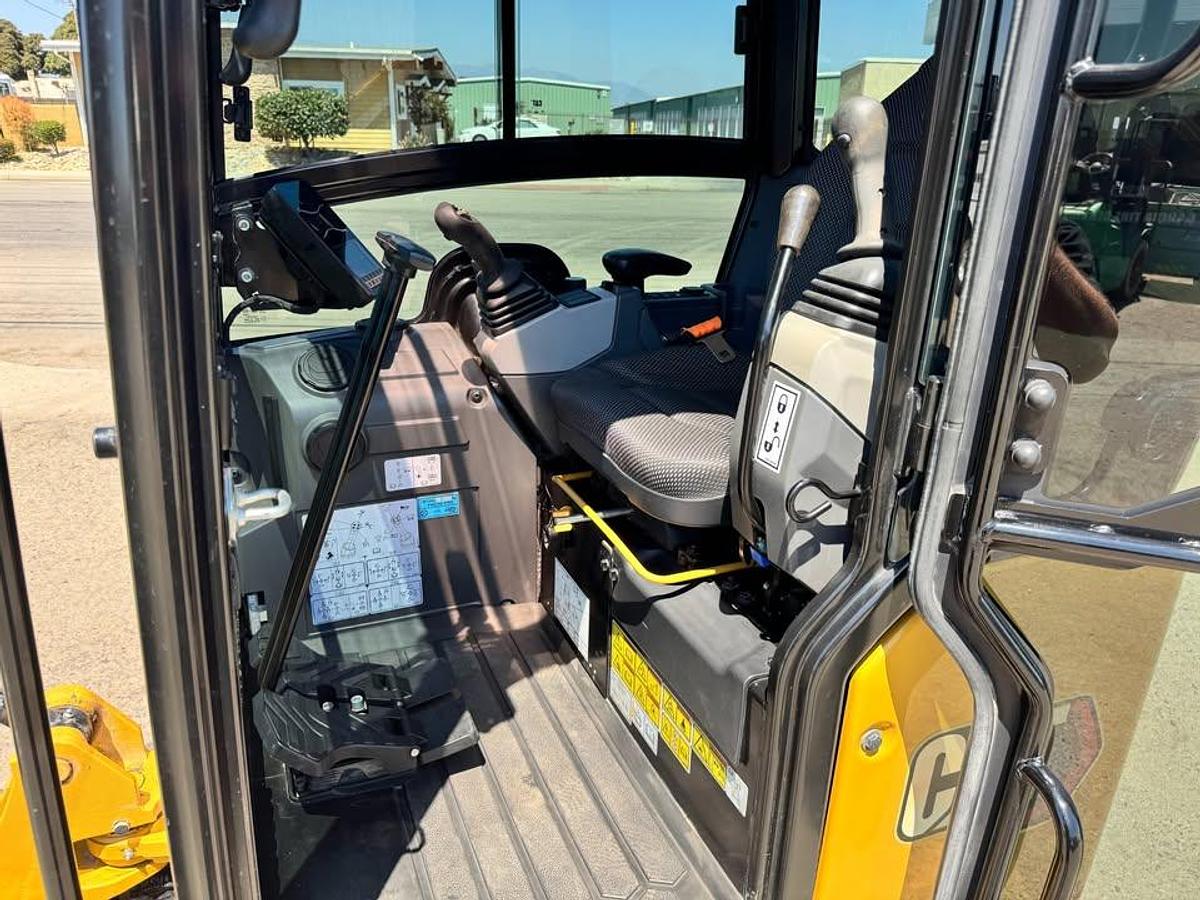

• Enclosed cab with heat and A/C

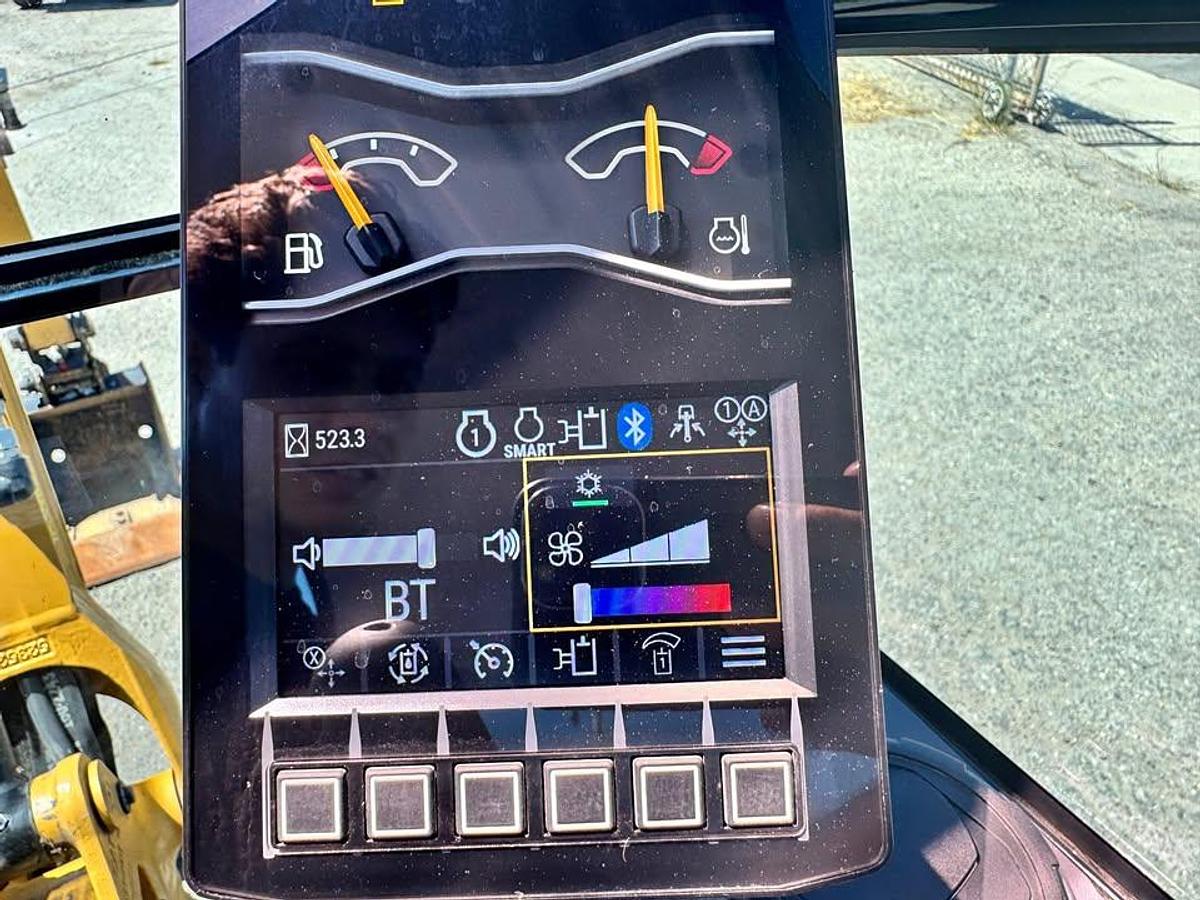

• Bluetooth/FM radio
• Tinted windows

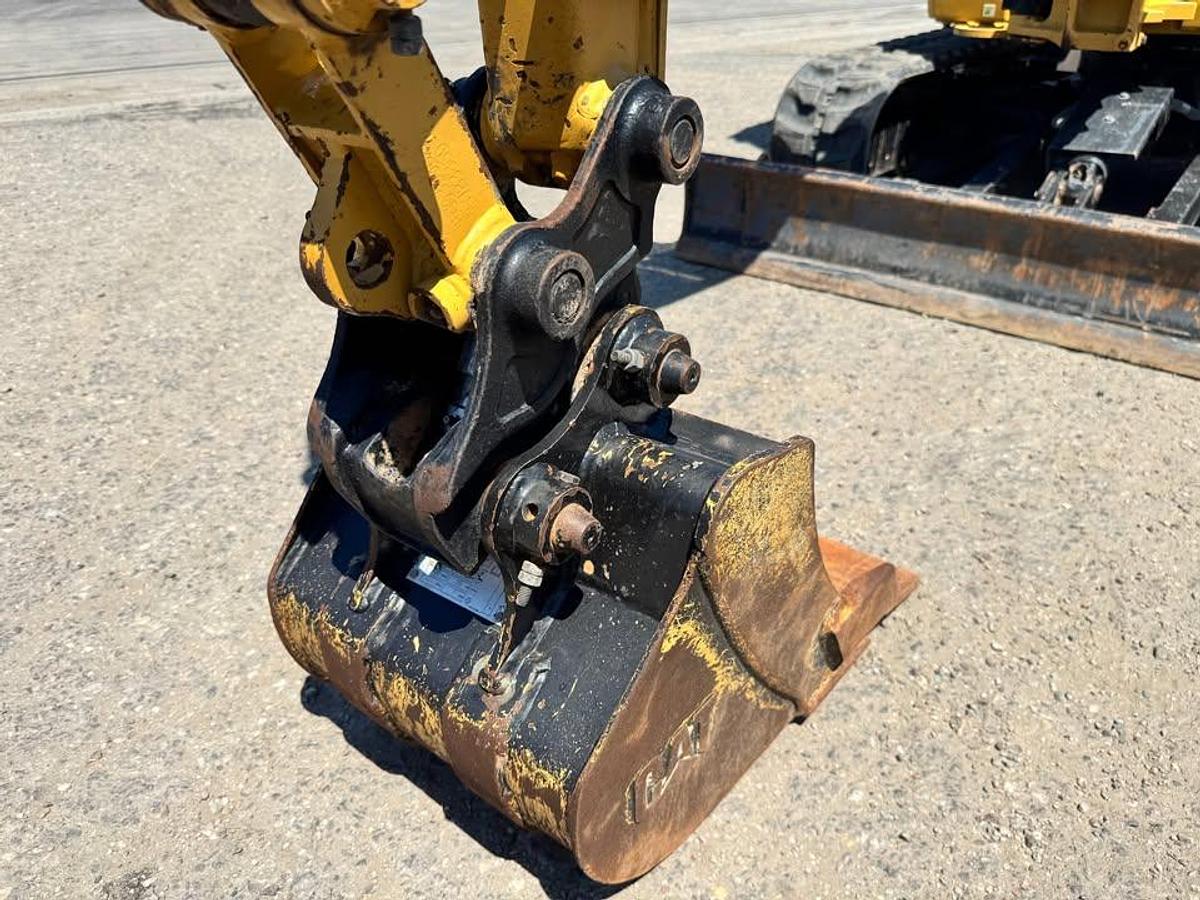

• Quick coupler
• LED lighting package
• Pilot controls for smooth operation
• Two-speed travel
