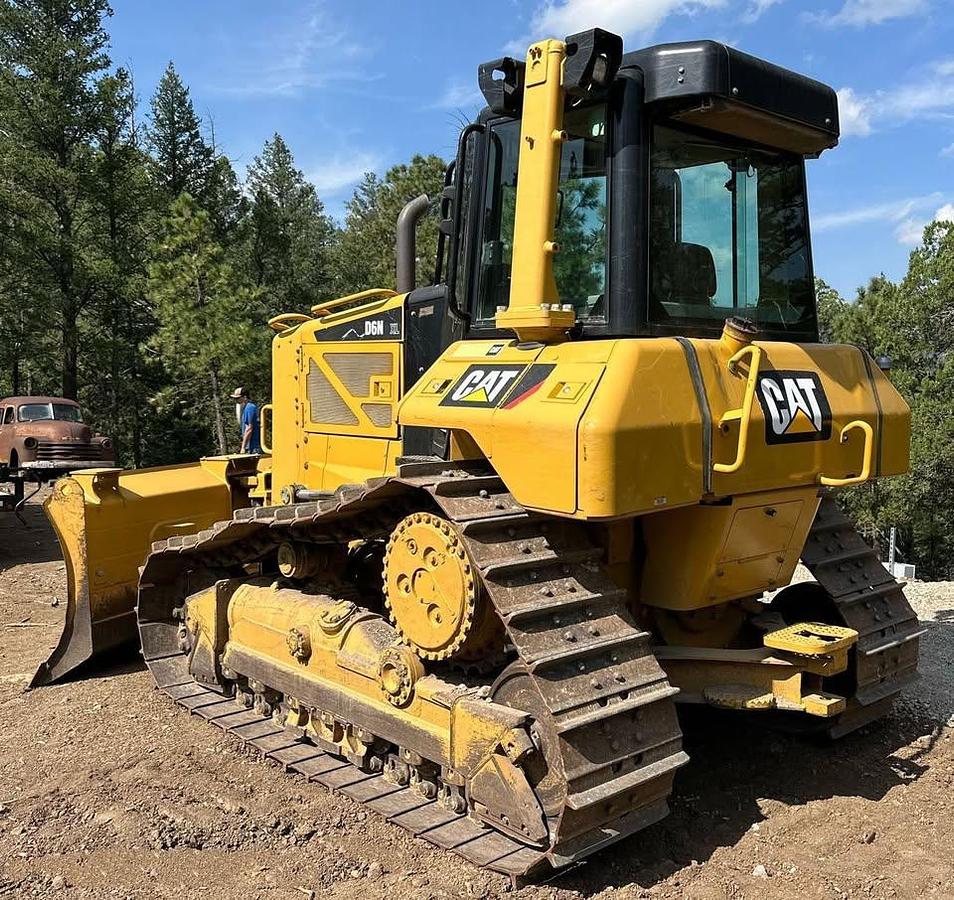

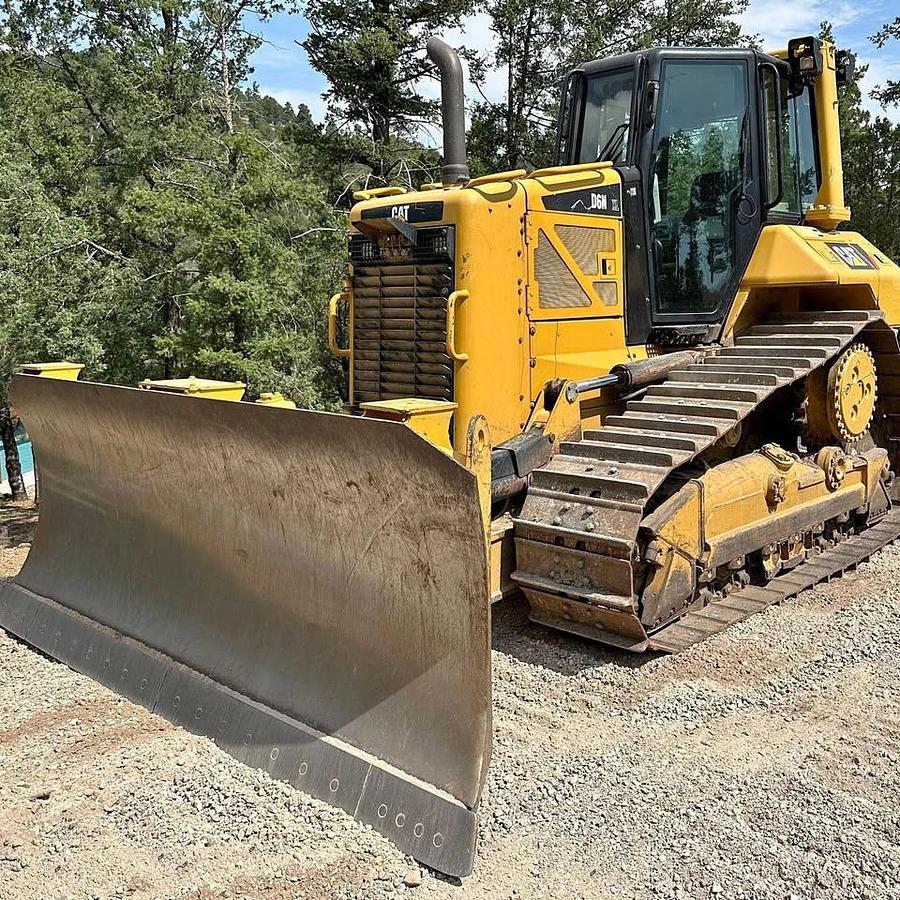

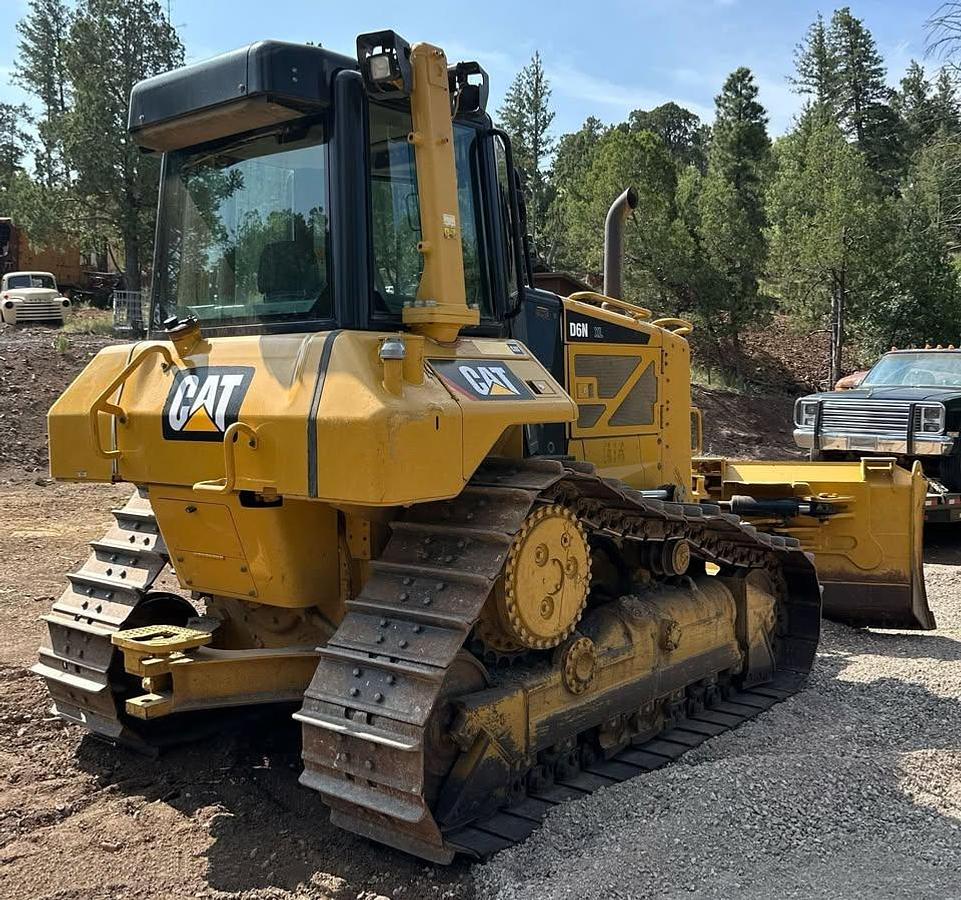

2015 Caterpillar D6N XL Dozer

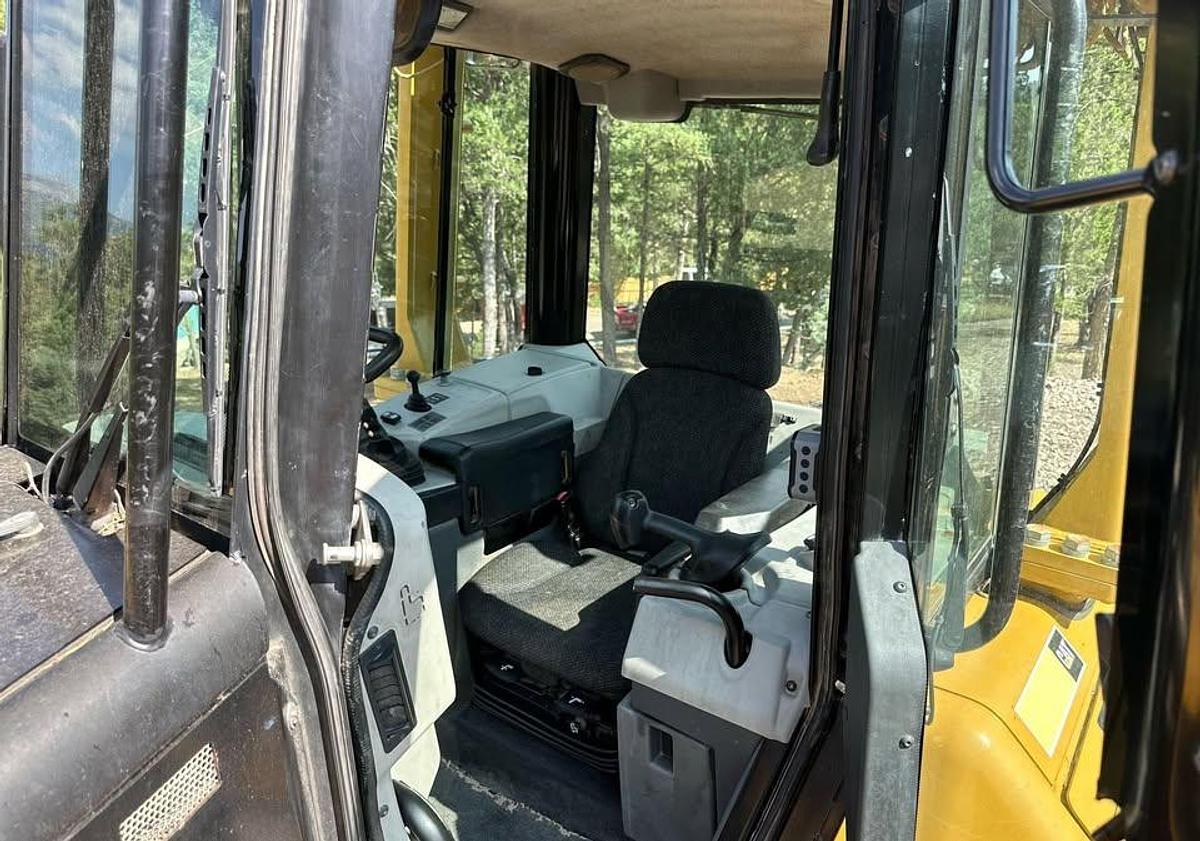

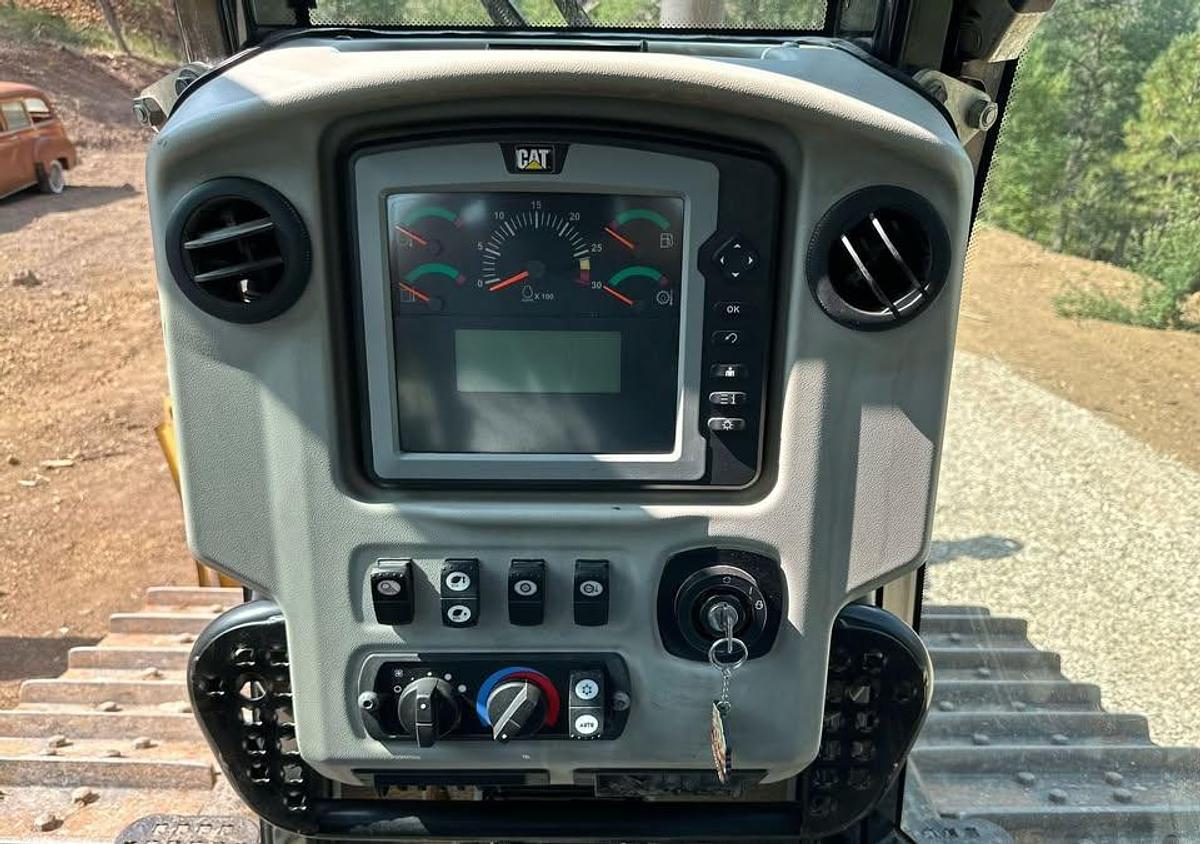

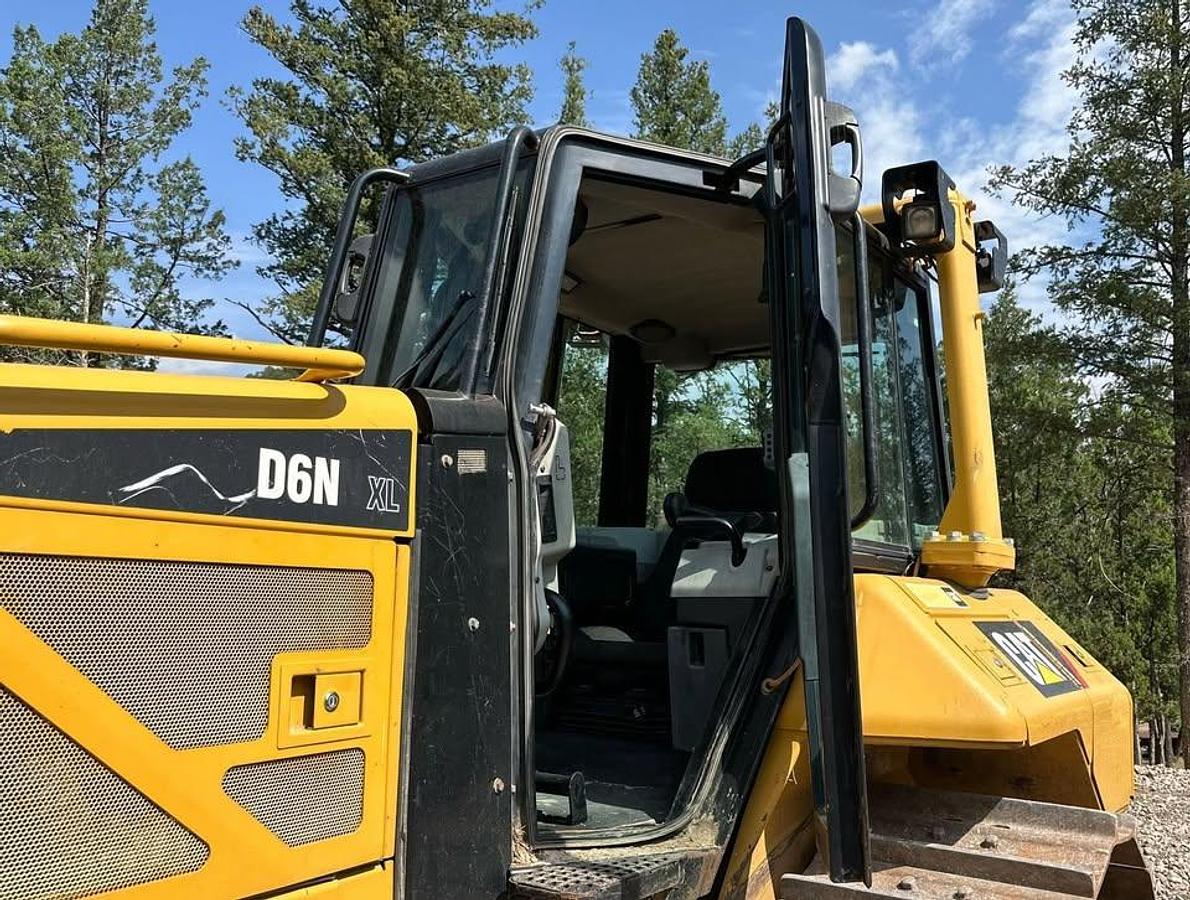

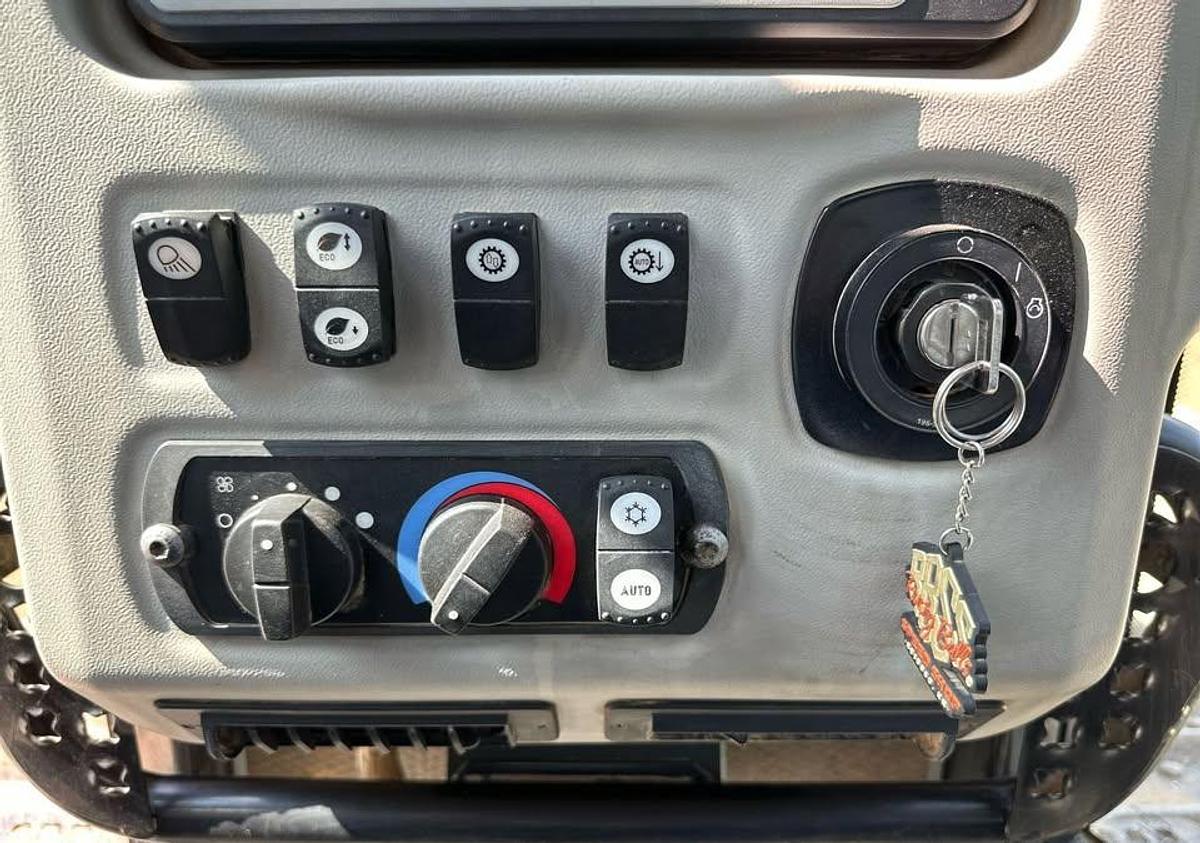

The 2015 Caterpillar D6N XL Dozer with 7,971 hours is a well-maintained machine with no known leaks or issues. It is powered by a Caterpillar C6.6 Acert 6.6L 6-cylinder diesel engine paired with a Powershift 3F/3R transmission. The enclosed cab offers comfort with air conditioning and heat, while the machine is equipped with a differential, rear drawbar, and a 6-way straight dozer blade measuring 127 inches wide. The undercarriage features 24-inch tracks, 7 bottom rollers, and single grouser pads, making this dozer a reliable and ready-to-work choice for demanding jobs.

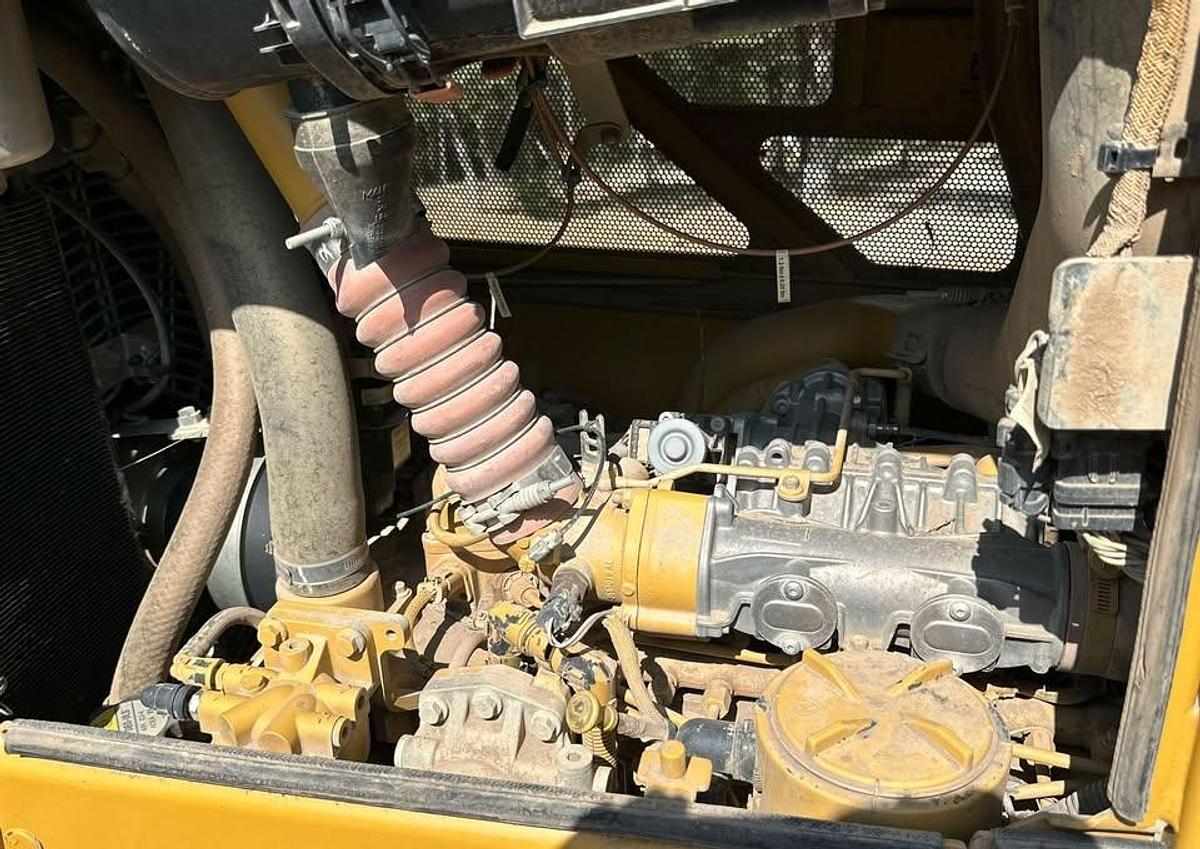

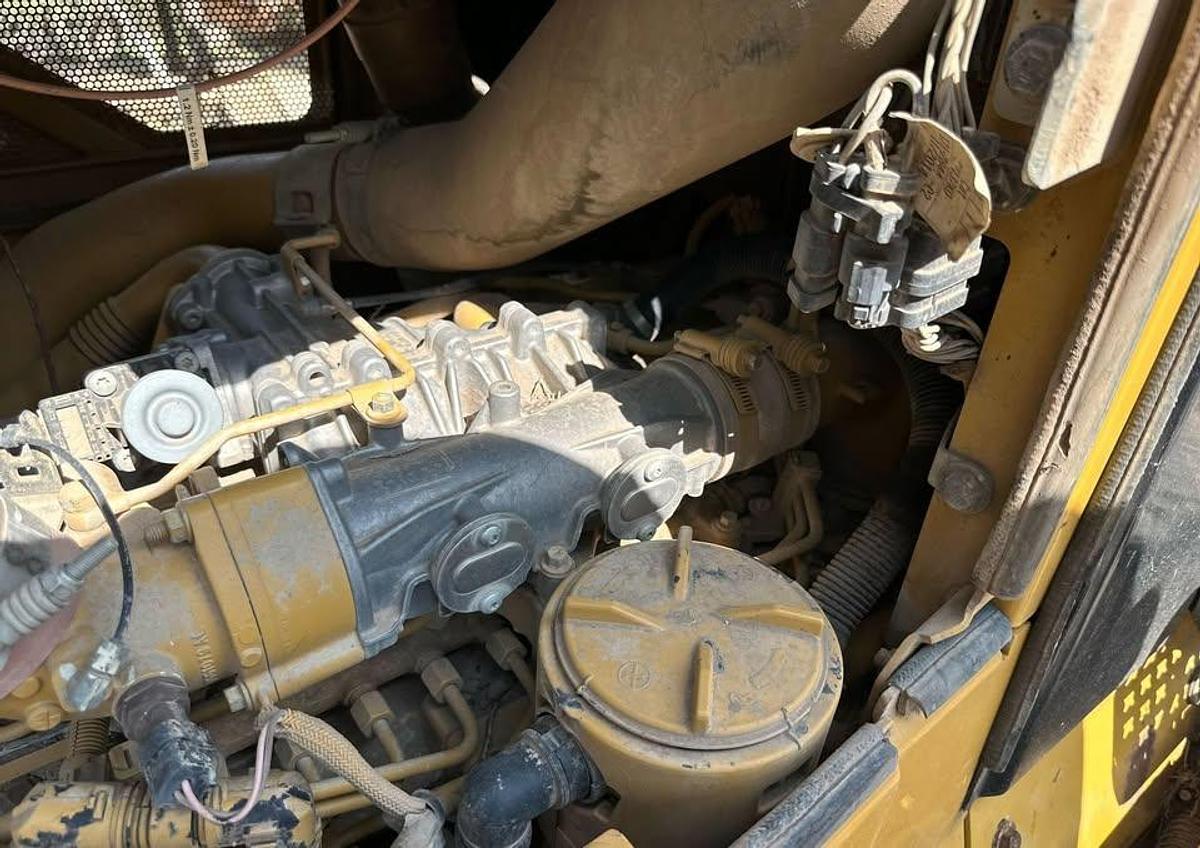

Engine

• Model: Cat C7.1 ACERT
• Displacement: 7.1 L (433 in³)
• Net Power @ 1,800 rpm: 166 hp (124 kW)
• Gross Power @ 2,200 rpm: 178–182 hp (133–136 kW)
• Cylinders: 6
• Emissions: EPA Tier 4 Final / EU Stage IV

Transmission & Performance

• Type: Powershift with lock-up clutch torque converter
• Speeds: 3 forward / 3 reverse
• Features: Enhanced Auto Shift, Bi-Directional Shift, Differential Steering

Weights

• Operating Weight (XL): ~36,943 lb (16,757 kg)
• Shipping Weight (XL): ~36,153 lb (16,399 kg)

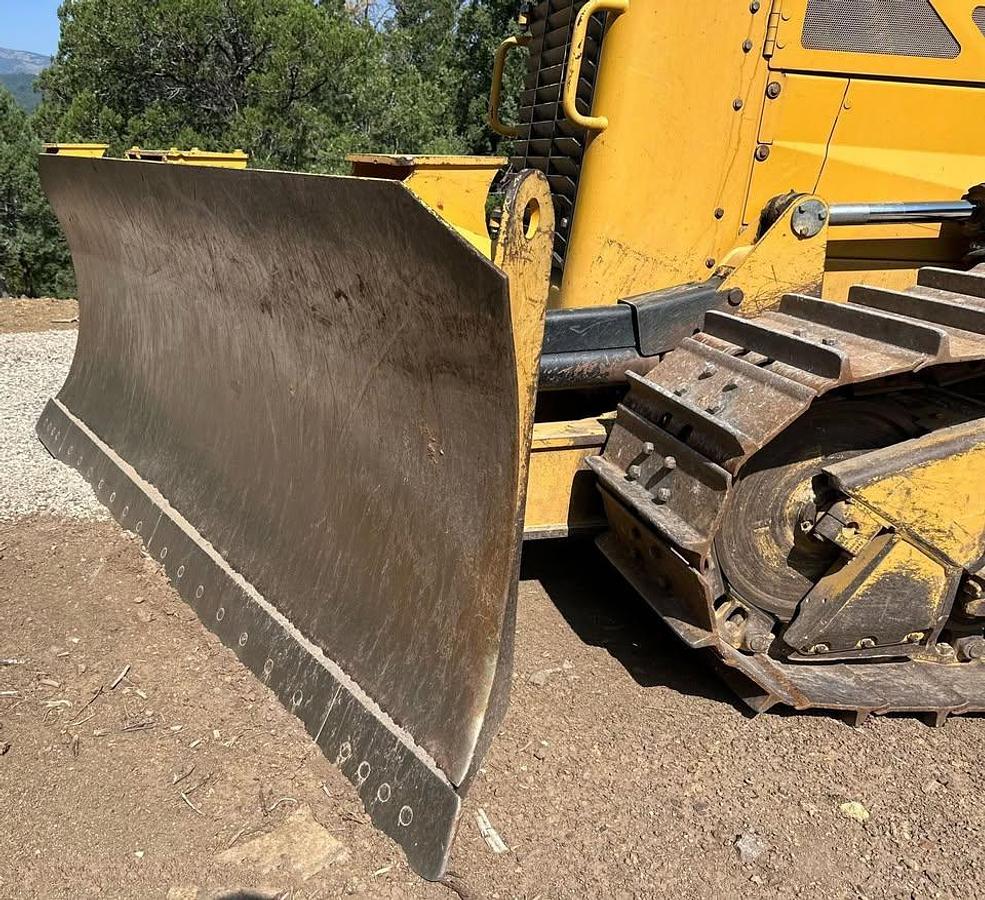

Blade Options (XL)

• XL SU Blade: Capacity 5.6 yd³; Width 10.3 ft (3.15 m)
• XL VPAT Blade: Capacity 4.3 yd³; Width 10.8 ft (3.27 m)

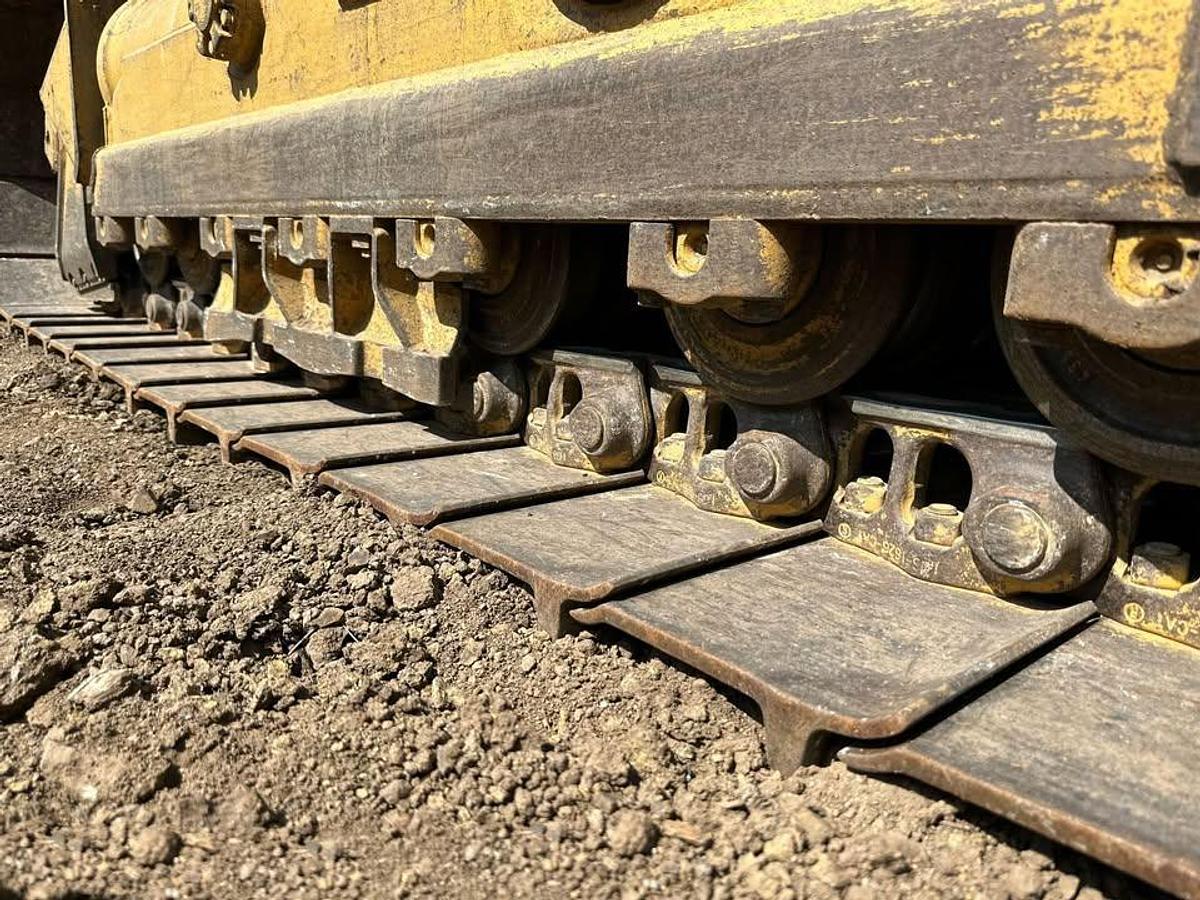

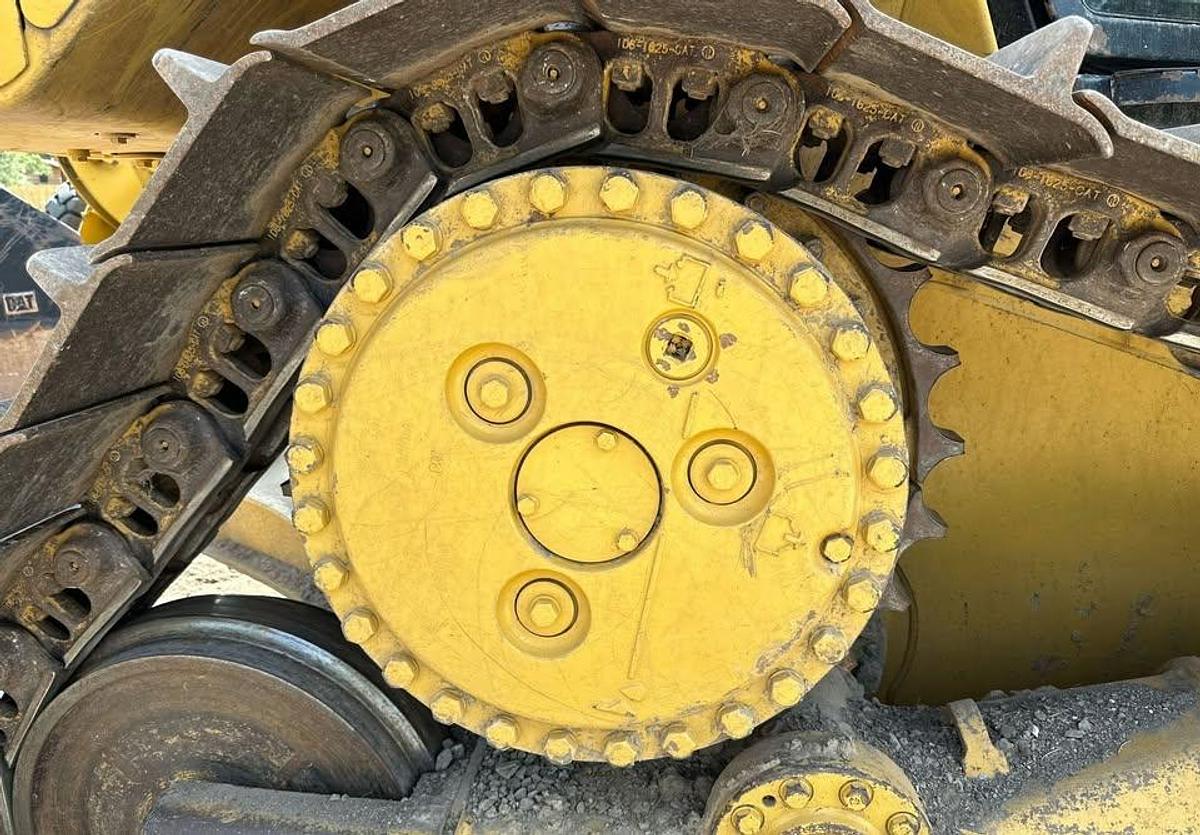

Undercarriage

• Shoe Width: 24 in (610 mm)
• Track Gauge: 74 in (1,890 mm)
• Track on Ground: 100 in (2,550 mm)
• Shoes per Side: 40
• Track Rollers per Side: 7
• Ground Pressure: ~7.4 psi (50.8 kPa)

Ripper (Optional)

• Type: Fixed Parallelogram, 3 shank pockets
• Beam Width: 86.7 in (2,202 mm)
• Maximum Penetration: 18.6 in (473 mm)
• Weight per Additional Shank: 172 lb (78 kg)

Service Refill Capacities

• Fuel Tank: 79 gal (299 L)
• Cooling System: 10.8 gal (40.7 L)
• Final Drive (each): 1.8 gal (7 L)
• Hydraulic Tank: 7.8 gal (29.5 L)
• DEF Tank: 5 gal (19 L)
