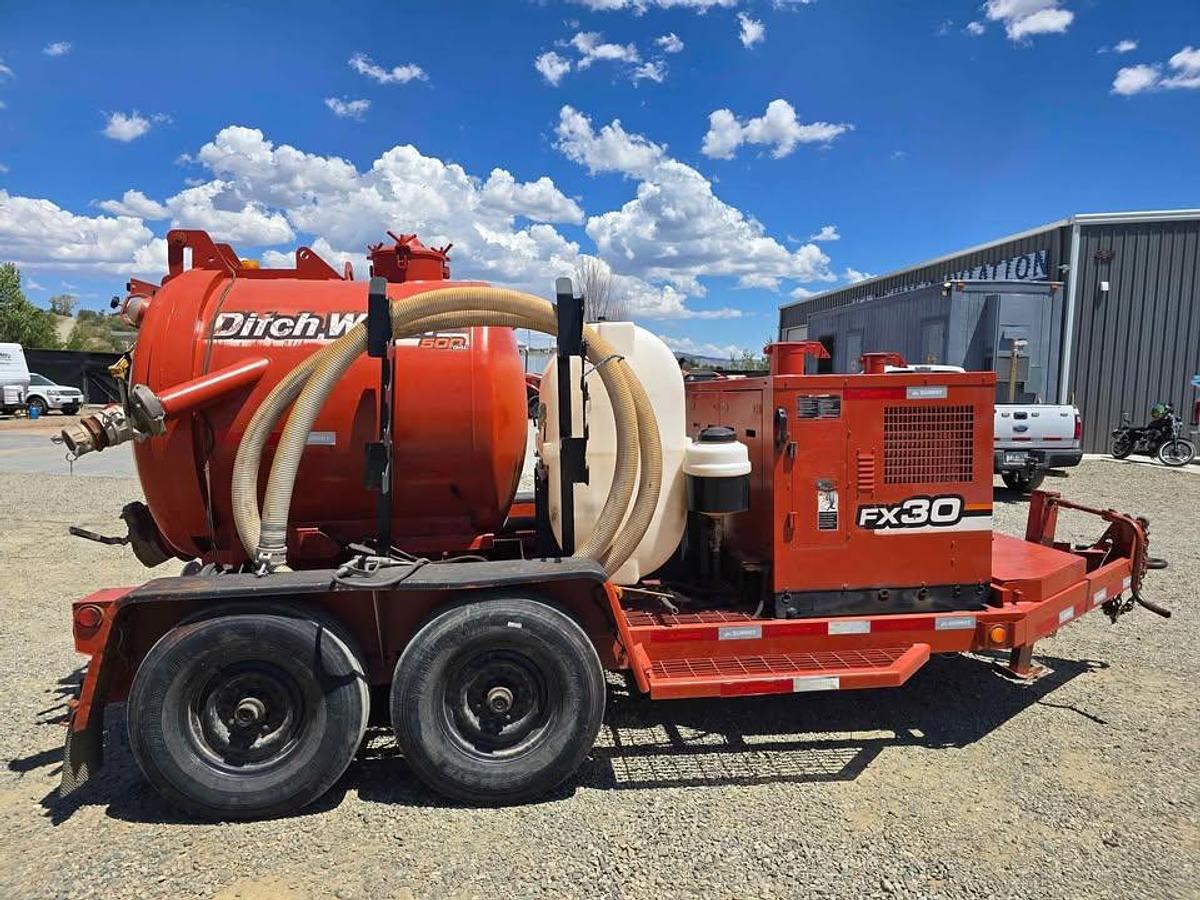

2009 Ditch Witch FX30 500 Gallon Diesel Vacuum Trailer

This 2009 Ditch Witch FX30 500 Gallon Diesel Vacuum Trailer is in good condition and fully operational. The engine and vacuum system are free of leaks, and the unit has been maintained to Ditch Witch specifications. It features a brand-new T filter housing and air filter, and the tires are in good condition. This trailer is ready to go straight to work.

Engine

• Make/Model: Deutz Diesel
• Horsepower: 24.8 hp (18.5 kW)
• Fuel Type: Diesel
• Cooling: Liquid-cooled

Vacuum System

• Blower: Roots 624 (or equivalent)
• Airflow: 512 CFM (14.5 m³/min)
• Mercury Gauge: Included
• Max Vacuum: 15 in Hg (381 mm Hg)

Water System

• Water Tank Capacity: 80 gallons (303 L)
• Water Pump: 3.5 gpm @ 3,000 psi (13.2 L/min @ 20,684 kPa)

Spoil Tank

• Capacity: 500 gallons (1,893 L)
• Hydraulic Tank Door: Standard
• Dump System: Hydraulic lift, full tank inversion

Trailer Specifications

• Axle Rating: Tandem 7,000 lb axles (14,000 lb GVWR)
• Hitch: 2-5/16 in ball or pintle (depending on build)
• Brakes: Electric
• Tires: ST235/80 R16 (good condition)
• Lights: DOT-approved

Dimensions

• Length: ~ 18 ft (5.49 m)
• Width: ~ 7 ft (2.13 m)
• Height: ~ 8 ft (2.44 m)
• Empty Weight: ~ 7,000 lbs (3,175 kg)

Key Features

• 500-gallon spoil tank capacity
• 80-gallon water tank with high-pressure pump
• New T filter housing and air filter
• Maintained to Ditch Witch specifications
• Good tires, ready for immediate work
