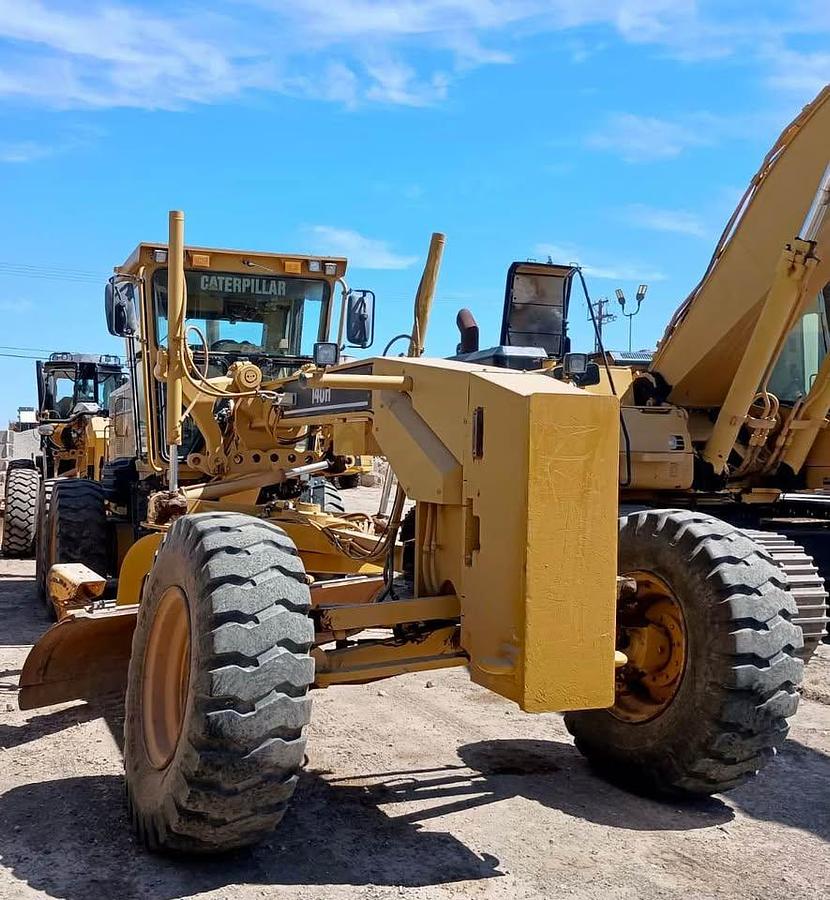

2001 Cat 140H Motor Grader

This 2001 Cat 140H Grader is equipped with rippers and a low-time finish blade. It has had one meticulous owner and has been kept tight, clean, and dry with daily maintenance. The machine was used strictly for blue top subgrade and finish grade work and was never worked as a construction blade.

Engine

• Model: Cat 3306 DIT
• Net Power: 185 hp (138 kW)
• Gross Power: 190 hp (142 kW)
• Displacement: 10.5 L (638 in³)
• Cylinders: 6

Operating Specifications

• Operating Weight: ~ 31,000 – 32,000 lbs (14,060 – 14,515 kg)
• Top Speed, Forward: 25.8 mph (41.5 km/h)
• Top Speed, Reverse: 20.9 mph (33.6 km/h)

Moldboard

• Blade Width: 14 ft (4.27 m)
• Blade Height: 24 in (610 mm)
• Blade Thickness: 1 in (25 mm)
• Blade Pull (maximum): ~ 24,000 lbs (10,890 kg)
• Cutting Depth: 30 in (762 mm)

Hydraulic System

• Pump Type: Variable-displacement piston
• Flow: 43.5 gal/min (165 L/min)
• Pressure: 2,750 psi (18,960 kPa)

Dimensions

• Overall Length: 28.4 ft (8.66 m)
• Overall Width: 8.3 ft (2.53 m)
• Overall Height: 10.9 ft (3.32 m)
• Wheelbase: 20.0 ft (6.1 m)

Key Features

• Enclosed Cab with A/C
• Rippers
• Tight, clean, and dry machine
• Well-maintained by single owner
• Used primarily for finish grading and subgrade prep
