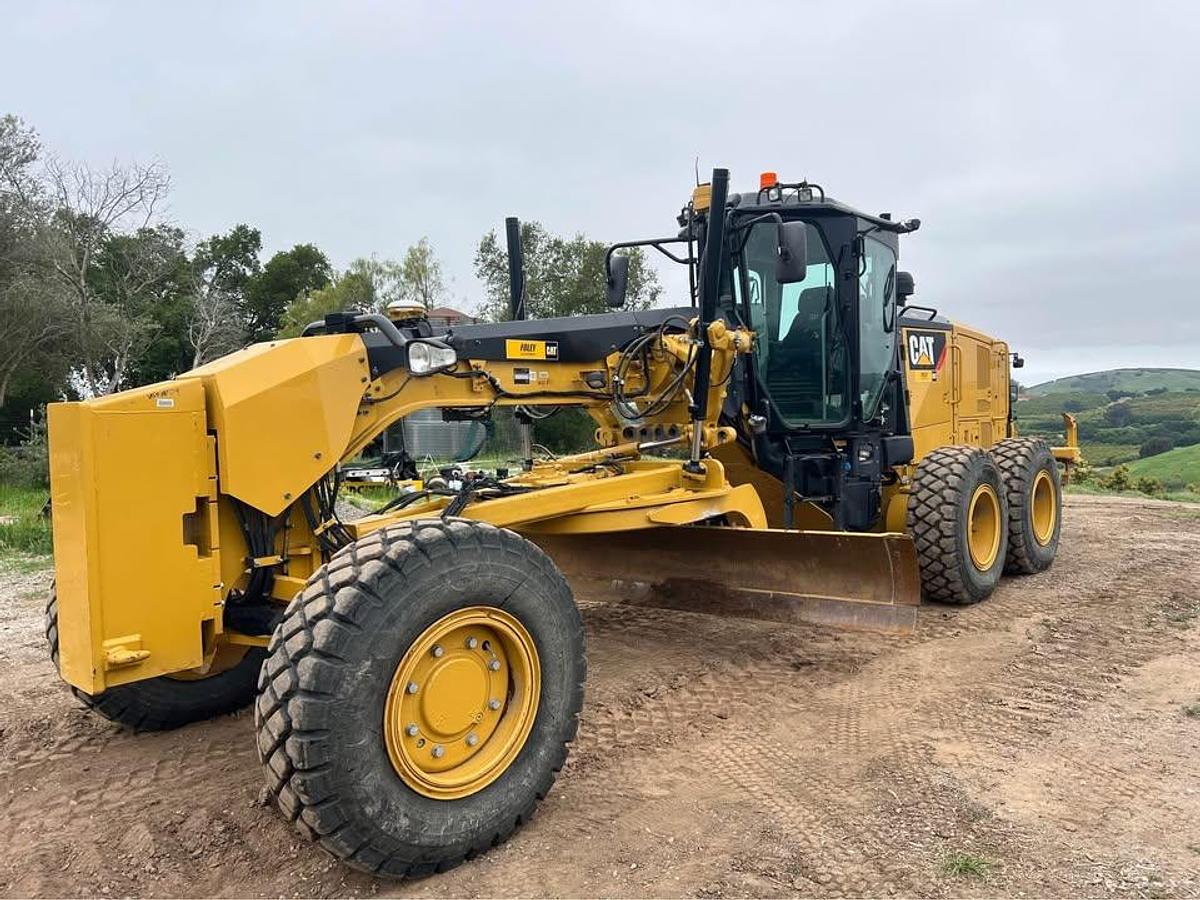

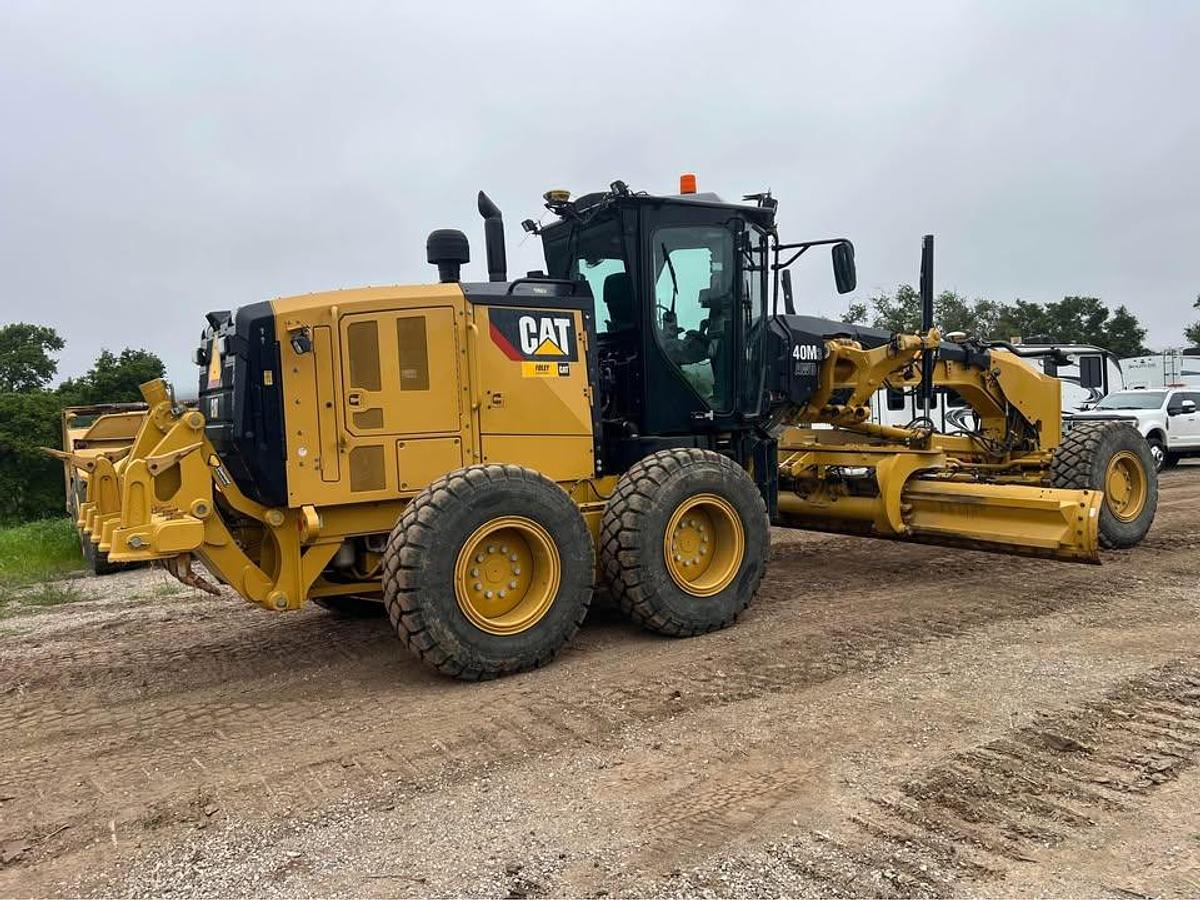

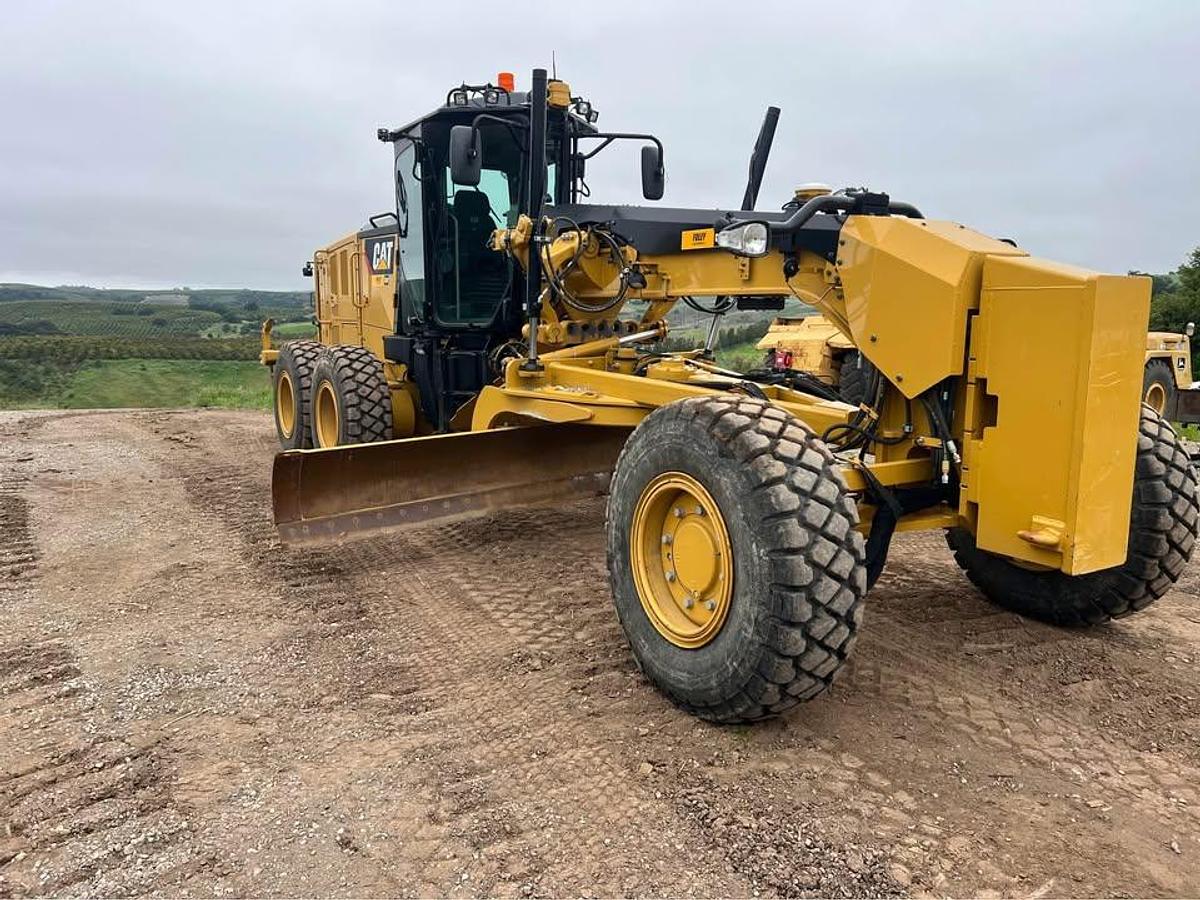

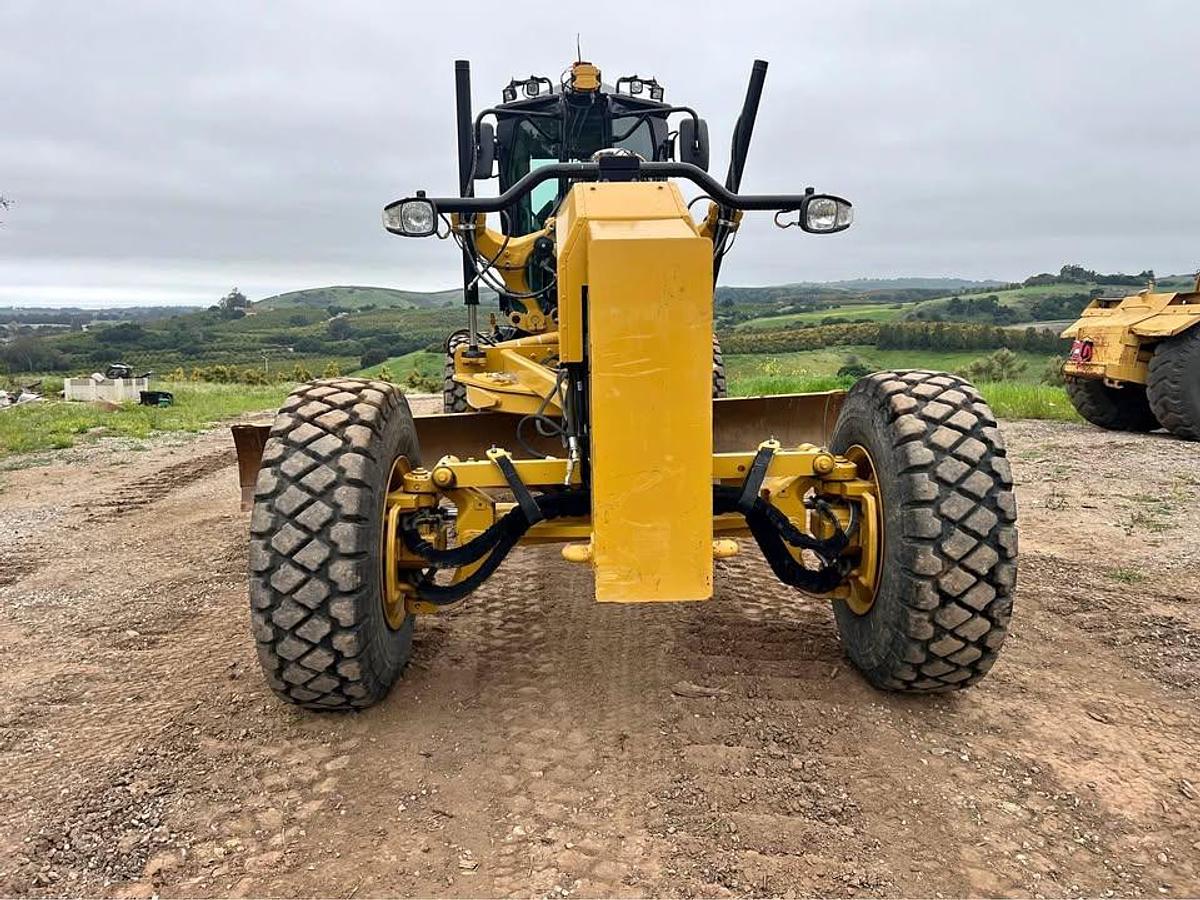

2018 Caterpillar 140 AWD M3 Motor Grader

2018 Caterpillar 140 AWD M3 Motor Grader outfitted with Trimble Earthworks and Infield Design for precision grading. Equipped with rear rippers and full articulation for maximum versatility, this machine also includes four years remaining on a transferable Platinum Warranty along with a full CVA agreement for peace of mind. Maintained to the highest standard, it is in like-new condition and ready to go straight to work.

Engine and Power

• Engine model: Cat C9.3 ACERT, Tier 4 Final
• Net power (ISO 9249): 250 hp (186 kW)
• Gross power: 270 hp (201 kW)
• Displacement: 9.3 L (567 in³)
• Bore × stroke: 115 mm × 149 mm
• Maximum torque: 1,177 N·m (868 lb-ft)
• Fuel system: Mechanically actuated, electronically controlled unit injection (MEUI)
• Cooling: Demand fan, hydraulic, swing-out for service access

Operating Weights

• Operating weight AWD: ~44,614 lb (20,234 kg)
• Front axle load: ~14,682 lb (6,660 kg)
• Rear axle load: ~29,932 lb (13,574 kg)

Dimensions

• Overall length: 29 ft 5 in (8,973 mm)
• Width over tires: 8 ft 5 in (2,565 mm)
• Height to top of cab: 11 ft 3 in (3,430 mm)
• Ground clearance: 13.9 in (353 mm)
• Wheelbase: 20 ft 4 in (6,200 mm)

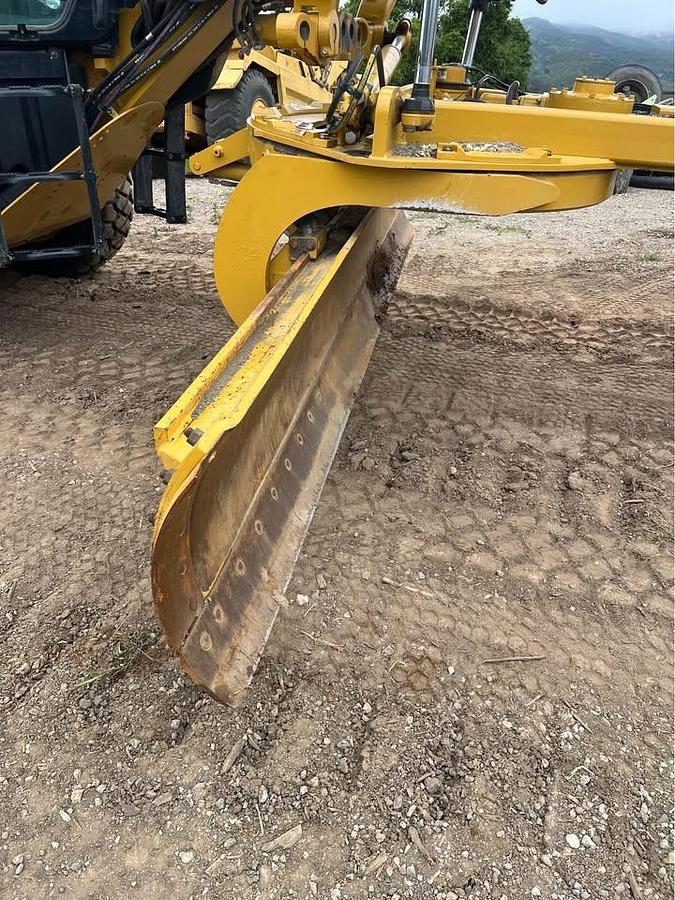

Blade and Moldboard

• Blade width: 12 ft (3.7 m) standard, optional 14 ft (4.3 m)
• Moldboard height: 24 in (610 mm)
• Moldboard thickness: 0.87 in (22 mm)
• Blade lift above ground: 17.1 in (434 mm)
• Blade depth below ground: 6.5 in (165 mm)
• Blade side shift (left/right): 20.7 in (526 mm) / 26.1 in (663 mm)
• Circle diameter: 60.2 in (1,529 mm)
• Circle turning angle: 360° continuous
• Blade tip range (forward/back): 40° / 5°

Articulation and Steering

• Articulation angle: 20° left and right
• Front wheel lean: 18° left and right
• Steering angle (left/right): 50° each direction
• AWD for enhanced traction and control

Performance

• Top forward speed: ~28 mph (45 km/h)
• Top reverse speed: ~20 mph (32 km/h)
• Drawbar: Heavy-duty welded construction with replaceable wear strips

Hydraulics

• Pump type: Variable displacement, load-sensing piston pump
• Pump capacity: ~55 gal/min (208 L/min)
• Maximum system pressure: 3,500 psi (24,150 kPa)

Capacities

• Fuel tank: ~110 gal (416 L)
• Cooling system: ~15 gal (56 L)
• Hydraulic system: ~20 gal (75 L)
• Engine oil: ~7.9 gal (30 L)
• Transmission/differential/final drives: ~20 gal (76 L)

Cab and Controls

• ROPS/FOPS certified
• Fully enclosed, pressurized cab with heating and air conditioning

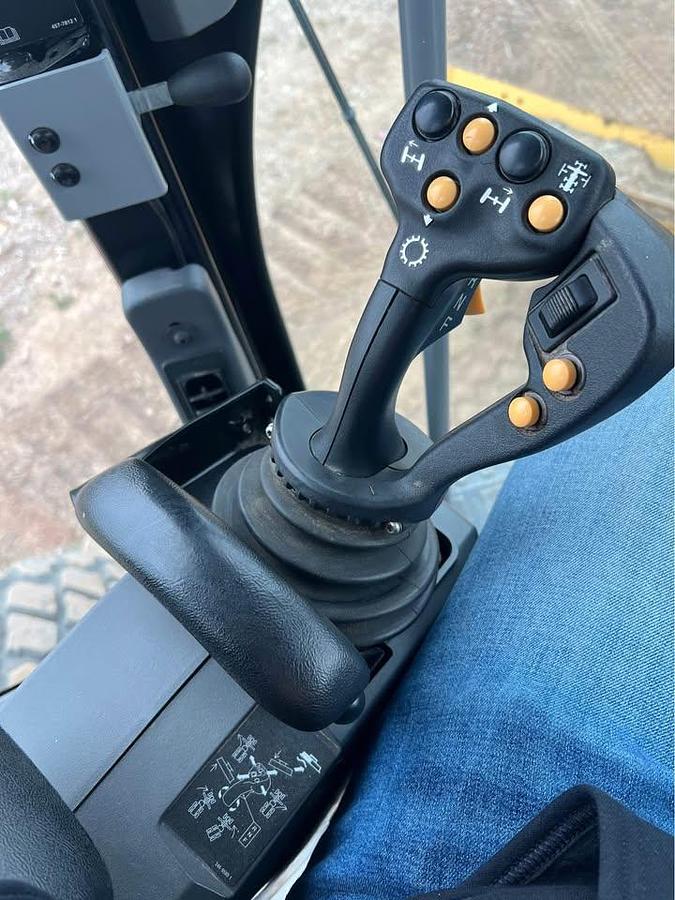

• Joystick controls for precise grading

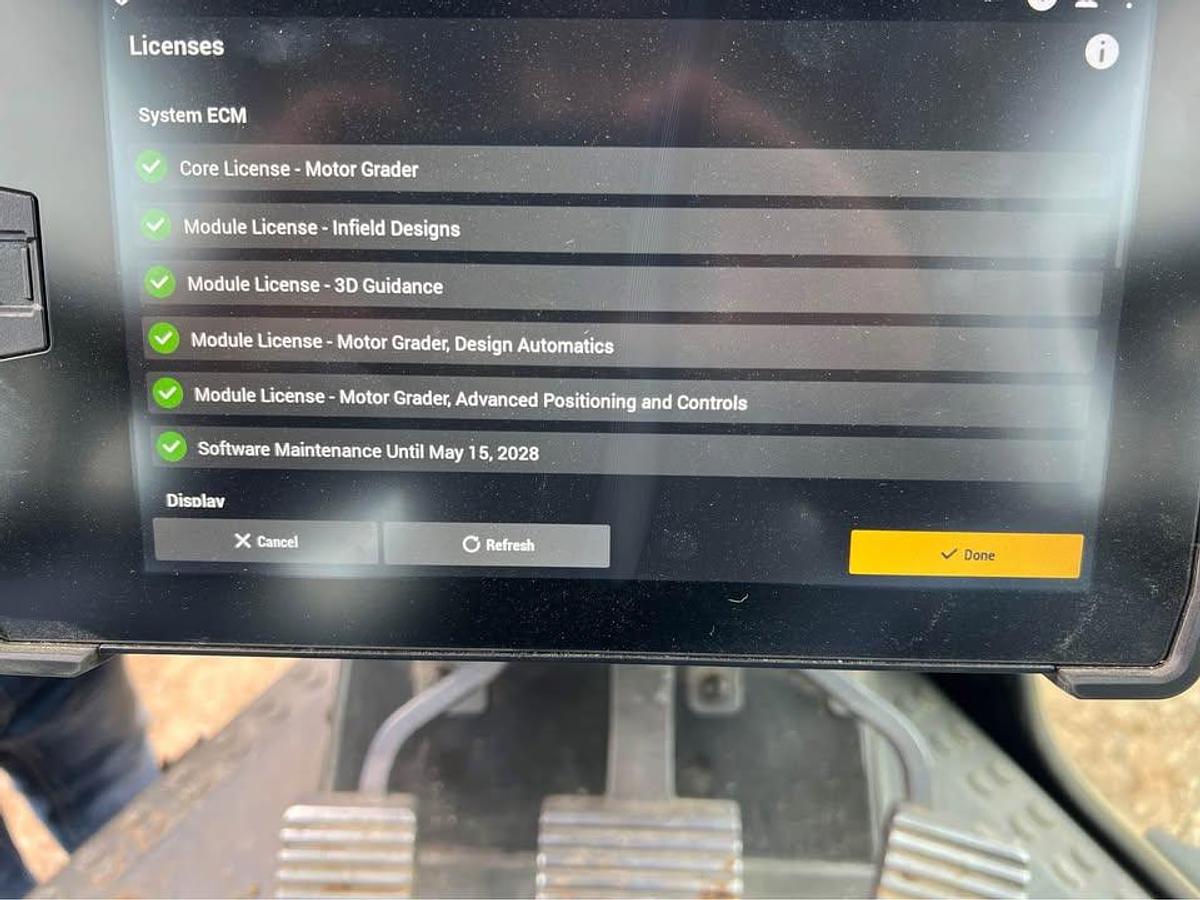

• Integrated Cat Grade with cross slope, Trimble Earthworks compatible (this unit already outfitted)
• High-visibility windows with tinted glass
• Adjustable air-suspension seat

Other Features

• Rear ripper/scarifier
• Full articulation frame
• AWD traction system
• Service access panels for easy maintenance
• Heavy-duty front axle and steering cylinder protection
