2007 CAT D6R XL

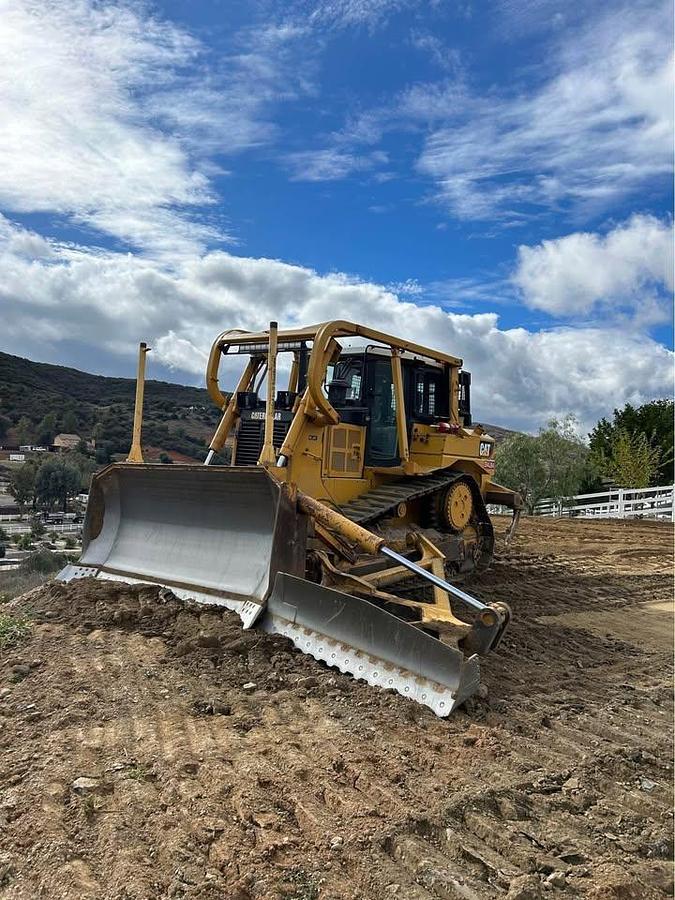

2007 CAT D6R XL — Fire Ready!

Tier 3 engine rebuilt approximately 3,000 hours ago. Equipped with slope board, S/U blade, and triple shank rippers. Undercarriage is approximately 70% and the machine runs and operates exactly as it should. Outfitted with fire curtains, sweeps, and screens. Wired for GPS (receivers and in-cab screen not included). Comes with extra filters. Currently working and ready to go straight to the job.

Engine

• Model: CAT 3306 T
• Flywheel Power: 175 hp (130 kW)
• Maximum Flywheel Power: 189 hp (148 kW)
• Displacement: 640.75 in³ (10.5 L)

Operating Weight

• Approximate Weight: 42,300 lb (19,200 kg)
• Power Shift Configuration: approx. 41,900 lb (19,000 kg)

Dimensions

• Height: 7.8 ft (2,380 mm); with ROPS/Canopy: 10.4 ft (3,190 mm)
• Overall Length (tractor + drawbar): 13.3 ft (4.08 m)
• Overall Length (with blade): 18.75 ft (5.71 m)

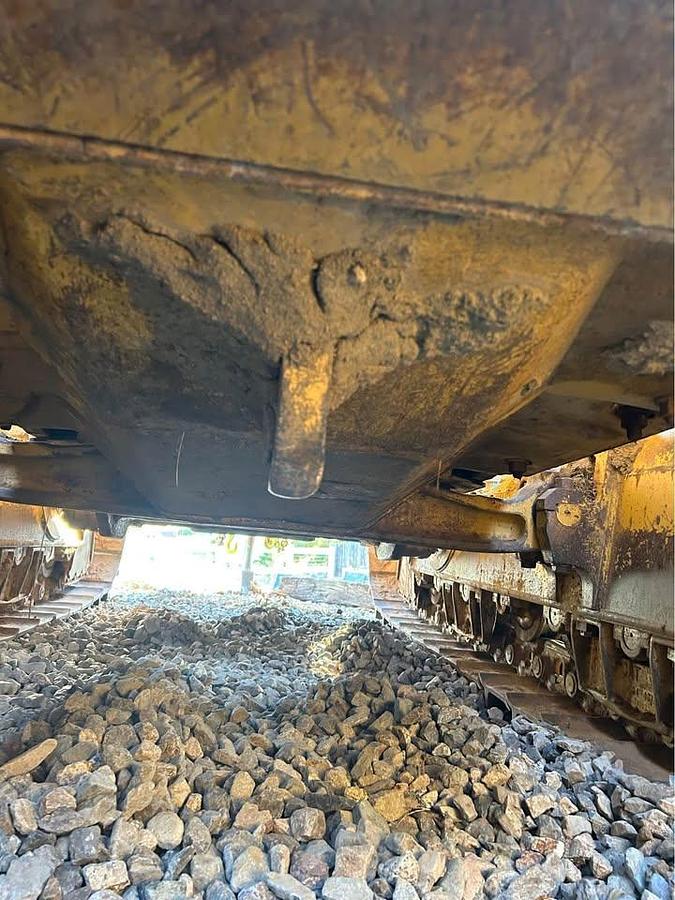

Undercarriage

• Shoe Type: Single grouser
• Shoe Width: 22.05 in (560 mm); Shoes per Side: 41
• Track Rollers per Side: 7
• Ground Clearance: 14.8 in (383 mm)
• Track Gauge: 74.4 in (1.88 m)
• Track on Ground: 9.25 ft (2,820 mm)
• Ground Pressure: 8.55 psi (58.97 kPa)

Blade Options

• SU Blade Width: 10.7 ft (3.26 m)
• A Blade Width: 12.4 ft (3.78 m)
• Straight/Angle Blade Width: 13.7 ft (4.16 m)

Ripper (Parallelogram Type)

• Number of Pockets: 3
• Overall Beam Width: 86.69 in (2,202 mm)

Transmission Speeds

• Forward:
• 1st: 2.42 mph (3.9 km/h)
• 2nd: 4.23 mph (6.8 km/h)
• 3rd: 6.96 mph (11.2 km/h)
• Reverse:
• 1st: 2.98 mph (4.8 km/h)
• 2nd: 5.28 mph (8.5 km/h)
• 3rd: 9.13 mph (14.7 km/h)

Service Refill Capacities

• Fuel Tank: 101.18 gal (383 L)
• Cooling System: 19.55 gal (74 L)
• Engine Crankcase: 7.4 gal (28 L)
• Powertrain: 40.95 gal (155 L)
• Final Drive (each): 3.7 gal (14 L)
• Hydraulic Tank: 20.08 gal (76 L)
