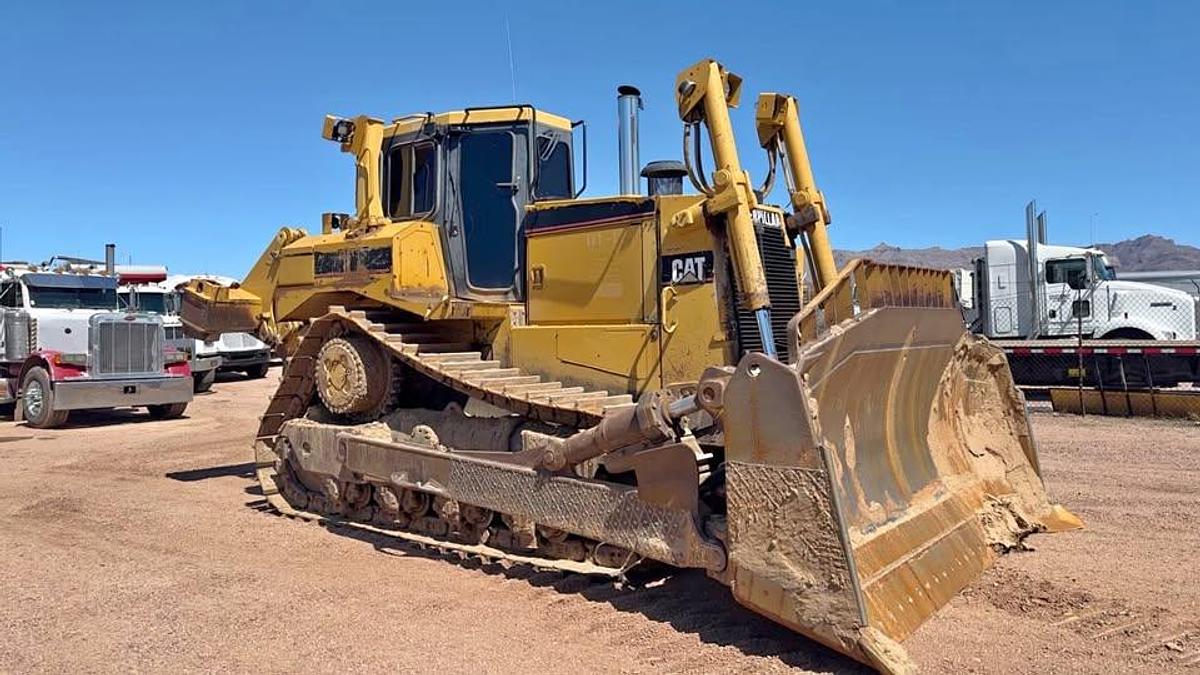

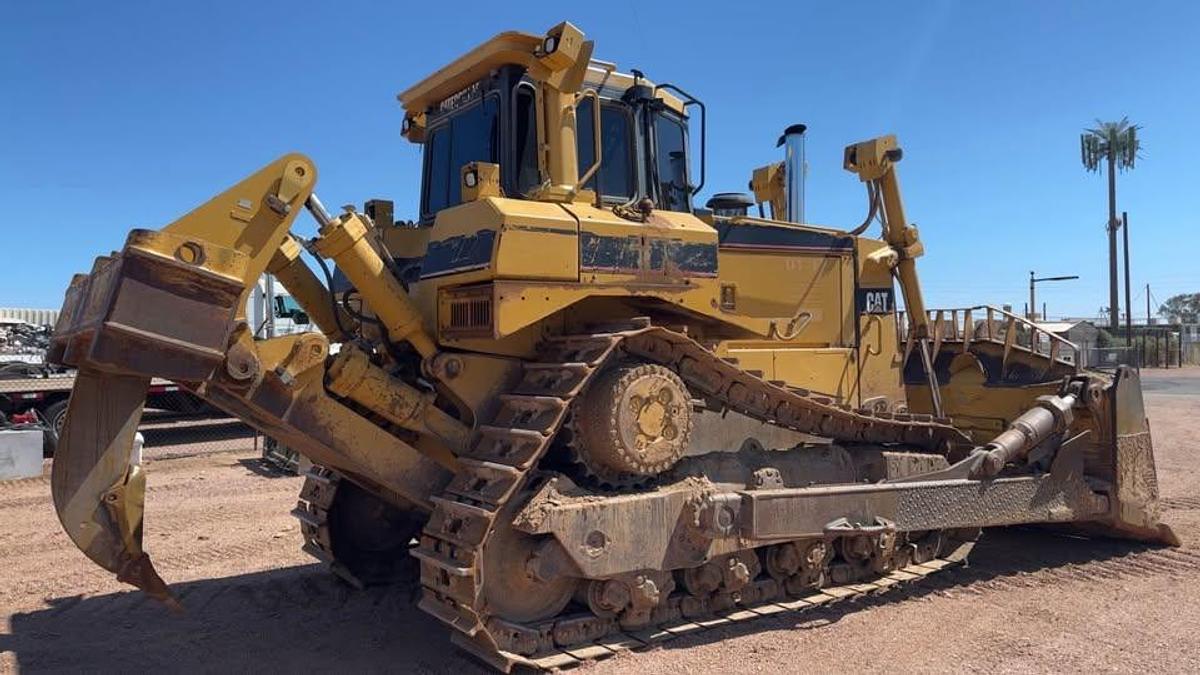

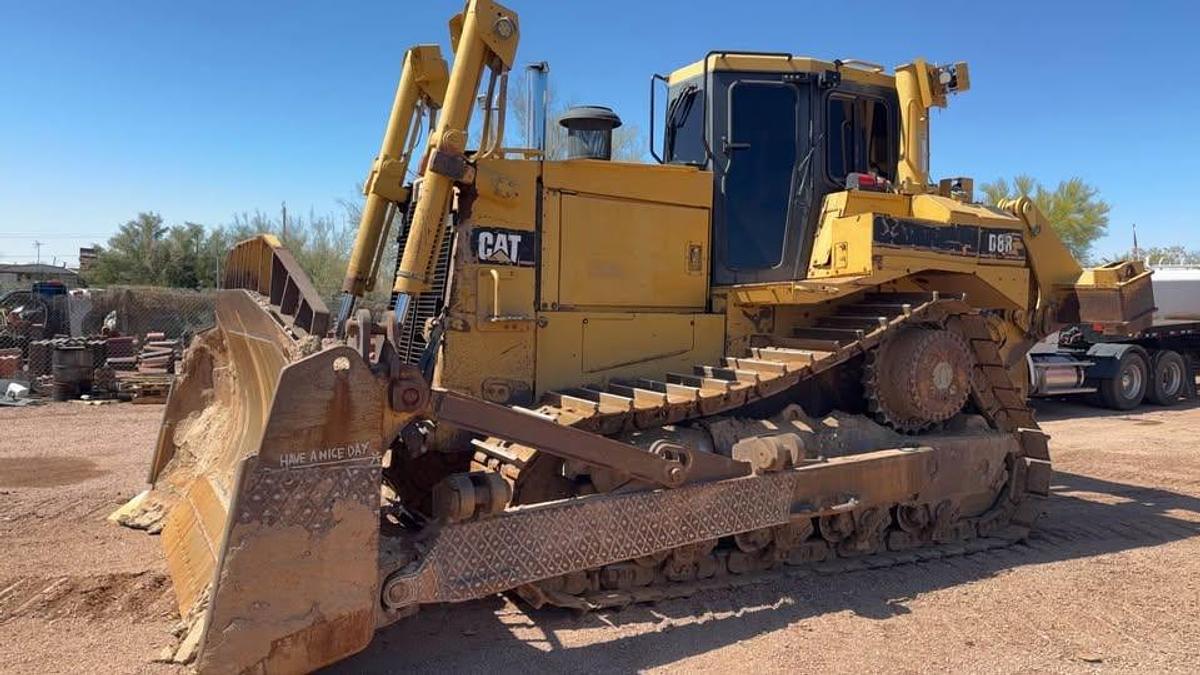

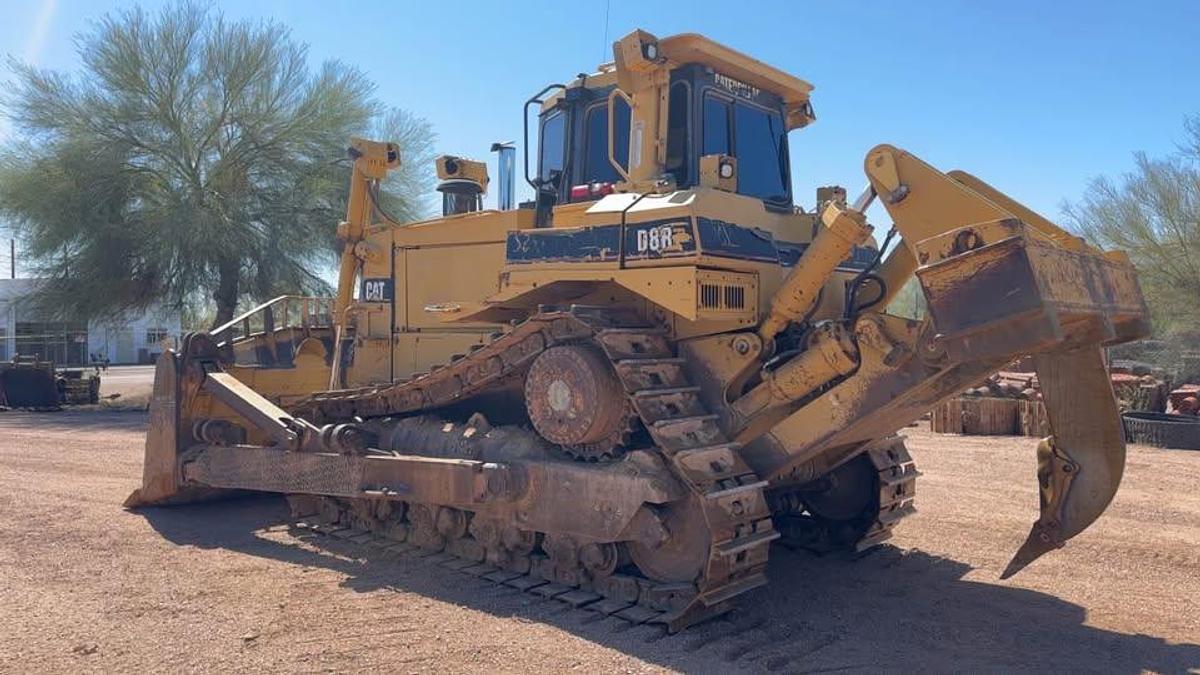

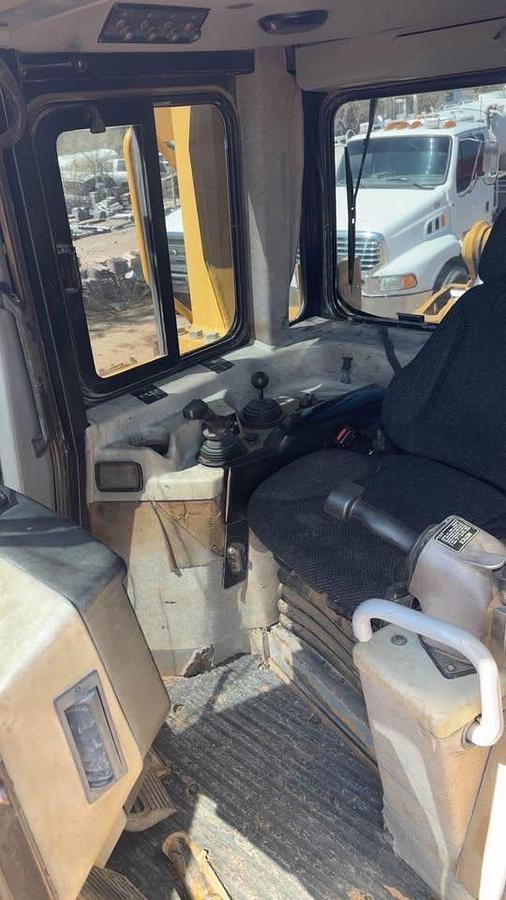

2004 Caterpillar D8R Series II Dozer

2004 Caterpillar D8R Series II Dozer — $180K in recent work completed over the past few years with full service records available. Major components including motor, transmission, differentials, and brakes have been rebuilt or serviced. This machine runs and operates exactly as it should and is ready to go straight to work. 17,000 frame hours.

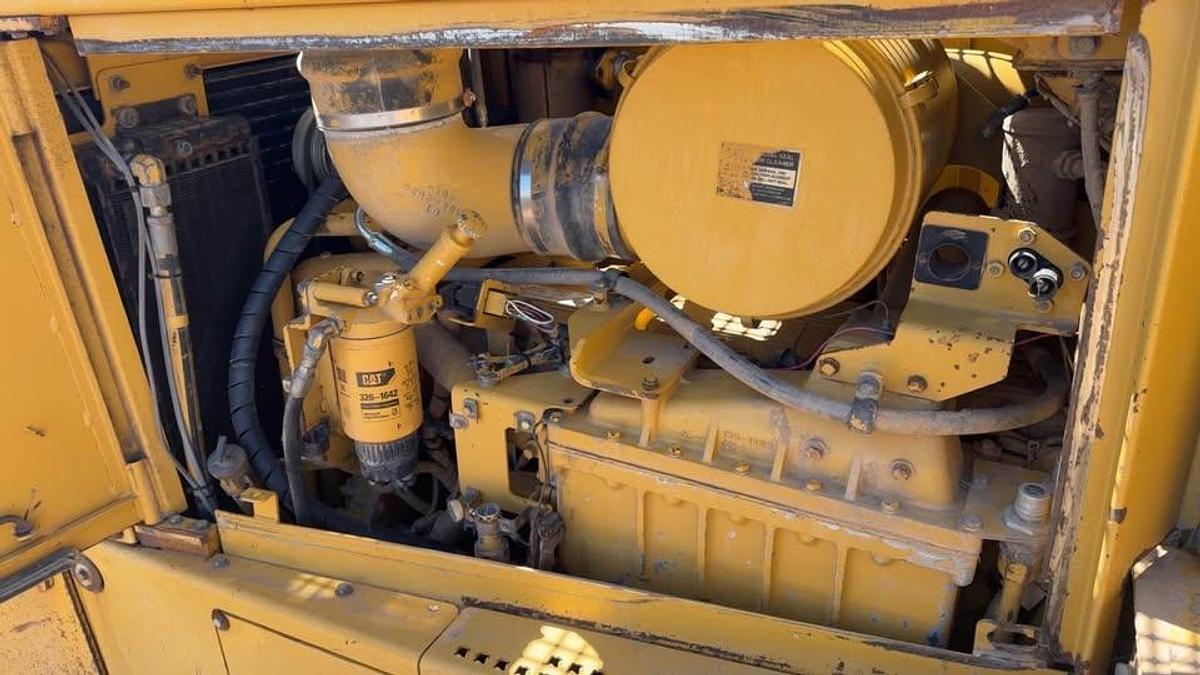

Engine & Power

• Engine Model: Caterpillar 3406E, 6-cylinder, turbocharged and aftercooled with electronically controlled unit injection
• Gross Power: 338 hp (252 kW)
• Net Power (Flywheel): 310 hp (231 kW)

Weight & Dimensions

• Operating Weight: Approximately 83,500 lb (37,875 kg)
• Shipping Weight: Approximately 65,200 lb (29,575 kg)
• Overall Length (with blade): 21.56 ft (6.57 m)
• Overall Length (without blade): 16.18 ft (4.93 m)
• Width over tracks: 8.86 ft (2.70 m)
• Height to top of cab: 11.52 ft (3.51 m)
• Ground Clearance: 1.99 ft (0.61 m)
• Length of track on ground: 10.54 ft (3.21 m)

Blade (Standard SU Blade)

• Width: Approximately 13 ft (4 m)
• Height: Approximately 67 in (1.70 m)
• Capacity: Around 11 cubic yards (9 cubic meters)

Transmission & Performance

• Forward Gears: 3
• Reverse Gears: 3
• Maximum Speed Forward: Approximately 6.6 mph (10.6 km/h)
• Maximum Speed Reverse: Approximately 8.6 mph (13.8 km/h)

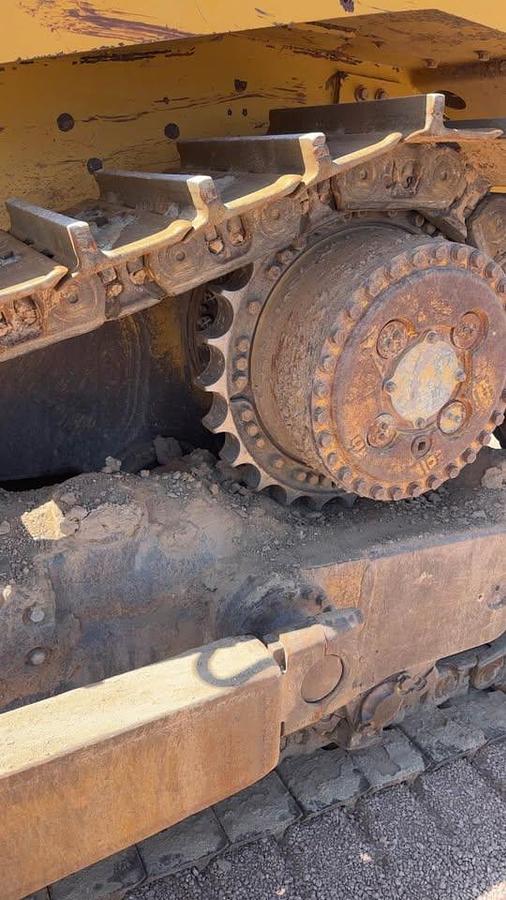

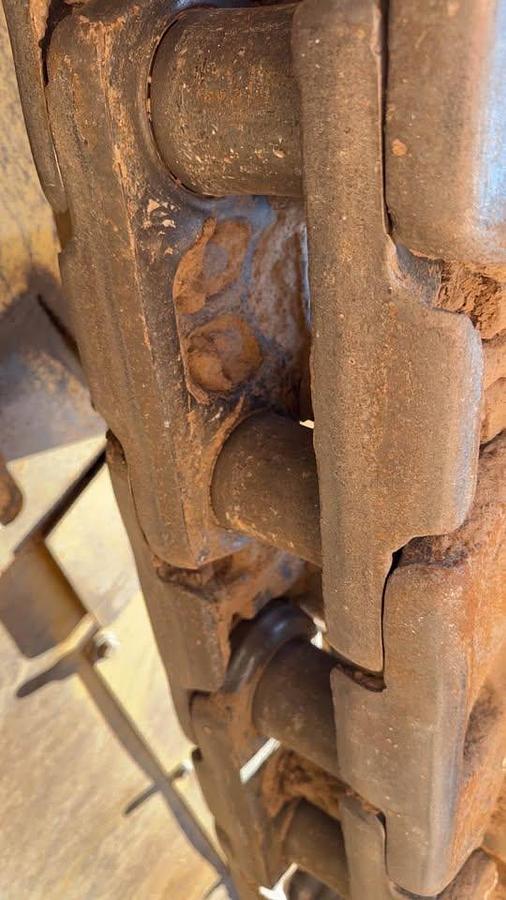

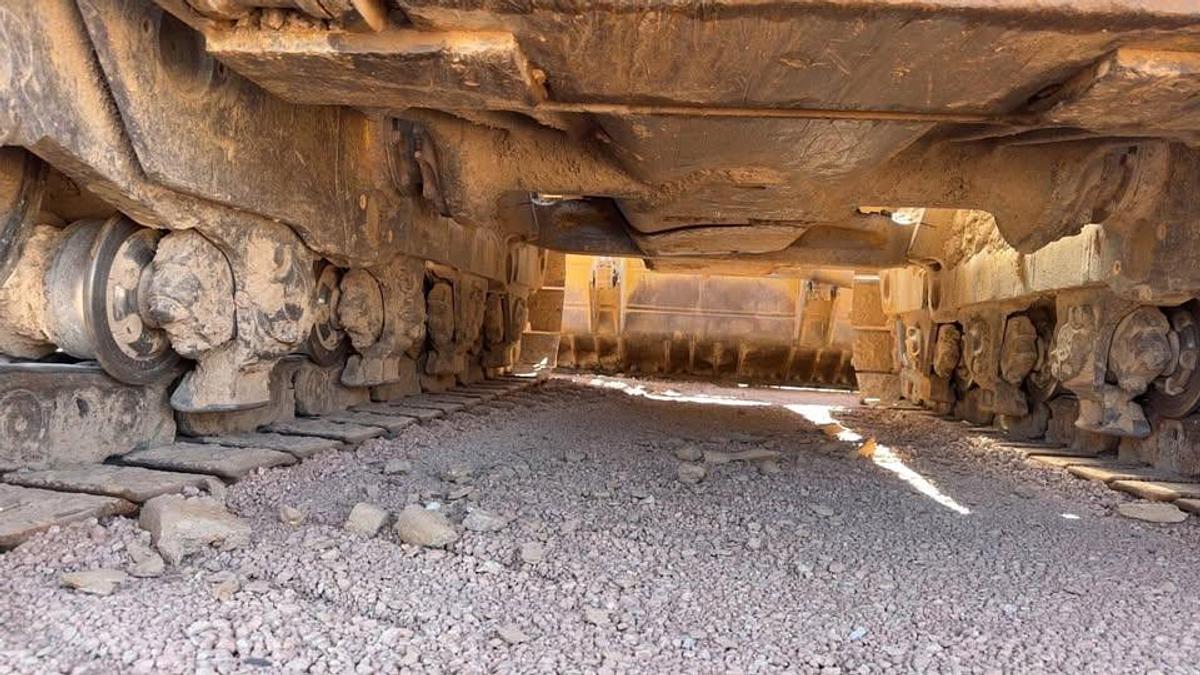

Hydraulics & Undercarriage

• Fuel Capacity: Approximately 165 gallons (625 liters)
• Standard Shoe Size: 22 in (560 mm)
• Shoes per side: 44
• Grouser Height: Approximately 3 in (78 mm)
• Track Gauge: Approximately 81.97 in (2.08 m)
• Ground Contact Area: Around 5,554 in² (3.58 m²)
• Ground Pressure: 12–15 psi depending on configuration
• Steering Hydraulic Flow: Approximately 75 gpm (285 L/min)
• Implement Pump Flow: Approximately 60 gpm (228 L/min)
