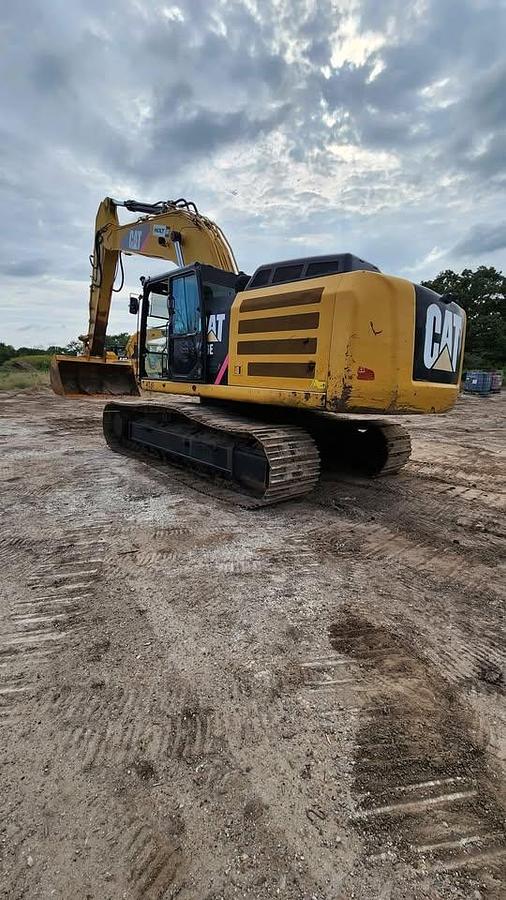

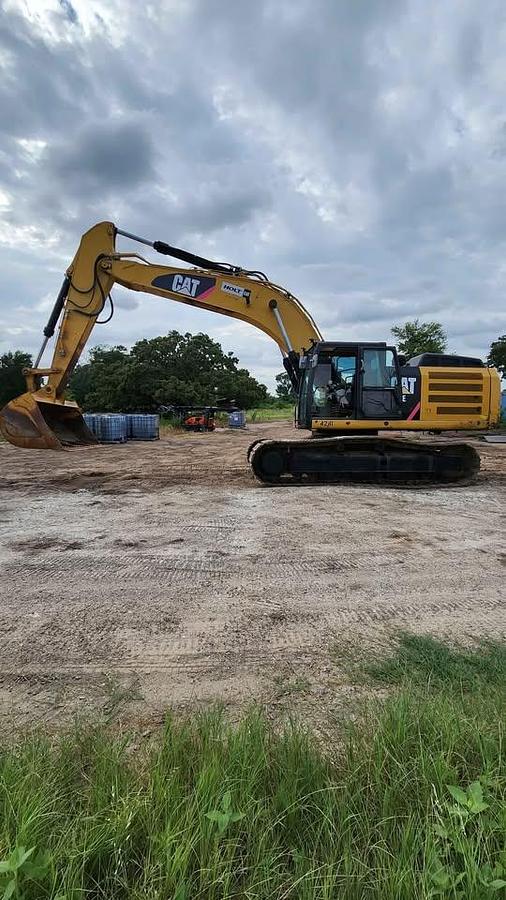

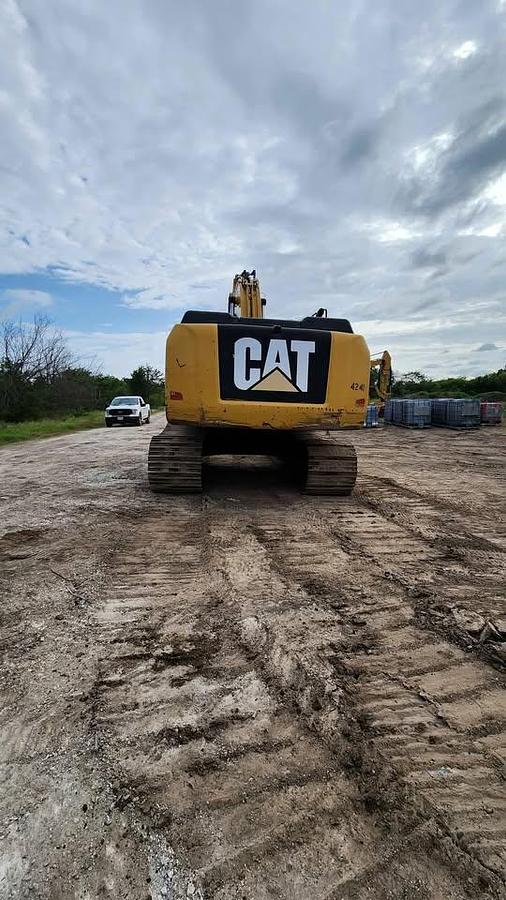

2014 CAT 336E Excavator

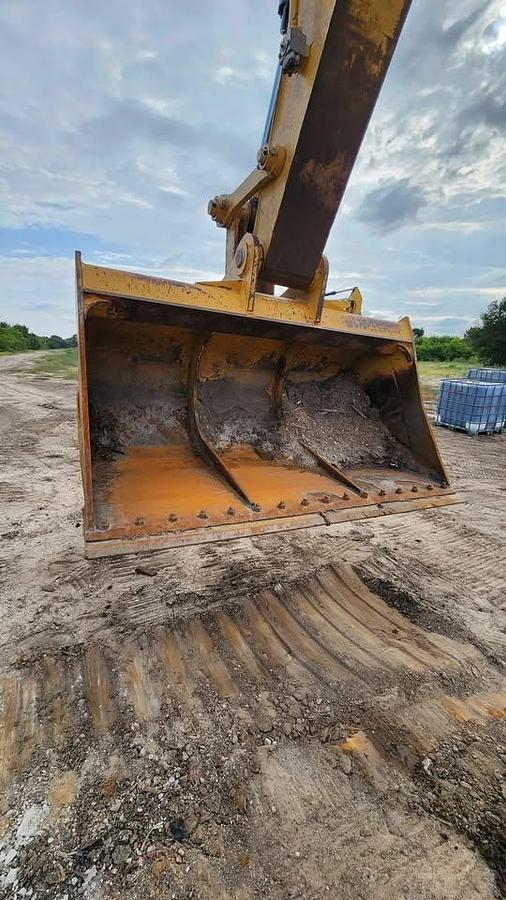

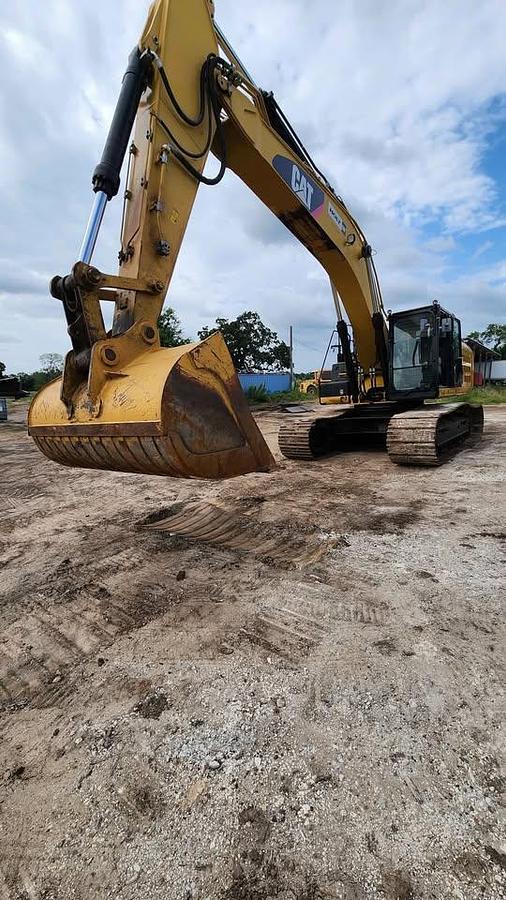

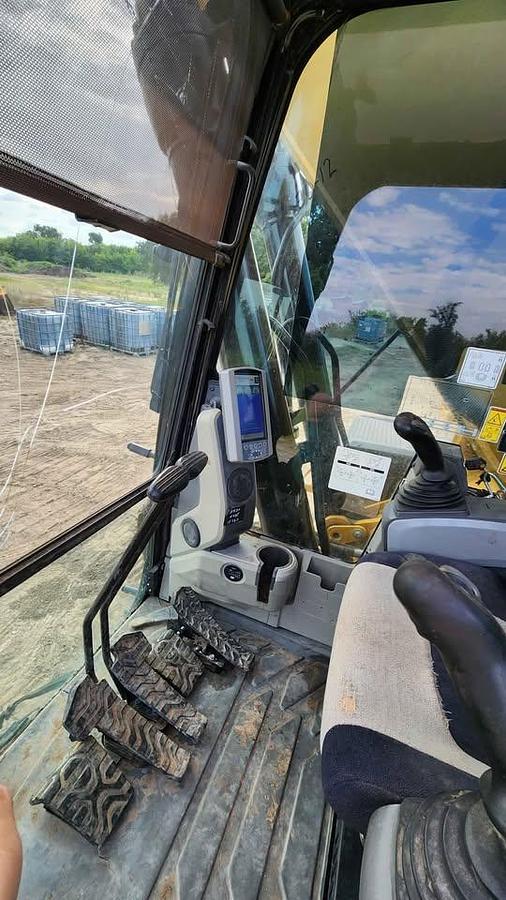

2014 CAT 336E Excavator was used primarily for turning mulch and has been well maintained. It comes with a 94-inch ditching bucket valued at $10,000, ideal for grading and material handling. We're also including a 39-inch digging bucket with pins at no extra cost, giving you added versatility for a variety of jobs. The A/C is already charged up and blowing ice cold. This machine is jobsite ready.

Engine

• Model: Cat® C9.3 ACERT™
• Net Power (ISO 9249): 308 hp (230 kW)
• Gross Power: 321 hp (239 kW)
• Displacement: 568 in³ (9.3 L)
• Bore: 4.5 in (115 mm)
• Stroke: 5.9 in (149 mm)
• Emissions: Tier 4 Interim / Stage IIIB

Operating Specifications

• Operating Weight: 80,500 lb (36,500 kg)
• Maximum Reach at Ground Level: ~38.1 ft (11.6 m)
• Maximum Digging Depth: ~26.9 ft (8.2 m)
• Maximum Cutting Height: ~35.1 ft (10.7 m)
• Maximum Loading Height: ~24.5 ft (7.5 m)
• Bucket Digging Force: 46,300 lbf (206 kN)
• Stick Digging Force: 34,900 lbf (155 kN)

Hydraulic System

• Main System - Maximum Flow: 560 L/min (148 gal/min)
• Max Pressure – Equipment: 5,081 psi (35,000 kPa)
• Swing Torque: 98,610 lb-ft (133.7 kNm)

Undercarriage

• Track Width (Standard): 32 in (800 mm)
• Ground Pressure: ~6.8 psi
• Max Travel Speed: 3.4 mph (5.5 km/h)
• Drawbar Pull: 73,800 lb (328.4 kN)

Fluid Capacities

• Fuel Tank: 163 gal (620 L)
• Hydraulic Tank: 51.5 gal (195 L)
• Cooling System: 8.5 gal (32 L)
• Engine Oil: 8 gal (30 L)
