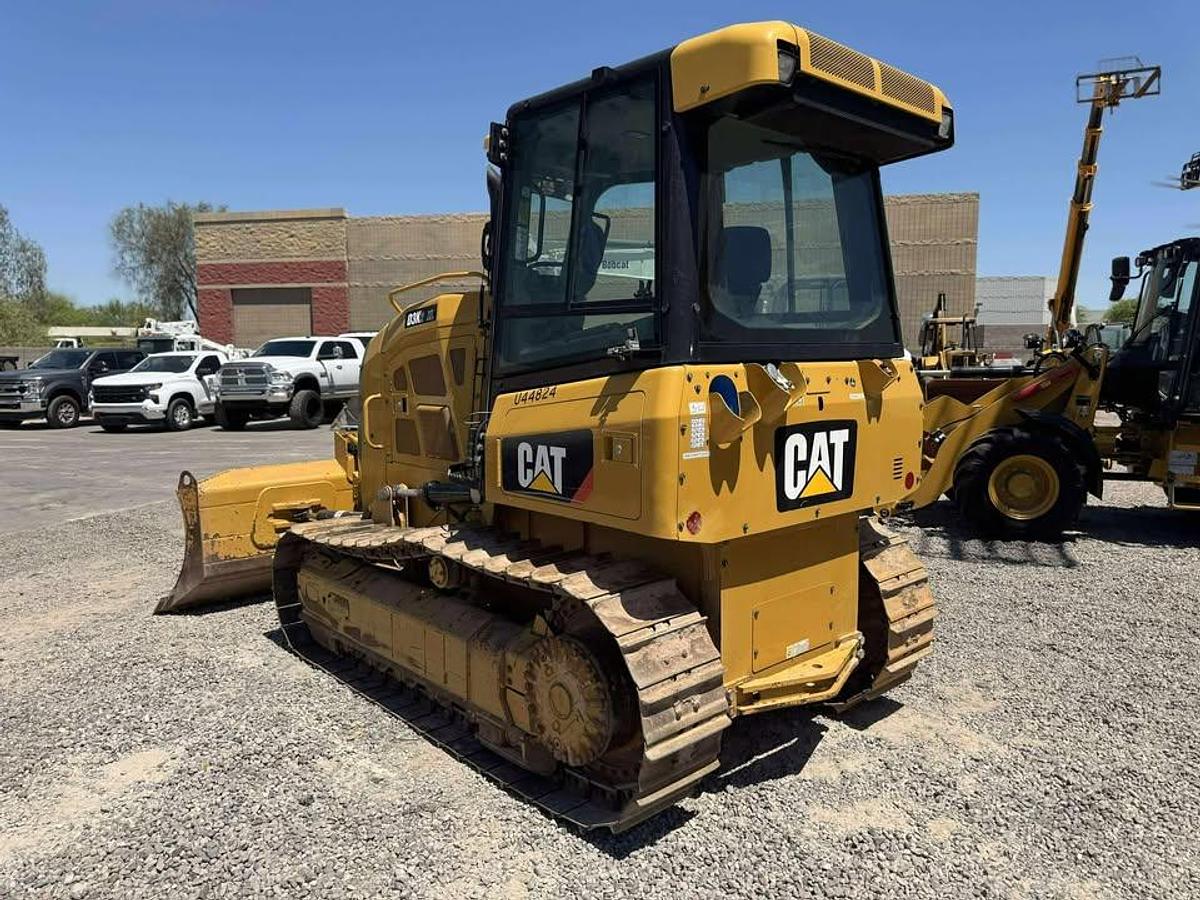

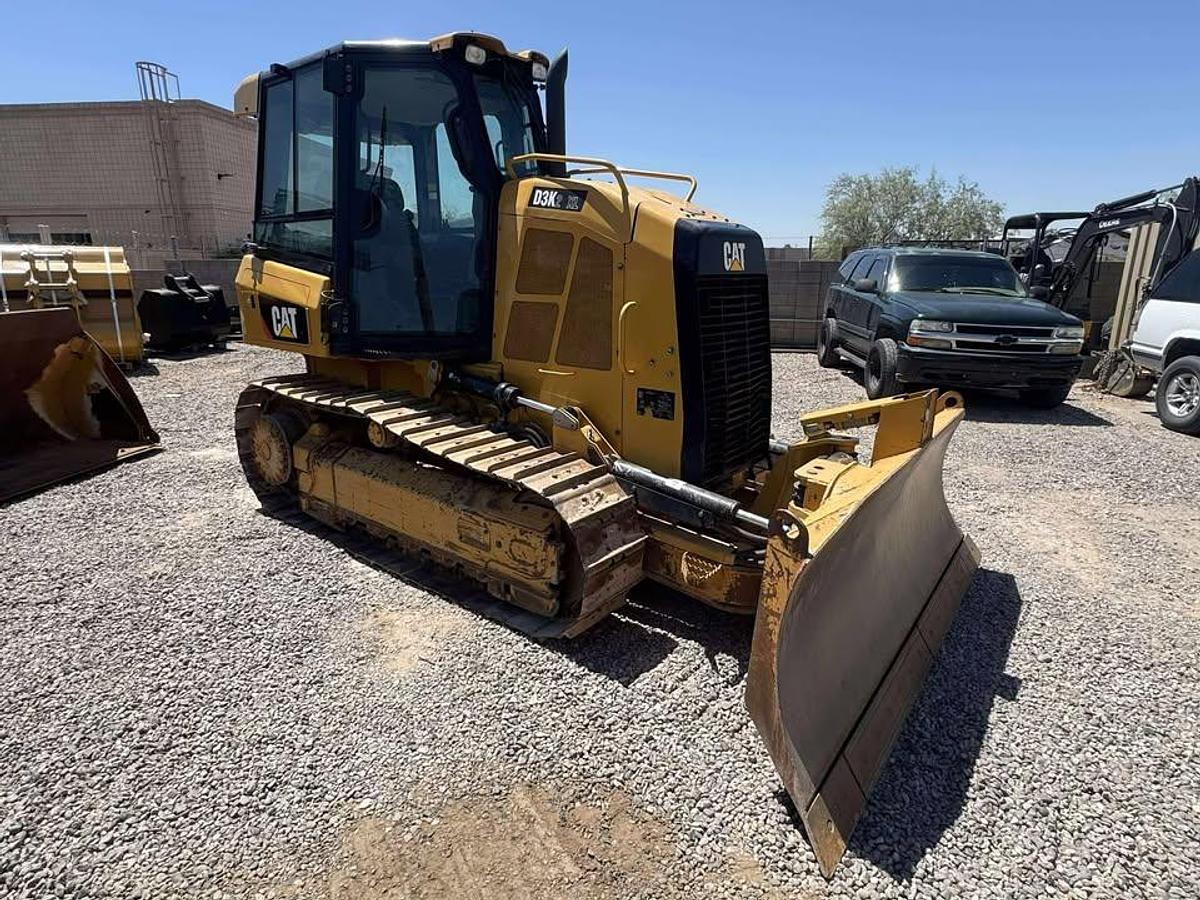

2020 CAT D3K2 XL Dozer

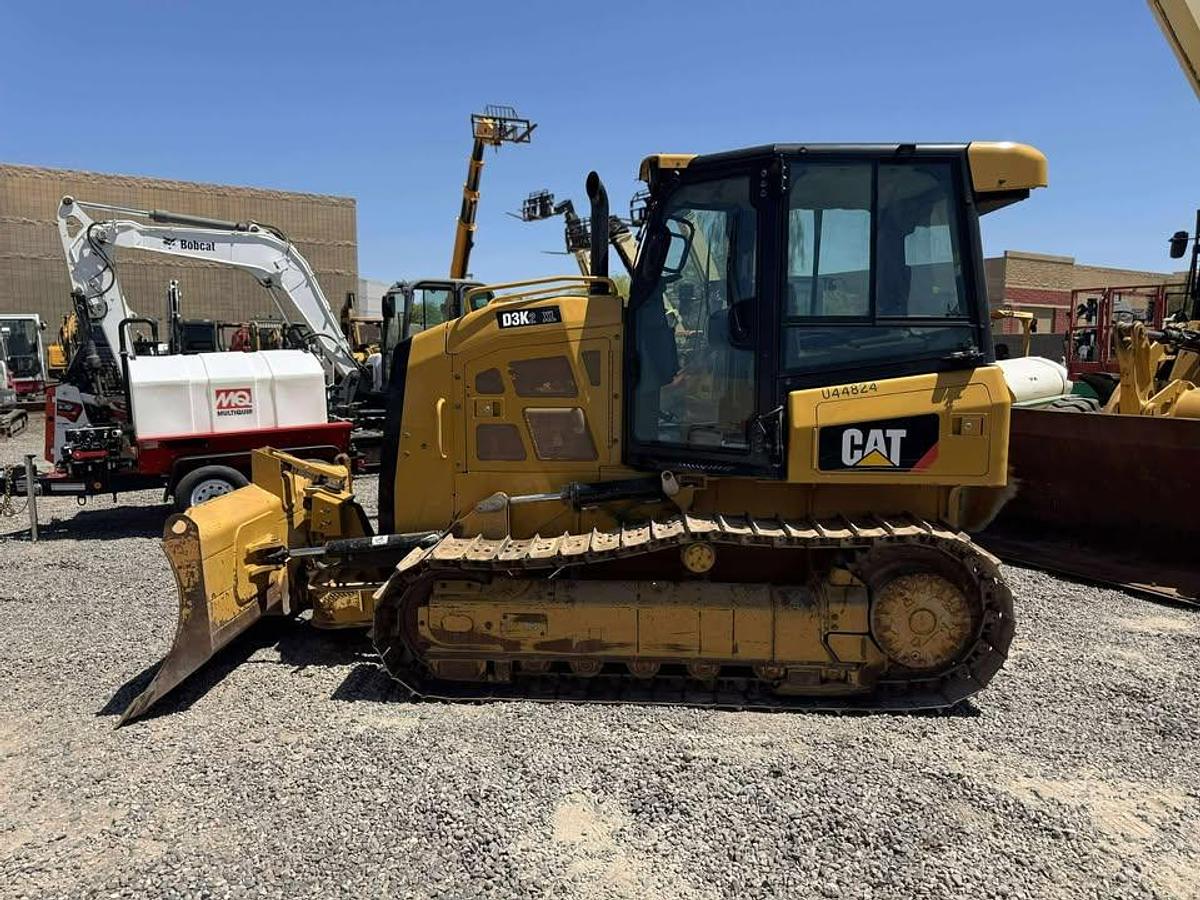

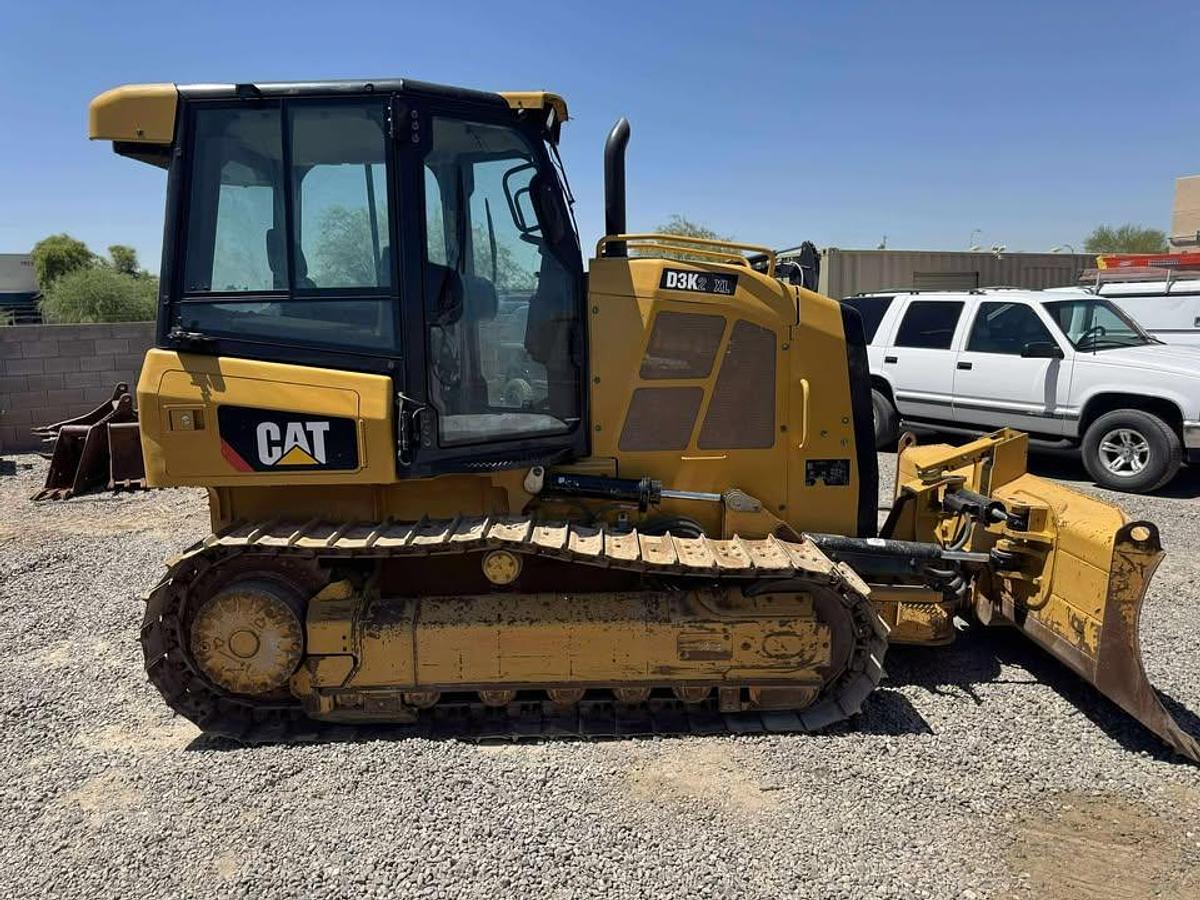

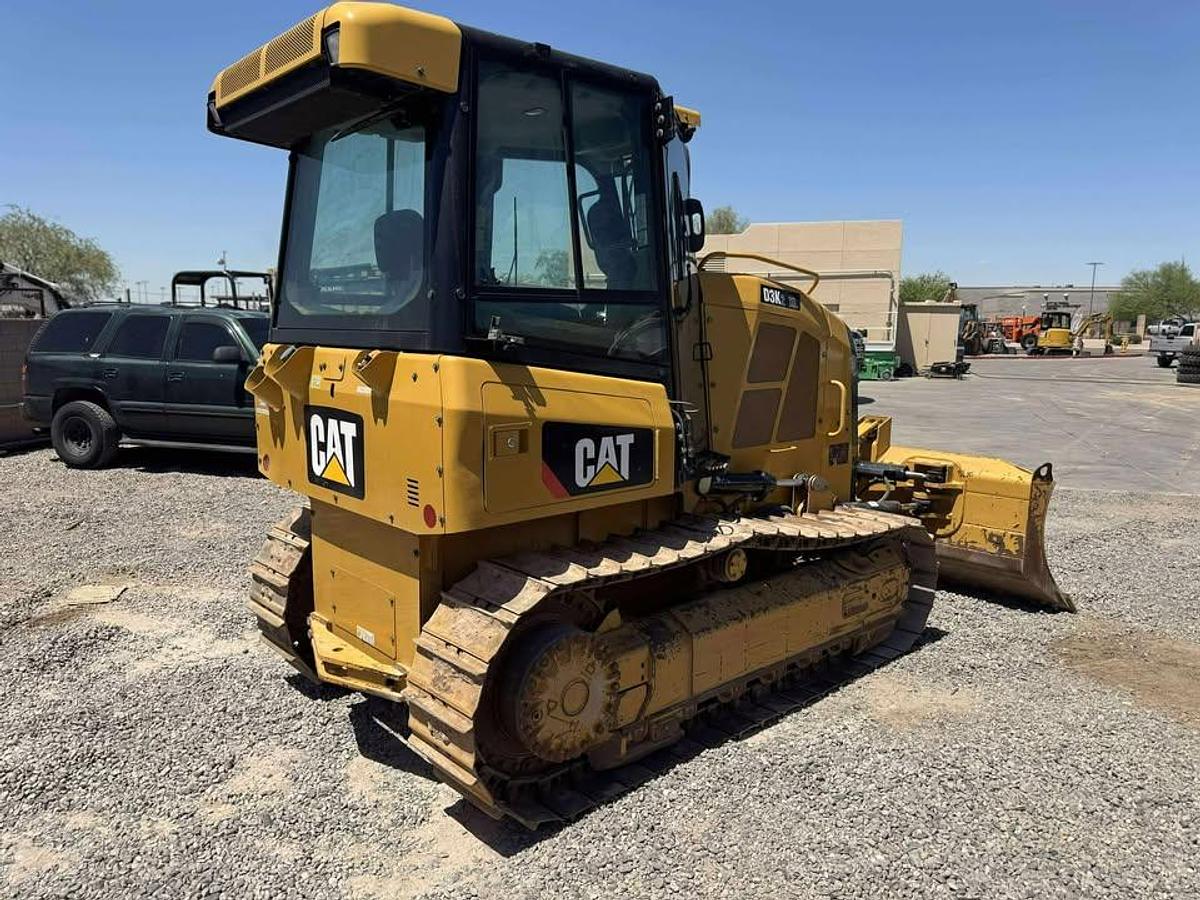

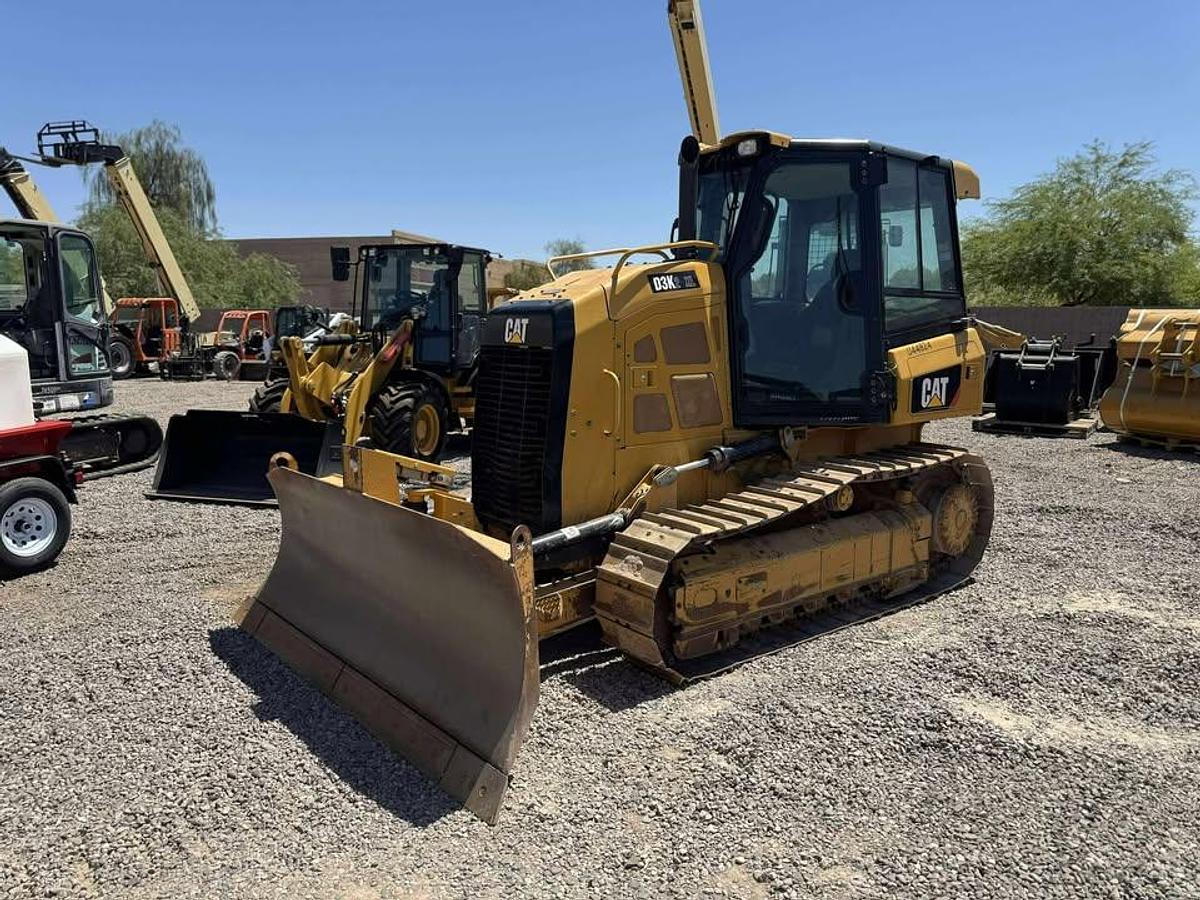

2020 CAT D3K2 XL Dozer powered by a reliable 80HP CAT 4.4 diesel engine. This machine features 25-inch steel tracks for solid traction and stability, an 18,000-pound operating weight, and an enclosed cab equipped with cold air conditioning and heat for all-season comfort. It’s built for precision and performance on demanding jobsites, with no ripper installed, making it ideal for finish grading, site prep, and light to medium-duty earthmoving. Clean, well-maintained, and ready to work.

Engine

• Model: Cat C4.4 ACERT (Tier 4 Final)
• Engine Type: 4-cylinder, turbocharged diesel
• Net Power (SAE J1349): 80 HP (59.7 kW)
• Displacement: 4.4 L (268 in³)

Operating Weight

• Operating Weight (XL configuration): 18,000 lb (8,164 kg)

Transmission

• Hydrostatic drive with independent power to each track
• Travel Speeds (Forward/Reverse):
• Low: 0–3.2 mph (0–5.1 km/h)
• High: 0–5.6 mph (0–9 km/h)

Undercarriage

• Track Type: Steel tracks
• Track Width: 25 in (standard XL shoes)
• Track Gauge: 63 in
• Ground Pressure: ~5.7 psi
• Track Length on Ground: 89 in
• Number of Rollers (each side): 7
• Track Pitch: 6.75 in

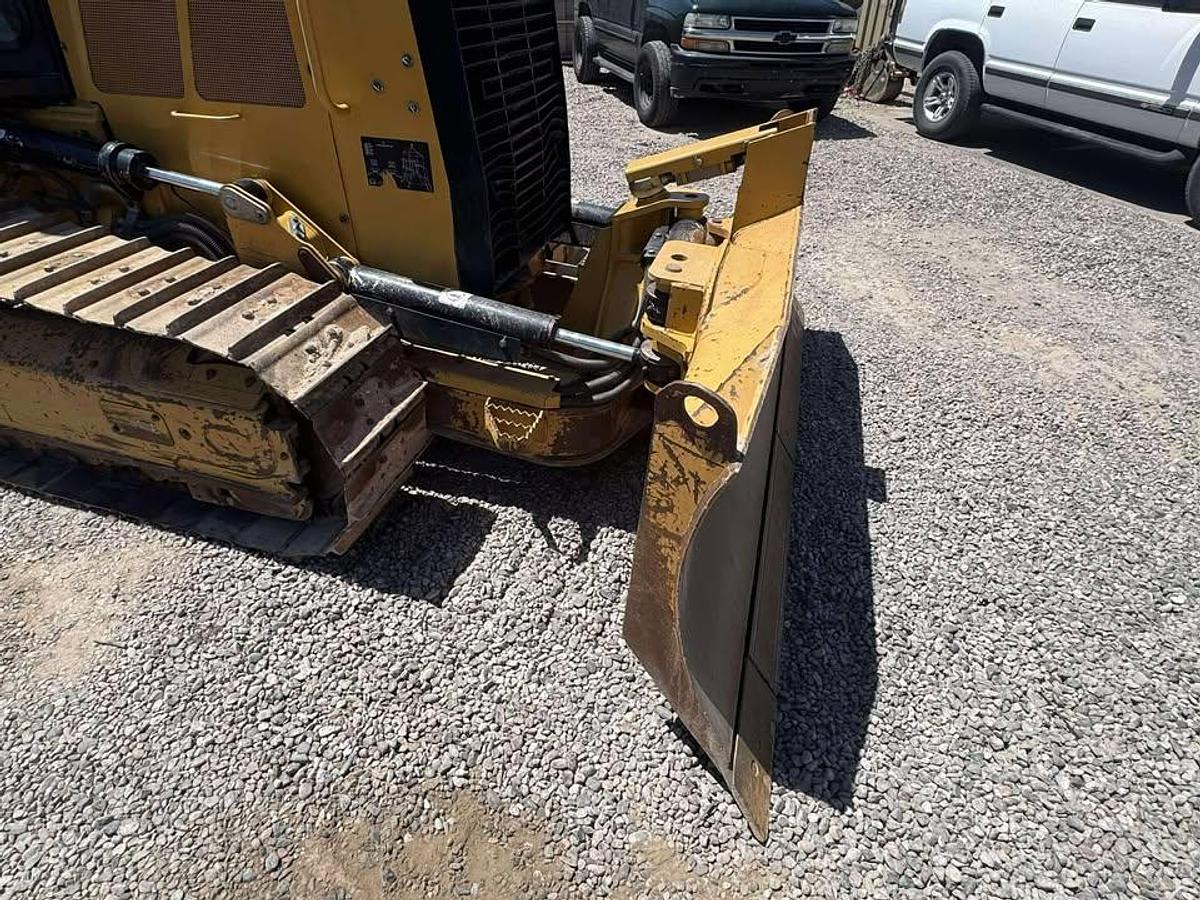

Blade

• Blade Type: VPAT (Variable Pitch Angle Tilt)
• Blade Width: ~106 in (XL version)
• Blade Height: ~24.8 in
• Blade Capacity: ~2.3 yd³ (1.76 m³)
• Max Blade Tilt: ~17 in

Hydraulic System

• Pump Output: 17.2 gal/min (65 L/min)
• System Pressure: 3,000 psi (20,684 kPa)

Fluid Capacities

• Fuel Tank: 51.5 gal (195 L)
• Cooling System: 4.1 gal (15.5 L)
• Engine Oil: 2.5 gal (9.5 L)
• Final Drives (each): 2.6 gal (10 L)
• Hydraulic Tank: 13.7 gal (52 L)

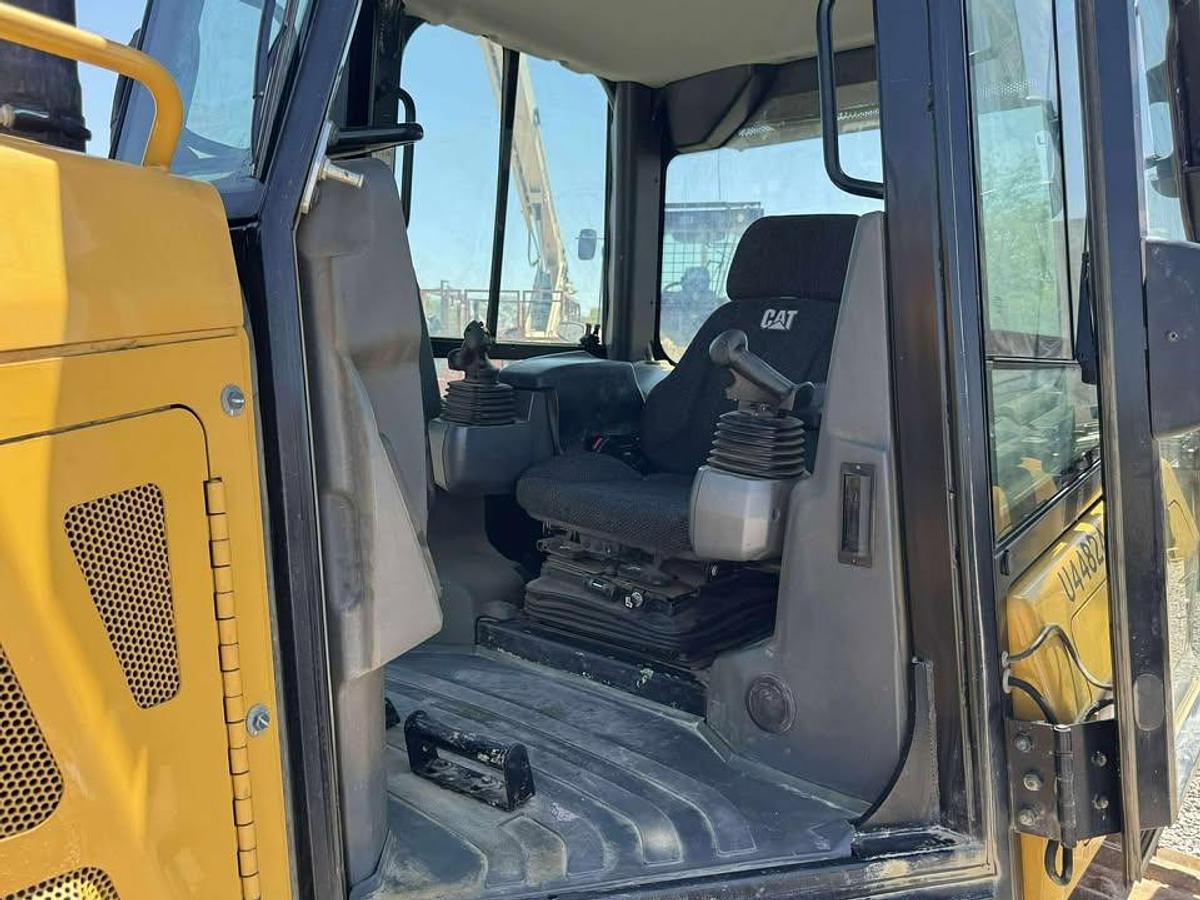

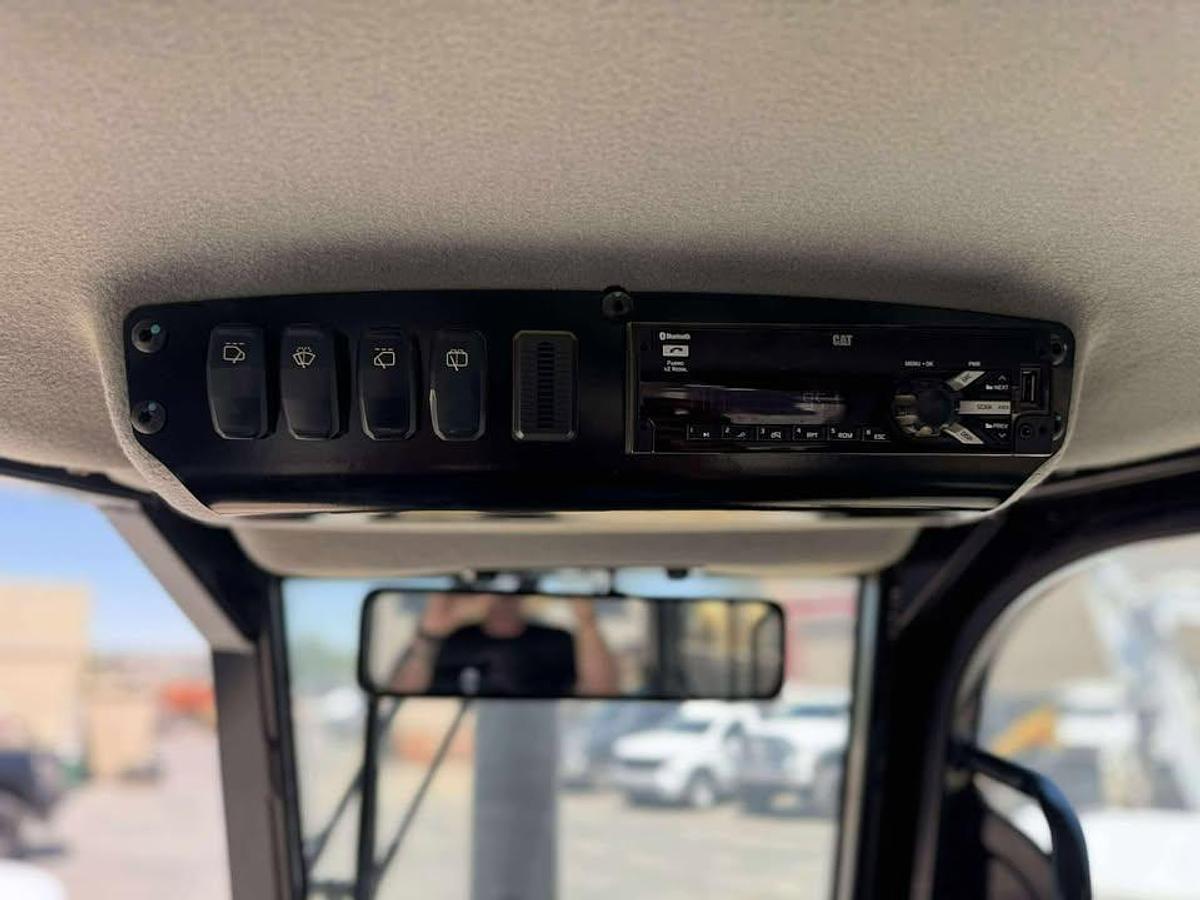

Cab & Controls

• Enclosed ROPS cab with A/C and heat
• Seat-mounted joystick controls
• Adjustable armrests and operator seat
