2019 Caterpillar D6T XL Dozer

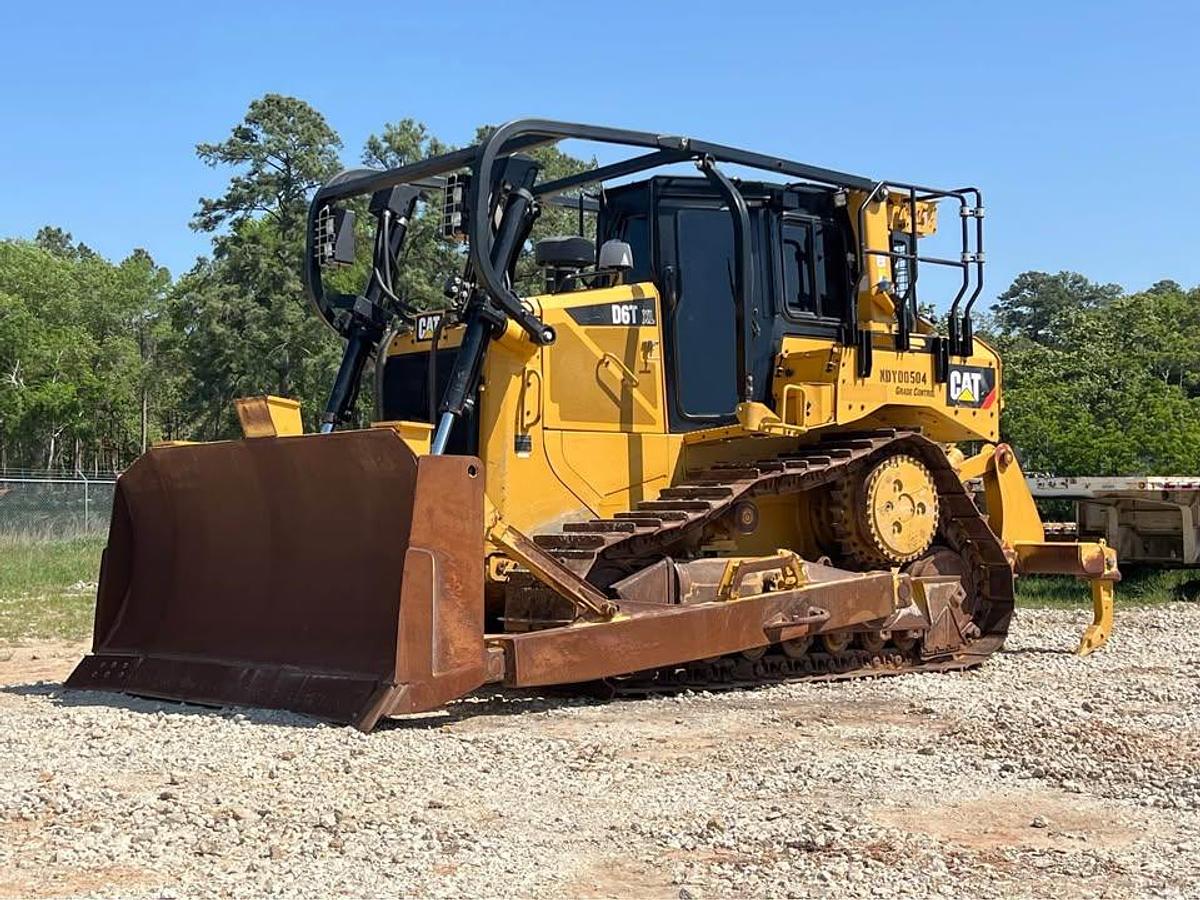

2019 Caterpillar D6T XL Dozer with only 182 hours on a brand-new transmission installed by Cat, complete with supporting paperwork. This machine features XL tracks for added stability, a versatile 4-way blade, and an excellent undercarriage that shows minimal wear. The interior is clean and well-maintained, offering comfort for long days on the job. With a recent major investment and low hours on key components, this dozer is fully work-ready and a strong addition to any fleet.

Model: D6T XL

Year: 2019

Hours on New Transmission: 182 (installed by Cat with documentation)

Undercarriage: Excellent condition

Blade Type: 4-way blade (PAT – Power Angle Tilt)

Track Type: XL (Extra Long) for enhanced stability and traction

Interior: Clean and well-maintained

Condition: Work-ready

Recent Service: New Cat-installed transmission with paperwork

Ideal For: Construction, land clearing, grading, site prep

Engine

• Model: Cat C9.3 ACERT
• Engine Type: 6-cylinder, turbocharged diesel
• Displacement: 9.3 L
• Gross Power: 228 hp (170 kW)
• Net Power (ISO 9249): 205 hp (153 kW)

Transmission

• Type: 3-speed powershift (3 forward / 3 reverse)
• Forward Speed (max): 7 mph (11.6 km/h)
• Reverse Speed (max): 9 mph (14.6 km/h)

Operating Weight

• Approximate Weight (XL configuration): 45,550 lb (20,661 kg)

Undercarriage

• Track Type: XL (Extra Long)
• Shoe Width: 22 in
• Track Gauge: 74 in
• Ground Contact Area: 4,972 in²
• Ground Pressure: 8.3–8.9 psi
• Number of Shoes (each side): 41
• Number of Track Rollers (each side): 7

Blade

• Type: 4-way (Power Angle Tilt – PAT blade) or SU blade (depending on option)
• Blade Width: 13.7 ft (4160 mm)
• Blade Capacity: 5.1 yd³ (3.9 m³)

Hydraulic System

• Pump Flow Capacity: 49.9 gal/min (189 L/min)
• Main Relief Valve Pressure: 2,800 to 3,125 psi

Fluid Capacities

• Fuel Tank: 112 gal (424 L)
• Engine Oil: 7.4 gal (28 L)
• Cooling System: 17–19 gal (64–72 L)
• Hydraulic Tank: 13.6–14 gal (51–53 L)
• Final Drives (each side): 3.6 gal (13.6 L)

Dimensions

• Width (over tracks): 8 ft 1 in
• Height (to top of cab): 10.5 ft
• Length (without blade): 12.7 ft
• Track on Ground: 9.42 ft
