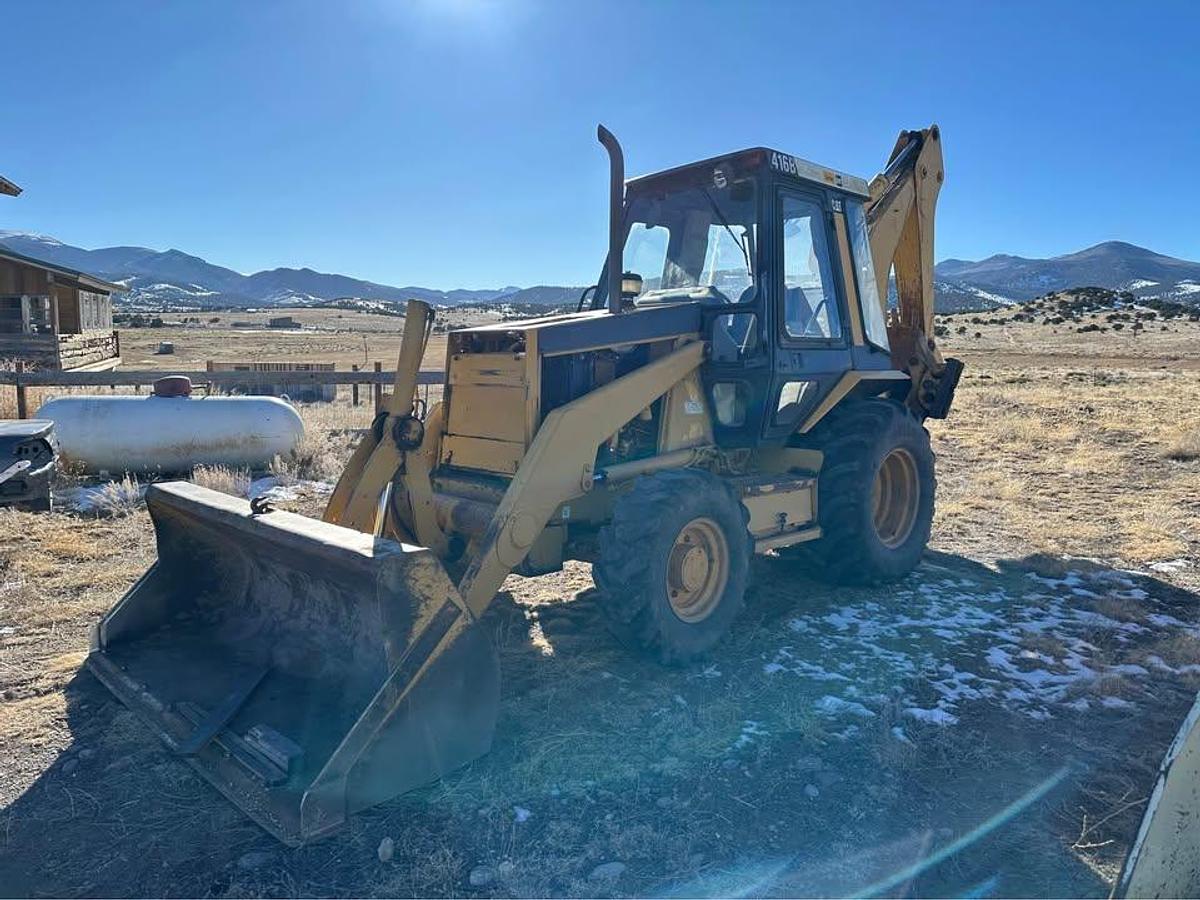

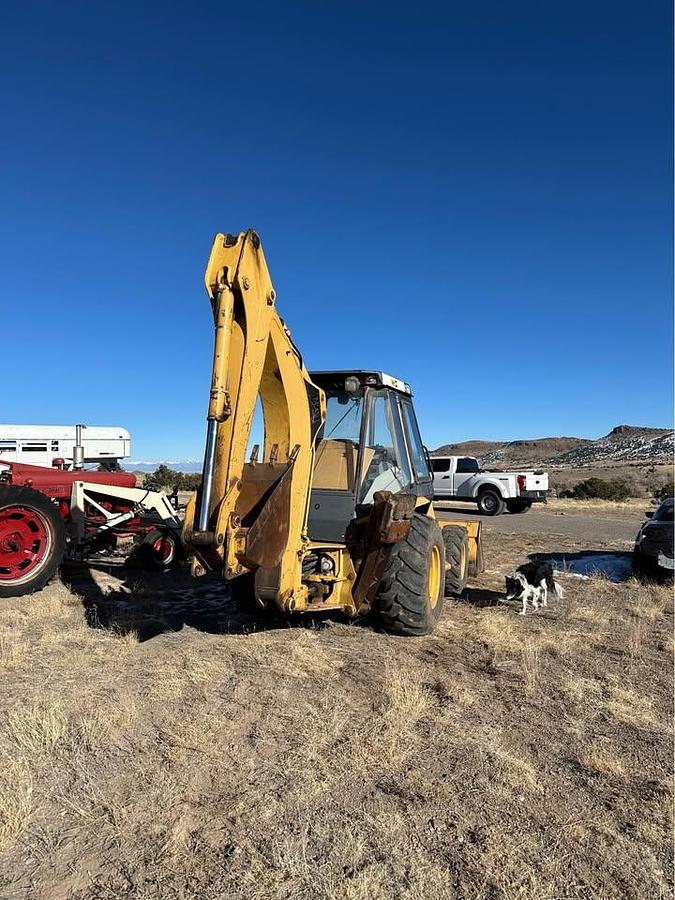

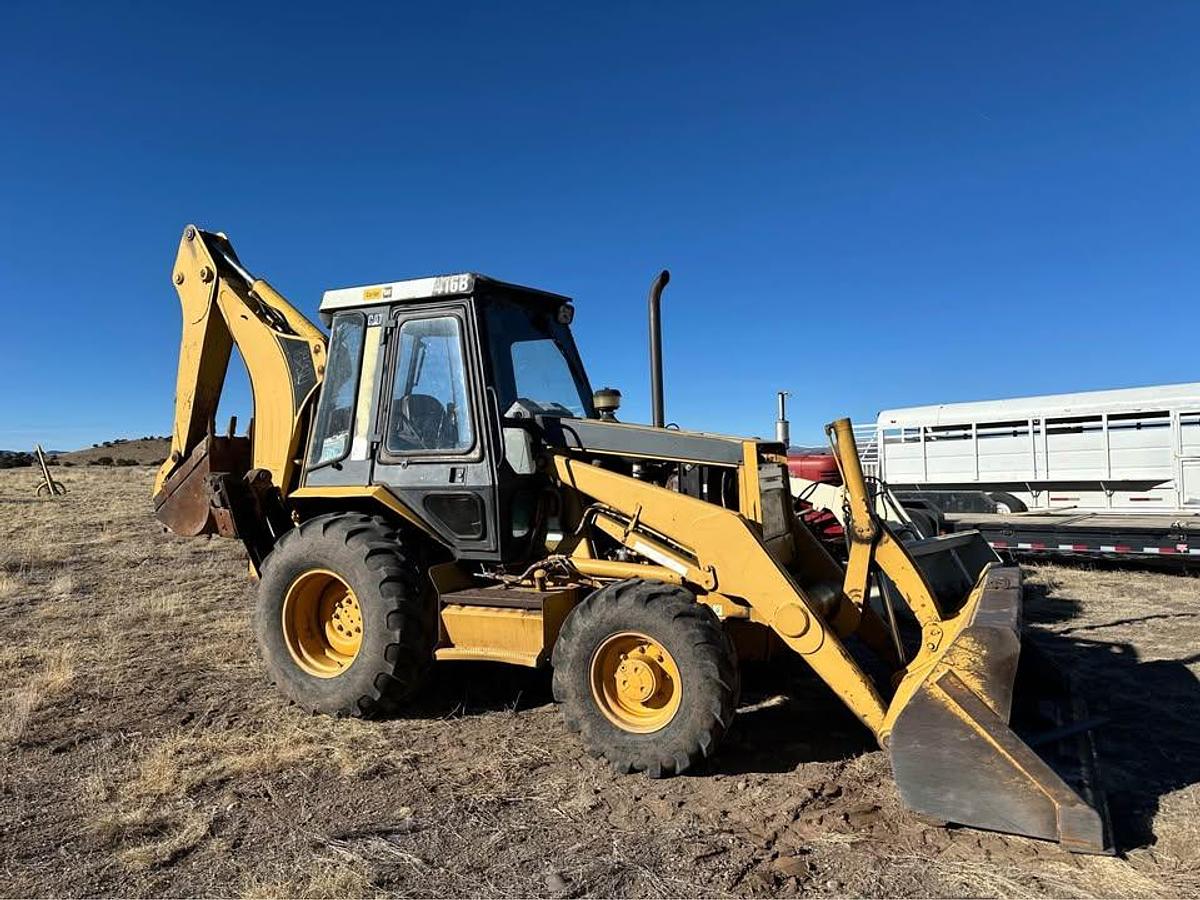

1996 Caterpillar 416B Backhoe Loader

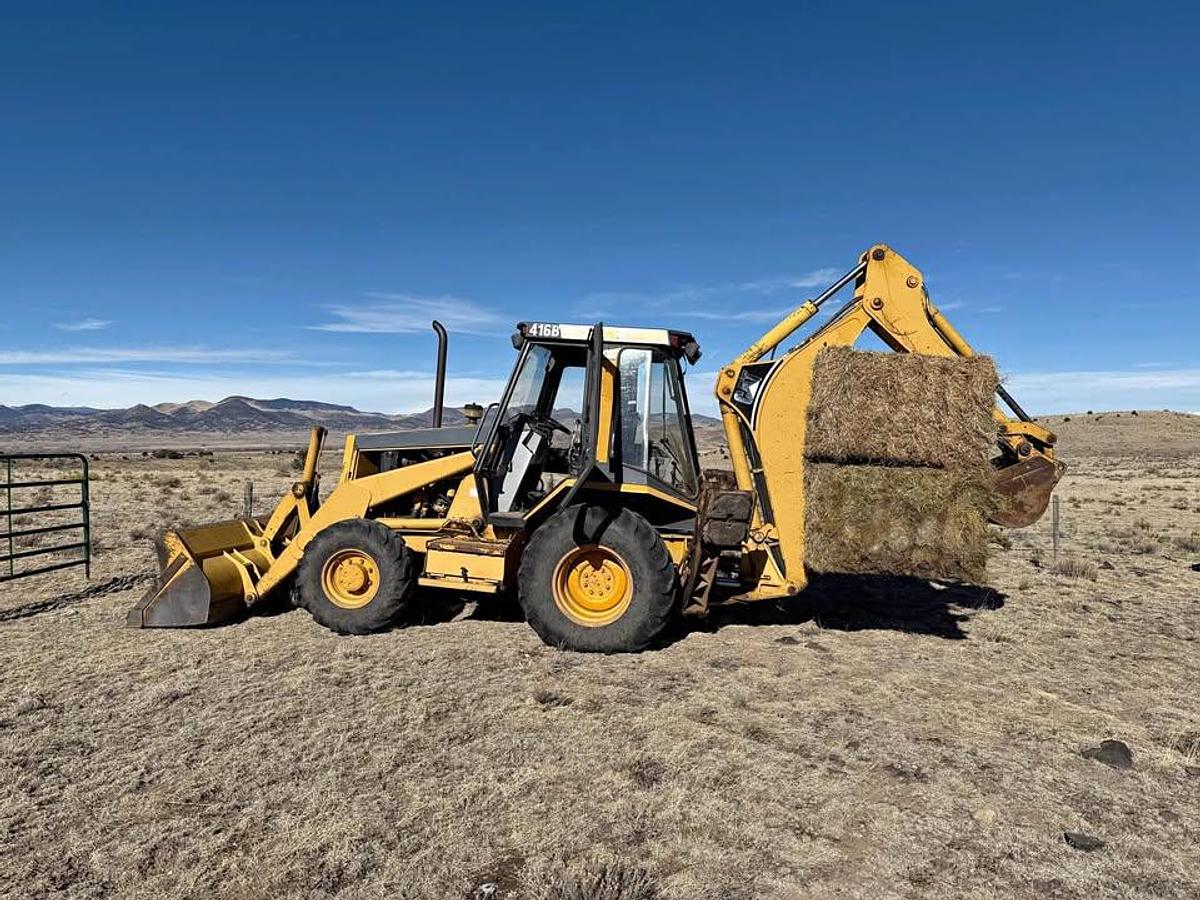

1996 CAT 416B 4WD Backhoe – Solid, Work-Ready Machine

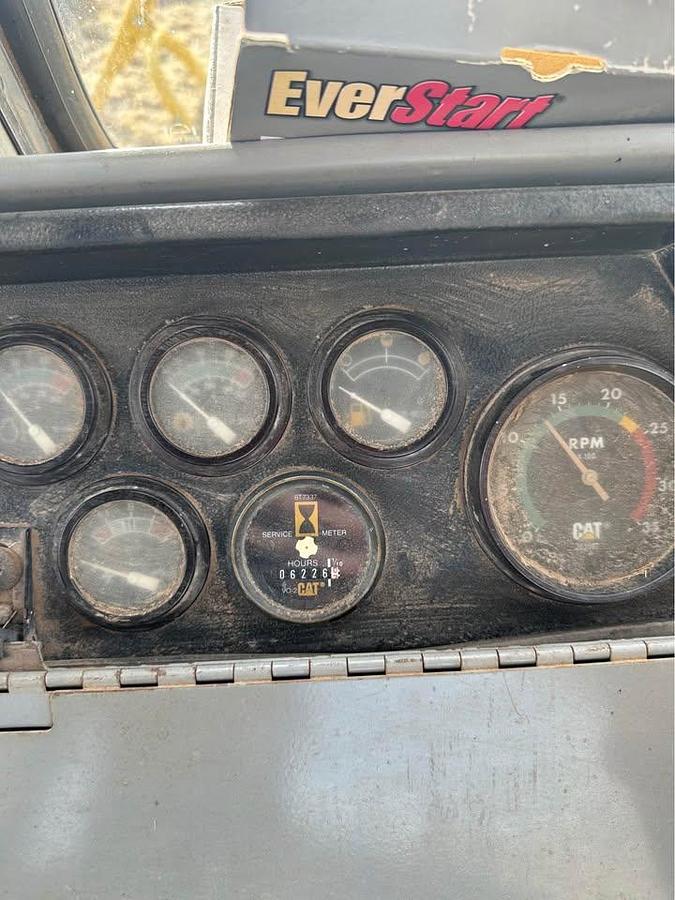

This well-maintained 1996 CAT 416B backhoe is ready to hit the job site. All pins are tight, seals are in great shape with no leaks, and the 4WD system provides excellent traction. The cab is in great condition, offering comfort and visibility. No extenda hoe on this unit, but it's a dependable workhorse perfect for daily use. Turn the key and get to work.

1996 Caterpillar 416B Backhoe Loader – Spec Sheet

General Information

• Manufacturer: Caterpillar
• Model: 416B
• Year: 1996
• Type: Backhoe Loader
• Drive: 4WD

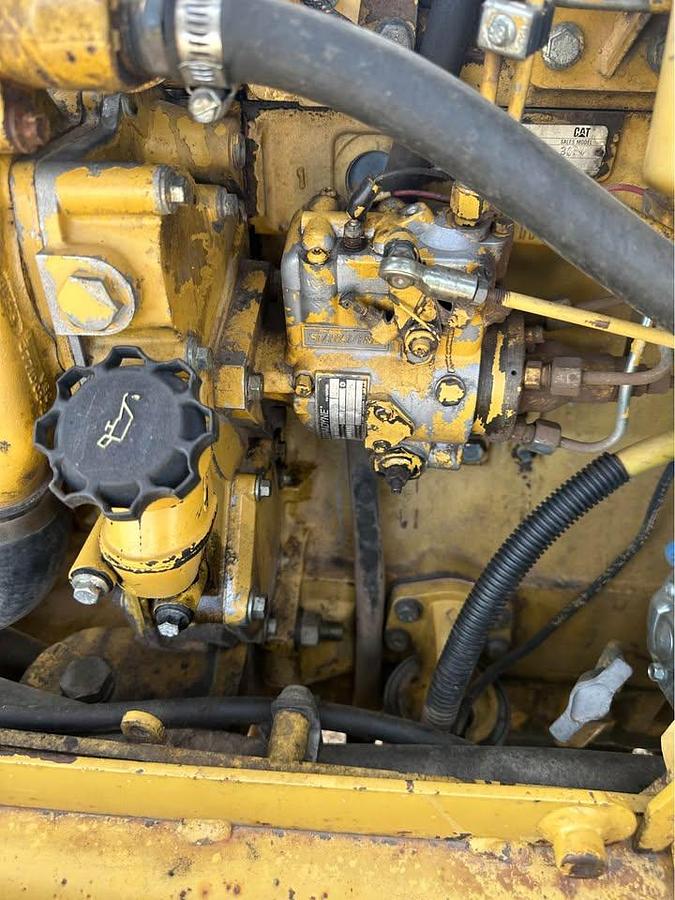

Engine

• Engine Model: Caterpillar 3054
• Net Power: 74 hp (55 kW)
• Gross Power: 76 hp (56.7 kW)
• Displacement: 4.0 L (243 cu in)
• Aspiration: Naturally aspirated or turbocharged (varied by configuration)
• Fuel Tank Capacity: 27.5 gal (104 L)

Transmission

• Type: Power shuttle
• Gears: 4 forward / 4 reverse

Performance

• Maximum Speed (Forward): ~24.5 mph (39.4 km/h)
• Breakout Force (Loader): ~10,900 lbf (48.5 kN)
• Backhoe Dig Depth (Standard Stick): ~14 ft 3 in (4.34 m)
• Backhoe Reach from Swing Pivot: ~17 ft 10 in (5.44 m)
• Bucket Dig Force: ~12,100 lbf (53.8 kN)

Dimensions

• Length (Transport): ~22 ft 1 in (6.73 m)
• Width (over tires): ~7 ft 2 in (2.18 m)
• Height (Top of Cab): ~9 ft 2 in (2.79 m)
• Wheelbase: 6 ft 11 in (2.11 m)
• Ground Clearance: ~1 ft 2 in (0.36 m)

Operating Weight

• Approx. Operating Weight: 13,500 lb (6,123 kg)

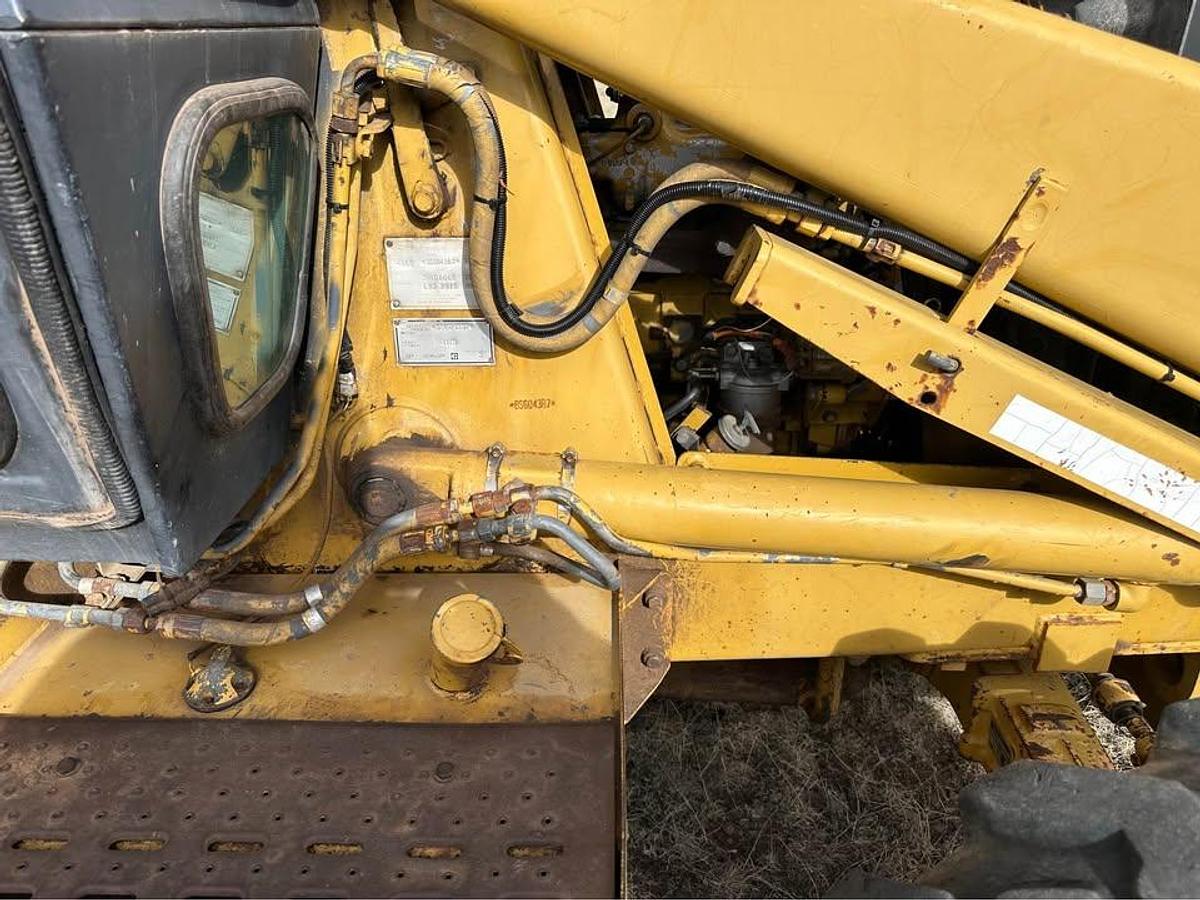

Hydraulic System

• Pump Type: Open center, gear pump
• Pump Flow: 28.5 GPM (108 L/min)
• System Pressure: 2,250 psi (155 bar)

Tires

• Front Tires: 12.5/80-18 (typical)
• Rear Tires: 19.5L-24 (typical)

Additional Features

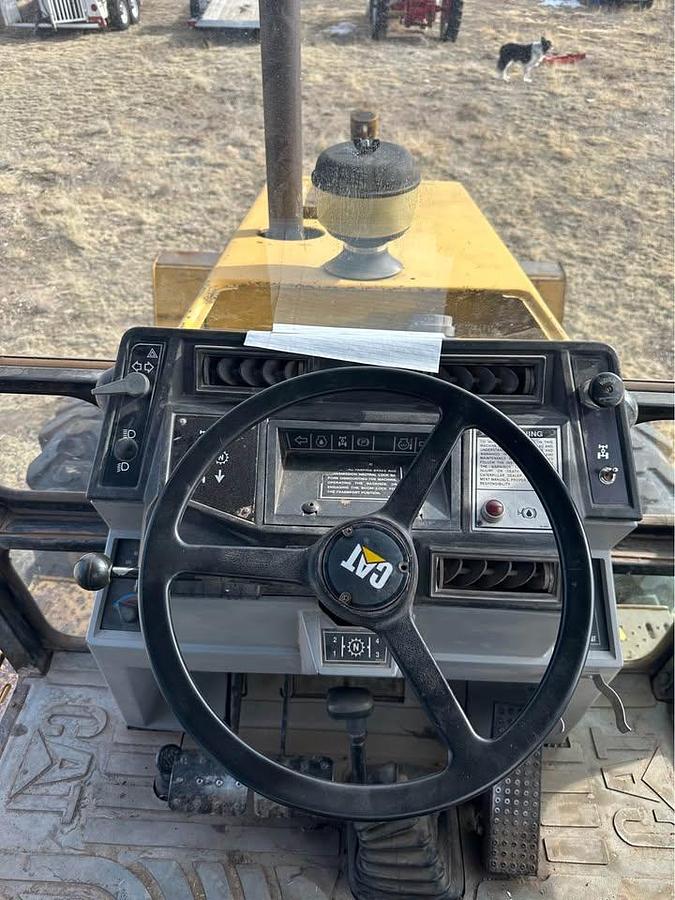

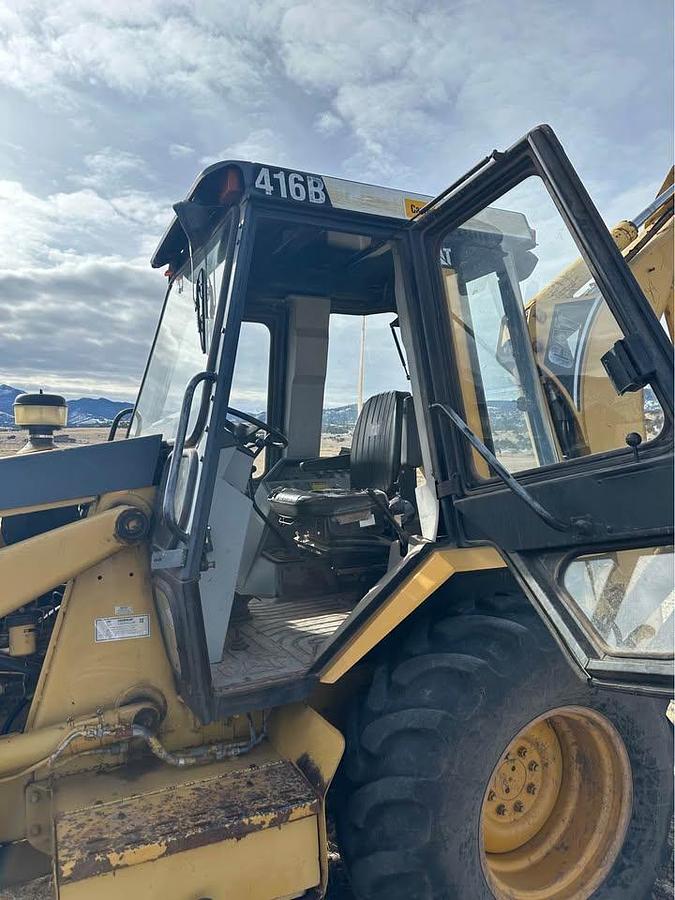

• Enclosed cab with heat (A/C optional in some models)
• 4WD for improved off-road capability

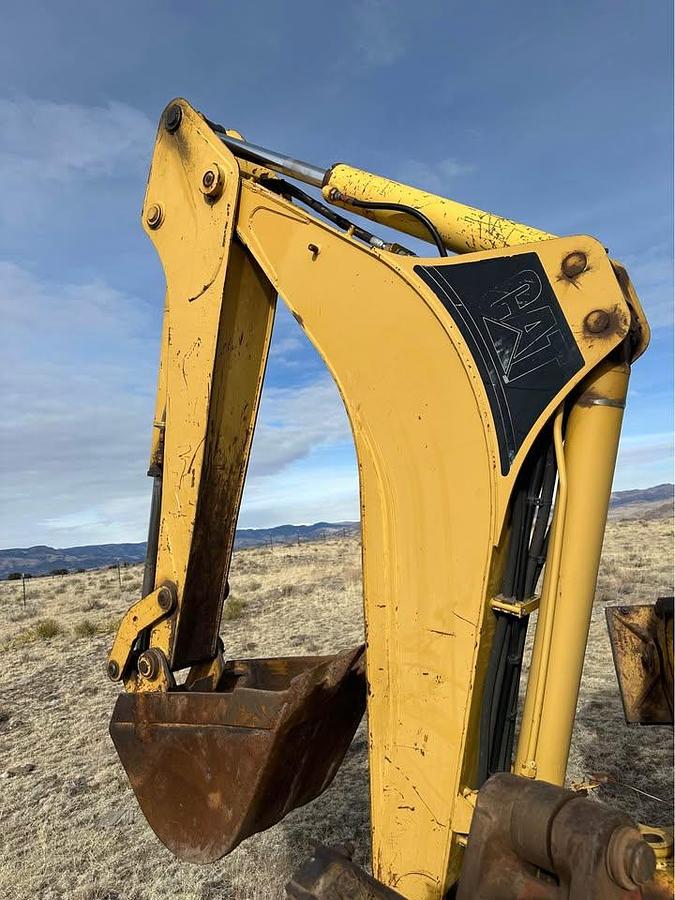

• Standard stick (no extenda hoe on this unit)
