2014 Cat D6N XL Dozer

2014 Cat D6N XL Dozer

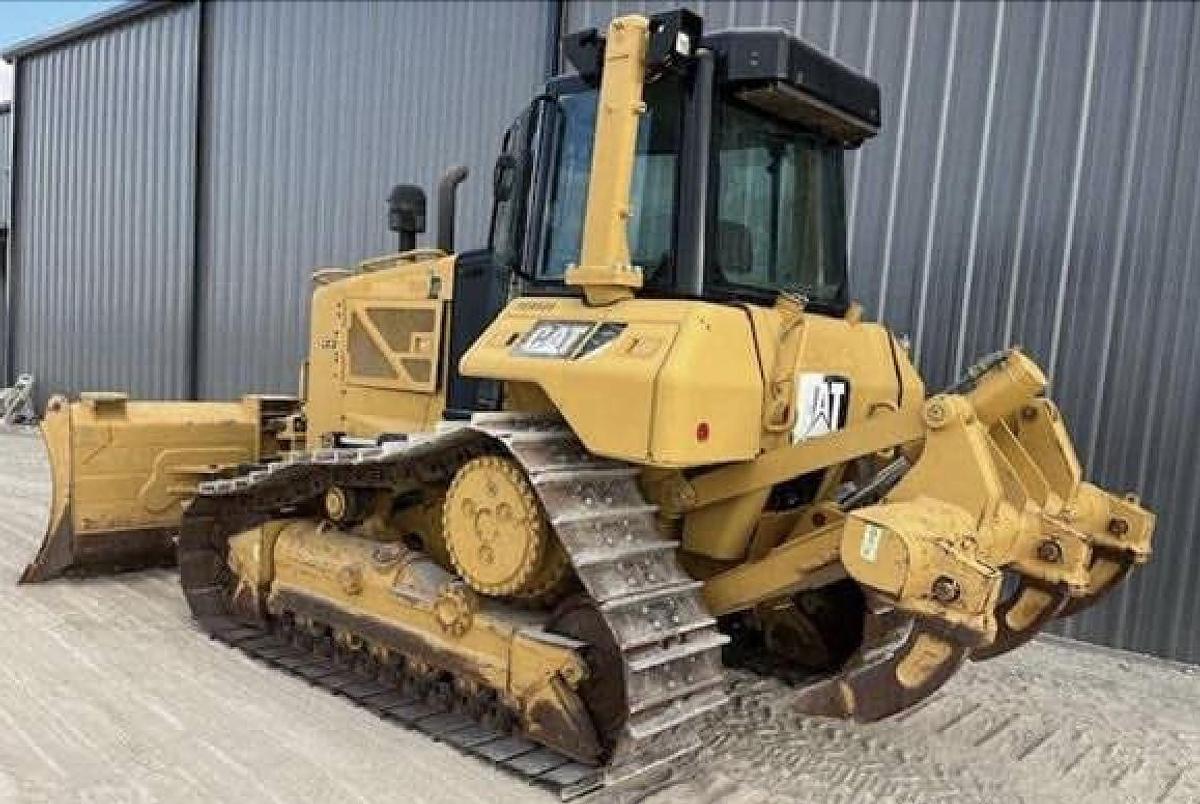

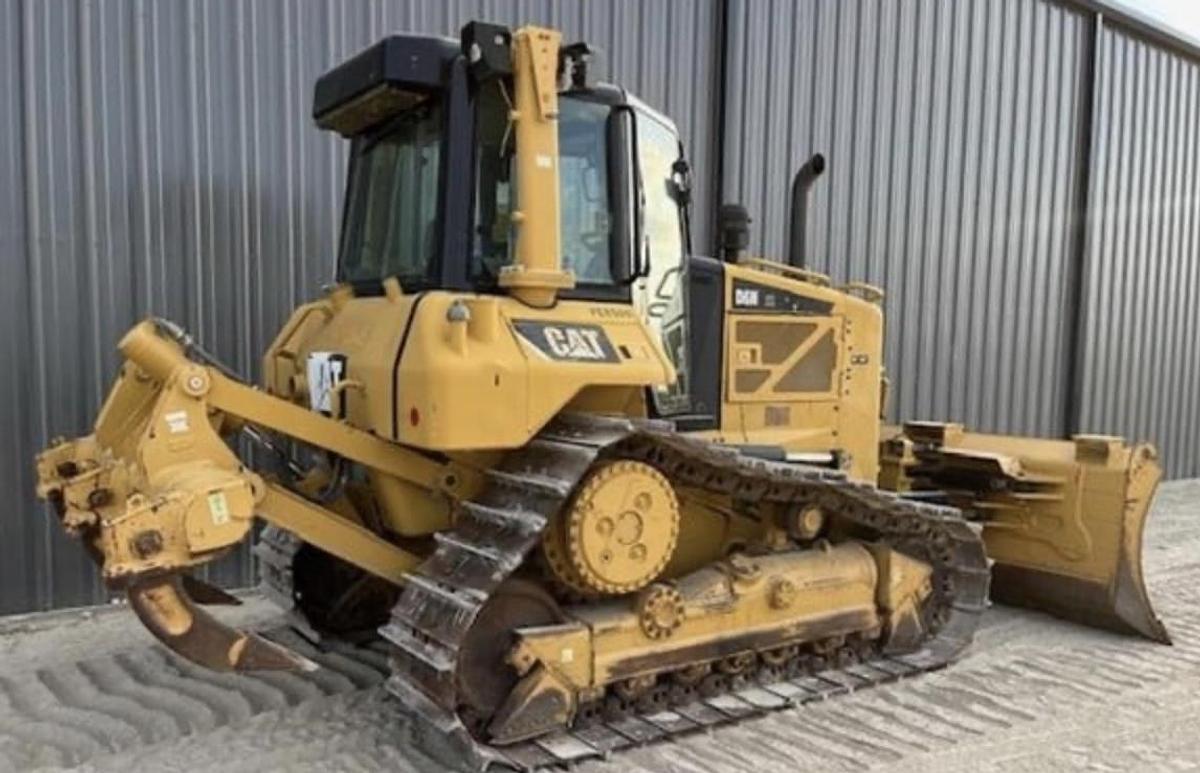

This 2014 Caterpillar D6N XL is a solid, work-ready dozer with relatively low hours and plenty of idle time. It features a newly rebuilt transmission, and invoices are available directly from Caterpillar for all parts used. Everything is good to go on this one.

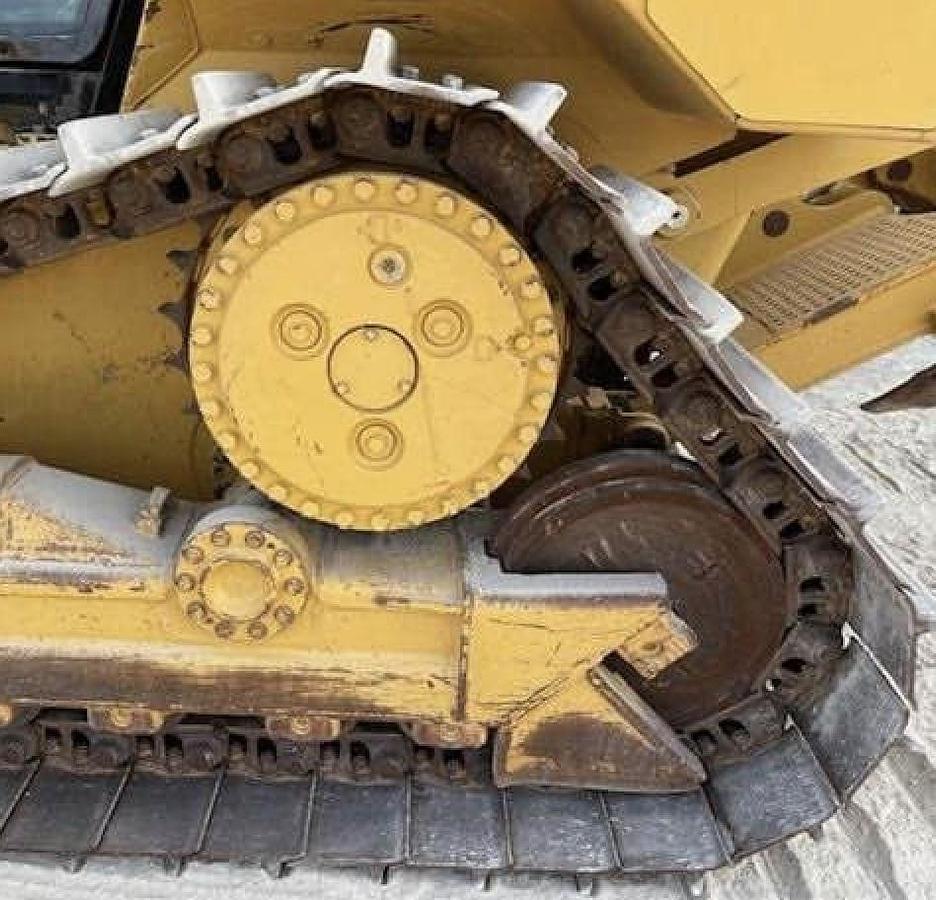

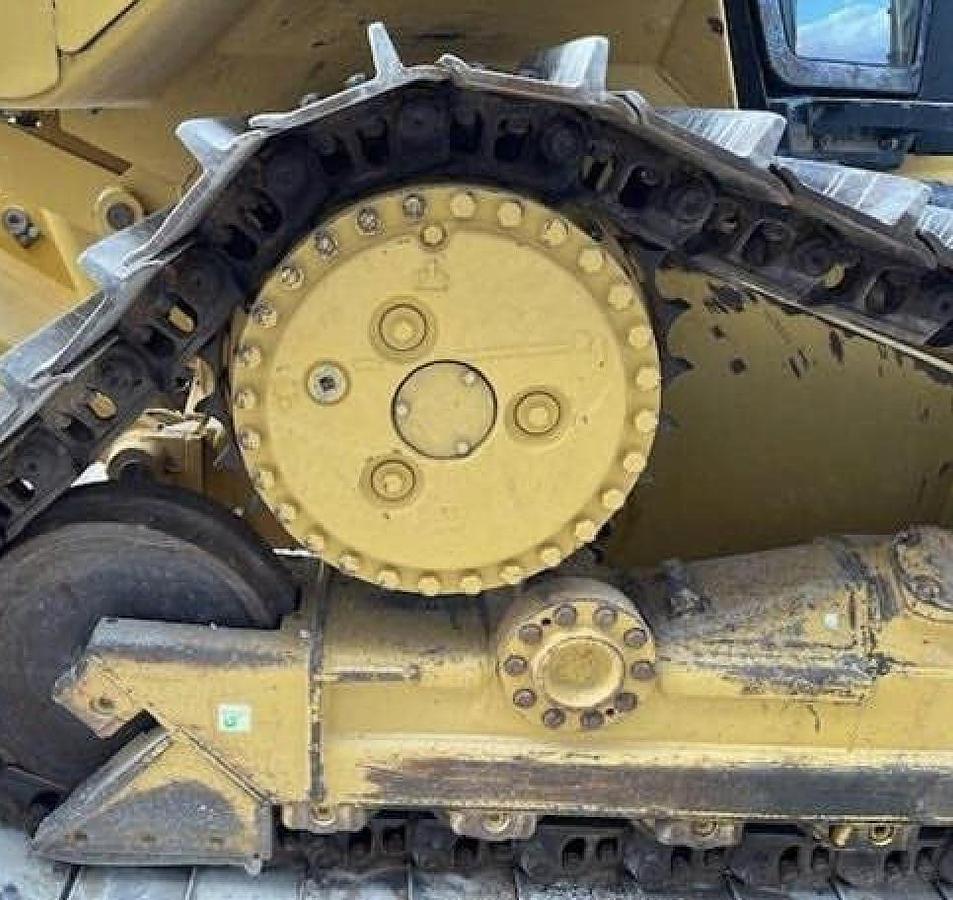

Equipped with a 9 ft 9 in six-way blade, multi-shank ripper, and powered by a strong 145 HP engine, this machine is built for performance. The undercarriage is approximately 75 percent, with good sprockets, pads, and rollers. Hydraulics are tight and responsive, and the machine is equipped with a comfortable enclosed cab with A/C.

We’re happy to provide full inspection reports, service records, and a customized walkaround video. Just let us know what areas you'd like to see, and we’ll film exactly what you need. This D6N XL is a dependable addition to any fleet and ready to get to work.

Engine

• Model: Cat C6.6 ACERT

• Net Power: 145 HP (108 kW)

• Displacement: 403 in³ (6.6 L)

• Emissions: Tier 4 Interim / EU Stage IIIB

Transmission

• Type: Hydrostatic

• Travel Speeds:

 Forward: 6.8 km/h (4.2 mph

 Reverse: 8.8 km/h (5.5 mph)

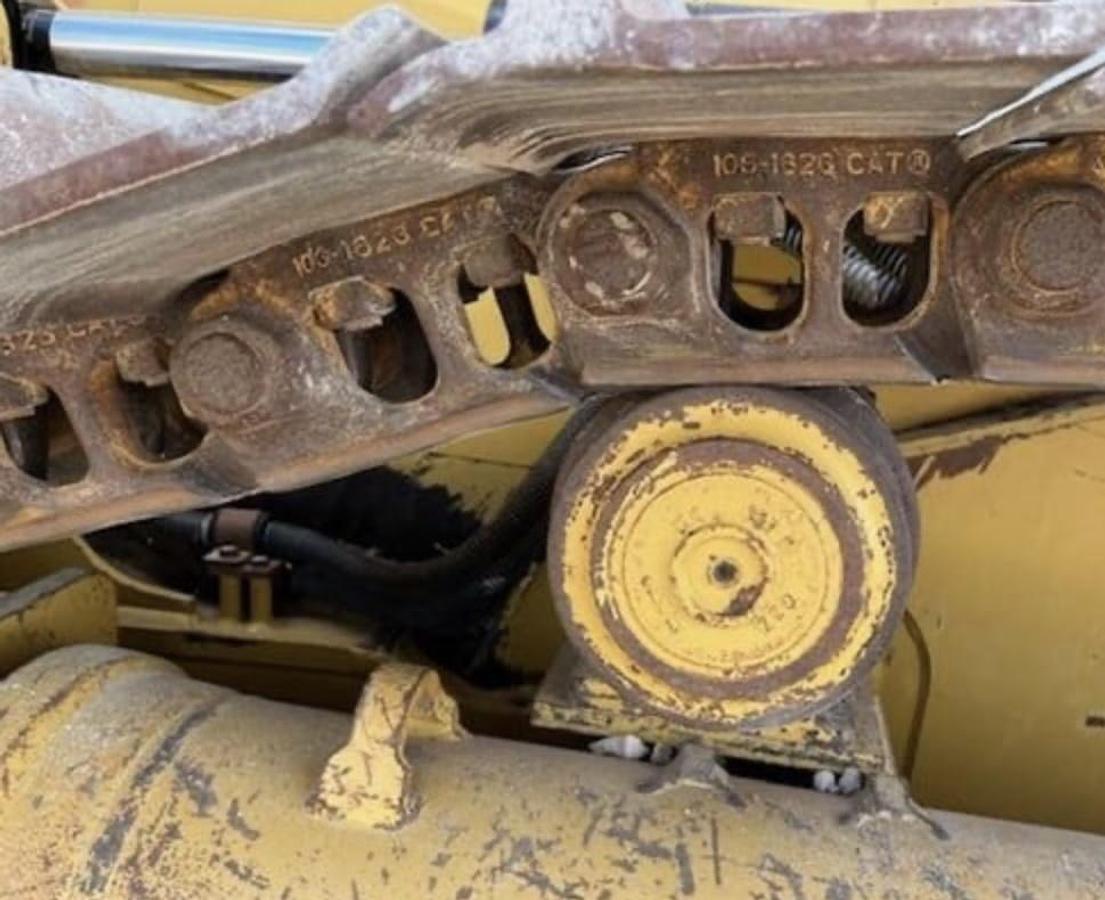

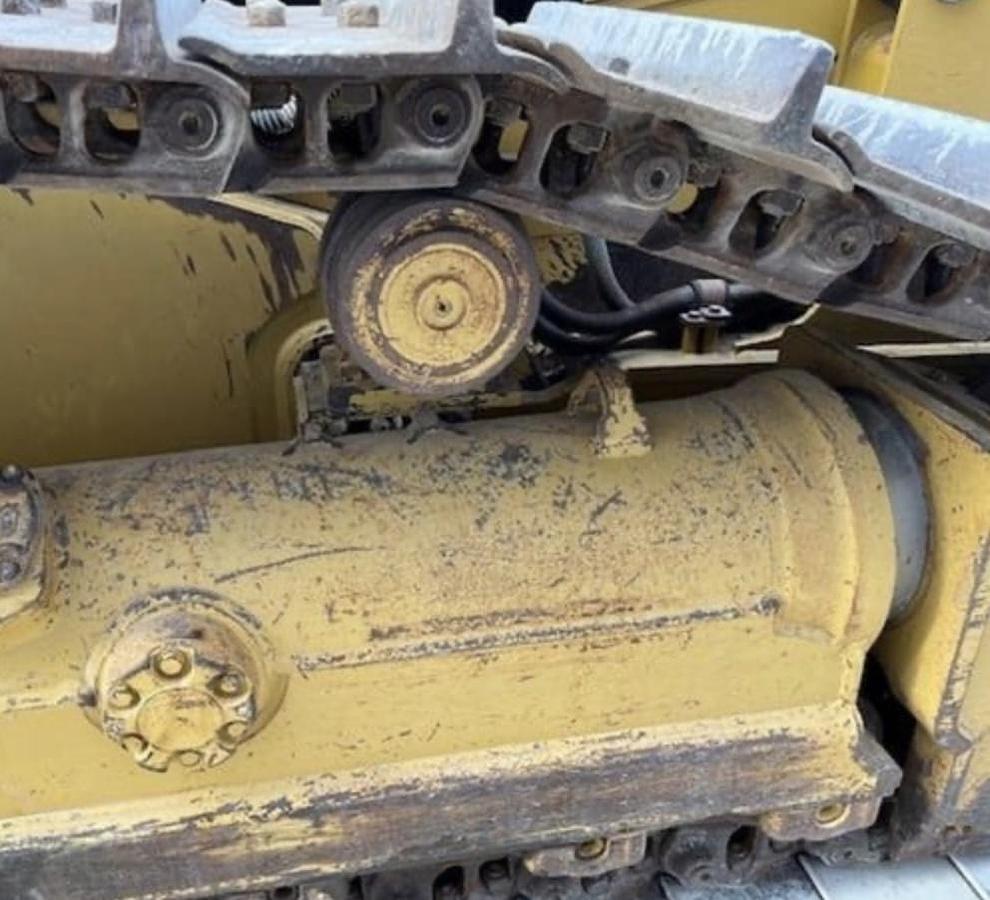

Undercarriage

• Configuration: XL (Extra Long Track)

• Track Gauge: 78 in (1,980 mm)

• Ground Contact Area: 5,149 in² (3.32 m²)

• Ground Pressure: 6.9 psi (47.5 kPa)

• Shoes per Side: 40

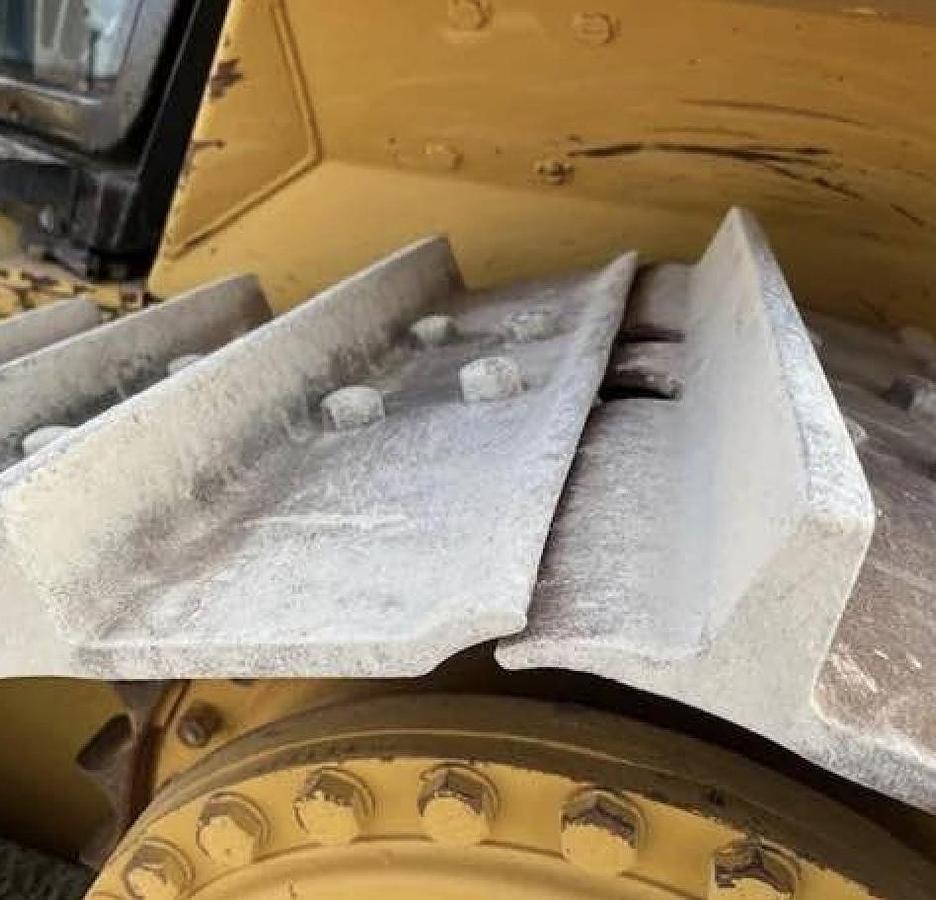

• Track Shoe Width: 22 in (560 mm)

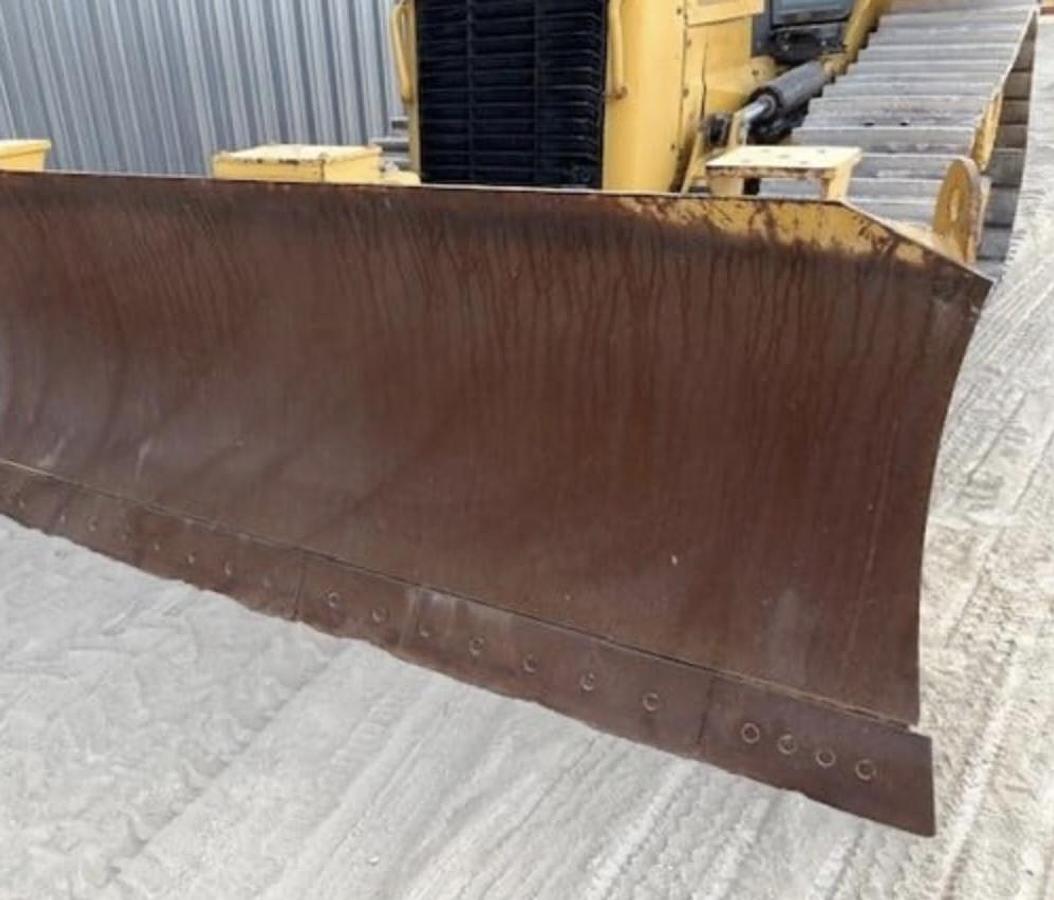

Blade

• Equipped with a 9 ft 9 in 6-way blade

• Width: 9 ft 9 in (2,972 mm)

• Capacity: 3.5–4.3 yd³ depending on blade type

• Max Digging Depth: Approx. 22.5 in (570 mm)

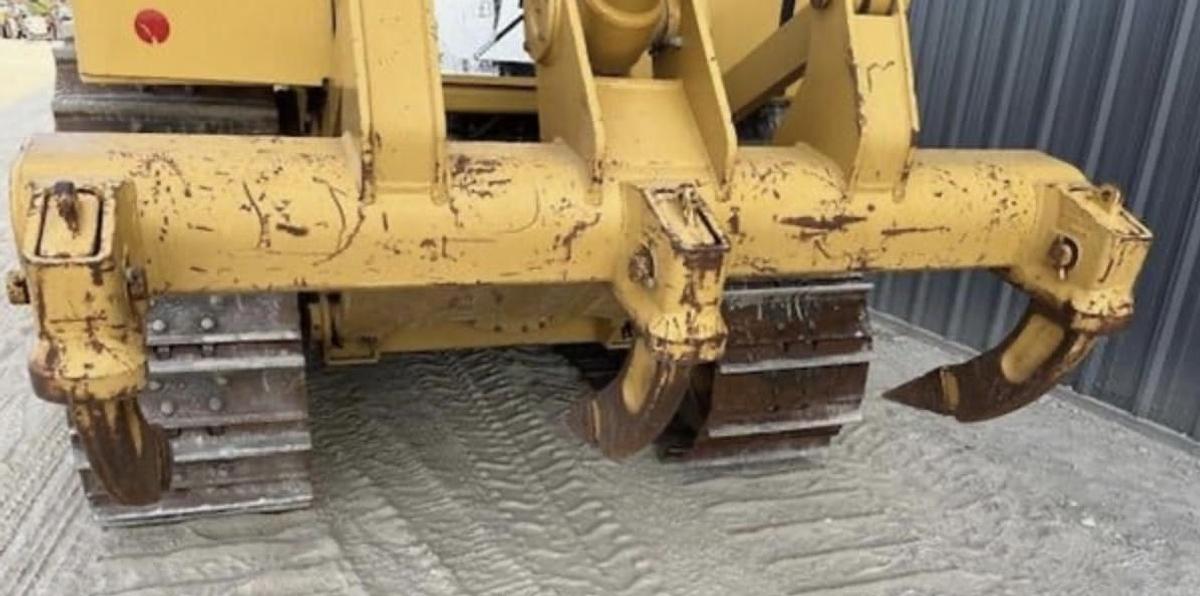

Ripper

• Type: Multi-Shank

• Number of Shanks: 3 (adjustable spacing)

• Penetration Depth: Approx. 17.5 in (445 mm)

• Ripper Width: Approx. 83 in (2,108 mm)

Dimensions

• Length with Blade: 16.3 ft (4,970 mm)

• Height (ROPS): 10 ft 4 in (3,150 mm)

• Width Over Tracks: 8 ft 2 in (2,489 mm)

Operating Weight

• XL Configuration: 36,610 lb (16,605 kg)

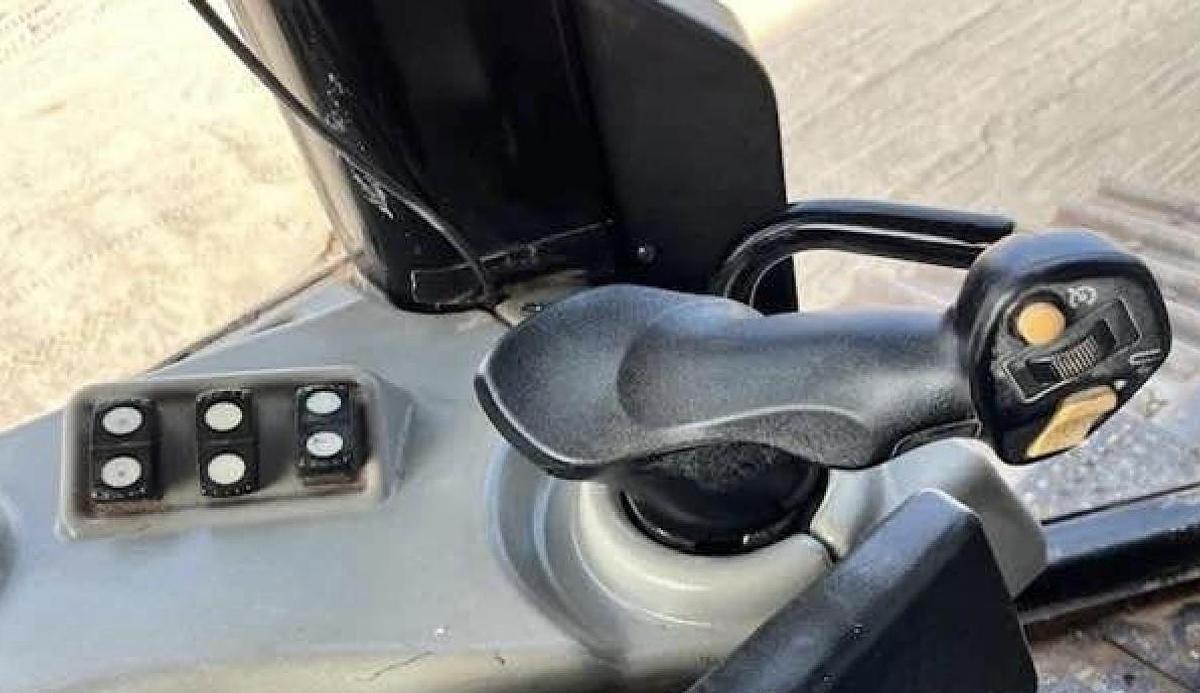

Cab & Controls

• Enclosed Cab with ROPS

• Air Conditioning & Heating

• Adjustable Suspension Seat

• Electronic Monitoring System

GPS Ready
