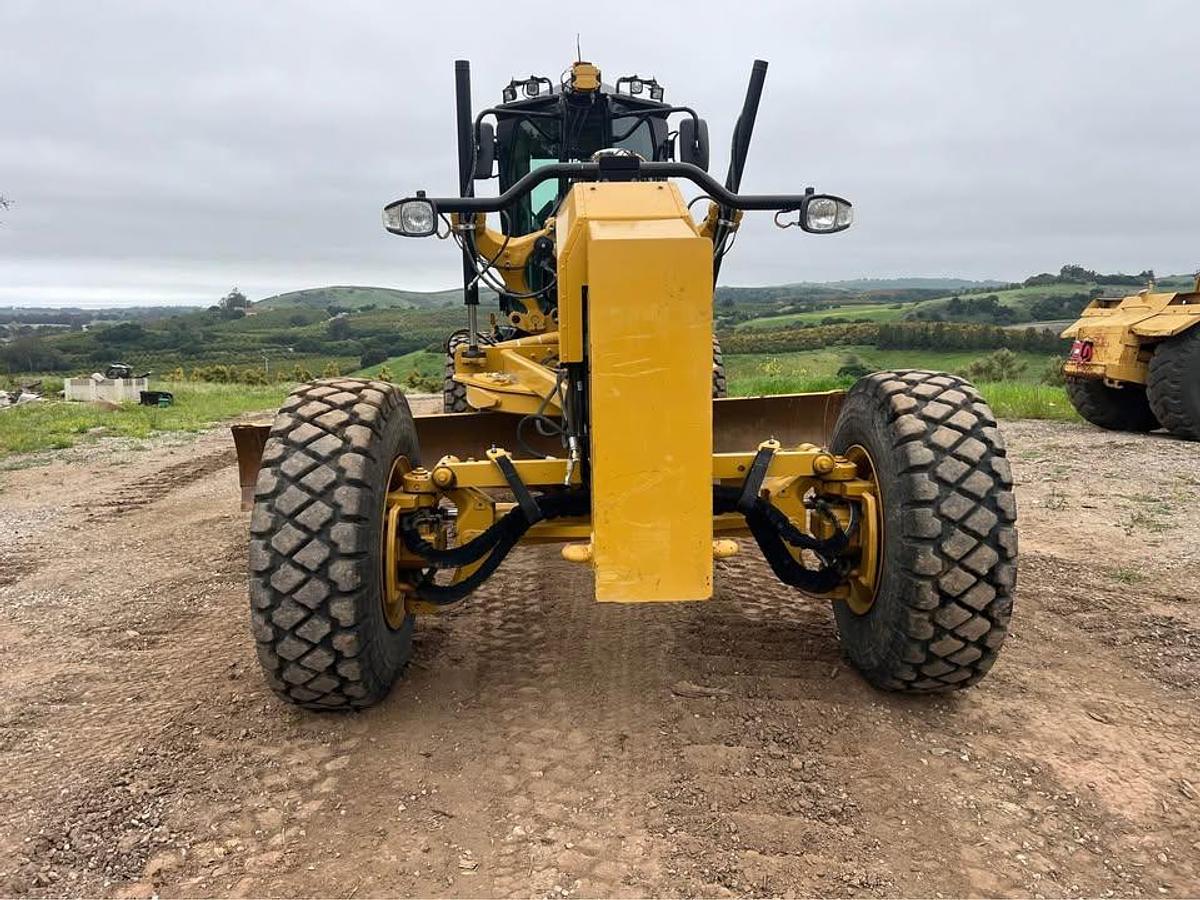

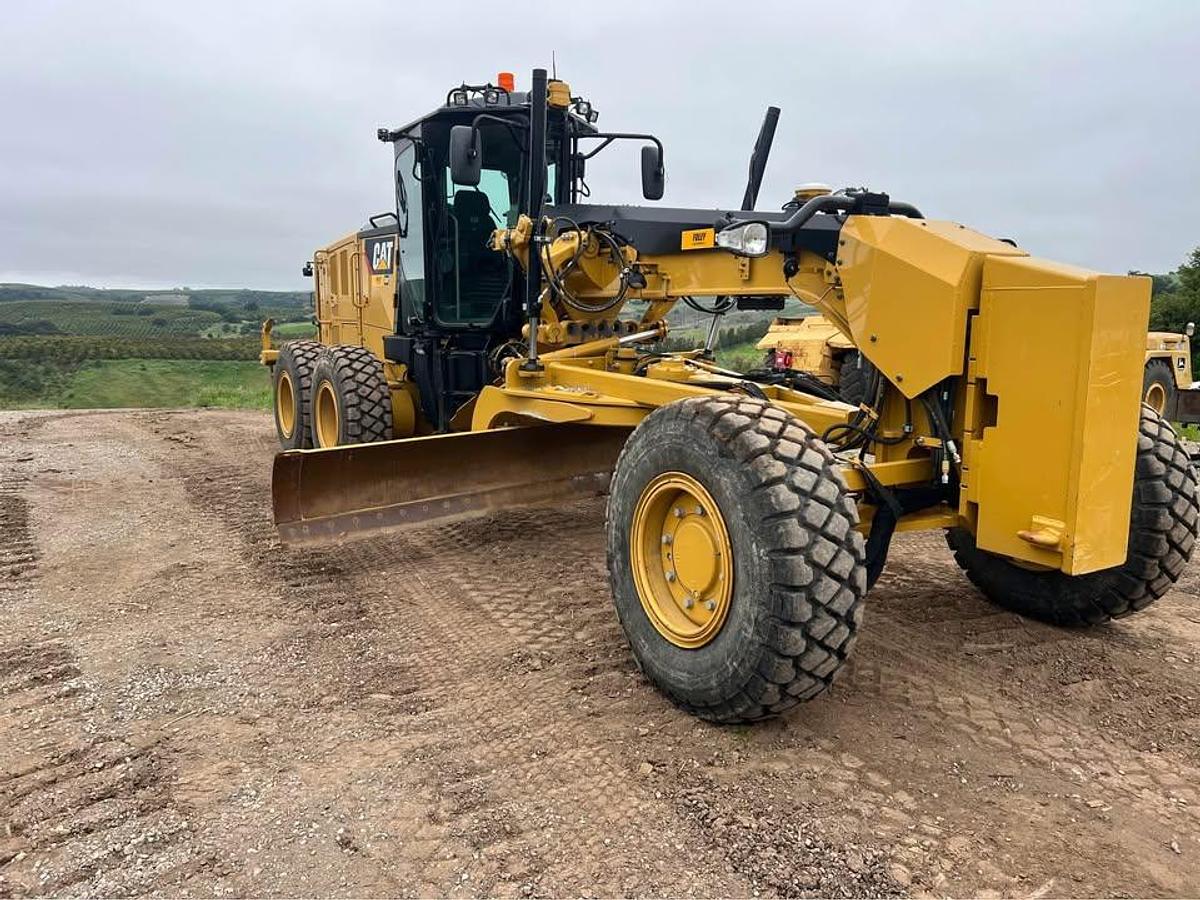

2018 Caterpillar 140M3 AWD Motor Grader

2018 Caterpillar 140M3 AWD Motor Grader

This 2018 Cat 140M3 All-Wheel Drive Motor Grader is loaded and work-ready. Outfitted with Trimble Earthworks and Infield Design, it’s GPS-grade control capable and built for precision. This machine includes rear rippers, full articulation, accumulators, and possibly joystick steering with integrated GPS controls.

ENGINE

• Model: Cat® C9.3 ACERT™
• Emissions: U.S. EPA Tier 4 Final / EU Stage IV
• Net Power (ISO 9249): 250 hp (186 kW)
• Gross Power (SAE J1995): 258 hp (192 kW)
• Displacement: 9.3 L (567 in³)
• Bore x Stroke: 115 mm × 149 mm (4.5 in × 5.9 in)
• Engine Speed: 2,000 rpm
• Fuel Tank Capacity: 416 L (110 gal)
• DEF Tank: 29 L (7.7 gal)

TRANSMISSION

• Type: Direct Drive, Power Shift
• Gears: 8 Forward / 6 Reverse
• Max Forward Speed: 45.3 km/h (28.1 mph)
• Max Reverse Speed: 36.8 km/h (22.9 mph)

ALL-WHEEL DRIVE (AWD)

• Type: Hydraulically Driven Front Wheels
• Control: Manual or Auto Mode (torque-sensing)

STEERING & CONTROL

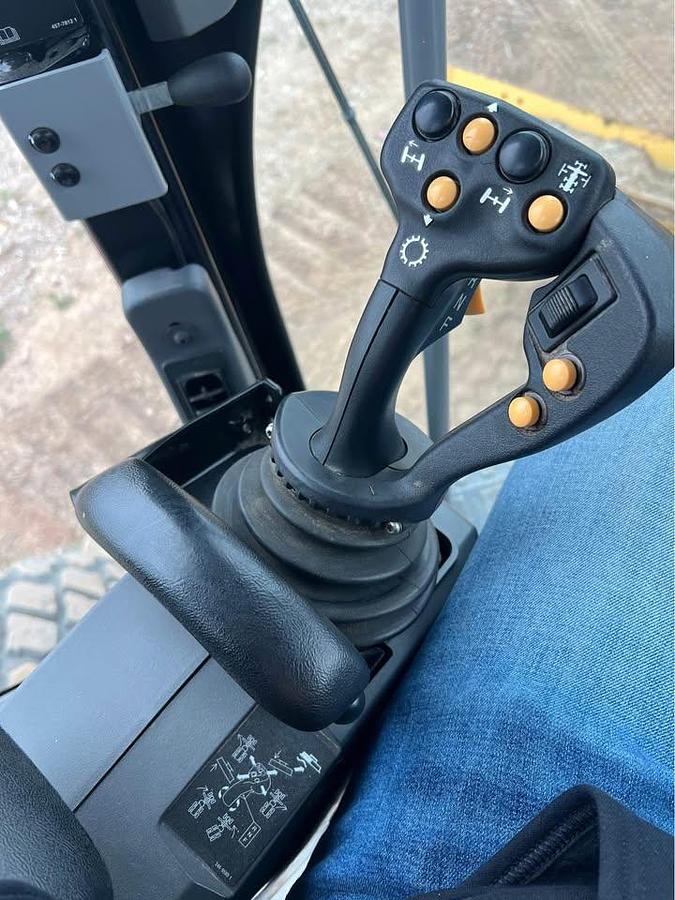

• Control Type: Advanced Joystick Control with Integrated GPS
• Joystick Functions: Steering, blade lift, articulation, circle drive, drawbar sideshift
• Steering Range: 25° Left / Right Articulation
• Turning Radius (outside front tires): 7.39 m (24 ft 3 in)

HYDRAULICS

• System Type: Load Sensing, Closed Center
• Pump Type: Variable Displacement Axial Piston
• Pump Flow: 210 L/min (55.5 gal/min)
• Blade Lift Accumulators: Installed
• Maximum System Pressure: 2,750 psi (18965 kPa)

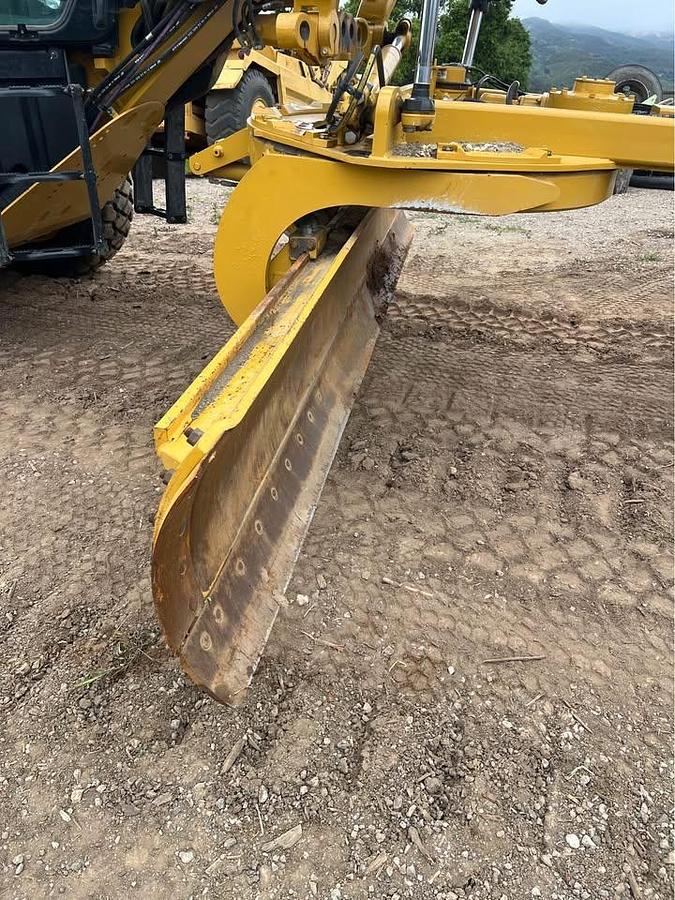

MOLDBOARD & BLADE

• Blade Width: 3.66 m (12 ft)
• Blade Height: 610 mm (24 in)
• Cutting Edge: 152 mm × 16 mm (6 in × 0.63 in)
• Max Depth of Cut: 735 mm (28.9 in)
• Max Blade Lift Above Ground: 406 mm (16 in)
• Blade Tip (Fwd/Back): 40° / 5°
• Circle Diameter: 1525 mm (60 in)
• Side Shift (Right/Left): 660 mm / 508 mm (26 in / 20 in)

REAR RIPPER

• Type: Parallelogram Ripper
• Shanks: 5 (standard)
• Penetration Depth: 427 mm (16.8 in)
• Spacing Between Shanks: 533 mm (21 in)
• Penetration Force: 92.6 kN (20,812 lb)
• Pry-Out Force: 123.6 kN (27,794 lb)

OPERATOR STATION

• Cab: Enclosed ROPS/FOPS with pressurization
• Seat: Heated air-suspension, adjustable joystick pods
• Controls: Dual Advanced Joysticks with full grader function
• Climate Control: Heat & Air Conditioning standard

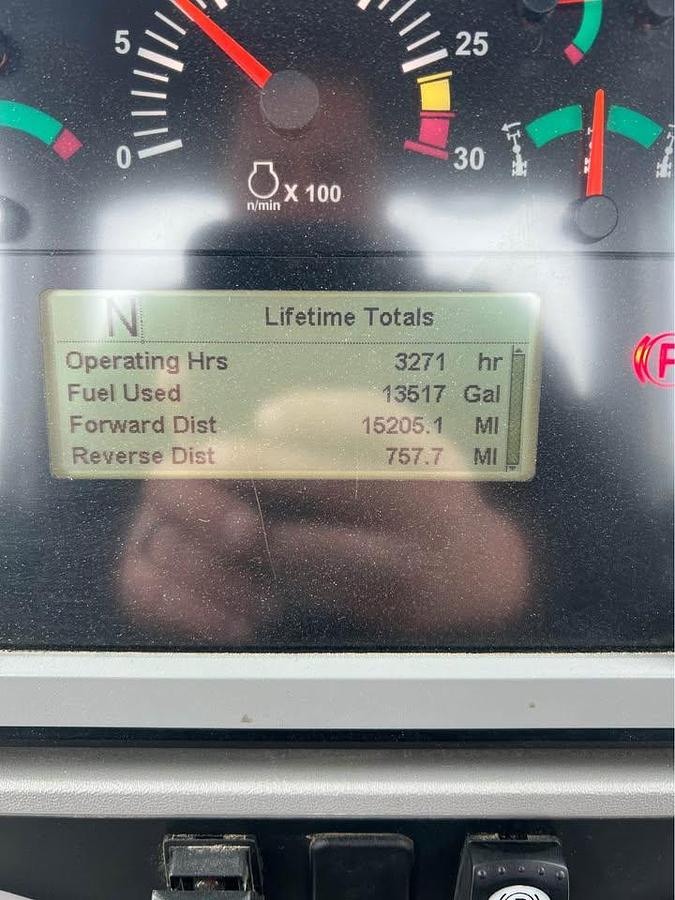

• Displays: Full-color LCD monitor, diagnostics and grade settings
• Rear Camera: Optional (frequently included)

TECHNOLOGY

• Grade Control Ready: Yes

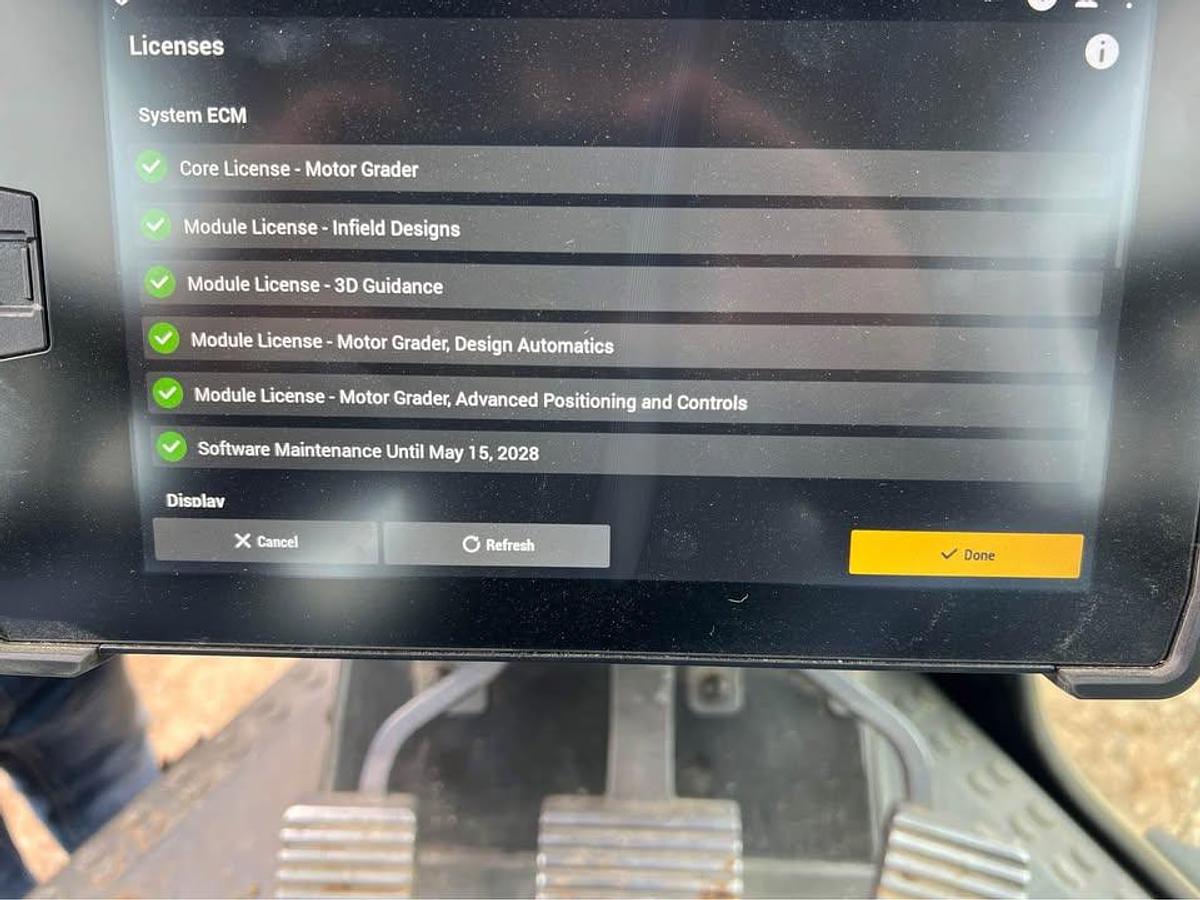

• GPS System: Trimble Earthworks with Infield Design
• Software Compatibility: Cat Grade, AccuGrade™, Trimble GCS900/GCS900.2
• Machine Control: Integrated with joystick function
• Telematics: Product Link™ Enabled

DIMENSIONS & WEIGHT

• Overall Length (with blade): 9.3 m (30 ft 6 in)
• Width (outside front tires): 2.49 m (8 ft 2 in)
• Height (top of cab): 3.43 m (11 ft 3 in)
• Wheelbase: 6.6 m (21 ft 8 in)
• Operating Weight (AWD w/ ripper): 20,236 kg (44,600 lb)

OPTIONAL EQUIPMENT (INSTALLED ON THIS UNIT)

• All-Wheel Drive
• Rear Ripper – 5 Shank
• Advanced Joystick Steering
• Blade Lift Accumulators
• Trimble Earthworks GPS with Infield Design
• Full Enclosed Cab with HVAC
• Product Link™ Telematics
