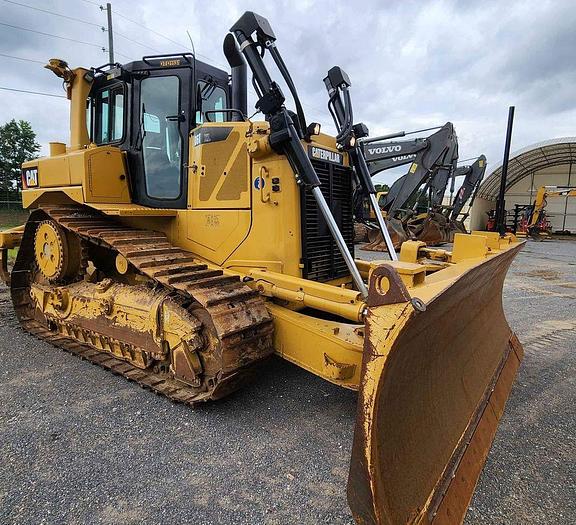

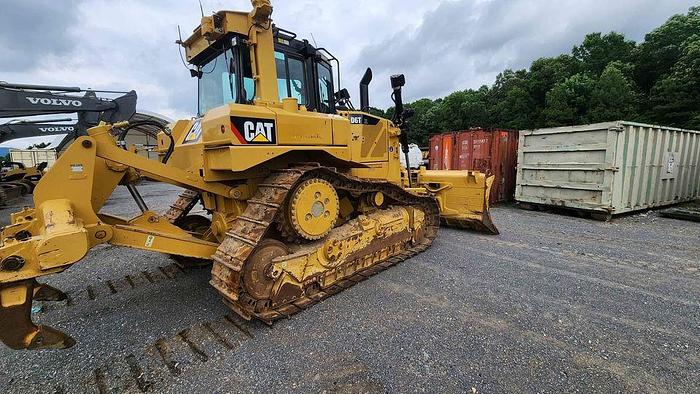

2012 Caterpillar D6T XL

2012 Caterpillar D6T XL

This is a solid, reliable dozer that’s ready to get to work. It comes equipped with EROPS for operator comfort and protection, along with a multi-shank ripper setup ideal for heavy-duty applications. The machine has just been fully serviced, making it a turn-key option for any job site.

It’s a clean unit, straight body, no major cosmetic wear, and everything runs as it should. A great choice for anyone looking to add a dependable piece of equipment to their fleet without the guesswork.

Walkaround video and full service records available on request.

Engine

• Model: Cat C7.1 ACERT
• Net Power (ISO 9249): Approx. 165 hp (123 kW)
• Gross Power: Approx. 170 hp (127 kW)
• Displacement: 7.01 L (427 in³)
• Emissions: EPA Tier 3 / EU Stage IIIA
• Fuel Capacity: Approx. 103 gallons (390 L)

Operating Weight

• Operating Weight (with ripper): Approx. 47,200 lbs (21,400 kg)
• Operating Weight (without ripper): Approx. 44,000 lbs (20,000 kg)

Transmission

• Type: Power shift transmission with electronically controlled clutches
• Forward Speeds: 6
• Reverse Speeds: 3

Undercarriage

• Track Type: Heavy-duty, sealed and lubricated track rollers
• Track Gauge: 72 in (1,829 mm)
• Track Shoe Width: 20 in (508 mm) standard (wide track options available)
• Number of Track Rollers (each side): 7

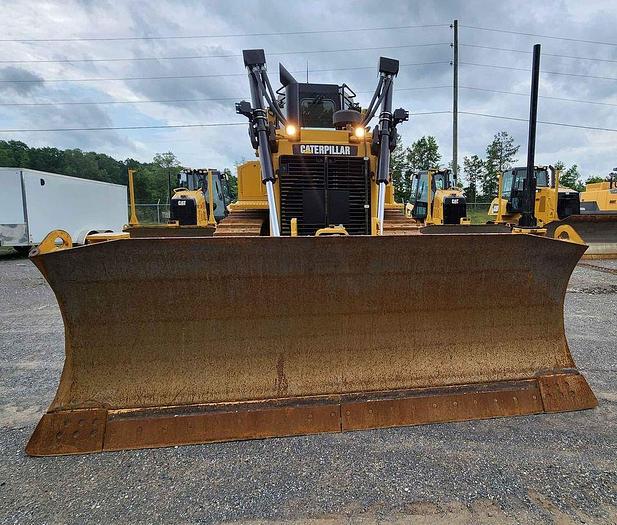

Blade

• Type: Straight blade (S-Blade) or semi-U blade options available
• Blade Width: Approx. 10 ft (3,048 mm)
• Blade Capacity: Approx. 4.5 yd³ (3.4 m³)

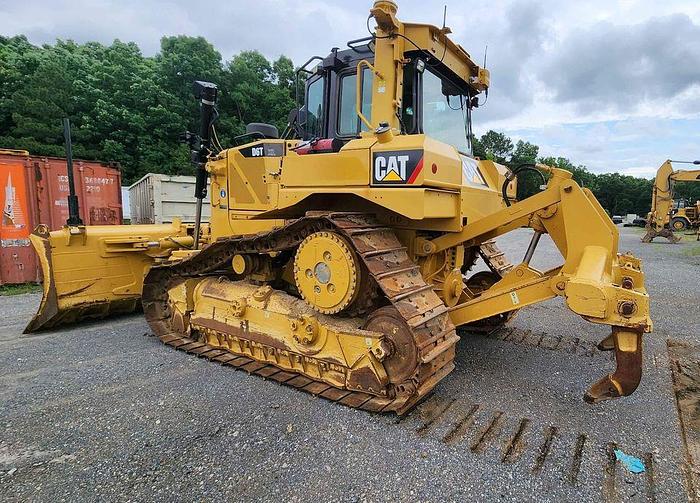

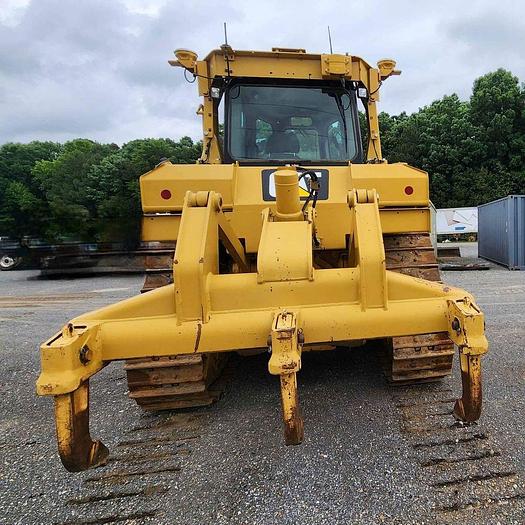

Ripper

• Multi-shank ripper included
• Number of shanks: 3
• Maximum penetration force: Approx. 30,000 lbf (133 kN)

Hydraulics

• System Type: Open-center load sensing
• Pump Flow: 48 gal/min (181 L/min)

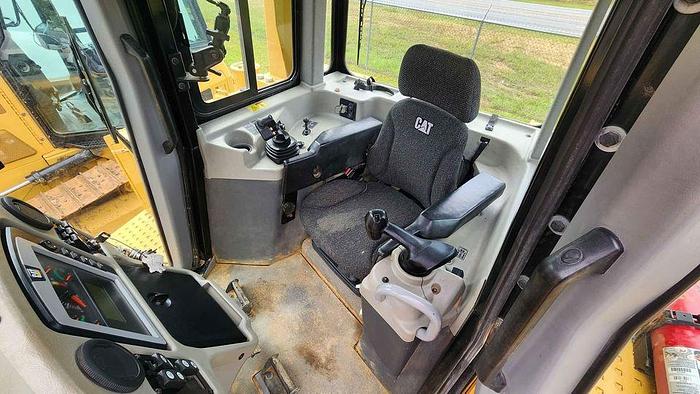

Cab and Operator Station

• Enclosed ROPS/FOPS certified cab (EROPS)
• Air conditioning and heating
• Adjustable seat with suspension
• Integrated controls with display monitor for machine diagnostics

Dimensions

• Length with blade: Approx. 19 ft (5.8 m)
• Width over tracks: Approx. 8 ft (2.4 m)
• Height to top of cab: Approx. 10 ft (3 m)

Performance

• Maximum Travel Speed: Approx. 9 mph (14.5 km/h)
• Gradeability: Up to 30%
